Product SKU
Description
- Protect the corners of walls, in-plant offices, and other structures

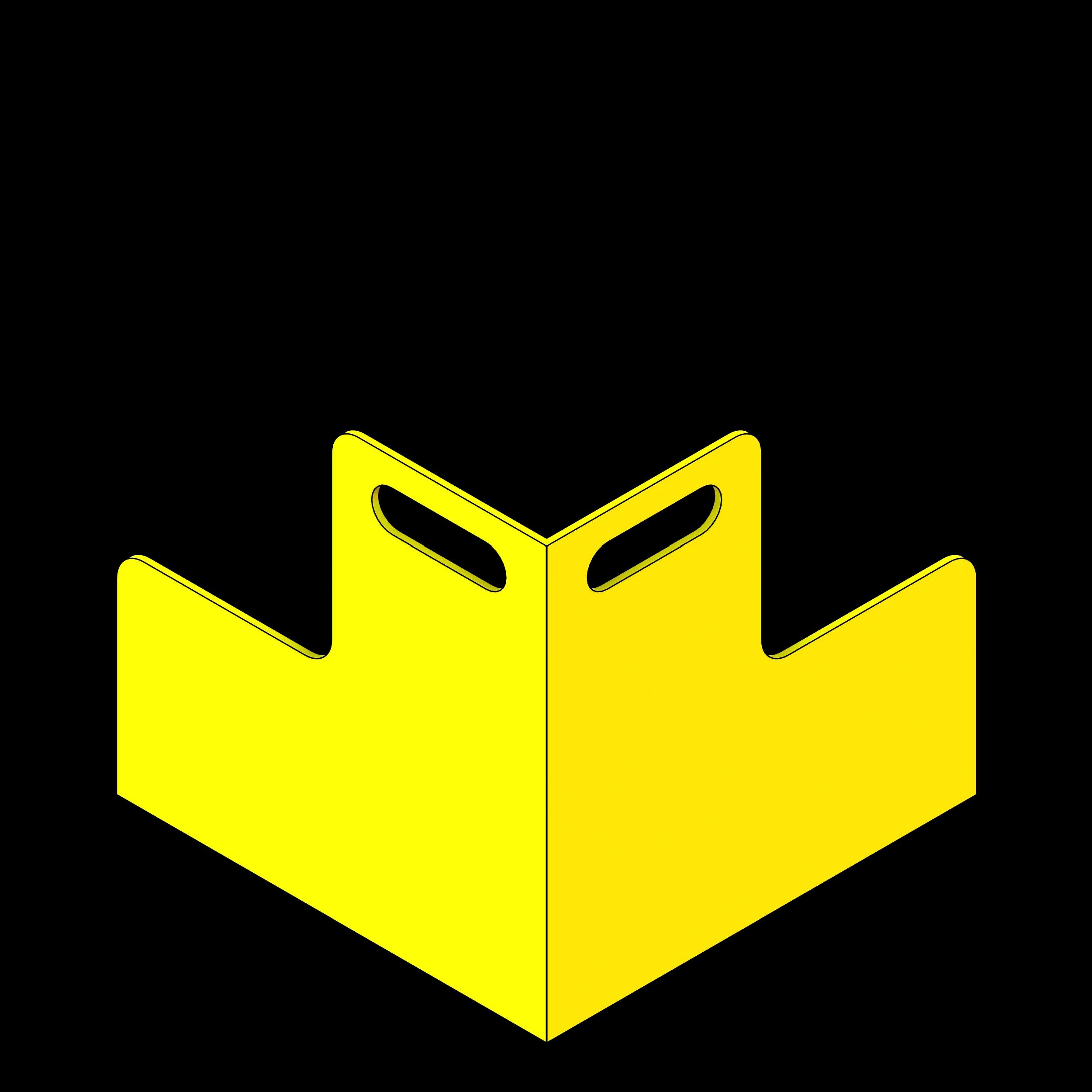

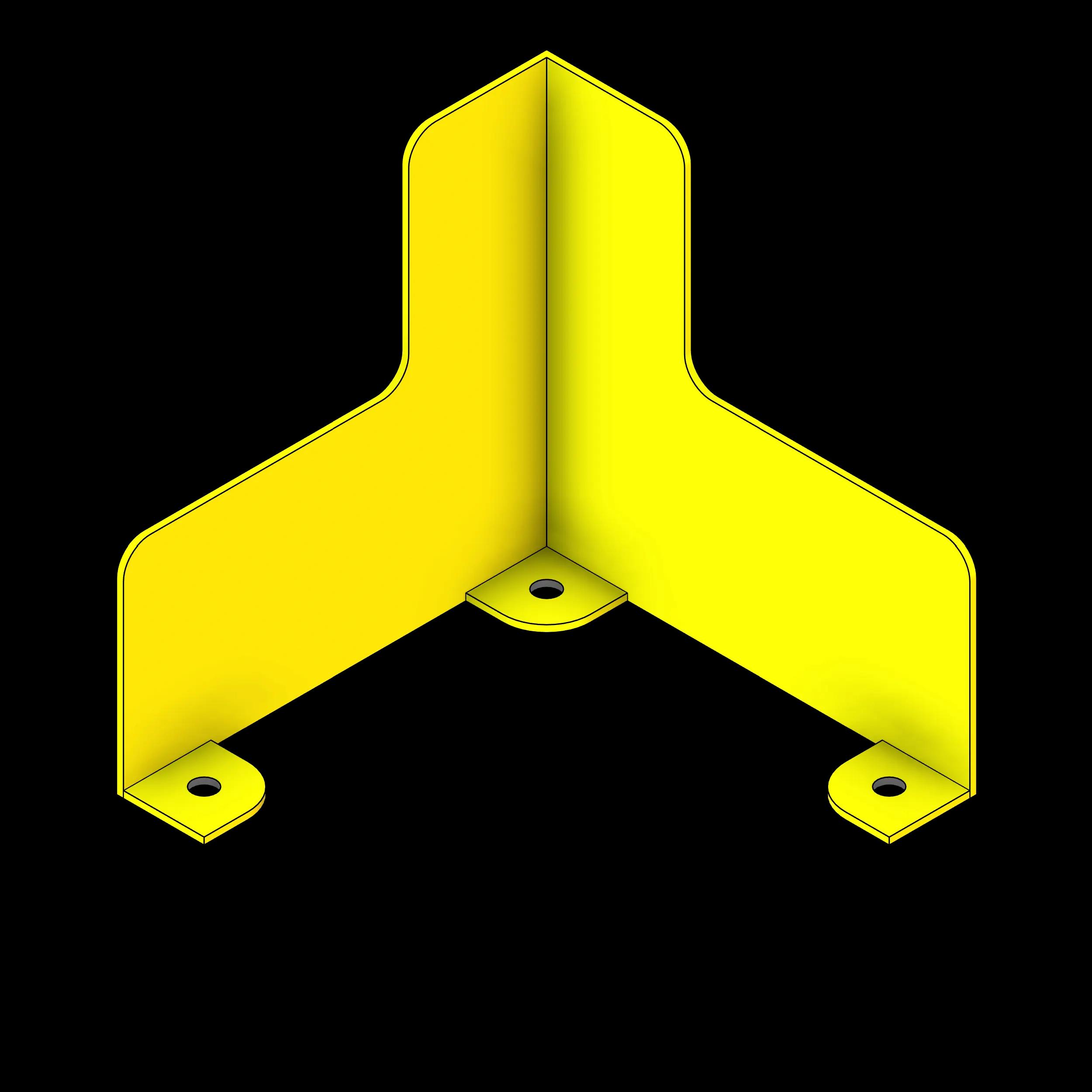

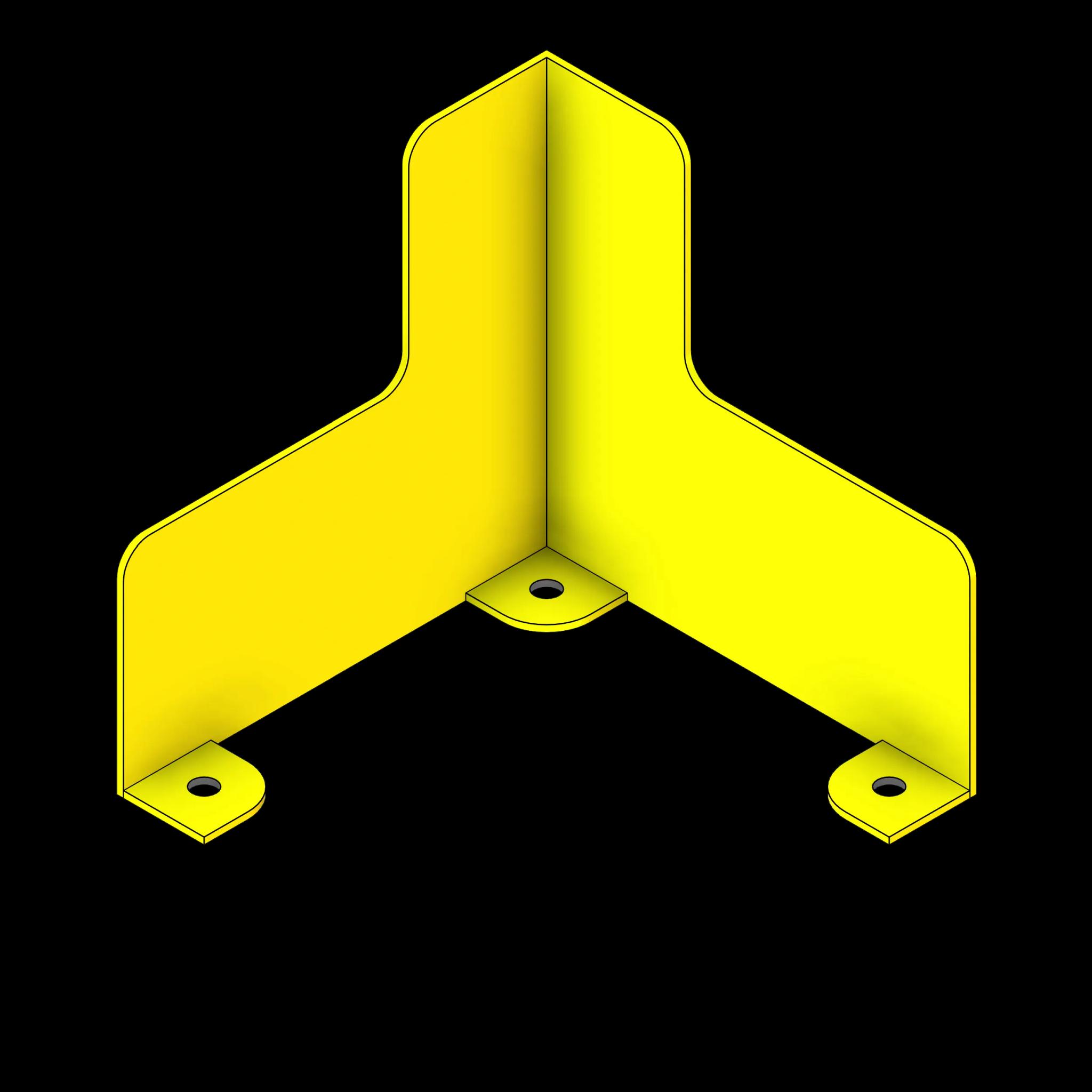

- Available in either floor mounted or mobile with carrying handle configurations
Revit 2020 (0.37 MB)
Revit 2021 (0.37 MB)
Revit 2022 (0.37 MB)
Revit 2023 (0.37 MB)
Revit 2024 (0.37 MB)
Revit 2025 (0.37 MB)
(0.04 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.
Industrial Coner Guard
This product is designed to protect corners of walls, in-plant offices, and other warehouse infrastructure from damage. To use this family, insert it into your project and select floor-mounted or mobile configurations between 16" and 24" models.
| Parameter | Value |
|---|---|
| Standard Widths | 16", 24" |
| Minimum Width | 1' 4" (15") |
| Maximum Width | 2' 0" (24") |
| Standard Depths | 16", 24" |
| Minimum Depth | 1' 4" (15") |
| Maximum Depth | 2' 0" (24") |
| Standard Heights | 16", 24" |
| Minimum Height | 1' 4" (15") |
| Maximum Height | 2' 0" (24") |
| Manufacturer | Southwest Solutions Group_VES |
| Lead Time | Ships in 5-7 Business days |
| Model | PCG |
| Keynote | 10 40 00 |
| Assembly Code | E2010 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Primary Material | Powder coated steel |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23.40.70.17 |
