Bollard Industrial Safety

Downloads

RFARevit family
PDFCut sheet123 KB

Get Fetch to load families straight into Revit →

Family

Pricing

Industrial bollards can be used in any warehouse, material handling, or fabrication setting to protect equipment and people
Available in a wide range of diameters and heights to fit any situation
Mounting holes and hardware included

Questions about this product?

Industrial Bollards

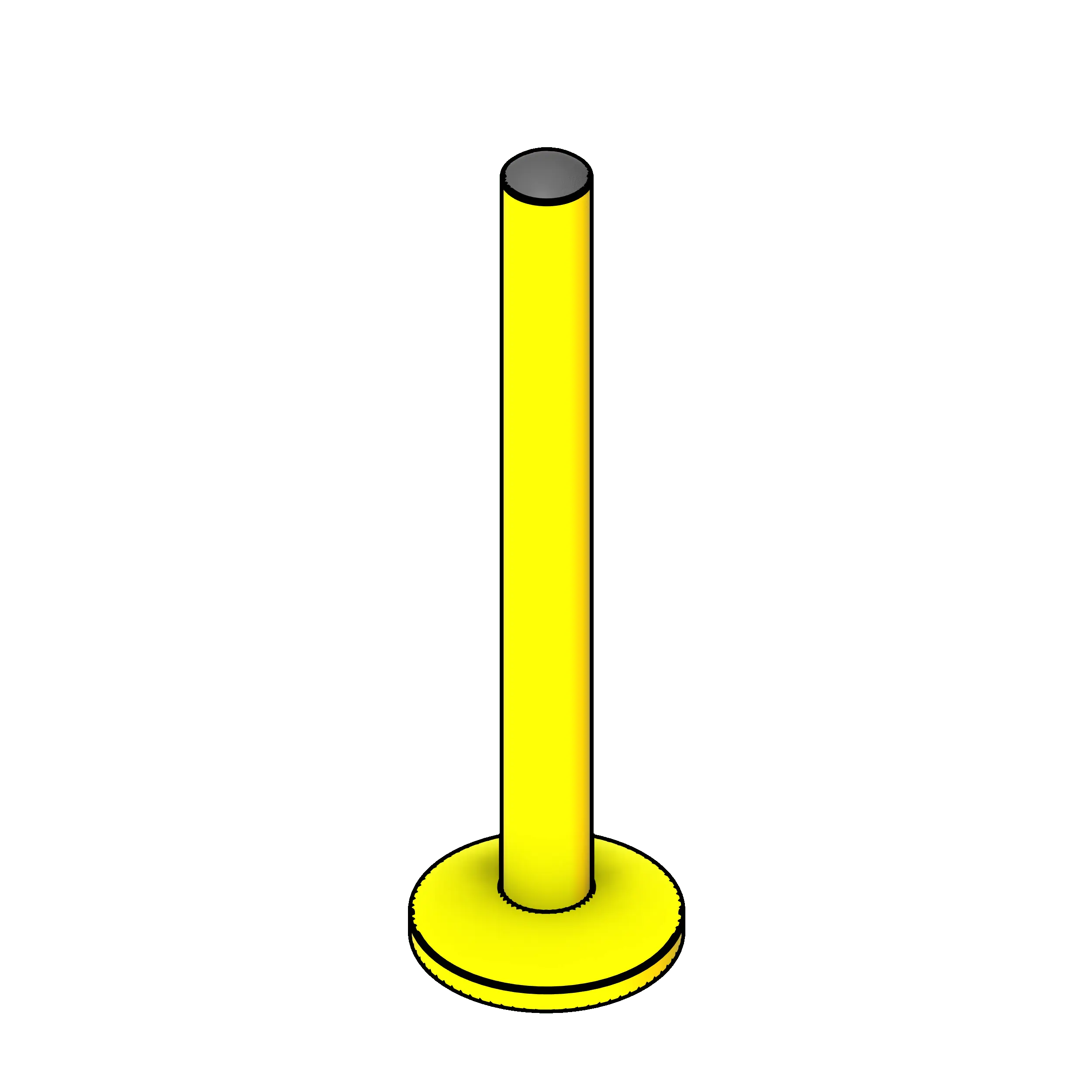

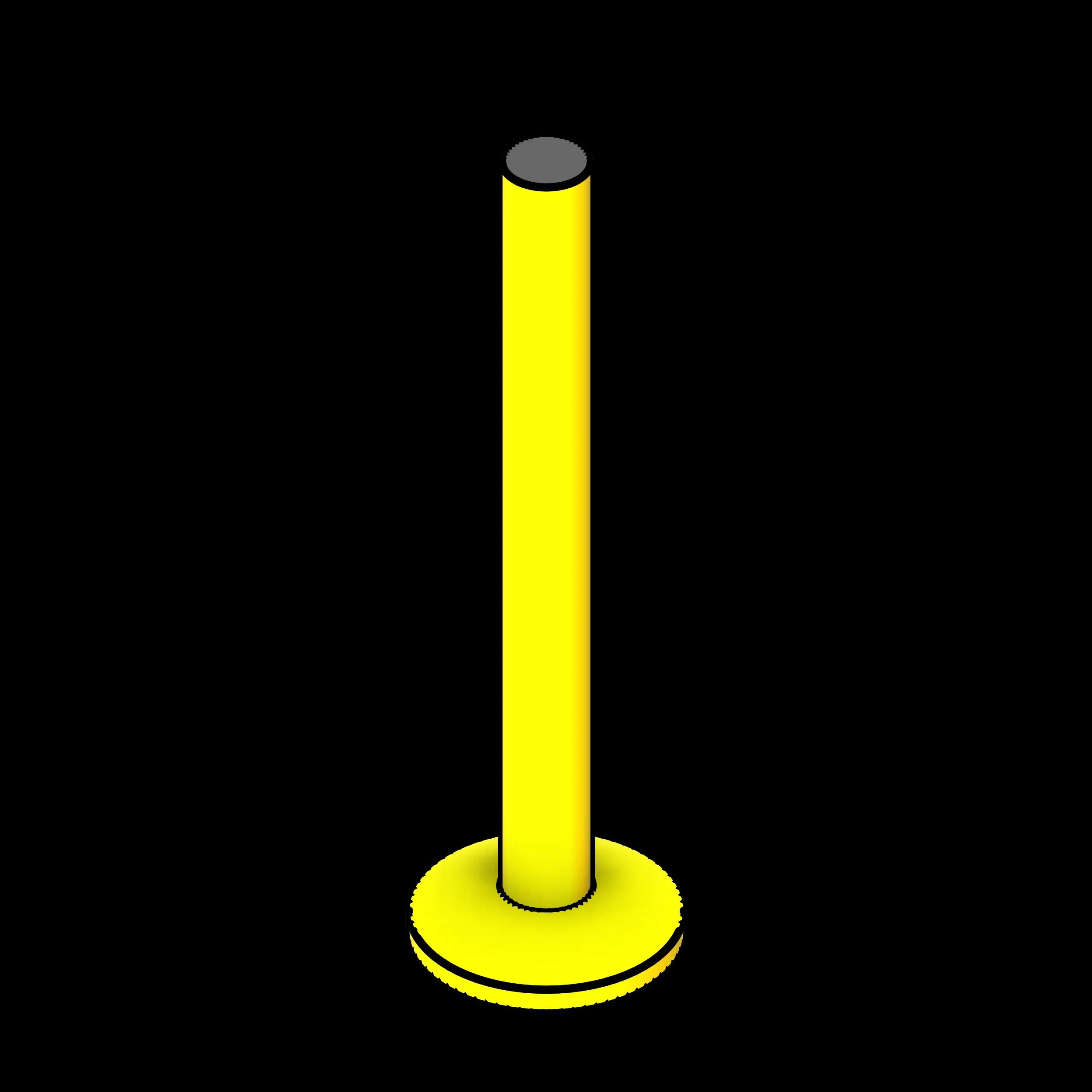

To use this family, place it into your Revit project, select a diameter from the integer spinner, then enter your desired height. The mounting holes will only be visible in the Fine level of detail. There are also options for a flat or rounded top cap.

Specifications
Dimensions
Width	2", 4 1/2", 5 1/2", 6 1/2", 8 1/2"
Depth	2", 4 1/2", 5 1/2", 6 1/2", 8 1/2"
Height	24", 36", 42", 48", 62", 72"
Product
Manufacturer	Southwest Solutions Group_VES
Lead Time	Ships in 5-7 Business days
Model	BOL
Primary Material	Powder coated steel
Classification
MasterFormat	10 40 00 – Safety Specialties
UniFormat	E2010 – Fixed Furnishings
IFC	Furniture
OmniClass	23.40.70.17 – Industrial and Manufacturing Equipment and Furnishings
Revit family
Includes Pricing	Yes
ADA Compliant	No
Has MEP Connectors	No

View all

Model	Width	Depth	Height	Weight
SSG-BOL-24-2	2' 0" (24")	2' 0" (24")	2' 0" (24")	6
SSG-BOL-24-4.5	4' 6" (54")	4' 6" (54")	2' 0" (24")	17
SSG-BOL-24-5.5	5' 6" (66")	5' 6" (66")	2' 0" (24")	20
SSG-BOL-36-2	2' 0" (24")	2' 0" (24")	3' 0" (36")	9
SSG-BOL-36-4.5	4' 6" (54")	4' 6" (54")	3' 0" (36")	22
SSG-BOL-36-5.5	5' 6" (66")	5' 6" (66")	3' 0" (36")	29
SSG-BOL-36-6.5	6' 6" (78")	6' 6" (78")	3' 0" (36")	36
SSG-BOL-36-8.5	8' 6" (102")	8' 6" (102")	3' 0" (36")	70
SSG-BOL-42-2	2' 0" (24")	2' 0" (24")	3' 6" (42")	9
SSG-BOL-42-4.5	4' 6" (54")	4' 6" (54")	3' 6" (42")	26
SSG-BOL-42-5.5	5' 6" (66")	5' 6" (66")	3' 6" (42")	34
SSG-BOL-42-6.5	6' 6" (78")	6' 6" (78")	3' 6" (42")	49
SSG-BOL-42-8.5	8' 6" (102")	8' 6" (102")	3' 6" (42")	72
SSG-BOL-48-2	2' 0" (24")	2' 0" (24")	4' 0" (48")	11
SSG-BOL-48-4.5	4' 6" (54")	4' 6" (54")	4' 0" (48")	29
SSG-BOL-48-5.5	5' 6" (66")	5' 6" (66")	4' 0" (48")	37
SSG-BOL-48-6.5	6' 6" (78")	6' 6" (78")	4' 0" (48")	51
SSG-BOL-48-8.5	8' 6" (102")	8' 6" (102")	4' 0" (48")	82
SSG-BOL-62-2	2' 0" (24")	2' 0" (24")	5' 2" (62")	39
SSG-BOL-62-4.5	4' 6" (54")	4' 6" (54")	5' 2" (62")	45
SSG-BOL-62-5.5	5' 6" (66")	5' 6" (66")	5' 2" (62")	61
SSG-BOL-62-6.5	6' 6" (78")	6' 6" (78")	5' 2" (62")	49
SSG-BOL-72-5.5	5' 6" (66")	5' 6" (66")	6' 0" (72")	55
SSG-BOL-72-6.5	6' 6" (78")	6' 6" (78")	6' 0" (72")	71
