Description
- Safety guardrails can be found in almost any warehouse or workshop
- Keep forklifts and automated arms in their lane and away from valuable or dangerous situations
- 42" tall guardrails are ideal for separating pedestrian walkways from traffic
Revit 2020 (0.47 MB)
Revit 2021 (0.47 MB)
Revit 2022 (0.47 MB)
Revit 2023 (0.47 MB)
Revit 2024 (0.47 MB)
Revit 2025 (0.47 MB)
(0.80 MB)
(0.03 MB)
(0.27 MB)
Industrial Guard Rails

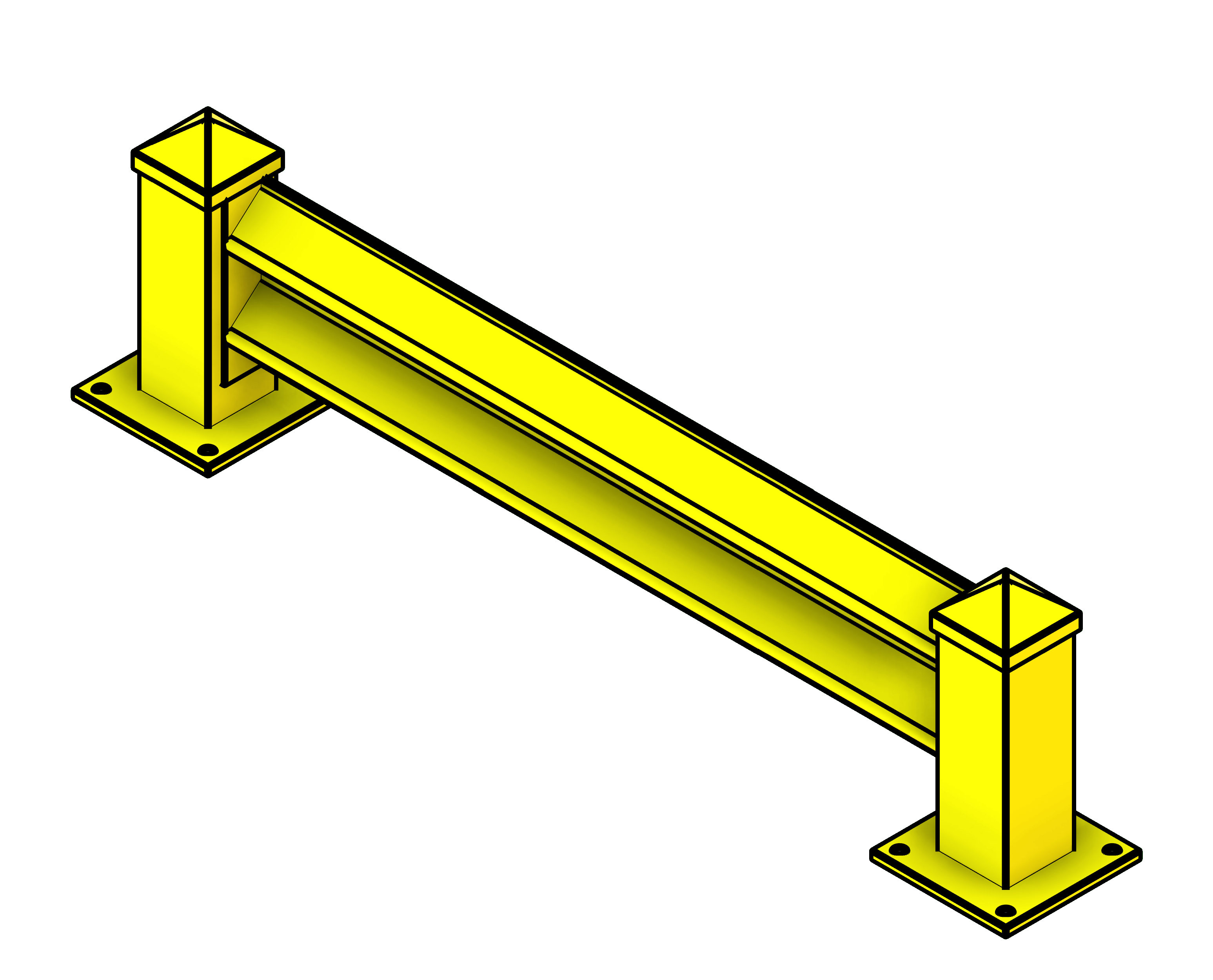

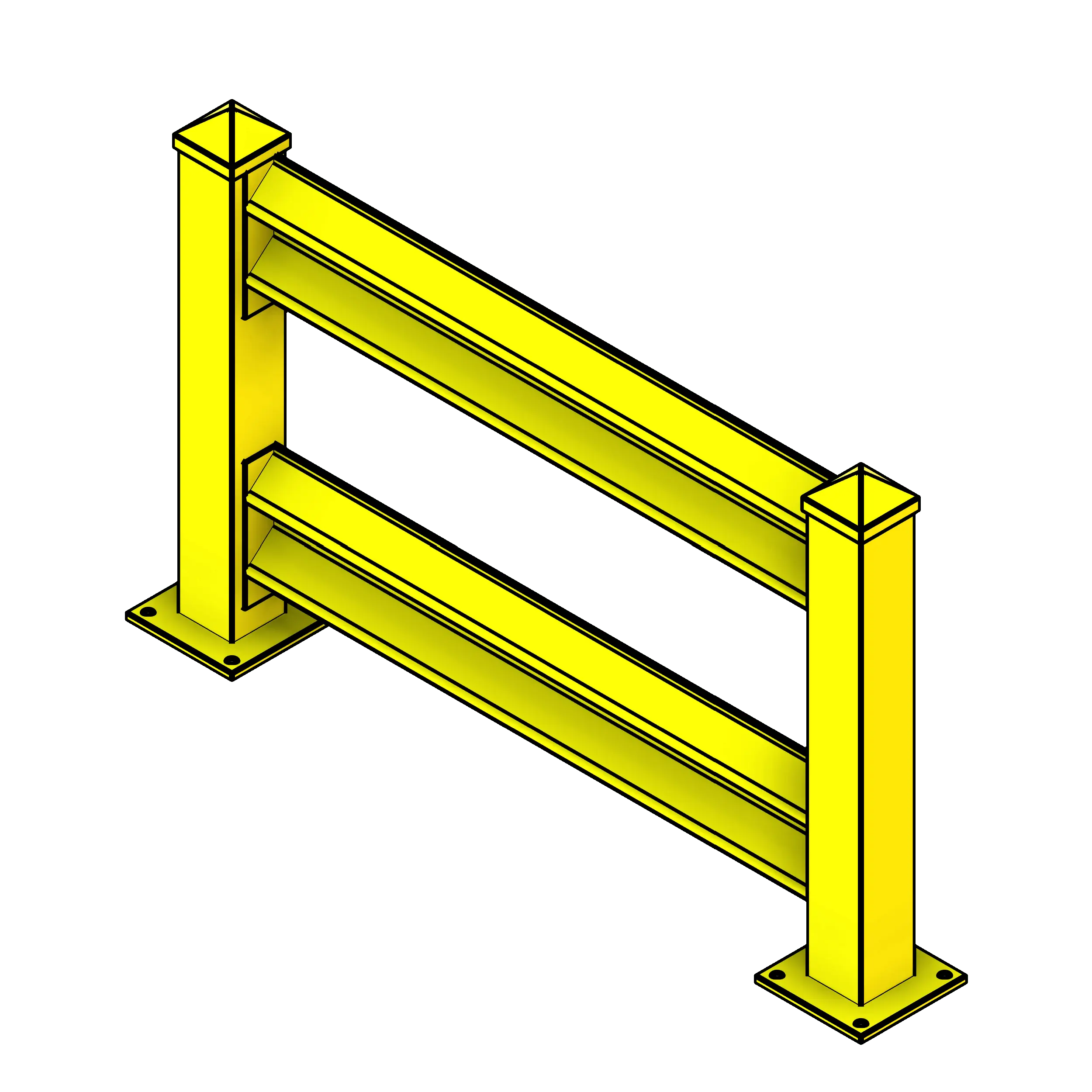

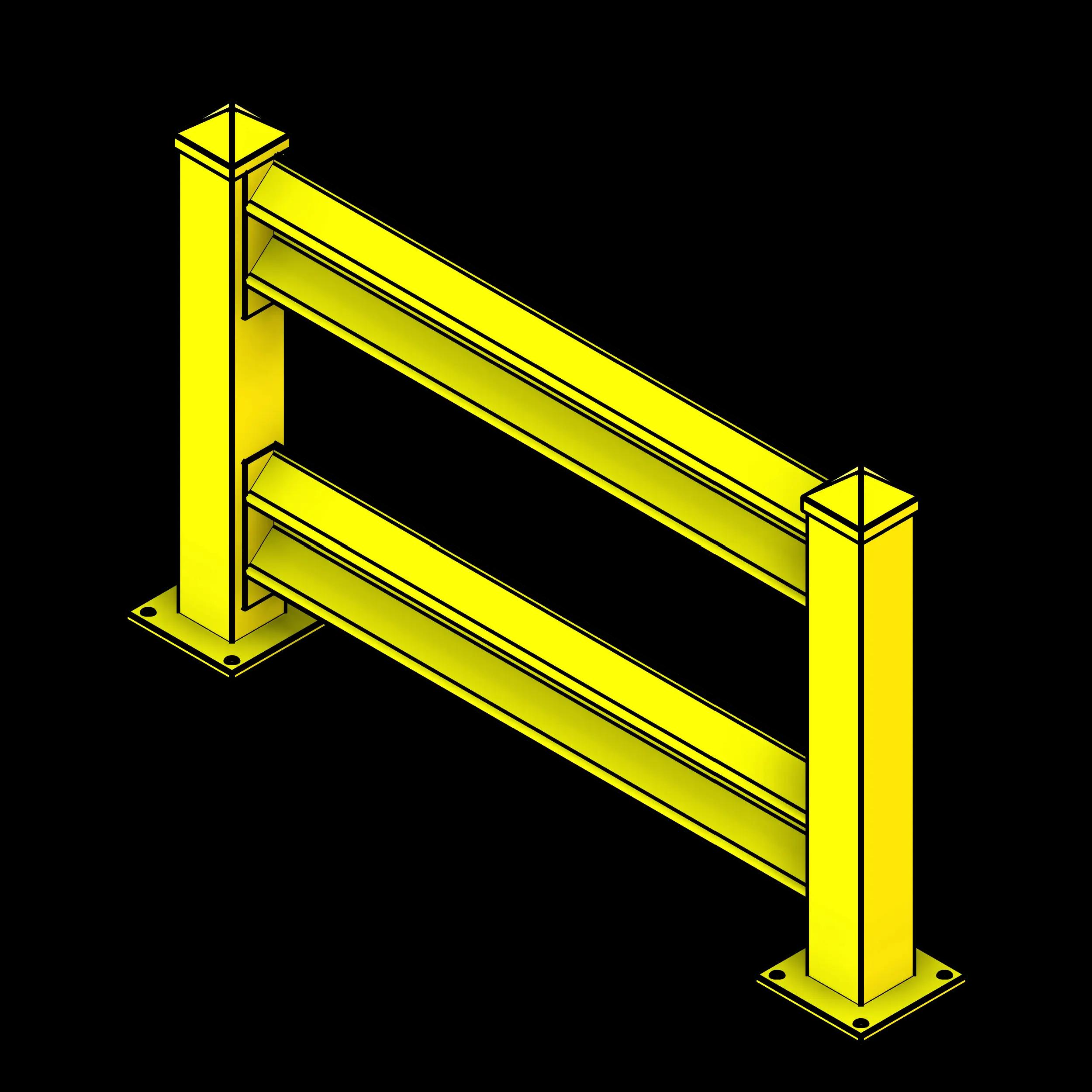

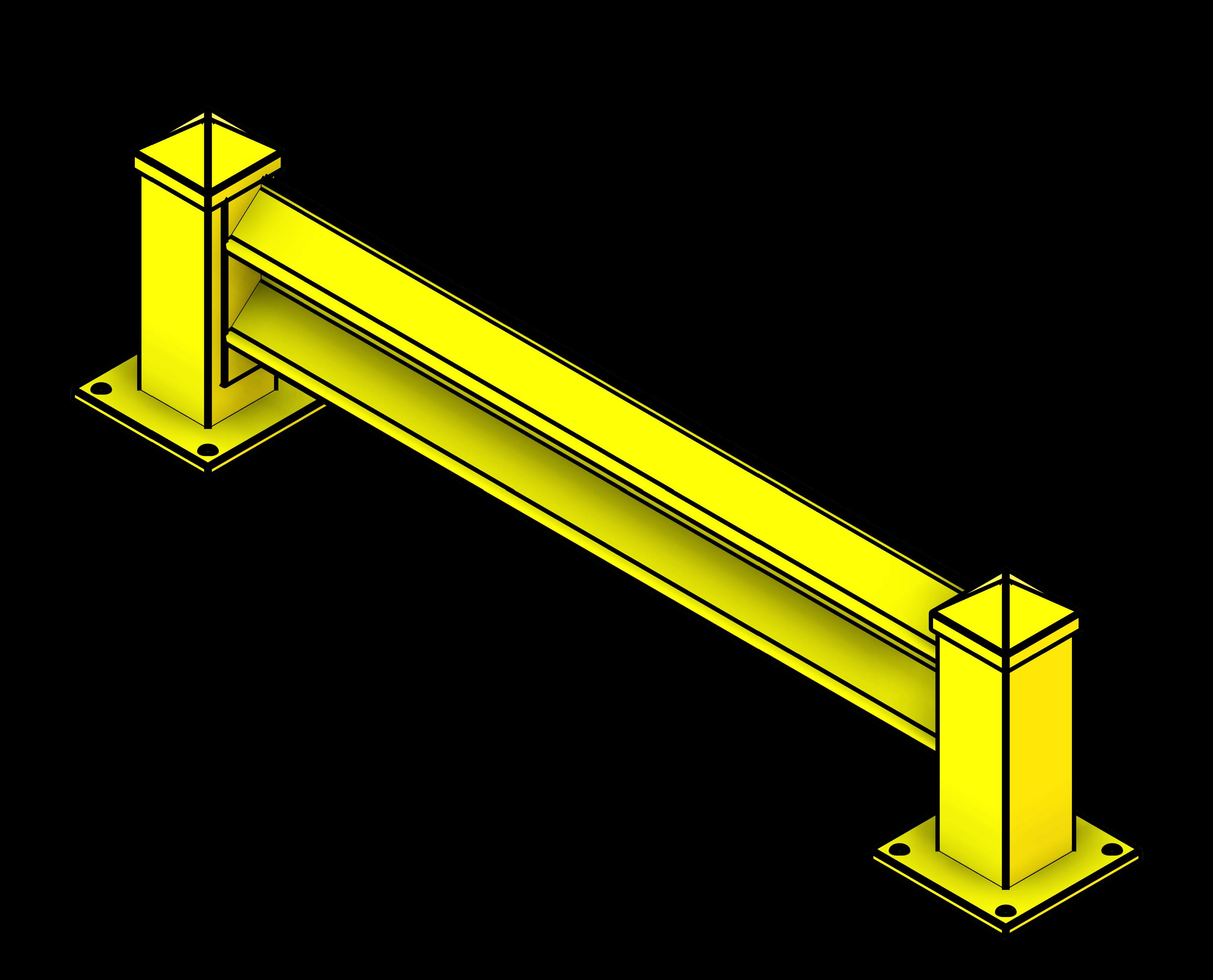

To use this family, input the desired length into ENTER_Rail Length. Use the check boxes to select between 18" tall and 42" tall guardrails. 18" guardrail are perfect for impact protection of offices, conveyors, mezzanines, and shelving. 42" tall guardrails are intended to seperate pedestrians and personnel from material handeling equipment such as walkways, bathrooms, entry points, electical panels, and more. ADD_Final Post will add a second post to the end of the rail. Pricing and weights are included in this model.
| Parameter | Value |
|---|---|
| Standard Widths | 3', 4', 5', 6', 7', 8', 9', 10' |
| Minimum Width | 3' 0" (36") |
| Maximum Width | 10' 0" (120") |
| Standard Depths | 10" |
| Minimum Depth | 0' 10" (9") |
| Maximum Depth | 0' 10" (9") |
| Standard Heights | 18", 42" |
| Minimum Height | 1' 6" (18") |
| Maximum Height | 3' 6" (42") |
| Manufacturer | Southwest Solutions Group_HAL |
| Lead Time | Ships in 6-7 weeks |
| Model | GR |
| Assembly Code | E20 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Sustainability | Yes |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
