Machinery Guard Industrial Safety
Product SKU
Description

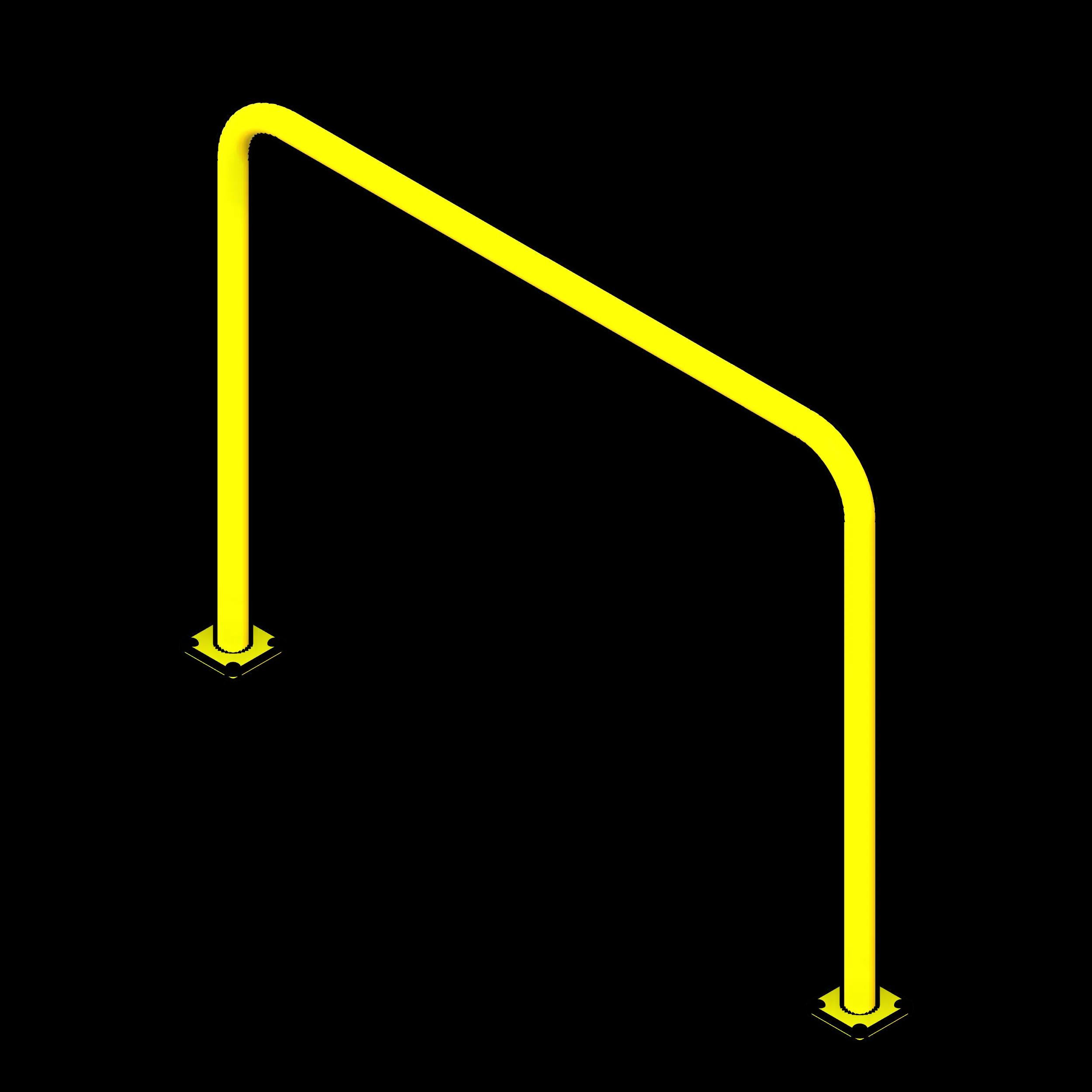

- Steel barrier designed to shield equipment from vehicle and pedestrian impact

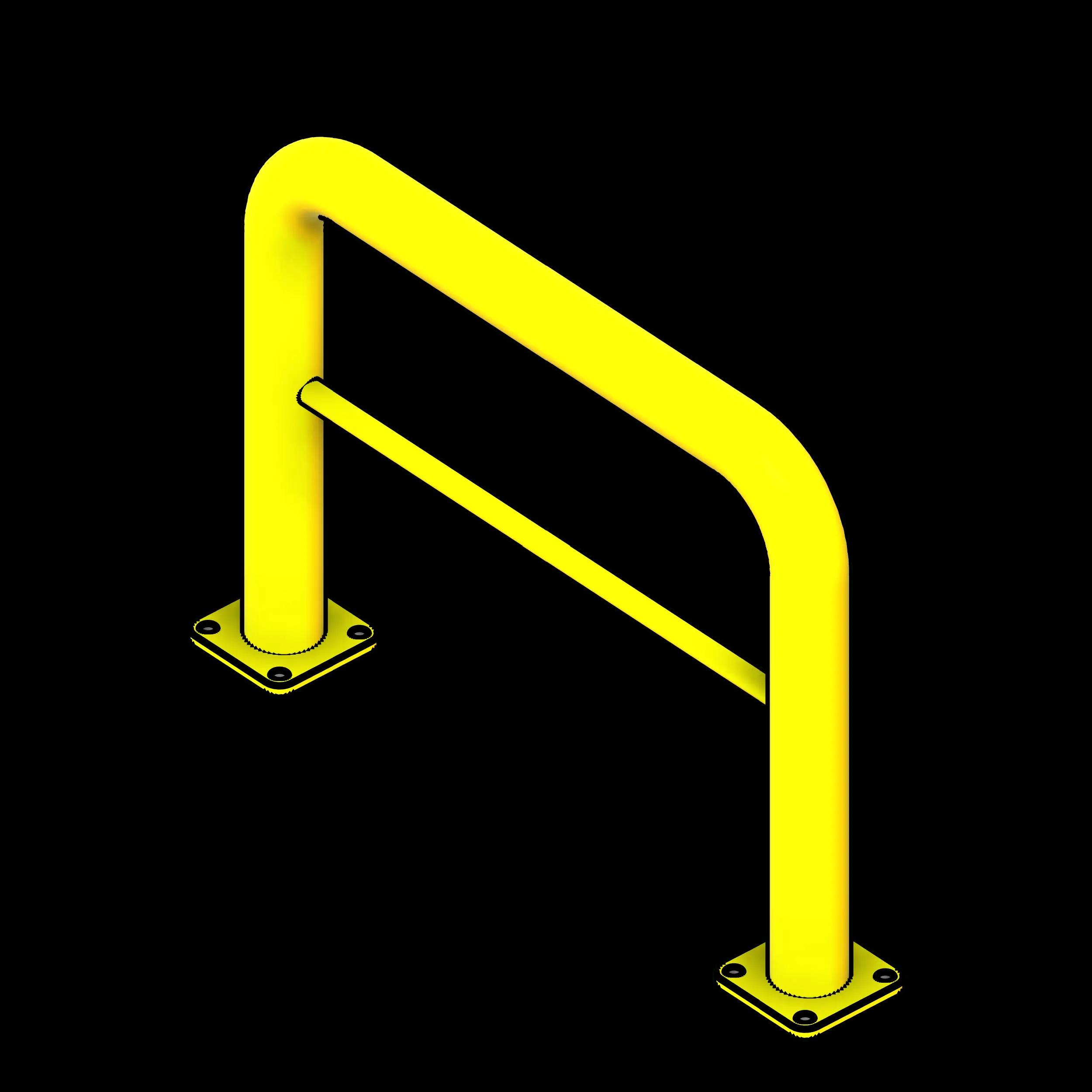

- Available in multiple heights, with an optional center bar for enhanced protection
- Finished in a high-visibility safety yellow powder coat for improved awareness
Industrial Machinery Guard
Machinery guards shield shelves, lifts, and other equipment from potential collisions with pedestrians, vehicles, and forklifts. They can also be used to define a safe clearance zone around automated picking and sorting arms.
This family is engineered as a floor-mounted warehouse safety solution, protecting shelving, materials, and equipment from passing vehicles and foot traffic. To use this model, simply insert it into your project and specify the required width, height, and bar diameter. Selecting the "ADD_Center Bar" checkbox will include an additional center bar for enhanced protection. Mounting holes are visible when viewed at a fine level of detail.
| Parameter | Value |
|---|---|
| Standard Widths | 36", 48", 60", 72" |
| Minimum Width | 3' 0" (36") |
| Maximum Width | 6' 0" (72") |
| Standard Depths | 2", 4" |
| Minimum Depth | 0' 2" (2") |
| Maximum Depth | 0' 4" (3") |
| Standard Heights | 24", 36", 42" |
| Minimum Height | 2' 0" (24") |
| Maximum Height | 3' 6" (42") |
| Manufacturer | Southwest Solutions Group_VES |
| Lead Time | Ships in 5-7 Business days |
| Model | HPRO |
| Keynote | 10 40 00 |
| Assembly Code | E2010 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23.40.70.17 |
