Angle Corner Steel Lab Wall Filler

Downloads

Get Fetch to load families straight into Revit →

Family

ADA

Ideal for scientific, research, or technical labs
Fully-welded, heavy-gauge steel construction, lab grade finish
Cleanly fills gaps at corners in wall mounted casework
Model includes optional slopped top and 11" ceiling filler

Questions about this product?

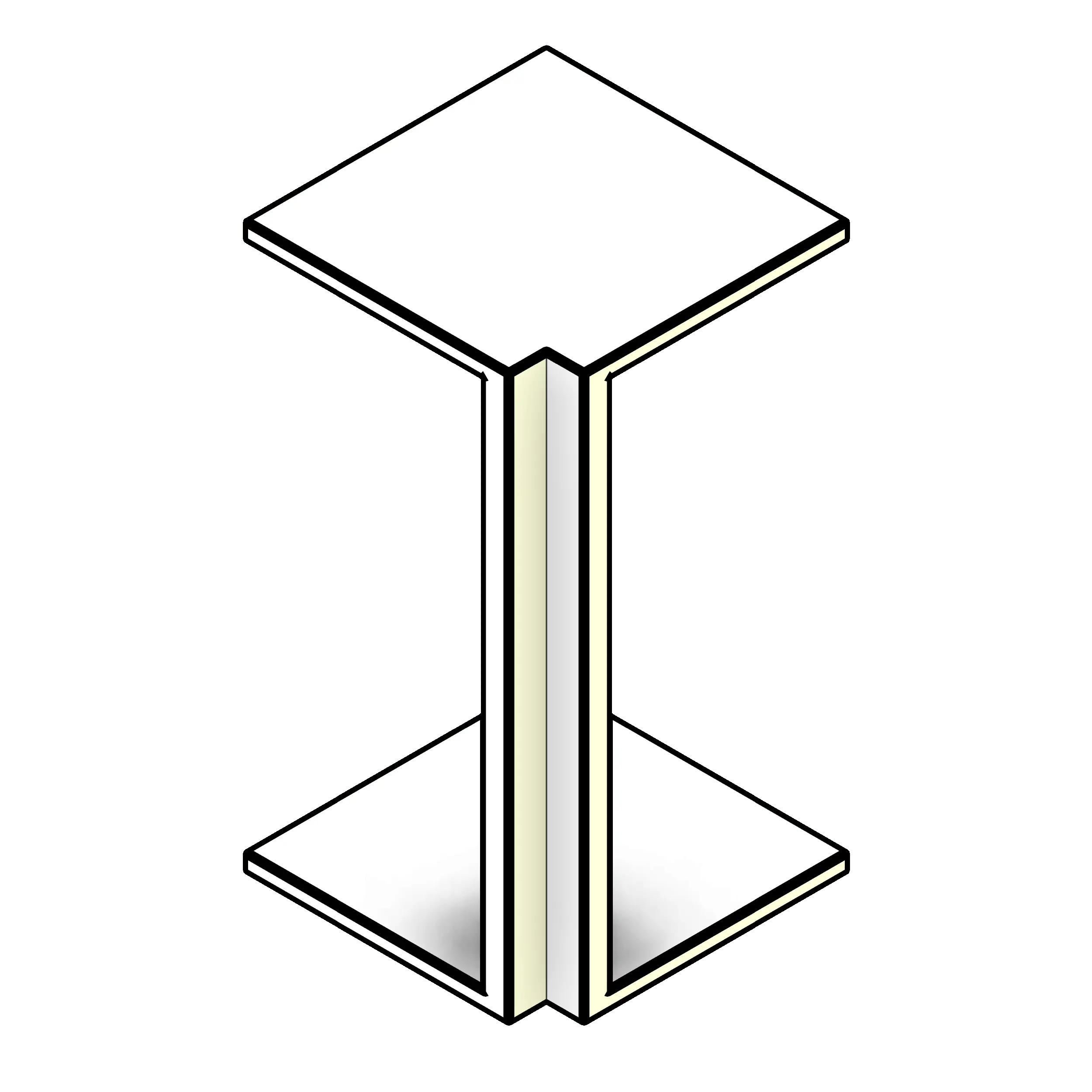

Steel Lab Wall Angle Corner Filler

This corner wall filler adjusts widths to fit your casework needs. This family also includes a slopped top and an 11" ceiling filler.

Our fully-welded, heavy-gauge, steel cabinets are designed to SEFA 8 performance standards and built to rigorous benchmarks. The classic "unit" design allows doors and drawers to be reconfigured in place. The configurable design provides a rich offering of hardware and aesthetic options.

Additional features include

Four sided, flush front, frame construction
Solid finished back with optional removable back
Full-depth adjustable shelf
Leveling bolts accessible through cabinet top

Cabinet styles are available in inset with square edge, overlay with square edge, overlay with bevel edge, and overlay with wood on steel.

Dimensions
Width	1" to 18"
Depth	12", 16"
Height	18", 24 1/2", 30", 36", 42", 48"
Product
Manufacturer	Southwest Solutions Group_ICI
Lead Time	Contact SSG for info
Construction Type	Welded, cold-rolled steel Frame with flush overlay Steel, inset steel, or flush overlay wood doors
Model	F
Primary Material	Powder coated steel
Secondary Material	Wood
Classification
MasterFormat	12 35 53.13 – Metal Laboratory Casework
UniFormat	E2020 – Moveable Furnishings
IFC	Furniture
OmniClass	23-21 19 15 25 11
Purchasing
Contracts	Systec, Vizient
Revit family
Includes Sustainability	Yes
Includes Pricing	No
ADA Compliant	Yes
Has MEP Connectors	No

Model	Width	Depth	Height
FWH-30ADJ	0' 1" (1")	1' 1" (13")	2' 6" (30")
FWH-36ADJ	0' 2" (2")	1' 1" (13")	3' 0" (36")
FWH-42ADJ	0' 3" (3")	1' 1" (13")	3' 6" (42")
FWH-48ADJ	0' 4" (4")	1' 1" (13")	4' 0" (48")
FWH-3001	0' 1" (1")	1' 1" (13")	2' 6" (30")
FWH-3002	0' 2" (2")	1' 1" (13")	2' 6" (30")
FWH-3003	0' 3" (3")	1' 1" (13")	2' 6" (30")
FWH-3004	0' 4" (4")	1' 1" (13")	2' 6" (30")
FWH-3005	0' 5" (5")	1' 1" (13")	2' 6" (30")
FWH-3006	0' 6" (6")	1' 1" (13")	2' 6" (30")
FWH-3601	0' 1" (1")	1' 1" (13")	3' 0" (36")
FWH-3602	0' 2" (2")	1' 1" (13")	3' 0" (36")
FWH-3603	0' 3" (3")	1' 1" (13")	3' 0" (36")
FWH-3604	0' 4" (4")	1' 1" (13")	3' 0" (36")
FWH-3605	0' 5" (5")	1' 1" (13")	3' 0" (36")
FWH-3606	0' 6" (6")	1' 1" (13")	3' 0" (36")
FWH-4201	0' 1" (1")	1' 1" (13")	3' 6" (42")
FWH-4202	0' 2" (2")	1' 1" (13")	3' 6" (42")
FWH-4203	0' 3" (3")	1' 1" (13")	3' 6" (42")
FWH-4204	0' 4" (4")	1' 1" (13")	3' 6" (42")
FWH-4205	0' 5" (5")	1' 1" (13")	3' 6" (42")
FWH-4206	0' 6" (6")	1' 1" (13")	3' 6" (42")
FWH-4801	0' 1" (1")	1' 1" (13")	4' 0" (48")
FWH-4802	0' 2" (2")	1' 1" (13")	4' 0" (48")
FWH-4803	0' 3" (3")	1' 1" (13")	4' 0" (48")
FWH-4804	0' 4" (4")	1' 1" (13")	4' 0" (48")
FWH-4805	0' 5" (5")	1' 1" (13")	4' 0" (48")
FWH-4806	0' 6" (6")	1' 1" (13")	4' 0" (48")
FWH-18ADJ	0' 1" (1")	1' 4" (16")	1' 6" (18")
FWH-24ADJ	0' 2" (2")	1' 4" (16")	2' 0 1/2" (24 1/2")
FWH-30ADJ	0' 3" (3")	1' 4" (16")	2' 6" (30")
FWH-36ADJ	0' 4" (4")	1' 4" (16")	3' 0" (36")
FWH-42ADJ	0' 5" (5")	1' 4" (16")	3' 6" (42")
FWH-48ADJ	0' 6" (6")	1' 4" (16")	4' 0" (48")
FWH-1801	0' 1" (1")	1' 4" (16")	1' 6" (18")
FWH-1802	0' 2" (2")	1' 4" (16")	1' 6" (18")
FWH-1803	0' 3" (3")	1' 4" (16")	1' 6" (18")
FWH-1804	0' 4" (4")	1' 4" (16")	1' 6" (18")
FWH-1805	0' 5" (5")	1' 4" (16")	1' 6" (18")
FWH-1806	0' 6" (6")	1' 4" (16")	1' 6" (18")
FWH-2401	0' 1" (1")	1' 4" (16")	2' 0 1/2" (24 1/2")
FWH-2402	0' 2" (2")	1' 4" (16")	2' 0 1/2" (24 1/2")
FWH-2403	0' 3" (3")	1' 4" (16")	2' 0 1/2" (24 1/2")
FWH-2404	0' 4" (4")	1' 4" (16")	2' 0 1/2" (24 1/2")
FWH-2405	0' 5" (5")	1' 4" (16")	2' 0 1/2" (24 1/2")
FWH-2406	0' 6" (6")	1' 4" (16")	2' 0 1/2" (24 1/2")
FWH-3001	0' 1" (1")	1' 4" (16")	2' 6" (30")
FWH-3002	0' 2" (2")	1' 4" (16")	2' 6" (30")
FWH-3003	0' 3" (3")	1' 4" (16")	2' 6" (30")
FWH-3004	0' 4" (4")	1' 4" (16")	2' 6" (30")
FWH-3005	0' 5" (5")	1' 4" (16")	2' 6" (30")
FWH-3006	0' 6" (6")	1' 4" (16")	2' 6" (30")
FWH-3601	0' 1" (1")	1' 4" (16")	3' 0" (36")
FWH-3602	0' 2" (2")	1' 4" (16")	3' 0" (36")
FWH-3603	0' 3" (3")	1' 4" (16")	3' 0" (36")
FWH-3604	0' 4" (4")	1' 4" (16")	3' 0" (36")
FWH-3605	0' 5" (5")	1' 4" (16")	3' 0" (36")
FWH-3606	0' 6" (6")	1' 4" (16")	3' 0" (36")
FWH-4201	0' 1" (1")	1' 4" (16")	3' 6" (42")
FWH-4202	0' 2" (2")	1' 4" (16")	3' 6" (42")
FWH-4203	0' 3" (3")	1' 4" (16")	3' 6" (42")
FWH-4204	0' 4" (4")	1' 4" (16")	3' 6" (42")
FWH-4205	0' 5" (5")	1' 4" (16")	3' 6" (42")
FWH-4206	0' 6" (6")	1' 4" (16")	3' 6" (42")
FWH-4801	0' 1" (1")	1' 4" (16")	4' 0" (48")
FWH-4802	0' 2" (2")	1' 4" (16")	4' 0" (48")
FWH-4803	0' 3" (3")	1' 4" (16")	4' 0" (48")
FWH-4804	0' 4" (4")	1' 4" (16")	4' 0" (48")
FWH-4805	0' 5" (5")	1' 4" (16")	4' 0" (48")
FWH-4806	0' 6" (6")	1' 4" (16")	4' 0" (48")

FWH-30ADJ
1" W × 13" D × 30" H · Weight 0
FWH-36ADJ
2" W × 13" D × 36" H · Weight 0
FWH-42ADJ
3" W × 13" D × 42" H · Weight 0
FWH-48ADJ
4" W × 13" D × 48" H · Weight 0
FWH-3001
1" W × 13" D × 30" H · Weight 0
FWH-3002
2" W × 13" D × 30" H · Weight 0
FWH-3003
3" W × 13" D × 30" H · Weight 0
FWH-3004
4" W × 13" D × 30" H · Weight 0
FWH-3005
5" W × 13" D × 30" H · Weight 0
FWH-3006
6" W × 13" D × 30" H · Weight 0
FWH-3601
1" W × 13" D × 36" H · Weight 0
FWH-3602
2" W × 13" D × 36" H · Weight 0
