Gondola Open Bay Retail Shelving

Product SKU

Description

  • Gondola-based open shelving is ideal for shops, pharmacies, and other retail applications
  • Open design allows for improved sightlines, increasing security over traditional closed-back shelving

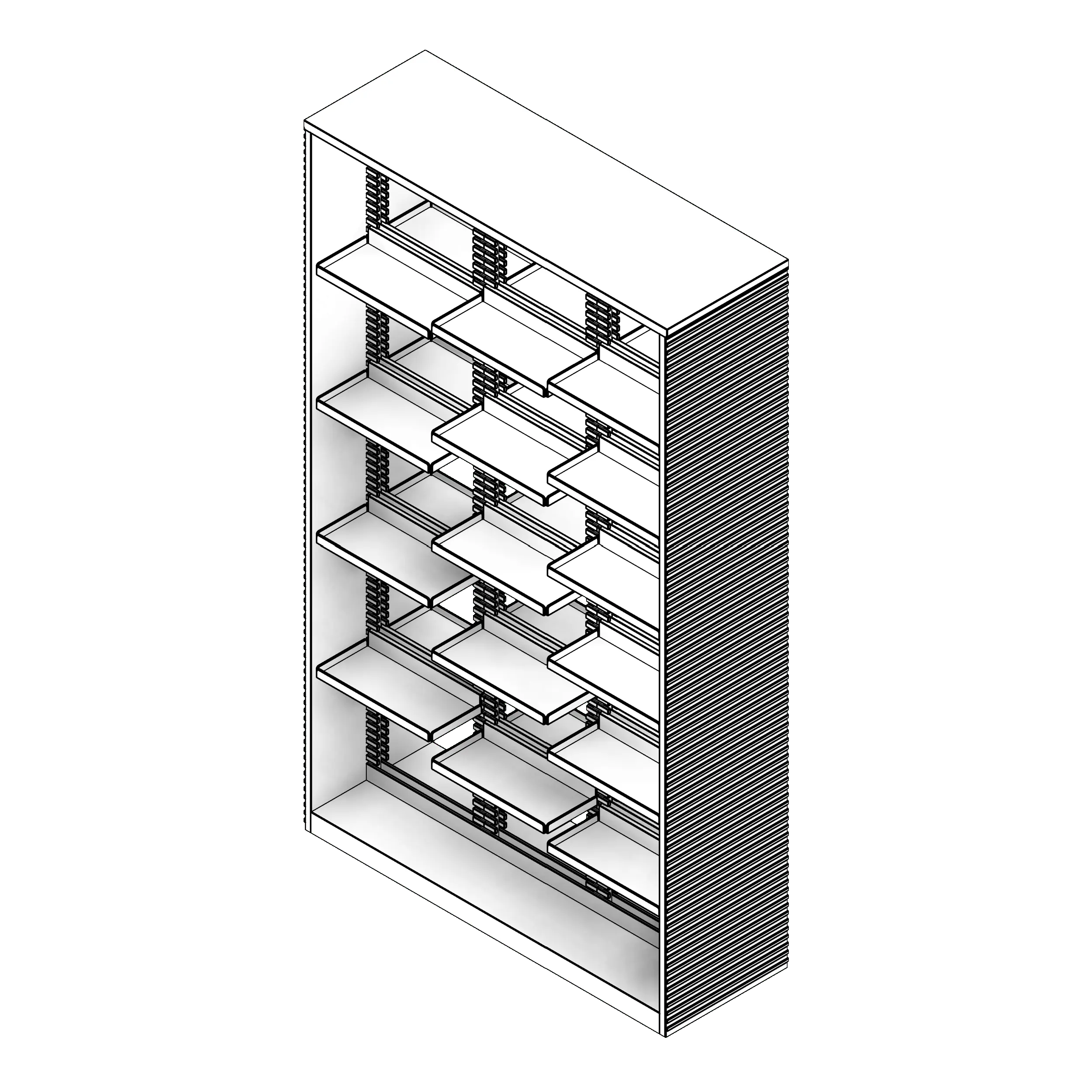

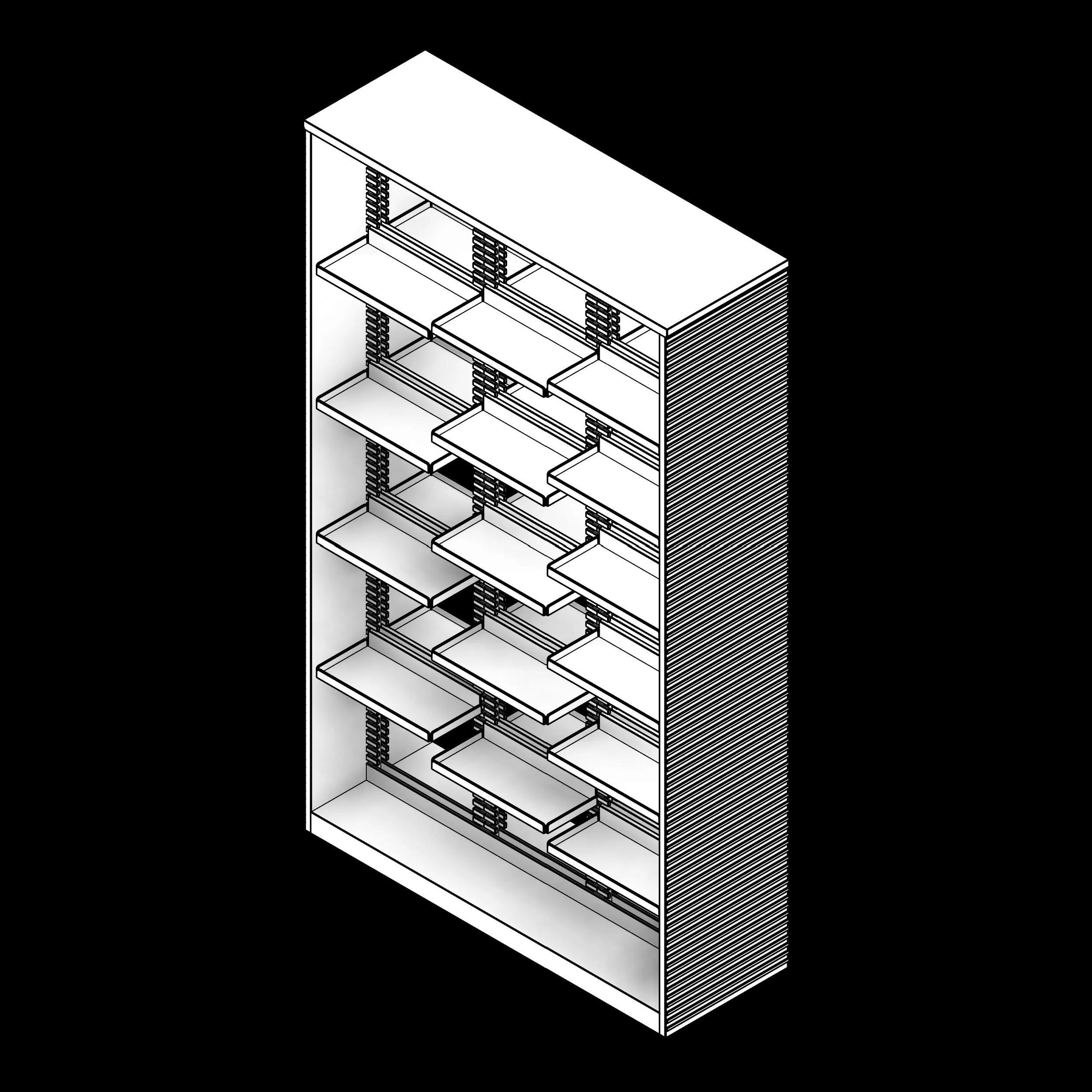

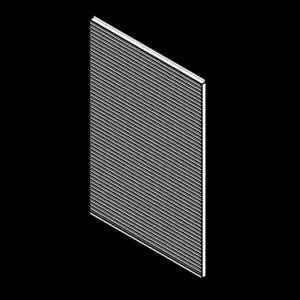

  • Optional end panels include more ridges for hanging shelves, garment bars, and other accessories
a square with short lines outside the corner
Family
Questions
Need some help? Send us a message if you have any sales or model related questions.

Gondola Open Bay Retail Shelving

This product is designed to be used in pharmacies and other retail mercantile settings. The model includes all the manufacturer's standard sizes, as well as an option to enter your own custom widths and heights. To use this family, insert it into your project from the Fetch app, then use the parameters in the properties browser to enter dimensions and add or remove accessories such as end panels and a top panel. Custom dimensions can be entered by checking the "CUSTOM_Dimensions" parameter; this will allow you to enter any width and height desired for a custom solution to fit your storage needs.

ParameterValue
Standard Widths16", 32", 48"
Minimum Width1.33333333333333
Maximum Width4
Standard Depths8 15/16", 16 3/4"
Minimum Depth0.744791666666667
Maximum Depth1.39583333333333
Standard Heights84"
Minimum Height7
Maximum Height7
ManufacturerSouthwest Solutions Group_UNI
Lead TimeContact SSG for more information
zM354268
ModelOB
Keynote10 56 33
Assembly CodeE2010
AuthorAWright
Toll Free Number1-800-803-1083
URL Specification Manualhttps://www.ssgbim.com/Family/1a9711db-4275-446e-b7ba-13ea6e84b3a6/File/PDF-SpecManual
PropertyValue
Includes PricingNo
ADA CompliantNo
HAS MEP ConnectorsNo
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-40 20 27
