Pharmacy Steel Shelving System

Downloads

RFARevit family
PDFINTSALL SSG panel wall pharmacy PCS1.2 MB
PDFCut sheet552 KB

Get Fetch to load families straight into Revit →

Family

Efficiently store medications and prescriptions with this flexible system
Horizontal channels vertically spaced 1" apart
Louvered panel with pre-assembled back panel reduces the number of parts needed to install

Questions about this product?

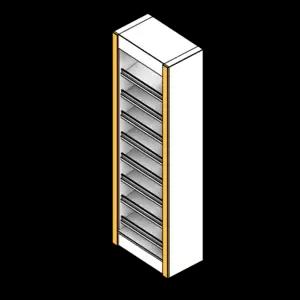

Pharmacy Wall Panel

This simple is a highly efficient storage system used in pharmacies and hospitals everywhere. The unique shape allows for shelving, hanger bars, and other accessories to be attached at 1" intervals.

To use this family, insert the model into your project using the Fetch app. Use the check boxes in the construction category to select between wall-mounted and freestanding units. Freestanding units can be single or double-sided. Width and height are independently adjustable in 1" increments.

Specifications
Dimensions
Width	16", 32", 48", 60"
Depth	1 1/4", 8 15/16", 16 3/4"
Height	16" to 120"
Product
Manufacturer	Southwest Solutions Group_UNI
Lead Time	Contact SSG for more information
Model	RX
Primary Material	Powder coated steel
Classification
MasterFormat	10 56 33
UniFormat	E2010 – Fixed Furnishings
IFC	Furniture
OmniClass	23-40 20 27 – Storage Shelving
Revit family
Includes Pricing	No
ADA Compliant	No
Has MEP Connectors	No

Model	Width	Depth	Height
SSG-RXW-1616	1' 4" (16")	0' 1 1/4" (1 1/4")	1' 4" (16")
SSG-RXW-1624	1' 4" (16")	0' 2 1/4" (2 1/4")	2' 0" (24")
SSG-RXW-1648	1' 4" (16")	0' 3 1/4" (3 1/4")	4' 0" (48")
SSG-RXW-1672	1' 4" (16")	0' 4 1/4" (4 1/4")	6' 0" (72")
SSG-RXW-1696	1' 4" (16")	0' 5 1/4" (5 1/4")	8' 0" (96")
SSG-RXW-16120	1' 4" (16")	0' 6 1/4" (6 1/4")	10' 0" (120")
SSG-RXW-3232	2' 8" (32")	0' 7 1/4" (7 1/4")	1' 4" (16")
SSG-RXW-3224	2' 8" (32")	0' 8 1/4" (8 1/4")	2' 0" (24")
SSG-RXW-3248	2' 8" (32")	0' 9 1/4" (9 1/4")	4' 0" (48")
SSG-RXW-3272	2' 8" (32")	0' 10 1/4" (10 1/4")	6' 0" (72")
SSG-RXW-3296	2' 8" (32")	0' 11 1/4" (11 1/4")	8' 0" (96")
SSG-RXW-32120	2' 8" (32")	1' 0 1/4" (12 1/4")	10' 0" (120")
SSG-RXW-4848	4' 0" (48")	1' 1 1/4" (13 1/4")	1' 4" (16")
SSG-RXW-4824	4' 0" (48")	1' 2 1/4" (14 1/4")	2' 0" (24")
SSG-RXW-4848	4' 0" (48")	1' 3 1/4" (15 1/4")	4' 0" (48")
SSG-RXW-4872	4' 0" (48")	1' 4 1/4" (16 1/4")	6' 0" (72")
SSG-RXW-4896	4' 0" (48")	1' 5 1/4" (17 1/4")	8' 0" (96")
SSG-RXW-48120	4' 0" (48")	1' 6 1/4" (18 1/4")	10' 0" (120")
SSG-RXF-1616	1' 4" (16")	0' 6" (6")	1' 4" (16")
SSG-RXF-1624	1' 4" (16")	0' 6" (6")	2' 0" (24")
SSG-RXF-1648	1' 4" (16")	0' 6" (6")	4' 0" (48")
SSG-RXF-1672	1' 4" (16")	0' 6" (6")	6' 0" (72")
SSG-RXF-1696	1' 4" (16")	0' 6" (6")	8' 0" (96")
SSG-RXF-16120	1' 4" (16")	0' 6" (6")	10' 0" (120")
SSG-RXF-3232	2' 8" (32")	0' 6" (6")	1' 4" (16")
SSG-RXF-3224	2' 8" (32")	0' 6" (6")	2' 0" (24")
SSG-RXF-3248	2' 8" (32")	0' 6" (6")	4' 0" (48")
SSG-RXF-3272	2' 8" (32")	0' 6" (6")	6' 0" (72")
SSG-RXF-3296	2' 8" (32")	0' 6" (6")	8' 0" (96")
SSG-RXF-32120	2' 8" (32")	0' 6" (6")	10' 0" (120")
SSG-RXF-4848	4' 0" (48")	0' 6" (6")	1' 4" (16")
SSG-RXF-4824	4' 0" (48")	0' 6" (6")	2' 0" (24")
SSG-RXF-4848	4' 0" (48")	0' 6" (6")	4' 0" (48")
SSG-RXF-4872	4' 0" (48")	0' 6" (6")	6' 0" (72")
SSG-RXF-4896	4' 0" (48")	0' 6" (6")	8' 0" (96")
SSG-RXF-48120	4' 0" (48")	0' 6" (6")	10' 0" (120")
SSG-RXF-1616-D	1' 4" (16")	0' 11" (11")	1' 4" (16")
SSG-RXF-1624-D	1' 4" (16")	0' 11" (11")	2' 0" (24")
SSG-RXF-1648-D	1' 4" (16")	0' 11" (11")	4' 0" (48")
SSG-RXF-1672-D	1' 4" (16")	0' 11" (11")	6' 0" (72")
SSG-RXF-1696-D	1' 4" (16")	0' 11" (11")	8' 0" (96")
SSG-RXF-16120-D	1' 4" (16")	0' 11" (11")	10' 0" (120")
SSG-RXF-3232-D	2' 8" (32")	0' 11" (11")	1' 4" (16")
SSG-RXF-3224-D	2' 8" (32")	0' 11" (11")	2' 0" (24")
SSG-RXF-3248-D	2' 8" (32")	0' 11" (11")	4' 0" (48")
SSG-RXF-3272-D	2' 8" (32")	0' 11" (11")	6' 0" (72")
SSG-RXF-3296-D	2' 8" (32")	0' 11" (11")	8' 0" (96")
SSG-RXF-32120-D	2' 8" (32")	0' 11" (11")	10' 0" (120")
SSG-RXF-4848-D	4' 0" (48")	0' 11" (11")	1' 4" (16")
SSG-RXF-4824-D	4' 0" (48")	0' 11" (11")	2' 0" (24")
SSG-RXF-4848-D	4' 0" (48")	0' 11" (11")	4' 0" (48")
SSG-RXF-4872-D	4' 0" (48")	0' 11" (11")	6' 0" (72")
SSG-RXF-4896-D	4' 0" (48")	0' 11" (11")	8' 0" (96")
SSG-RXF-48120-D	4' 0" (48")	0' 11" (11")	10' 0" (120")
