09' Wide - Option 07 Pharmacy

Product SKU

SKU: SSG-PH09-7-L

Description

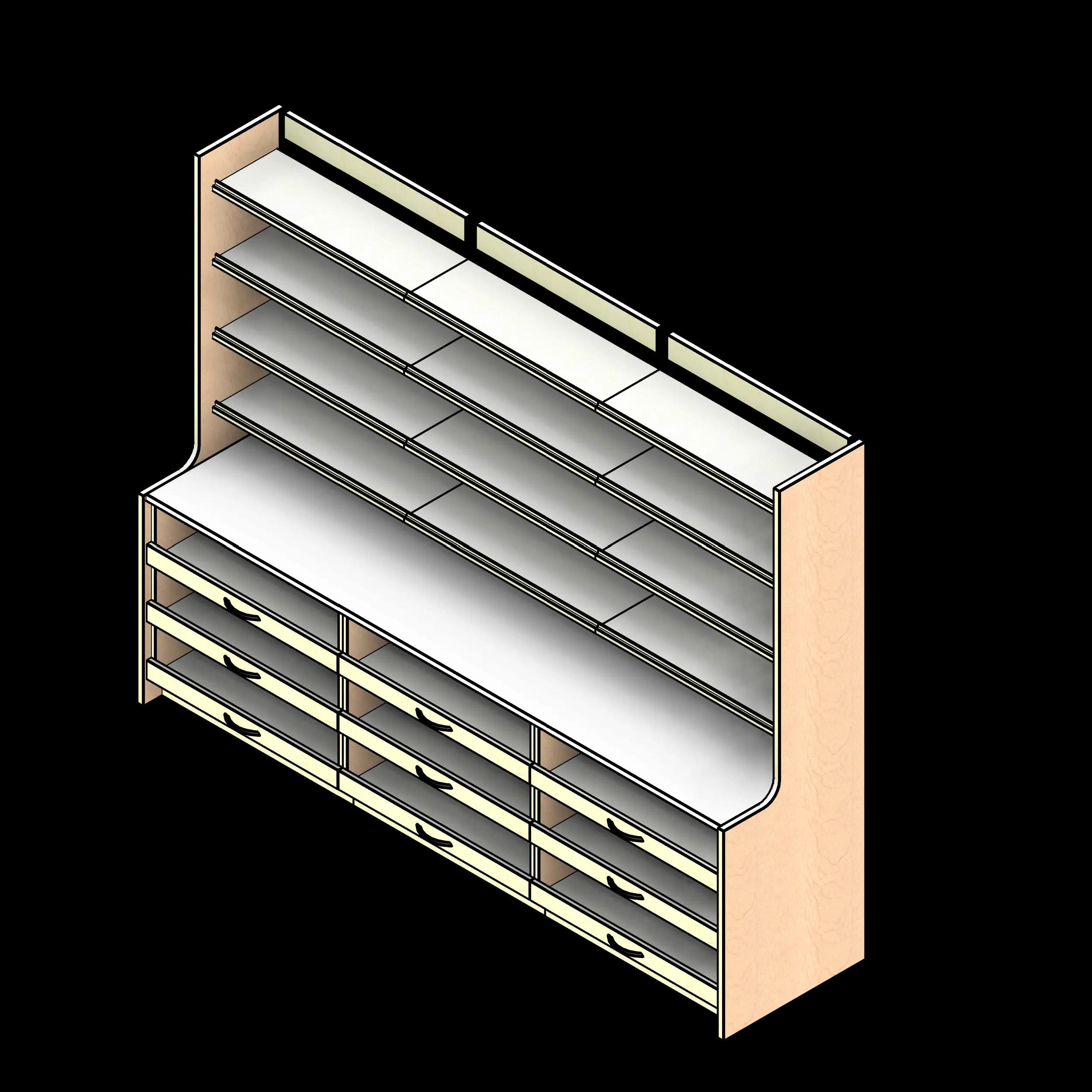

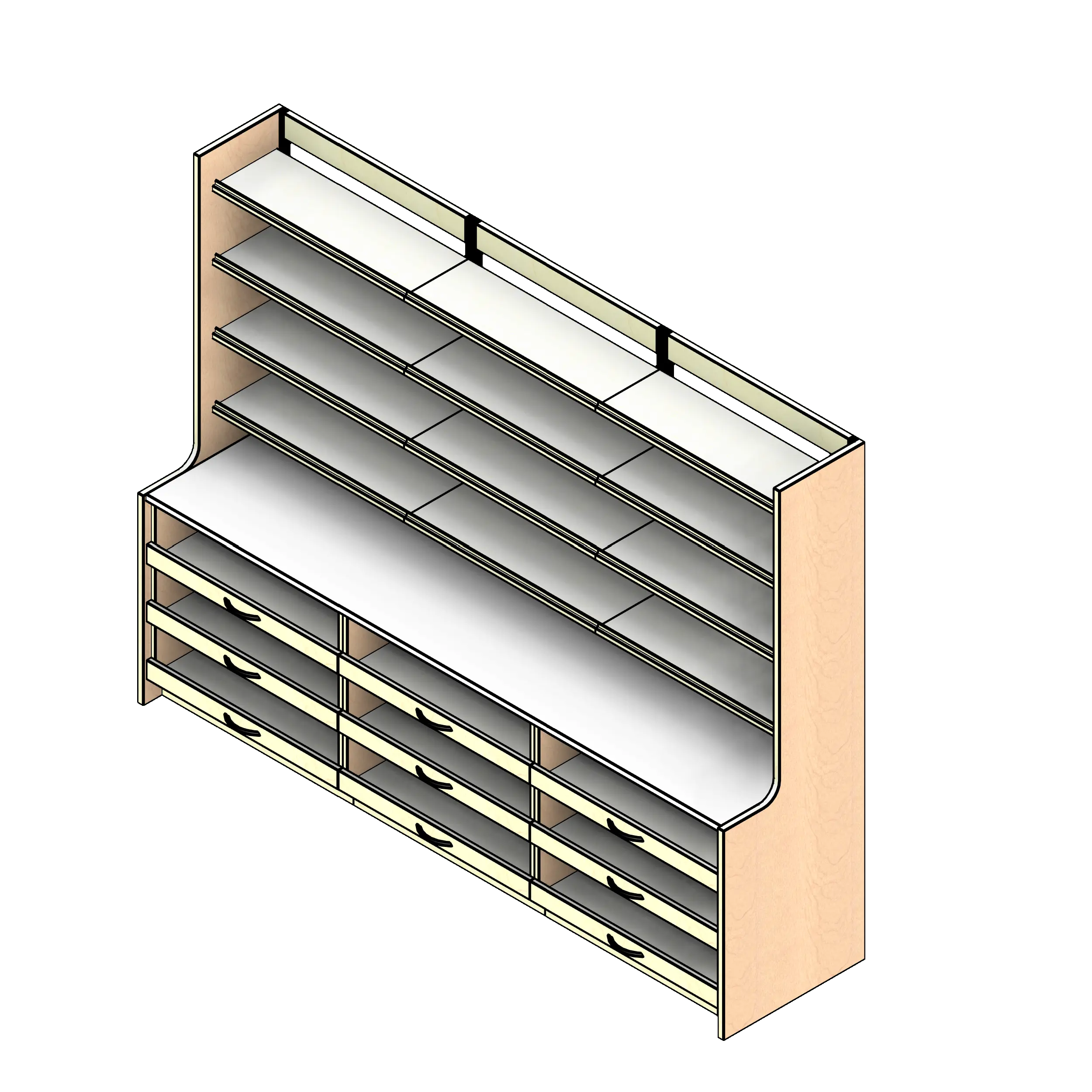

  • Kit is designed to represent one common option used for Pharmacy at this Height and Width
  • Kit includes three tray drawer base cabinets, one countertop, twelve adjustable shelves, three back panels with openings cut out, and two side panels.
  • Not ADA accessible.
icon for pricing which is a dollar sign
Model group
icon of a person with gears next to its head
Pricing
icon of a person with gears next to its head
ADA
Questions
Need some help? Send us a message if you have any sales or model related questions.

System Overview

Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.

Design

  • Multiple pull options
  • Angled top is optional
  • Counter can be equipped with side splash if necessary
  • Lock options available
ParameterValue
ENTER Handle Number1
ENTER Kick Plate Number1
ENTER Shelf Rotation Number0
Counter Depth2.08333333333333
Counter Height2.83333333333333
Height2.75
Opening Height3.58333333333333
OFFSET Top of Counter2.83333333333333
Opening Distance From Floor3.08333333333333
ADD Back Splash0
ADD Left Splash0
ADD Right Splash0
Left Overhang0
MODIFY Pass Through Panel1
Right Overhang0
PropertyValue
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsNo
Width9' 0" (108")
Depth2' 2" (26")
Height7' 0" (84")
Primary MaterialLaminate
skuSSG-PH09-7-L
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 19 11
Room TypePharmacy
SMS Purchase Link<a href="https://www.storemorestore.com/Dispensing-Medication-Pharmacy-Cabinets-p/sms-29-ssg-ph09-7-l.htm">DISPENSING MEDICATION PHARMACY CABINETS, (9' 0" W X 2' 2" D X 7' 0" H), #SMS-29-SSG-PH09-7-L</a>
