Updated Nov 6, 2024
4 Columns-31 Total Openings Steel Evidence Locker Revit model group
4 Columns-31 Total Openings Steel Evidence Locker Revit model group
Updated Nov 6, 2024

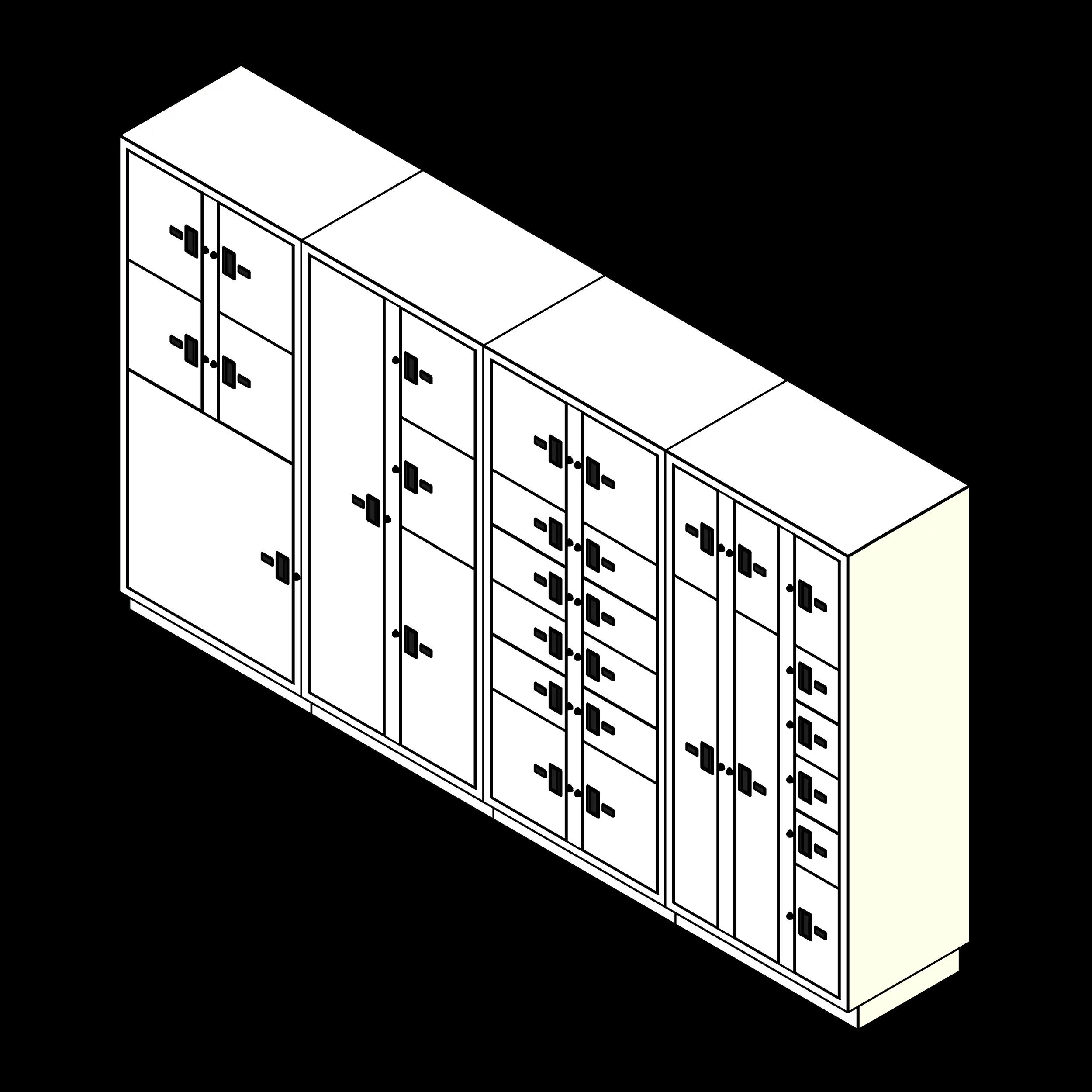

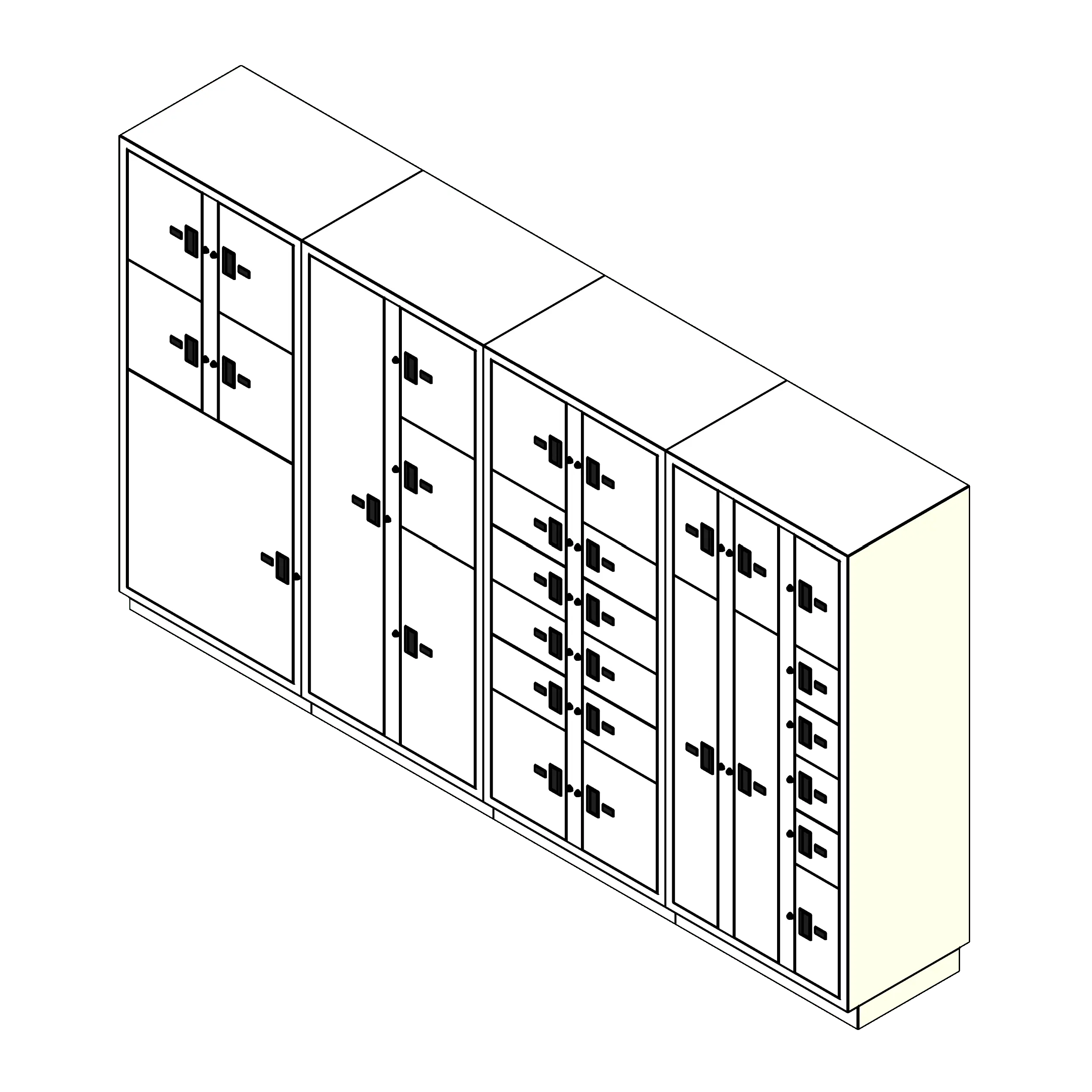

4 Columns-31 Total Openings Steel Evidence Locker

Product SKU

SKU: SSG-EVL-4_Wide-31_Total_Openings

Downloads

Model group
Pricing

Description

  • Kit is designed to represent one common options used for Evidence Storage
  • Kit is 100% CALEA certified and exceeds all IAPE standards
  • Kit includes four Evidence Lockers
  • Kit is pass-through

Questions about this product?

The Public Safety 31 door Evidence Storage Lockers are advanced storage solutions tailored for law enforcement and forensic environments, ensuring the integrity and security of evidence from collection to courtroom.

System Overview

Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would be a run of lockers in a linear direction

Lockers

  • Lockers come in either pass-through or non-pass-through
  • Each model comes with a variety of compartments and sizes with self-closing doors
  • Push-Button locks on the front of each door
  • For pass-through lockers, a single hinged rear door provides access and cannot be accessed from the front
  • Mesh rear doors available
  • Rear door comes with a different master key for evidence retrieval
  • No keys required for evidence drop off
  • Units come shipped fully assembled
  • Pre-drilled mounting holes in base and sides of locker
  • Number tags w/ instructions are installed on all front doors
  • Base comes with adjustable floor levelers
  • High quality powder coat paint
  • Standard trim and installation hardware comes with each locker
  • Lockers are typically 36" wide x 82" tall x 24" deep with base. Some lockers come 24" wide
  • Optional front lock out system

Small Evidence Refrigerator

  • Stainless steel throughout
  • Keyless locking system prevents re-access
  • Available in pass-through and non-pass-through
  • Four standard configurations
Specifications
Dimensions
Width144"
Depth24"
Height82"
Product
Primary MaterialPowder coated steel
Classification
IFCFurniture
OmniClass23-29 15 15 11
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Configurable options
  • Refridgerator unit
  • Mesh back door
  • Pass-thru
