Refrigerated Stainless Steel Evidence Locker

Product SKU

Description

  • Full size refrigerated evidence lockers at 36" x 24" x 82"
  • One size
  • Two column -- 4, 6, 8, 10, 12 door units (all internal, no model change)
  • Three column -- 9, 15, 18, 24 door units (all internal, no model change)
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
Questions
Need some help? Send us a message if you have any sales or model related questions.

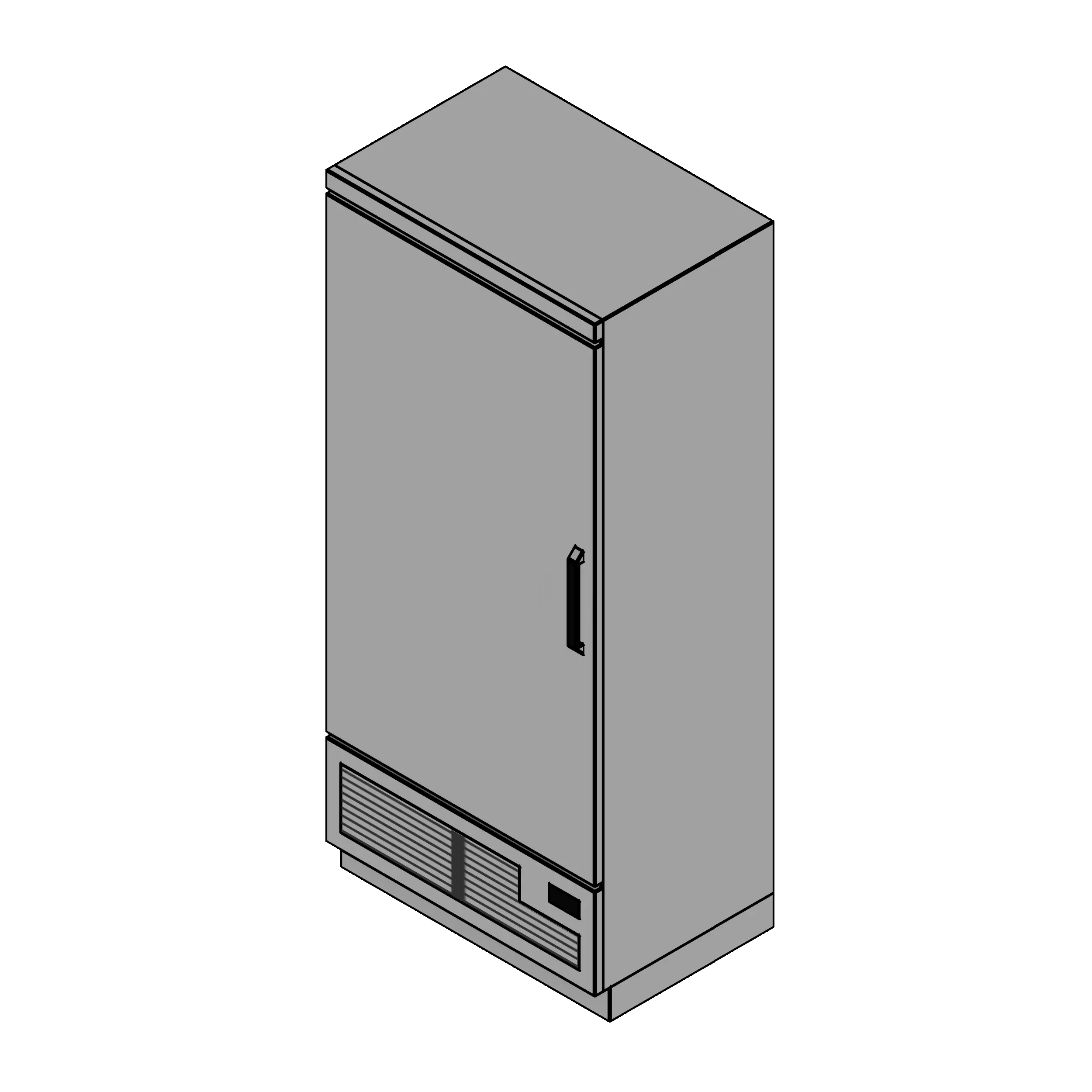

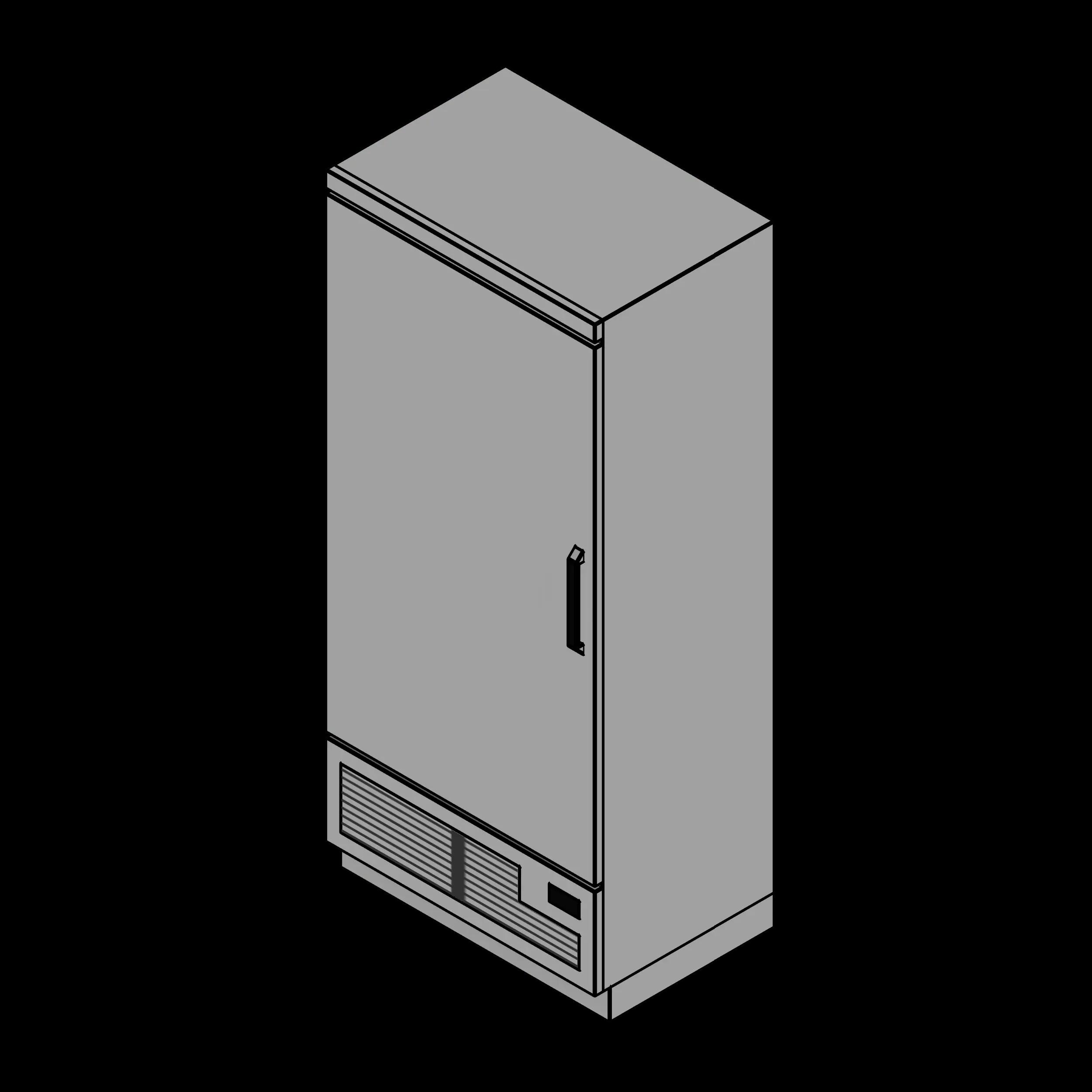

Stainless Steel Evidence Locker Refrigerated

These evidence lockers are available in various configurations and options, including pass-through and non-pass-through designs. They are commonly used by law enforcement professionals in public safety departments. To use this family, open the Fetch app and select the model to insert it into your project. In the properties browser, under the construction section, you can choose between pass-through and non-pass-through locker styles. Additionally, some configurations offer the option to include a refrigerated door in the bottom right corner. This model provides a selection of 19 configurations, which can be found in the types tab.

Each kit includes multiple options, each with its own pricing. A common setup consists of a series of lockers arranged in a linear configurations.

Evidence Lockers

  • Lockers are available in pass-thru and non pass-thru configurations.
  • Each model features a variety of compartment sizes with self-closing doors.
  • Push-button locks are installed on the front of each door.
  • Pass-thru lockers include a single hinged rear door that can only be accessed from the back.
  • The rear door uses a separate master key for evidence retrieval.
  • No keys are required for evidence drop-off.
  • Lockers are shipped fully assembled for convenience.
  • Pre-drilled mounting holes are provided in the base and sides for easy installation.
  • Number tags with instructions are installed on all front doors.
  • The base includes adjustable floor levelers for stability.
  • Constructed with high-quality powder coat paint for durability.
  • Each locker comes with standard trim and installation hardware.
  • Backed by a lifetime warranty, with a one-year limited warranty on all refrigeration units.
  • Mesh rear doors are available as an option.
  • Lockers typically measure 36" wide, 82" tall, and 24" deep with the base, though some models are 24" wide.
  • An optional front lockout system is available.

Evidence Refrigerator

  • Constructed entirely from stainless steel
  • Keyless locking system ensures one-time access, preventing re-entry.
  • Offered in both pass-thru and non-pass-thru designs.
  • Available in four standard configurations.
ParameterValue
Standard Widths36"
Minimum Width3' 0" (36")
Maximum Width3' 0" (36")
Standard Depths24"
Minimum Depth2' 0" (24")
Maximum Depth2' 0" (24")
Standard Heights82"
Minimum Height6' 10" (81")
Maximum Height6' 10" (81")
ManufacturerSouthwest Solutions Group_SPA
Lead Time4-6 Weeks
Construction Type0
ModelEDRS24
Keynote10 51 13
Assembly CodeE20
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Includes SustainabilityYes
Primary MaterialStainless steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-29 15 15 11
OmniaYes
SourcewellYes
EqualisYes
VizientYes
SystecYes
