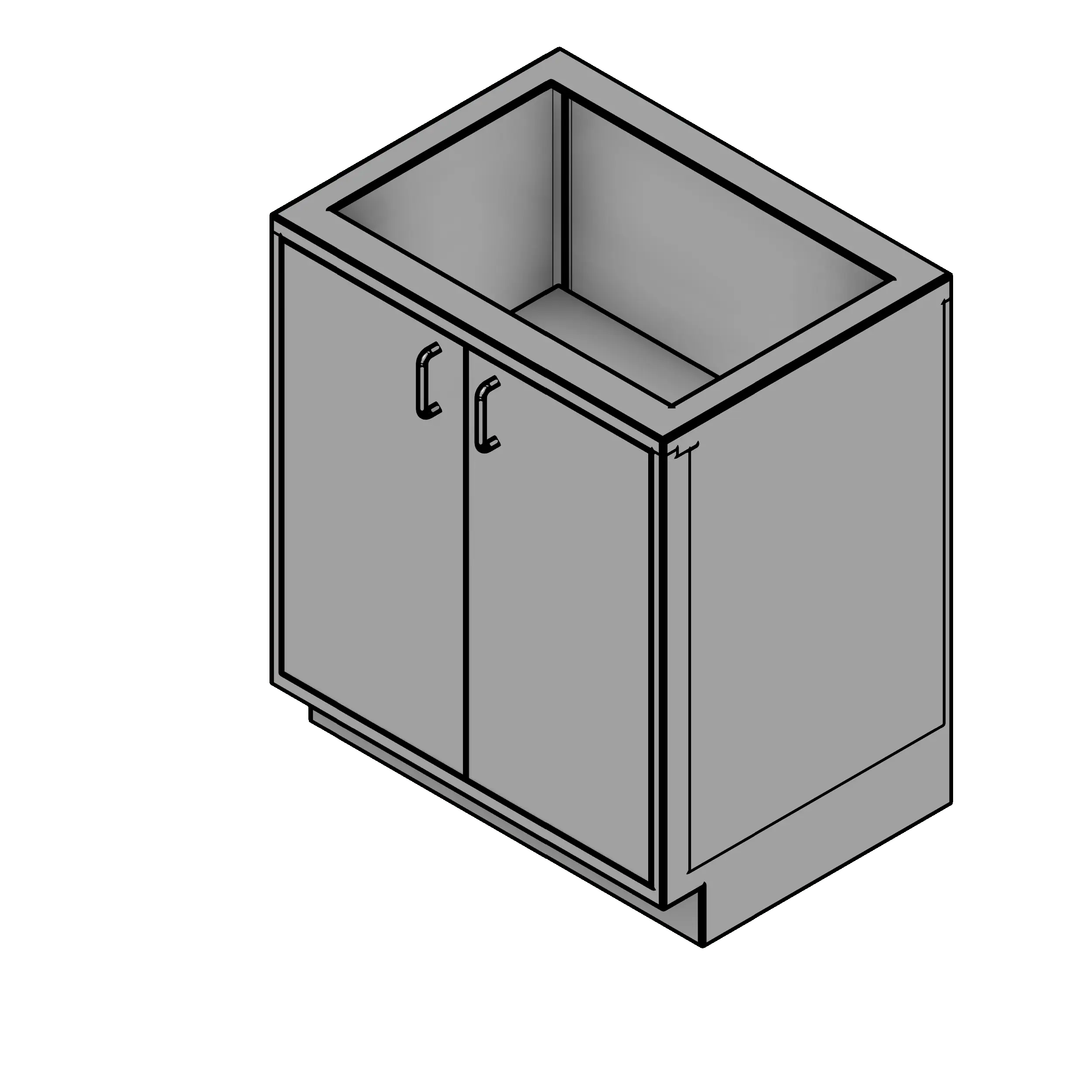

2 Door Stainless Steel Base Cabinet

Product SKU

Description

  • Pricing is INCLUDED in this model
  • Casework RFA with two types
  • 18" - 24" Wide
  • 22" Deep
  • 29 ⅛ " - 35" Tall
  • Stainless Steel Casework
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
icon of a person with gears next to its head
ADA
Questions
Need some help? Send us a message if you have any sales or model related questions.

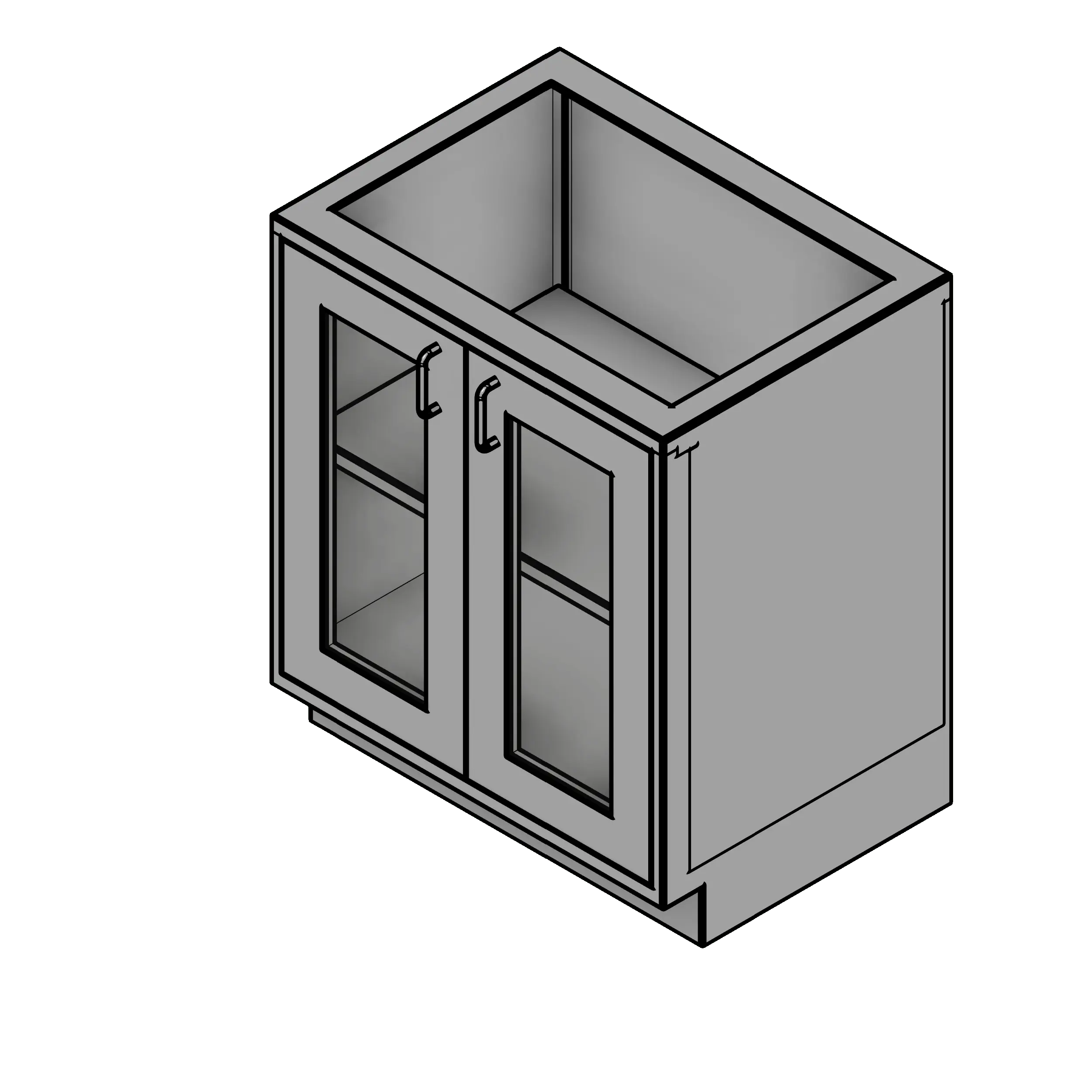

2 Door Stainless Steel Base Cabinet w/ 1 Adjustable Shelf

The two door stainless steel base cabinet is part of Southwest Solutions’ modular casework line. Each cabinet is stainless steel and highly ideal for healthcare, material handling, labs, and cleanrooms. Use simple parameters to choose various customization options.

The Southwest Solutions Group casework line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. Once loaded, each model has a variety of parameters which allow you to easily manipulate and customize various aspects of the casework design without ever needing to load a type catalog ever again.

System Overview

Custom applications comprised of specially fabricated, stainless steel equipment or pre-fab modular components, or a combination of both, work their way quickly through a simple yet sophisticated design, approval and fabrication process. Equipment built to your exact specifications, pre-wired and pre-plumbed (if applicable), is shipped with shorter lead times and at a lower overall cost.

ParameterValue
Standard Widths30", 36", 48"
Minimum Width1.5
Maximum Width4
Standard Depths22"
Minimum Depth1.83333
Maximum Depth2.5
Standard Heights29", 35"
Minimum Height2.41667
Maximum Height2.91667
ManufacturerSouthwest Solutions Group_EAG
Lead Time4-6 Weeks
Construction TypeLab Certified (SEFA) Inset Stainless Steel Modular Casework
ModelCB
Keynote12 35 53.13
Assembly CodeE2020
AuthorKBruxvoort
Toll Free Number1-800-803-1083
PropertyValue
EqualisNo
OmniaNo
SourcewellNo
SystecYes
VizientYes
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsNo
Primary MaterialStainless steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 19 15 25 11
