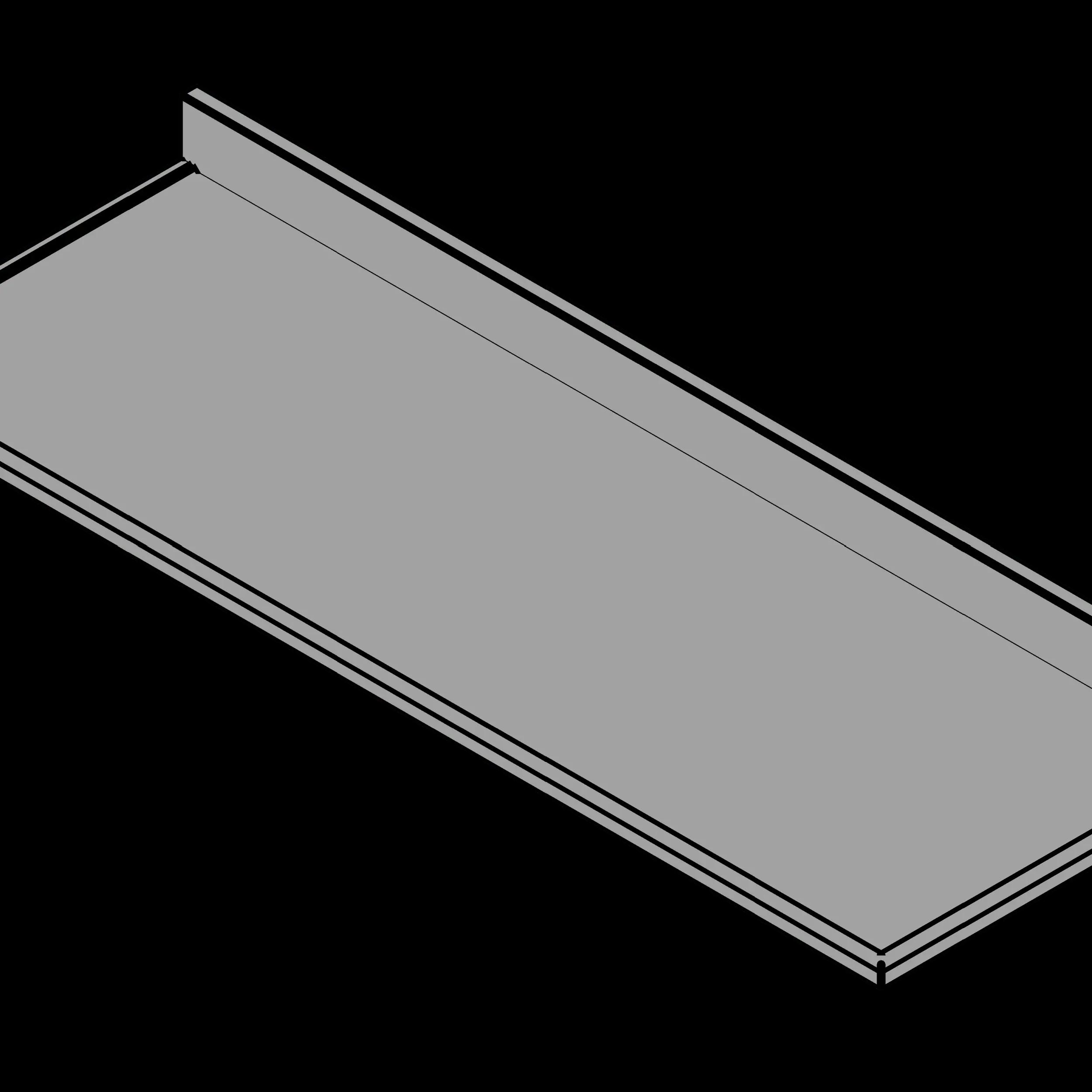

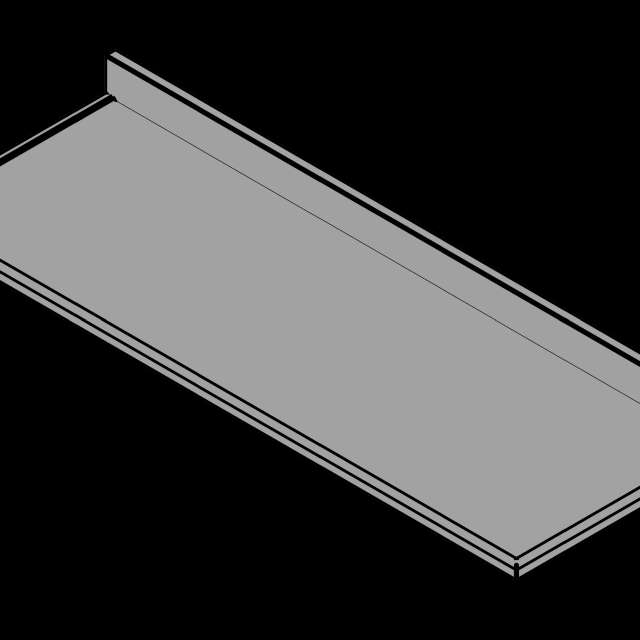

Stainless Steel Countertop

Downloads

RFARevit family
DOCSpecifications (CSI)41 KB

Get Fetch to load families straight into Revit →

Family

Pricing

ADA

Pricing is INCLUDED in this model
Casework RFA with two types
16 or 14 gauge
Type 304 or 316

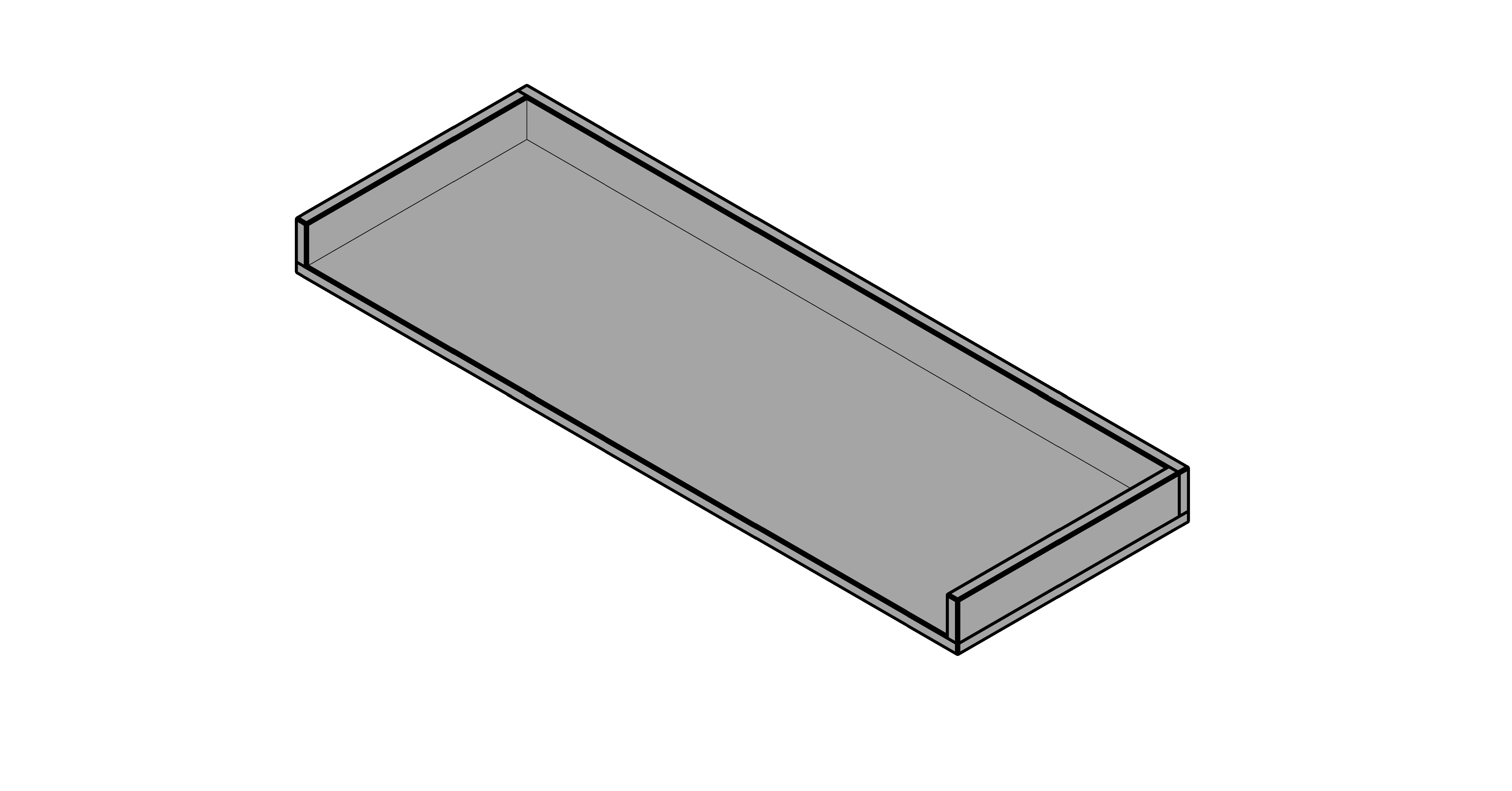

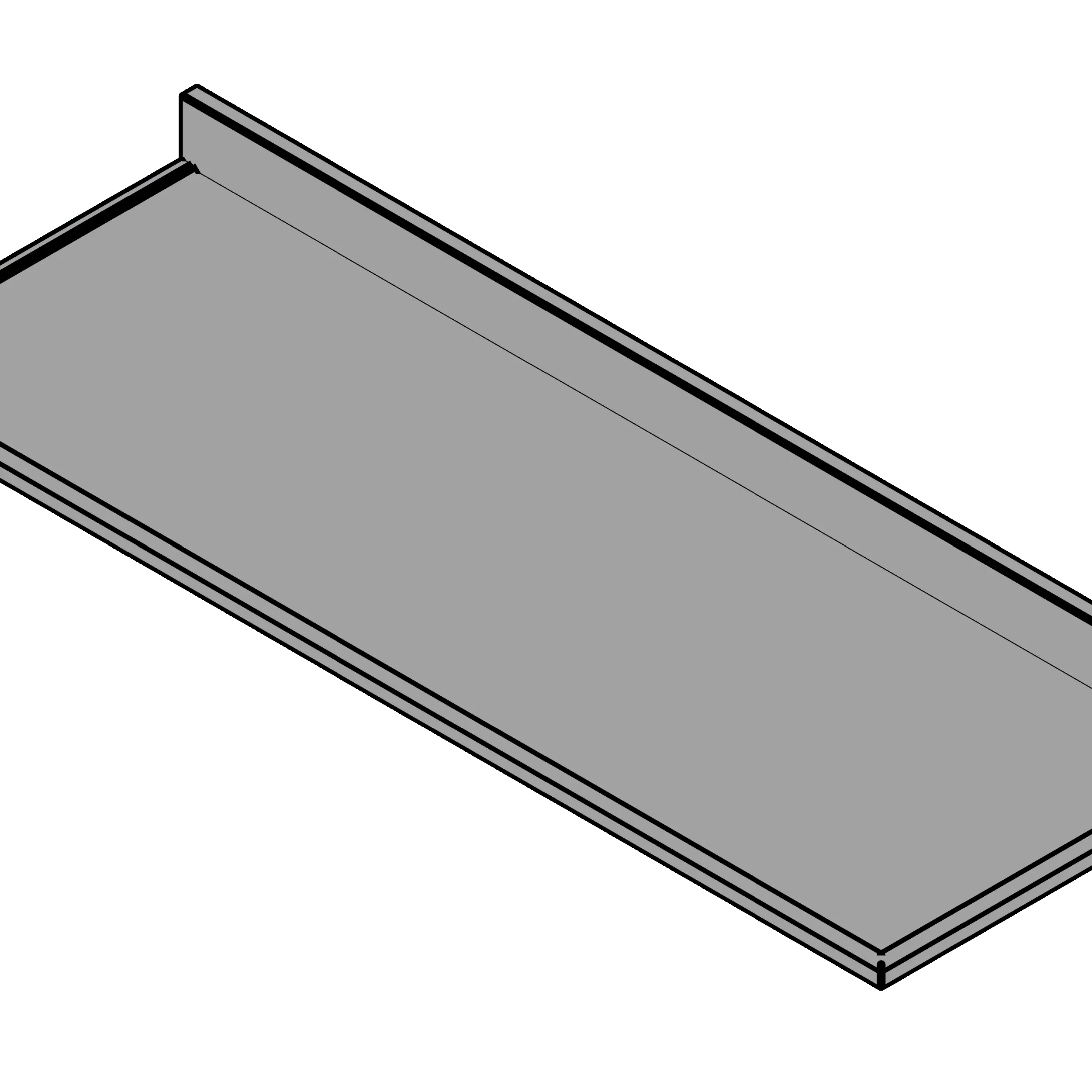

Square or Box Marine front edge
Stainless Steel Casework

Questions about this product?

Stainless steel countertop

The Southwest Solutions Group casework line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. Once loaded, each model has a variety of parameters which allow you to easily manipulate and customize various aspects of the casework design without ever needing to load a type catalog ever again.

System Overview

Custom applications comprised of specially fabricated, stainless steel equipment or pre-fab modular components, or a combination of both, work their way quickly through a simple yet sophisticated design, approval and fabrication process. Equipment built to your exact specifications, pre-wired and pre-plumbed (if applicable), is shipped with shorter lead times and at a lower overall cost.

Specifications
Dimensions
Width	12" to 144"
Depth	12" to 60"
Height	1"
Product
Manufacturer	Southwest Solutions Group_EAG
Lead Time	4-6 Weeks
Construction Type	16 or 14 guage type 304 or 316 stainles steel. Counters have stainless steel reinforicing hat channels.
Model	MCST
Primary Material	Stainless steel
Classification
MasterFormat	12 35 53.13 – Metal Laboratory Casework
UniFormat	E2020 – Moveable Furnishings
IFC	Furniture
OmniClass	23-21 19 15 25 11
Purchasing
Contracts	Systec, Vizient
Revit family
Includes Pricing	Yes
ADA Compliant	Yes
Has MEP Connectors	No

Model	Width	Depth	Height	Weight
MCST1204SSAA	6' 0" (72")	1' 0" (12")	0' 1" (1")	18.9
MCST1304SSAA	6' 0" (72")	1' 1" (13")	0' 1" (1")	20.475
MCST1404SSAA	6' 0" (72")	1' 2" (14")	0' 1" (1")	22.05
MCST1504SSAA	6' 0" (72")	1' 3" (15")	0' 1" (1")	23.625
MCST1604SSAA	6' 0" (72")	1' 4" (16")	0' 1" (1")	25.2
MCST1704SSAA	6' 0" (72")	1' 5" (17")	0' 1" (1")	26.775
MCST1804SSAA	6' 0" (72")	1' 6" (18")	0' 1" (1")	28.35
MCST1904SSAA	6' 0" (72")	1' 7" (19")	0' 1" (1")	29.925
MCST2004SSAA	6' 0" (72")	1' 8" (20")	0' 1" (1")	31.5
MCST2104SSAA	6' 0" (72")	1' 9" (21")	0' 1" (1")	33.075
MCST2204SSAA	6' 0" (72")	1' 10" (22")	0' 1" (1")	34.65
MCST2304SSAA	6' 0" (72")	1' 11" (23")	0' 1" (1")	36.225
MCST2404SSAA	6' 0" (72")	2' 0" (24")	0' 1" (1")	37.8
MCST2504SSAA	6' 0" (72")	2' 1" (25")	0' 1" (1")	39.375
MCST2604SSAA	6' 0" (72")	2' 2" (26")	0' 1" (1")	40.95
MCST2704SSAA	6' 0" (72")	2' 3" (27")	0' 1" (1")	42.525
MCST2804SSAA	6' 0" (72")	2' 4" (28")	0' 1" (1")	44.1
MCST2904SSAA	6' 0" (72")	2' 5" (29")	0' 1" (1")	45.675
MCST3004SSAA	6' 0" (72")	2' 6" (30")	0' 1" (1")	47.25
MCST3104SSAA	6' 0" (72")	2' 7" (31")	0' 1" (1")	48.825
MCST3204SSAA	6' 0" (72")	2' 8" (32")	0' 1" (1")	50.4
MCST3304SSAA	6' 0" (72")	2' 9" (33")	0' 1" (1")	51.975
MCST3404SSAA	6' 0" (72")	2' 10" (34")	0' 1" (1")	53.55
MCST3504SSAA	6' 0" (72")	2' 11" (35")	0' 1" (1")	55.125
MCST3604SSAA	6' 0" (72")	3' 0" (36")	0' 1" (1")	56.7
MCST3704SSAA	6' 0" (72")	3' 1" (37")	0' 1" (1")	58.275
MCST3804SSAA	6' 0" (72")	3' 2" (38")	0' 1" (1")	59.85
MCST3904SSAA	6' 0" (72")	3' 3" (39")	0' 1" (1")	61.425
MCST4004SSAA	6' 0" (72")	3' 4" (40")	0' 1" (1")	63
MCST4104SSAA	6' 0" (72")	3' 5" (41")	0' 1" (1")	64.575
MCST4204SSAA	6' 0" (72")	3' 6" (42")	0' 1" (1")	66.15
MCST4304SSAA	6' 0" (72")	3' 7" (43")	0' 1" (1")	67.725
MCST4404SSAA	6' 0" (72")	3' 8" (44")	0' 1" (1")	69.3
MCST4504SSAA	6' 0" (72")	3' 9" (45")	0' 1" (1")	70.875
MCST4604SSAA	6' 0" (72")	3' 10" (46")	0' 1" (1")	72.45
MCST4704SSAA	6' 0" (72")	3' 11" (47")	0' 1" (1")	74.025
MCST4804SSAA	6' 0" (72")	4' 0" (48")	0' 1" (1")	75.6
MCST4904SSAA	6' 0" (72")	4' 1" (49")	0' 1" (1")	77.175
MCST5004SSAA	6' 0" (72")	4' 2" (50")	0' 1" (1")	78.75
MCST5104SSAA	6' 0" (72")	4' 3" (51")	0' 1" (1")	80.325
MCST5204SSAA	6' 0" (72")	4' 4" (52")	0' 1" (1")	81.9
MCST5304SSAA	6' 0" (72")	4' 5" (53")	0' 1" (1")	83.475
MCST5404SSAA	6' 0" (72")	4' 6" (54")	0' 1" (1")	85.05
MCST5504SSAA	6' 0" (72")	4' 7" (55")	0' 1" (1")	86.625
MCST5604SSAA	6' 0" (72")	4' 8" (56")	0' 1" (1")	88.2
MCST5704SSAA	6' 0" (72")	4' 9" (57")	0' 1" (1")	89.775
MCST5804SSAA	6' 0" (72")	4' 10" (58")	0' 1" (1")	91.35
MCST5904SSAA	6' 0" (72")	4' 11" (59")	0' 1" (1")	92.925
MCST6004SSAA	6' 0" (72")	5' 0" (60")	0' 1" (1")	94.5

MCST1204SSAA
72" W × 12" D × 1" H · Weight 18.9
MCST1304SSAA
72" W × 13" D × 1" H · Weight 20.475
MCST1404SSAA
72" W × 14" D × 1" H · Weight 22.05
MCST1504SSAA
72" W × 15" D × 1" H · Weight 23.625
MCST1604SSAA
72" W × 16" D × 1" H · Weight 25.2
MCST1704SSAA
72" W × 17" D × 1" H · Weight 26.775
MCST1804SSAA
72" W × 18" D × 1" H · Weight 28.35
MCST1904SSAA
72" W × 19" D × 1" H · Weight 29.925
MCST2004SSAA
72" W × 20" D × 1" H · Weight 31.5
MCST2104SSAA
72" W × 21" D × 1" H · Weight 33.075
MCST2204SSAA
72" W × 22" D × 1" H · Weight 34.65
MCST2304SSAA
72" W × 23" D × 1" H · Weight 36.225
