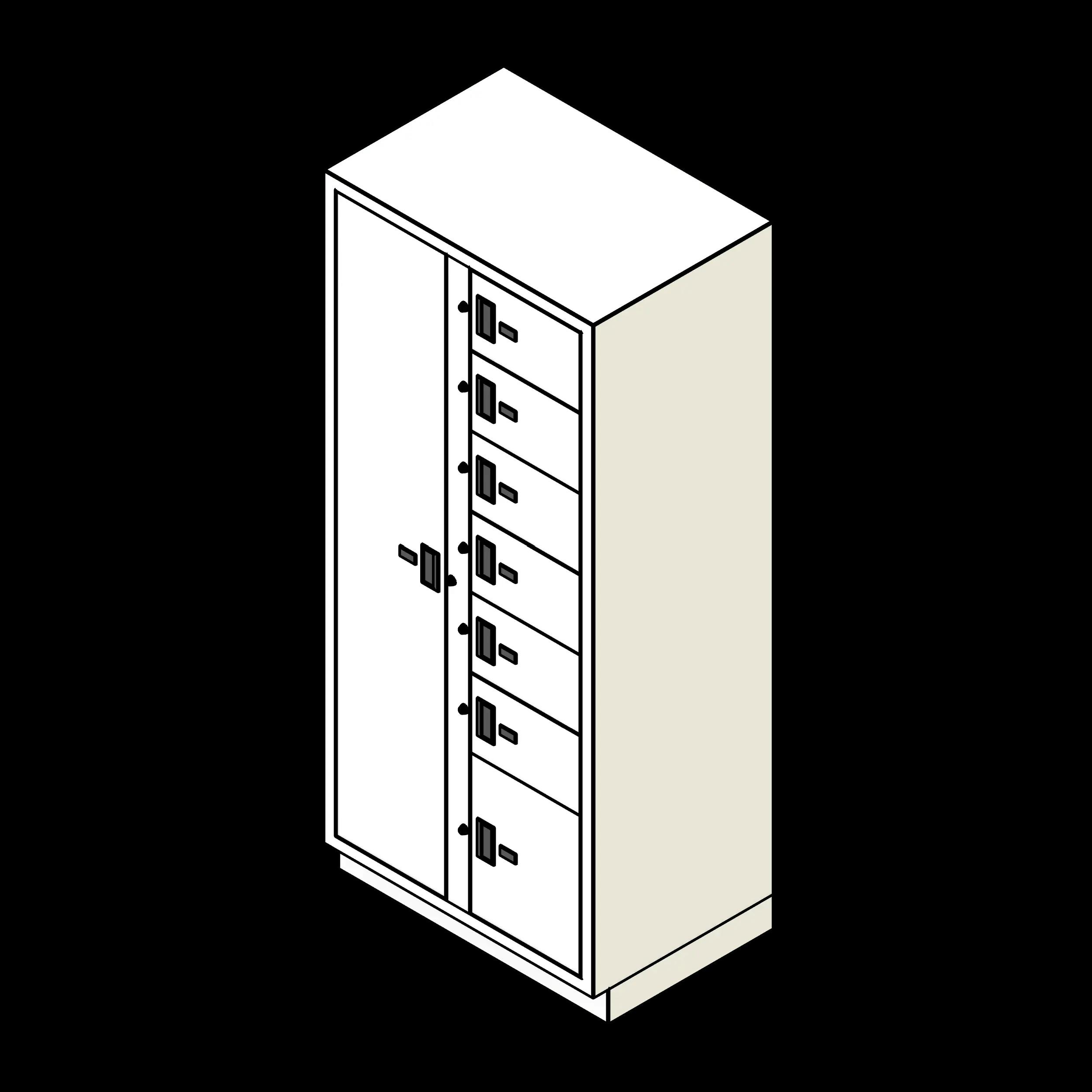

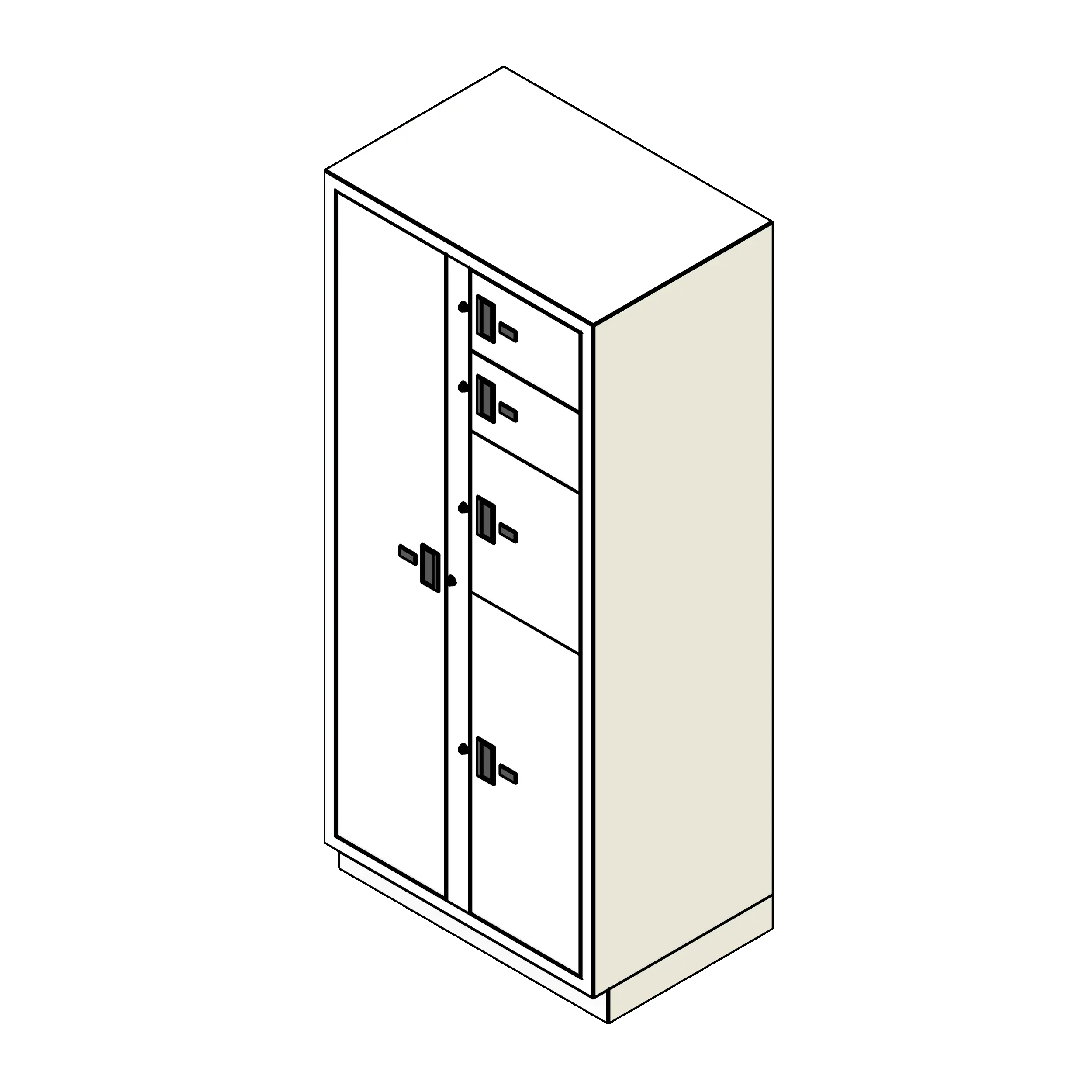

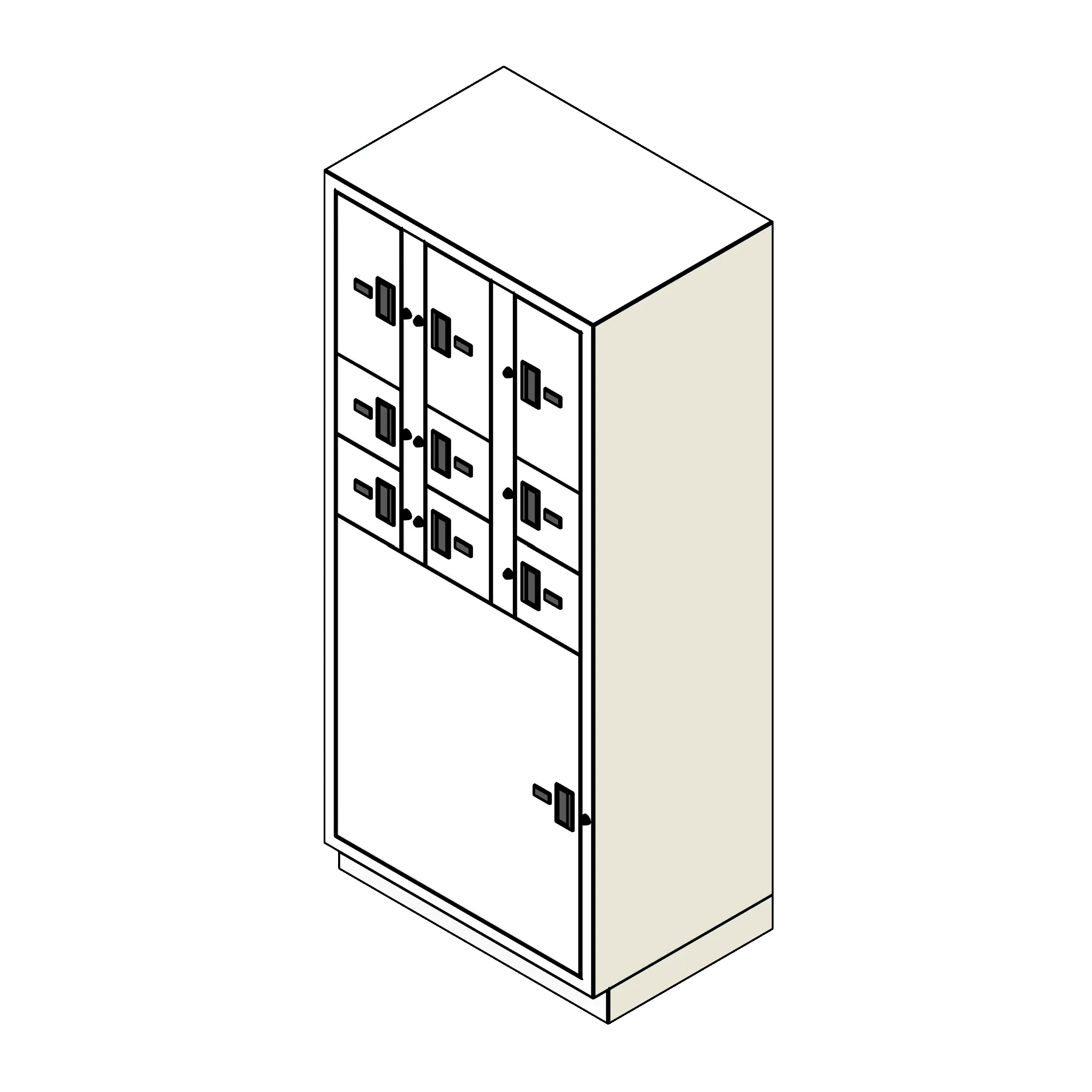

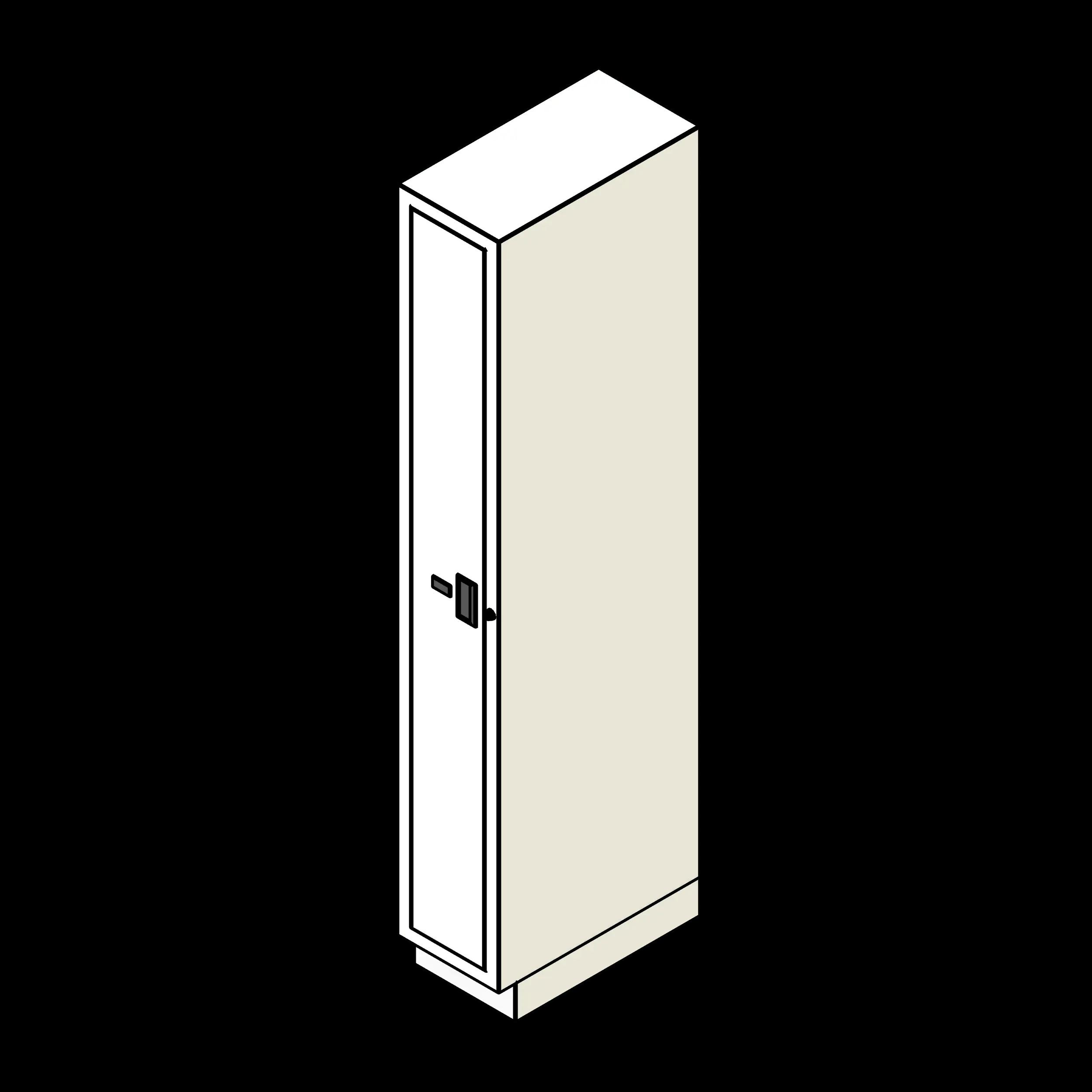

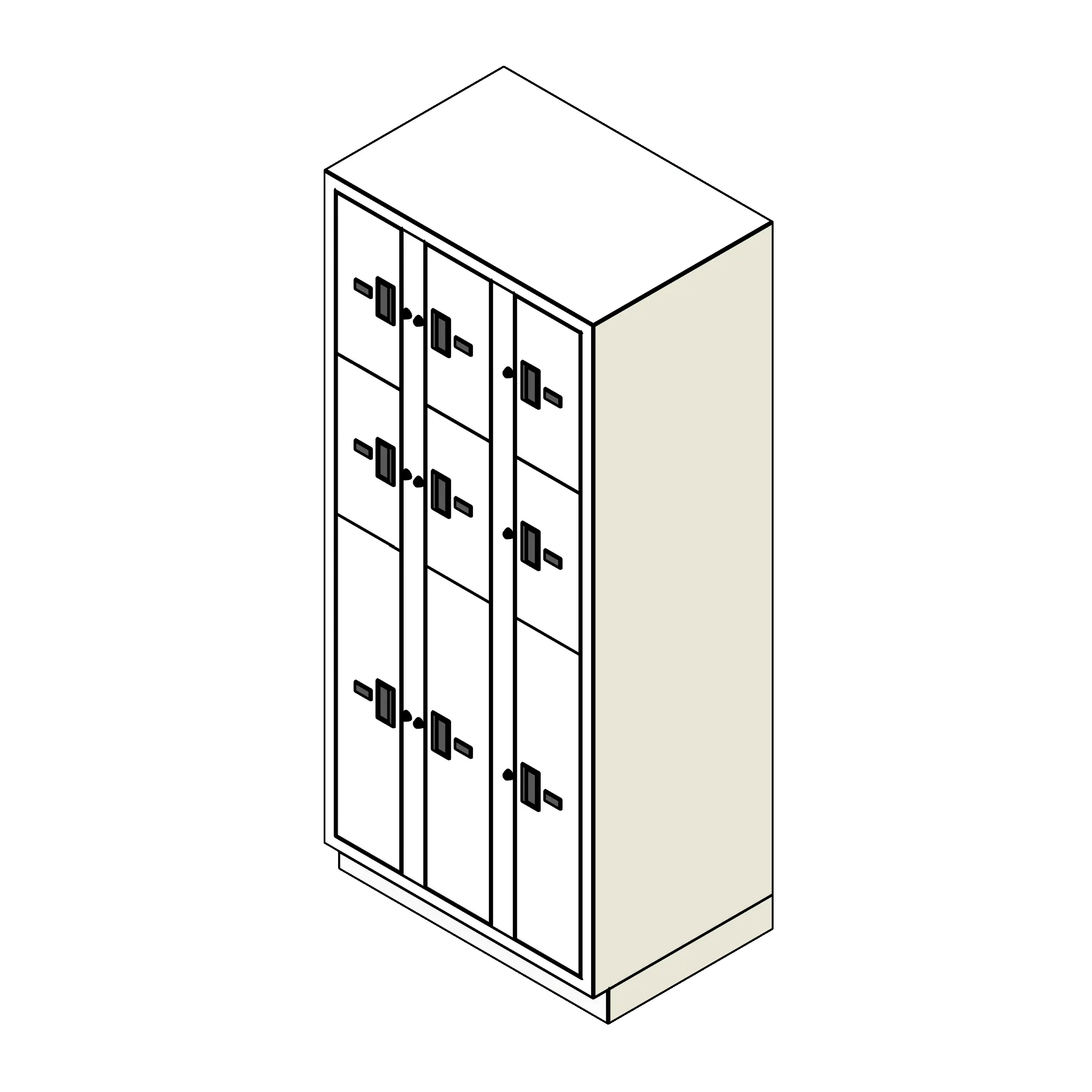

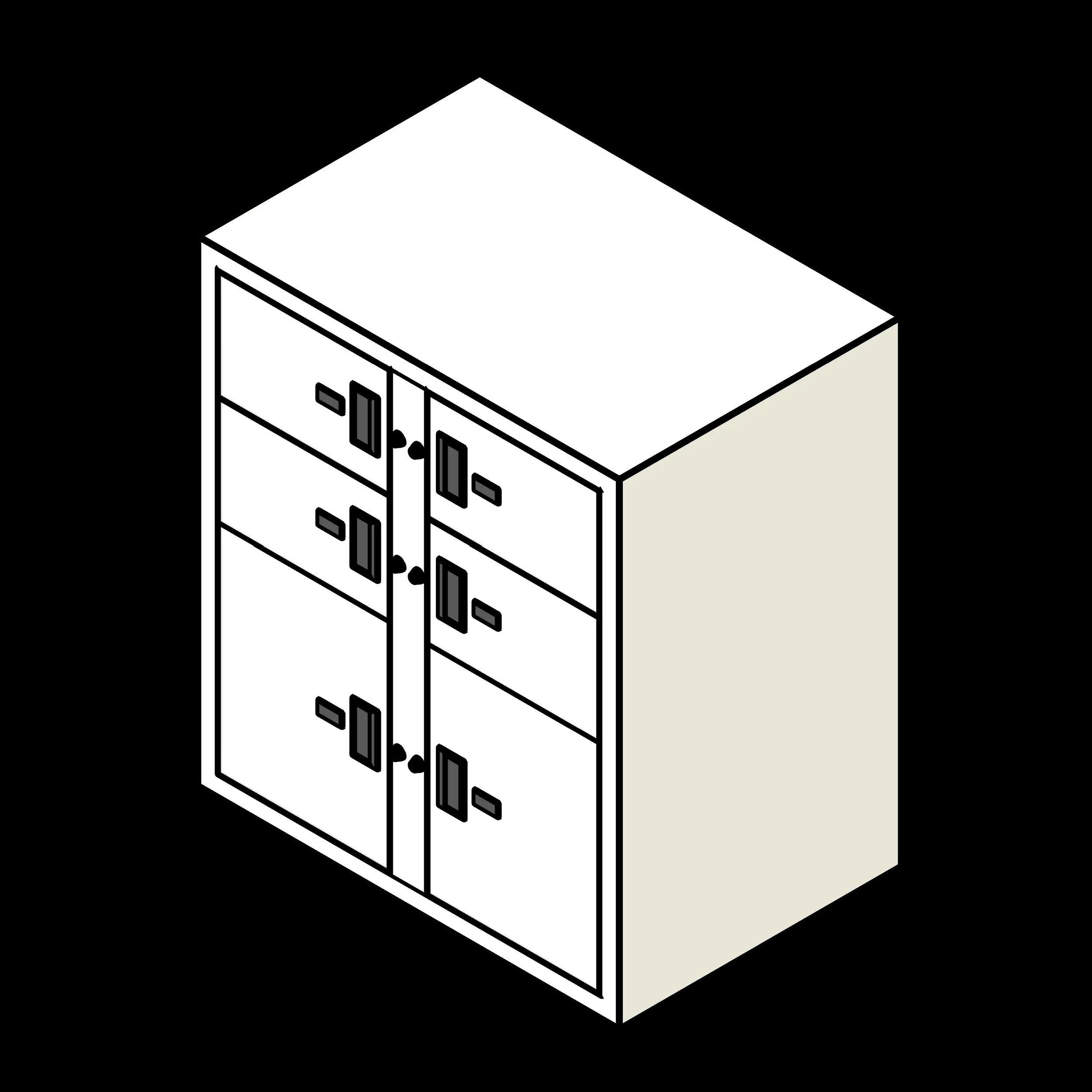

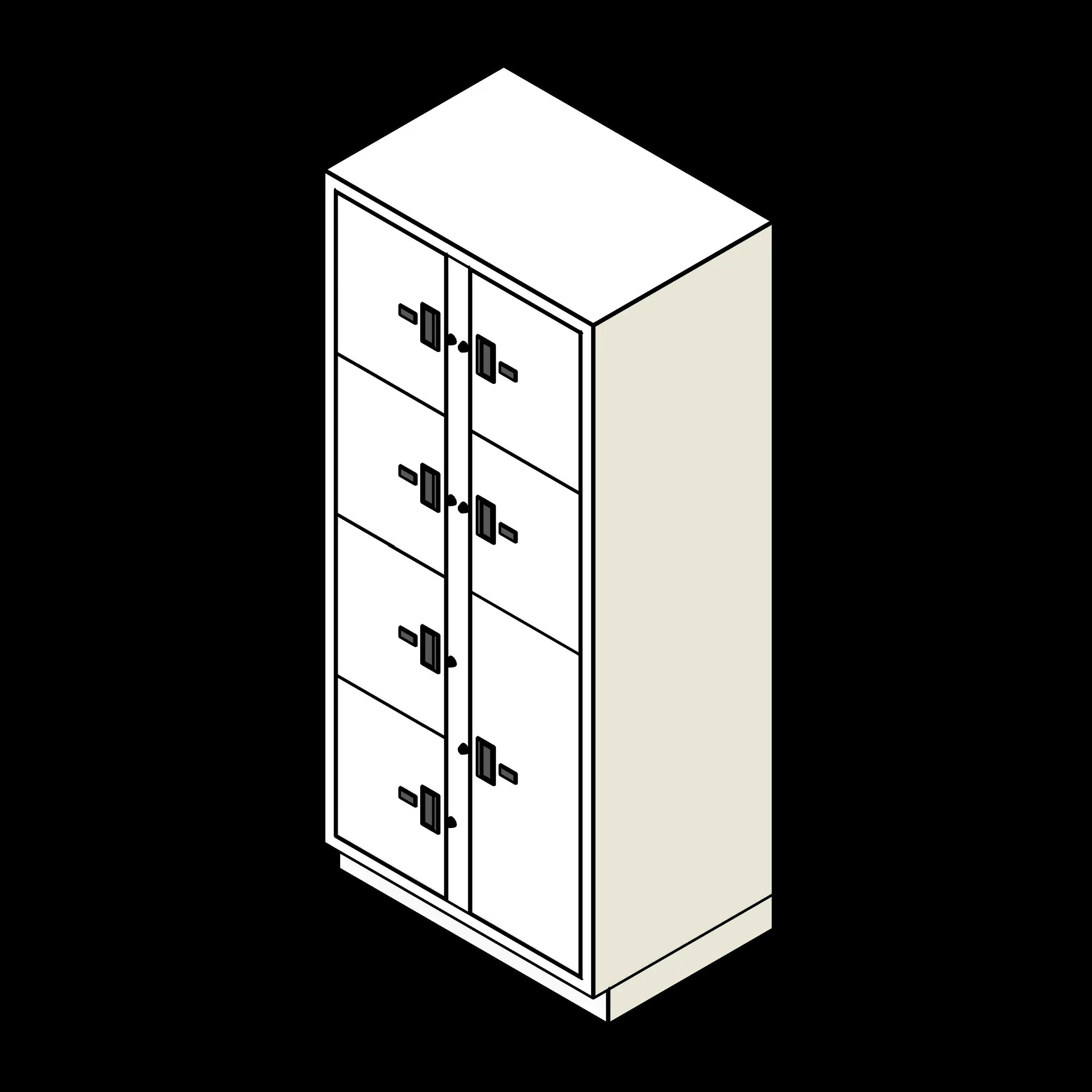

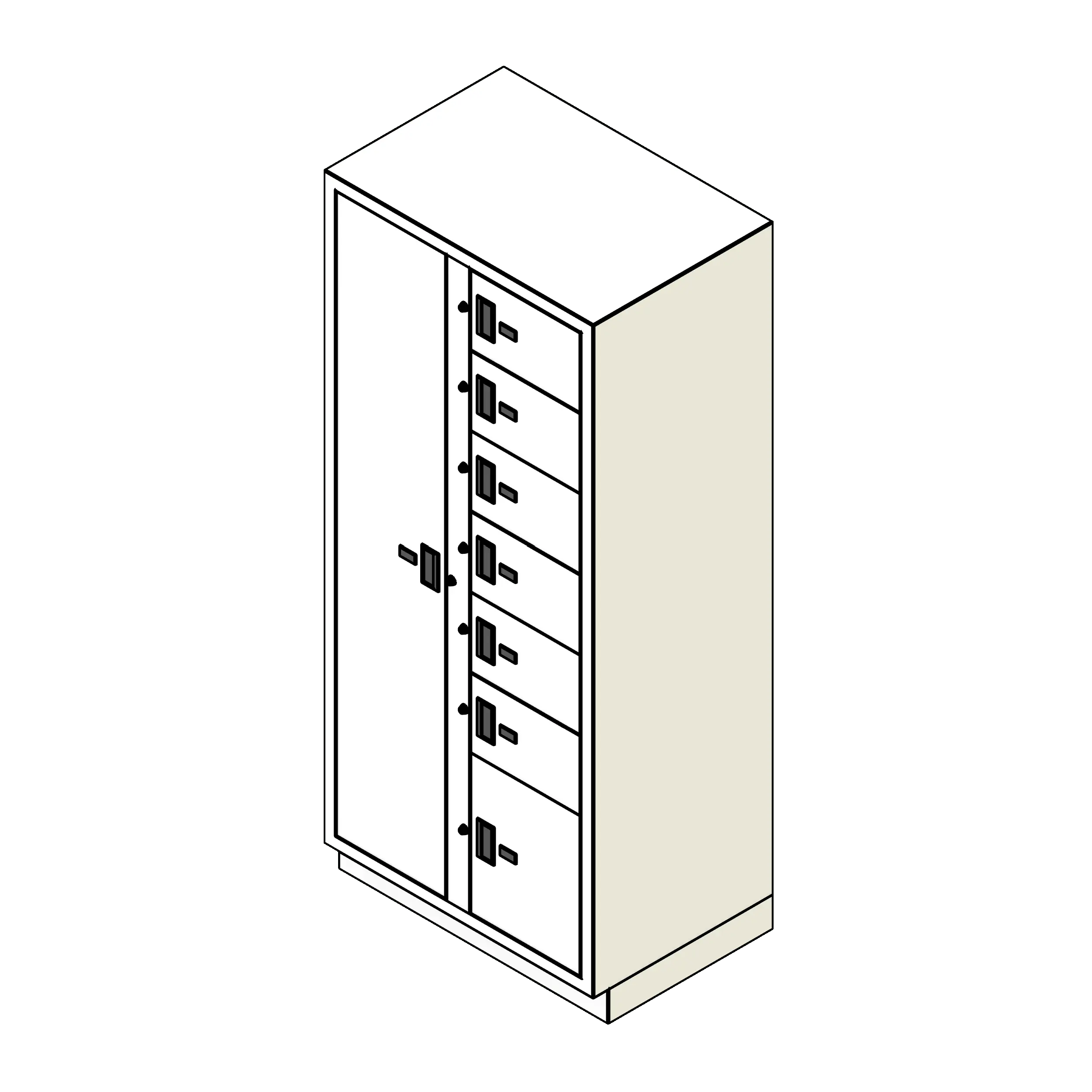

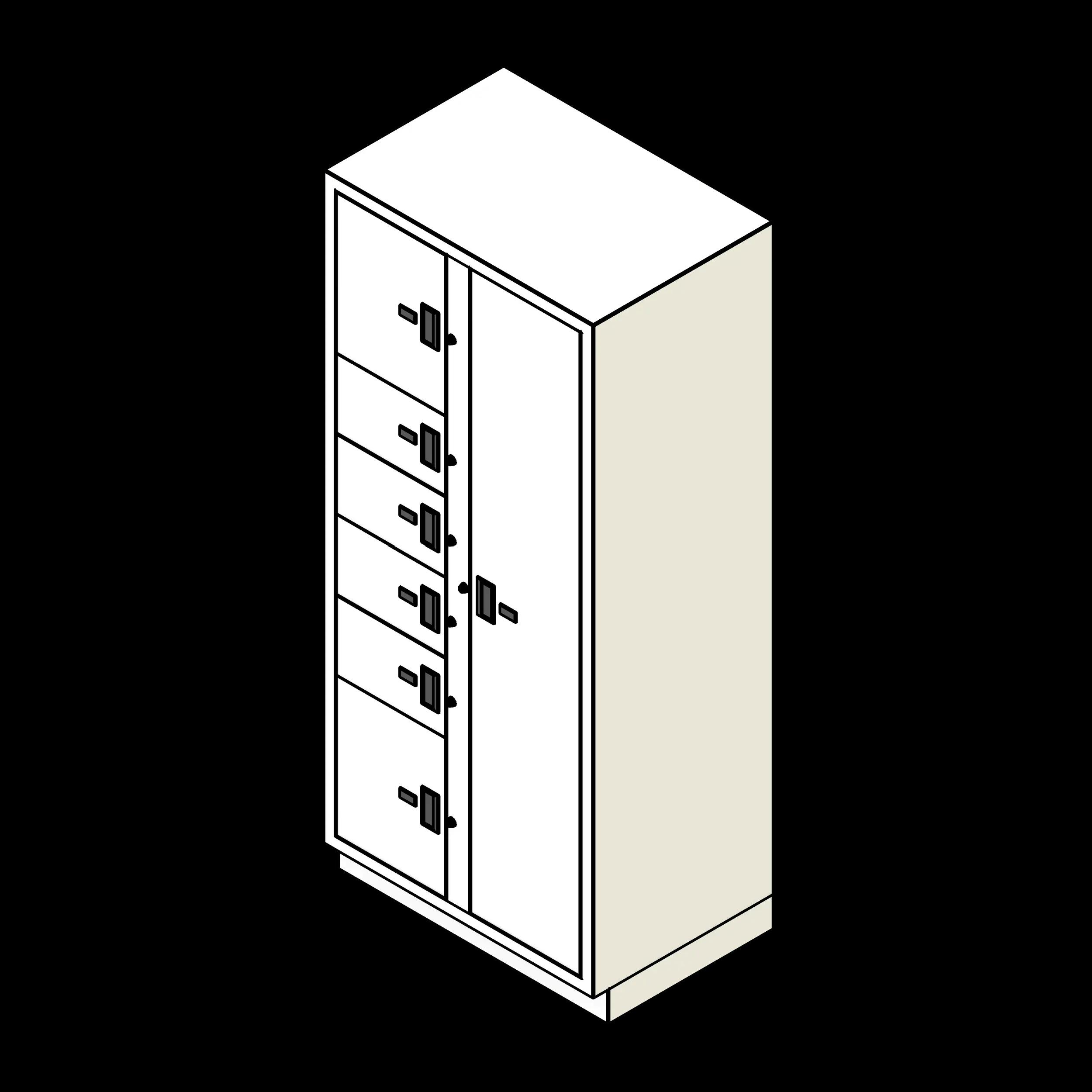

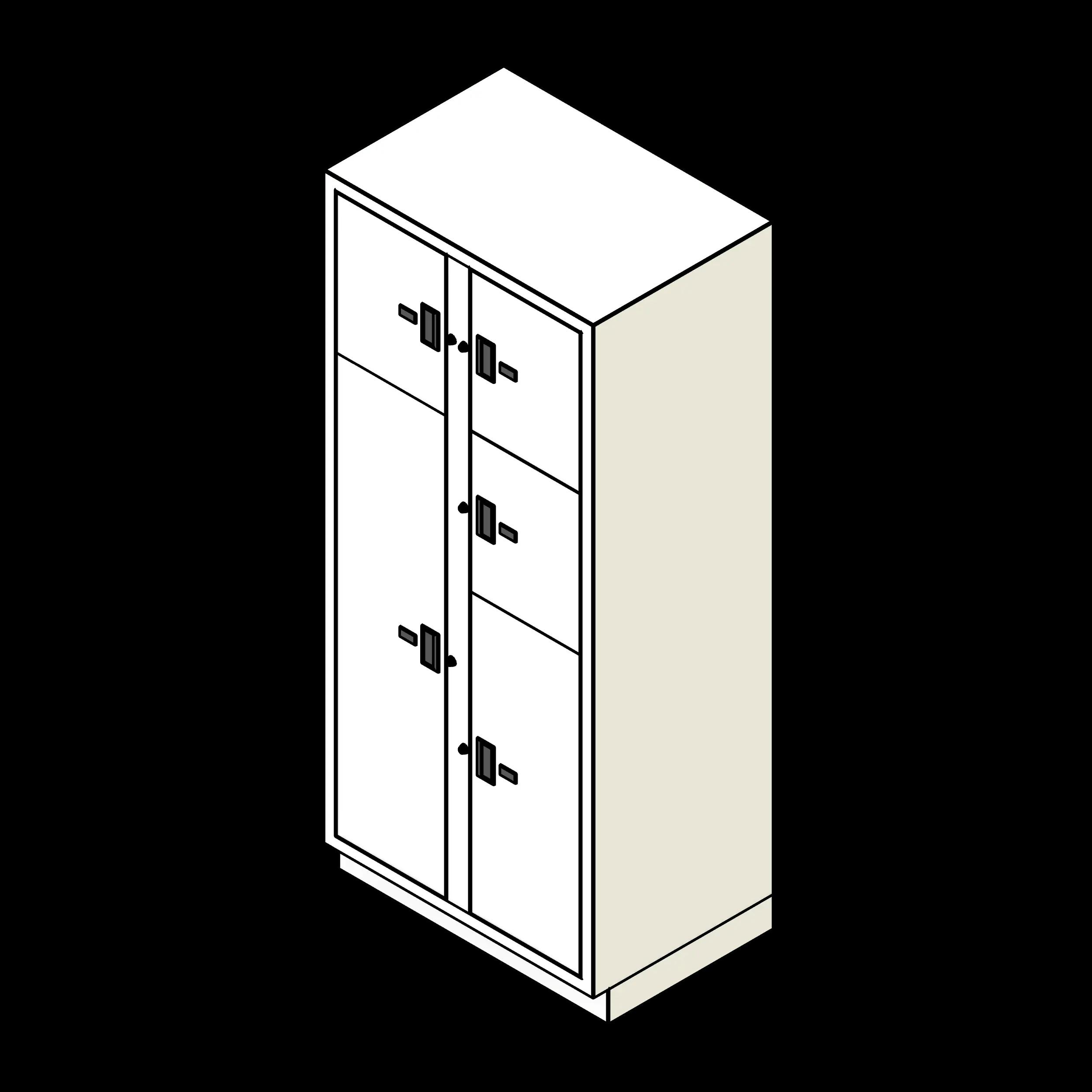

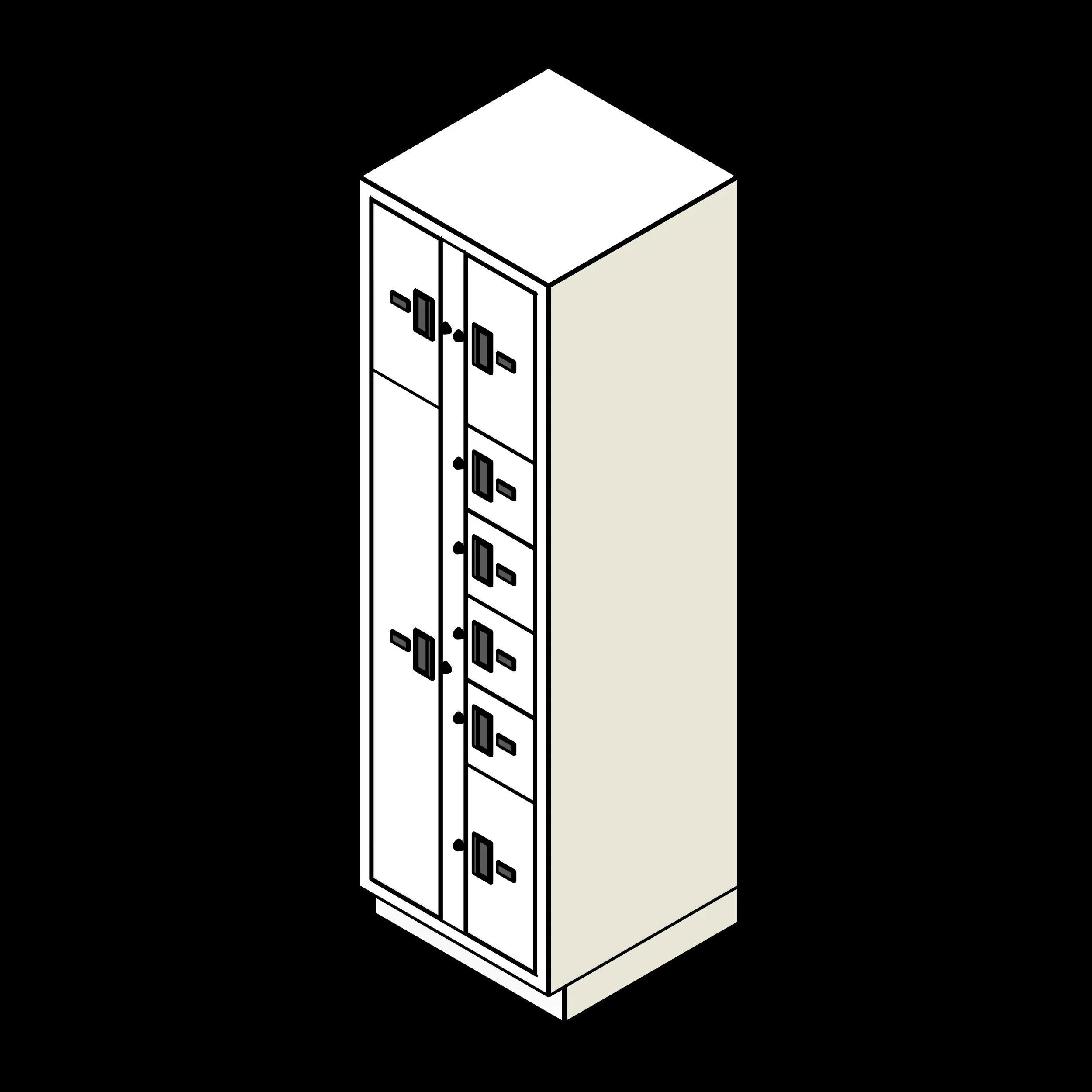

Configurations 40-59 Steel Evidence Locker

Product SKU

Description

  • Units in this free model contain a combination of either one, two, or three columns
  • Additional door configurations available are refrigerated, mail slots, and keyless or electronic
  • Available in non pass-thru and pass-thru styles
  • Includes configuration 40-59
  • Widths: 12", 18", 24", or 36"
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
Questions
Need some help? Send us a message if you have any sales or model related questions.

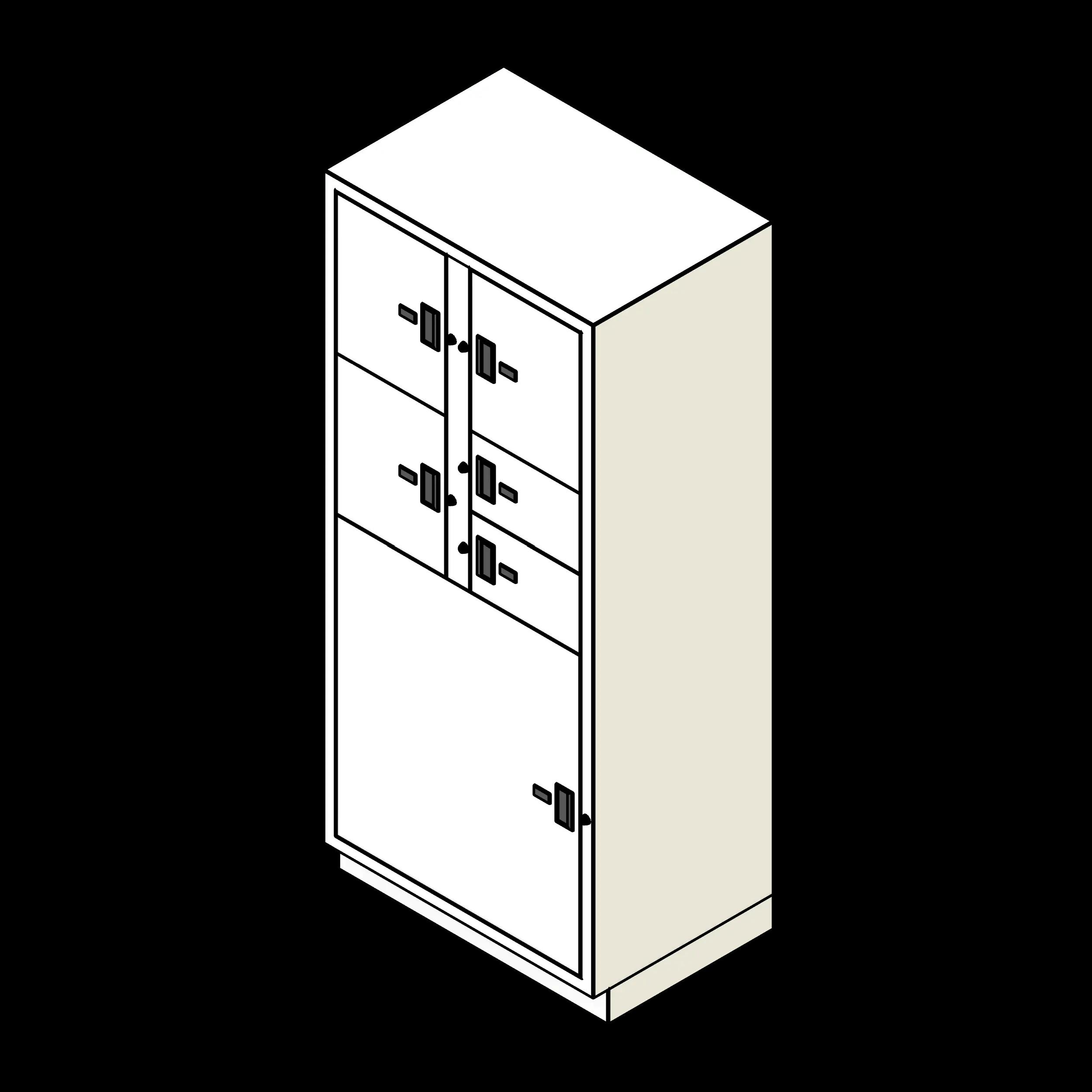

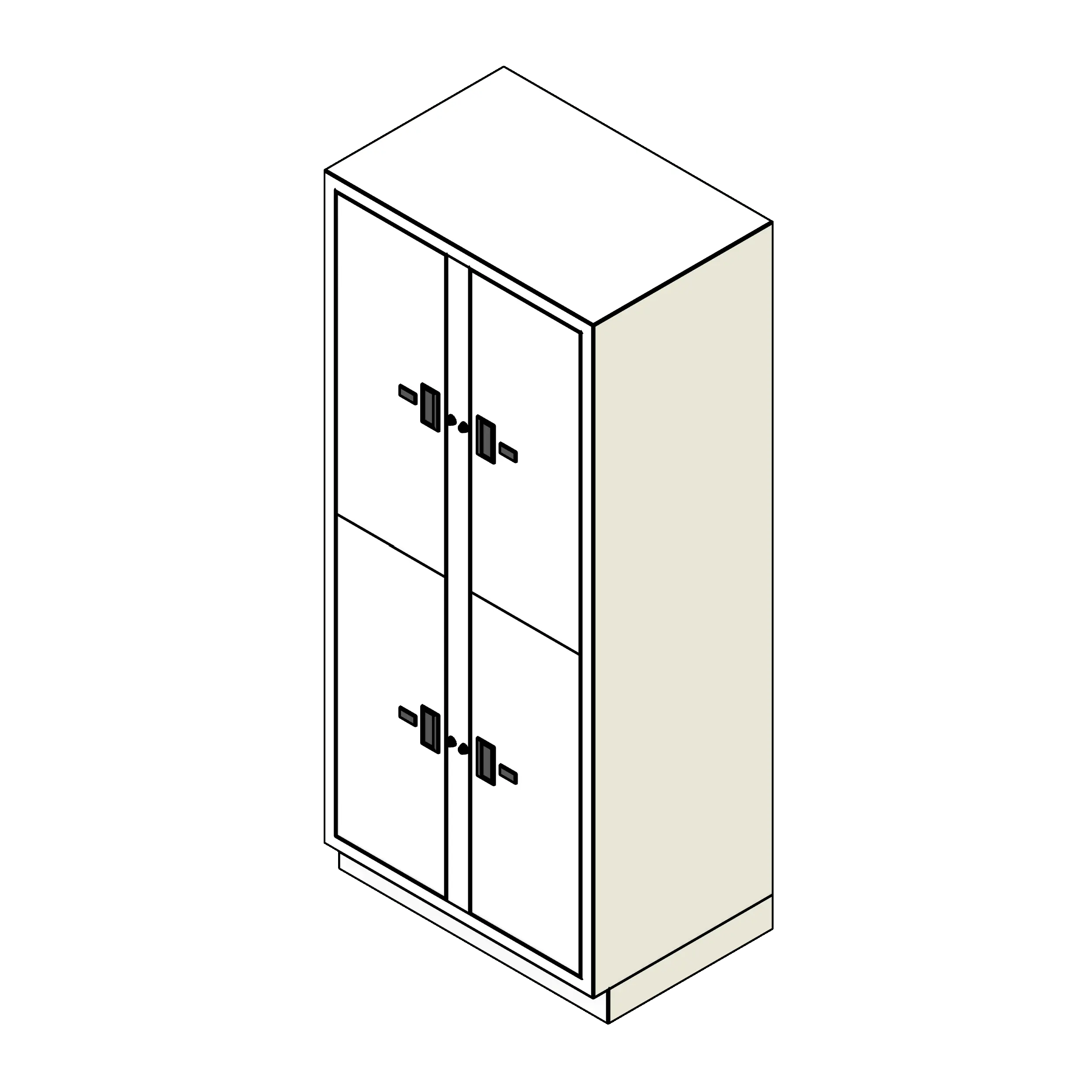

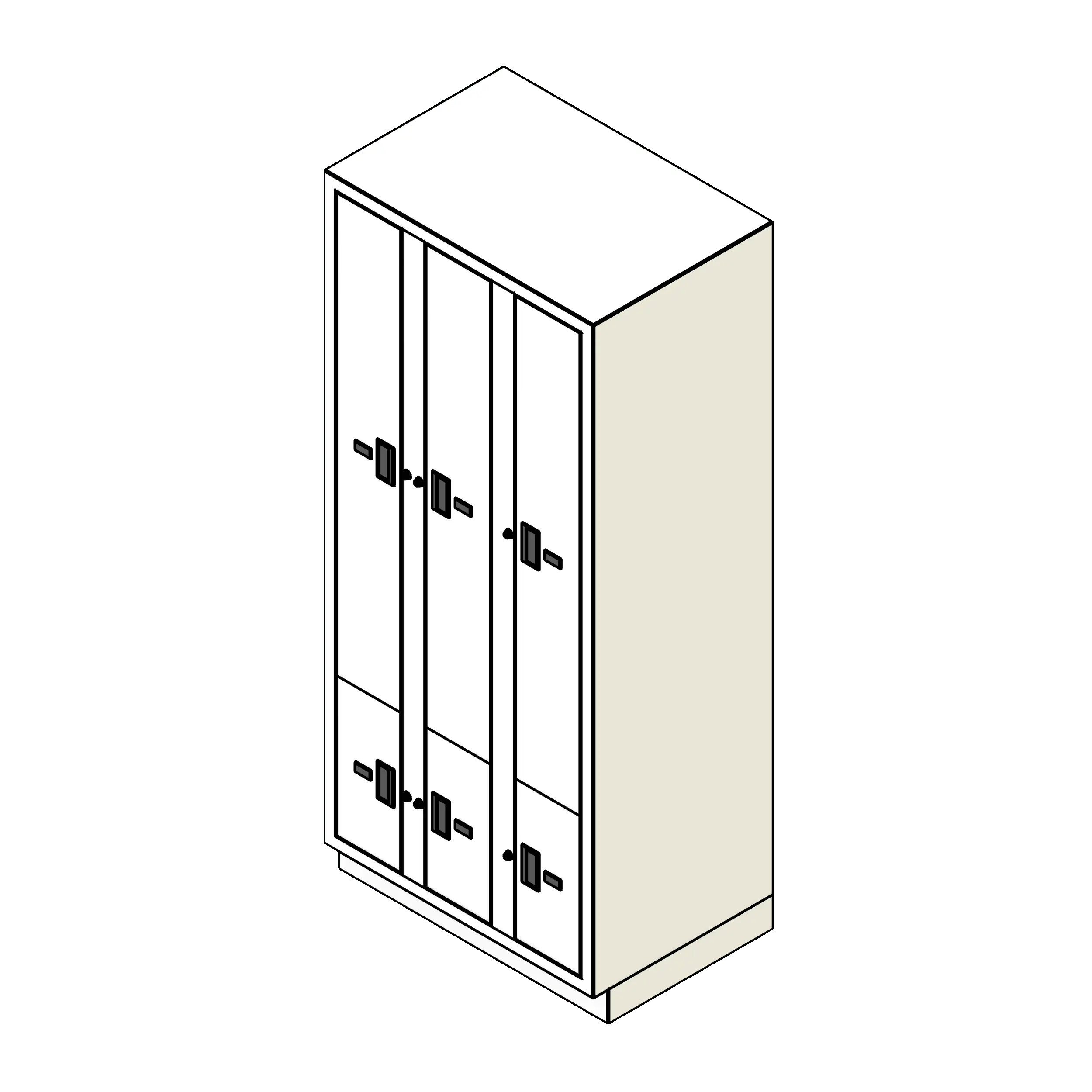

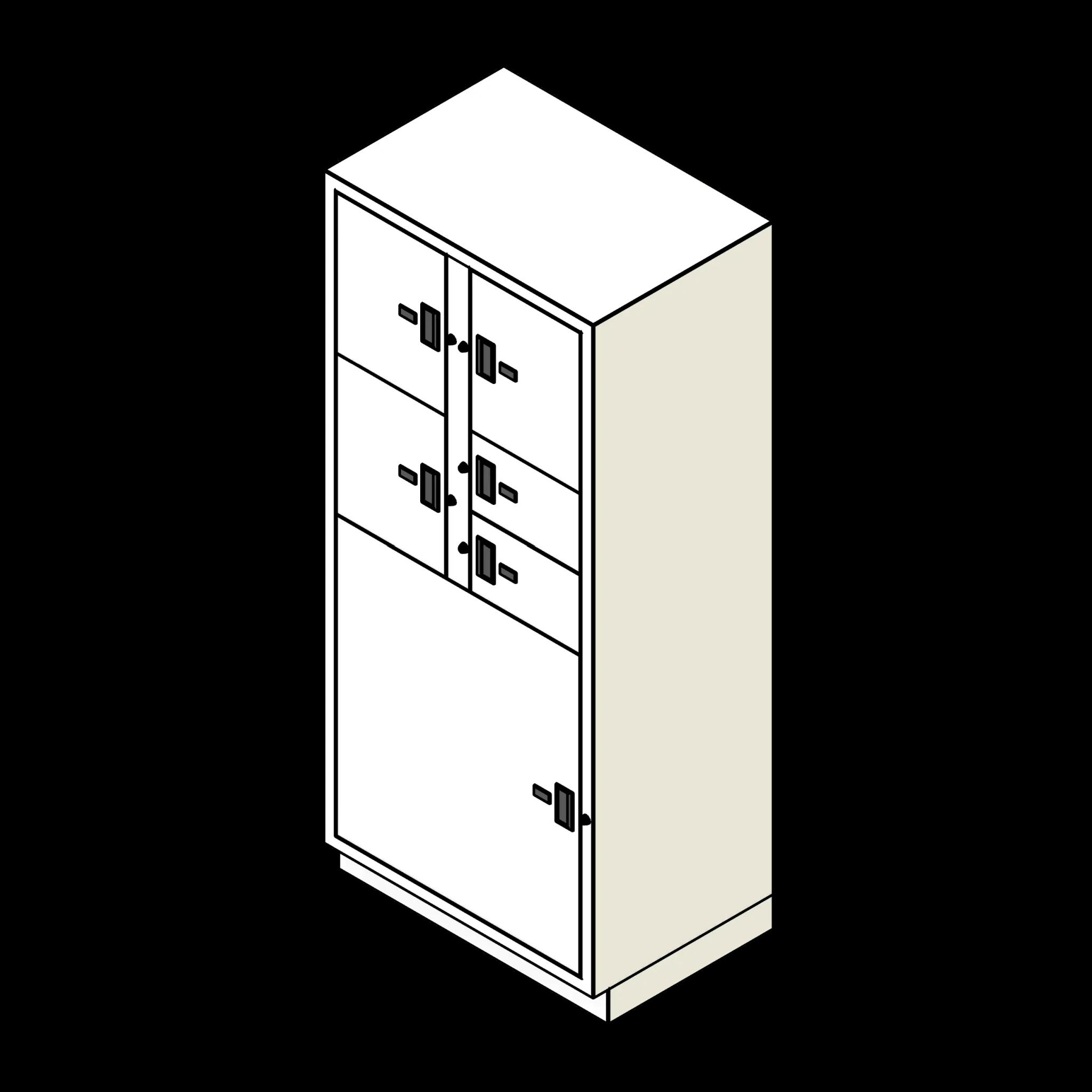

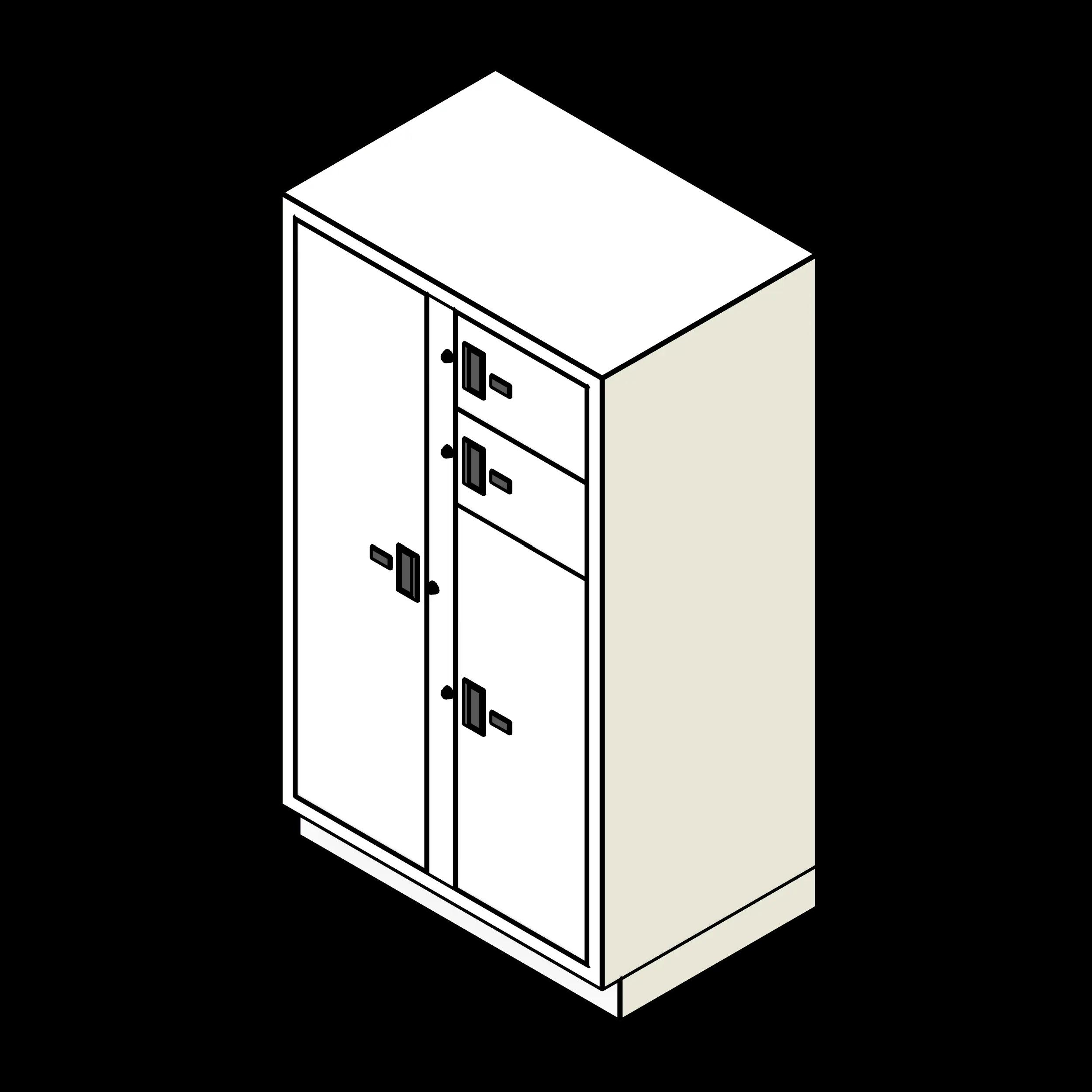

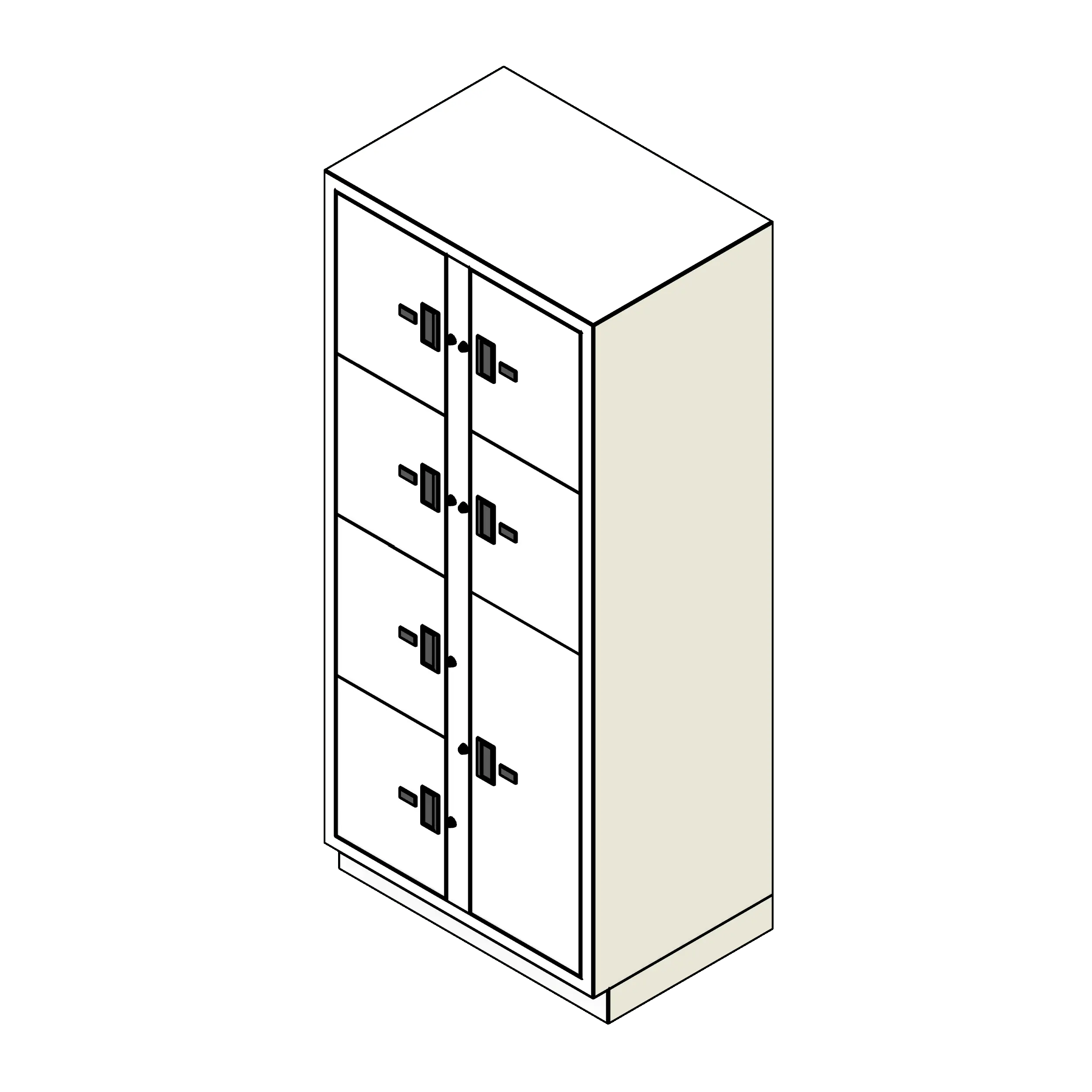

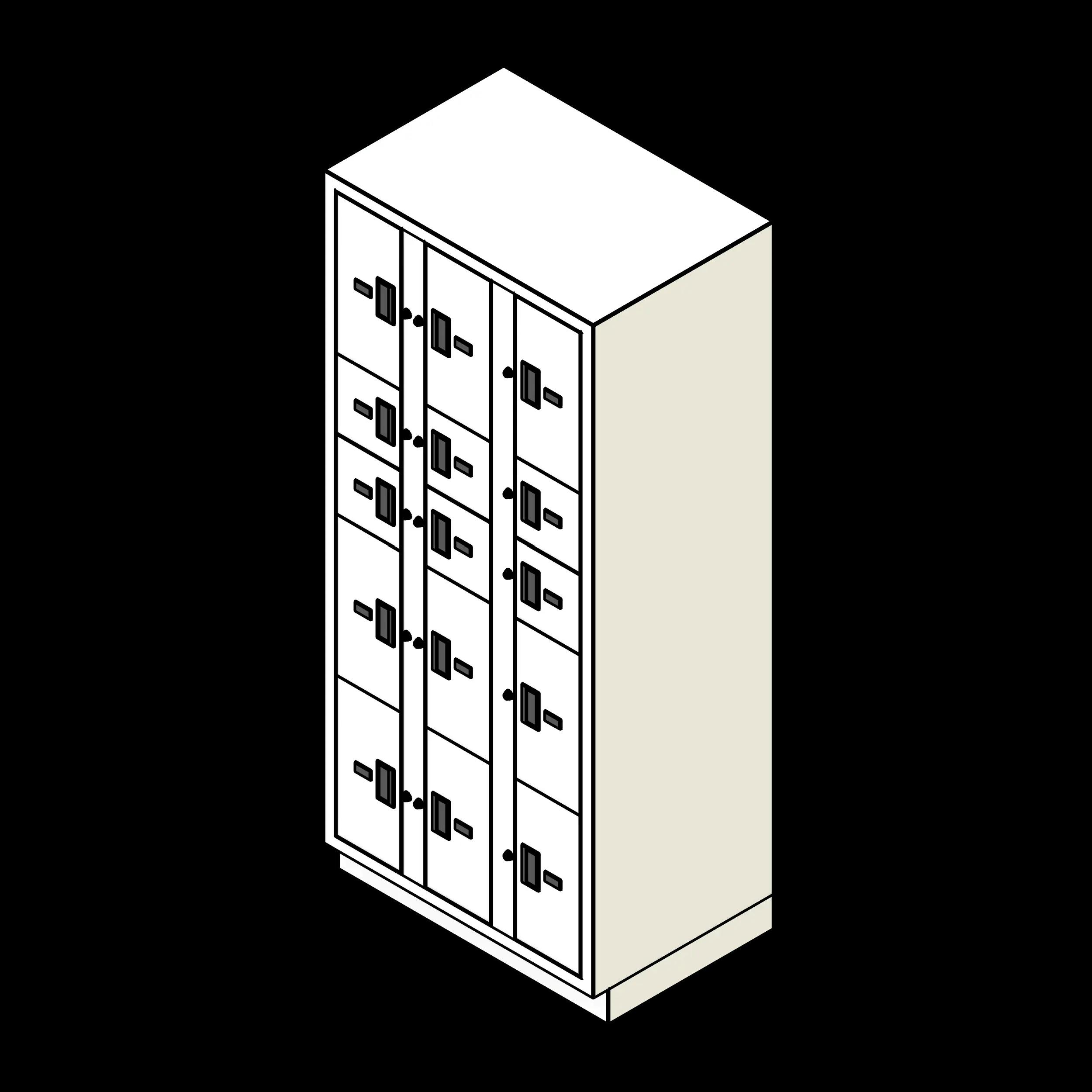

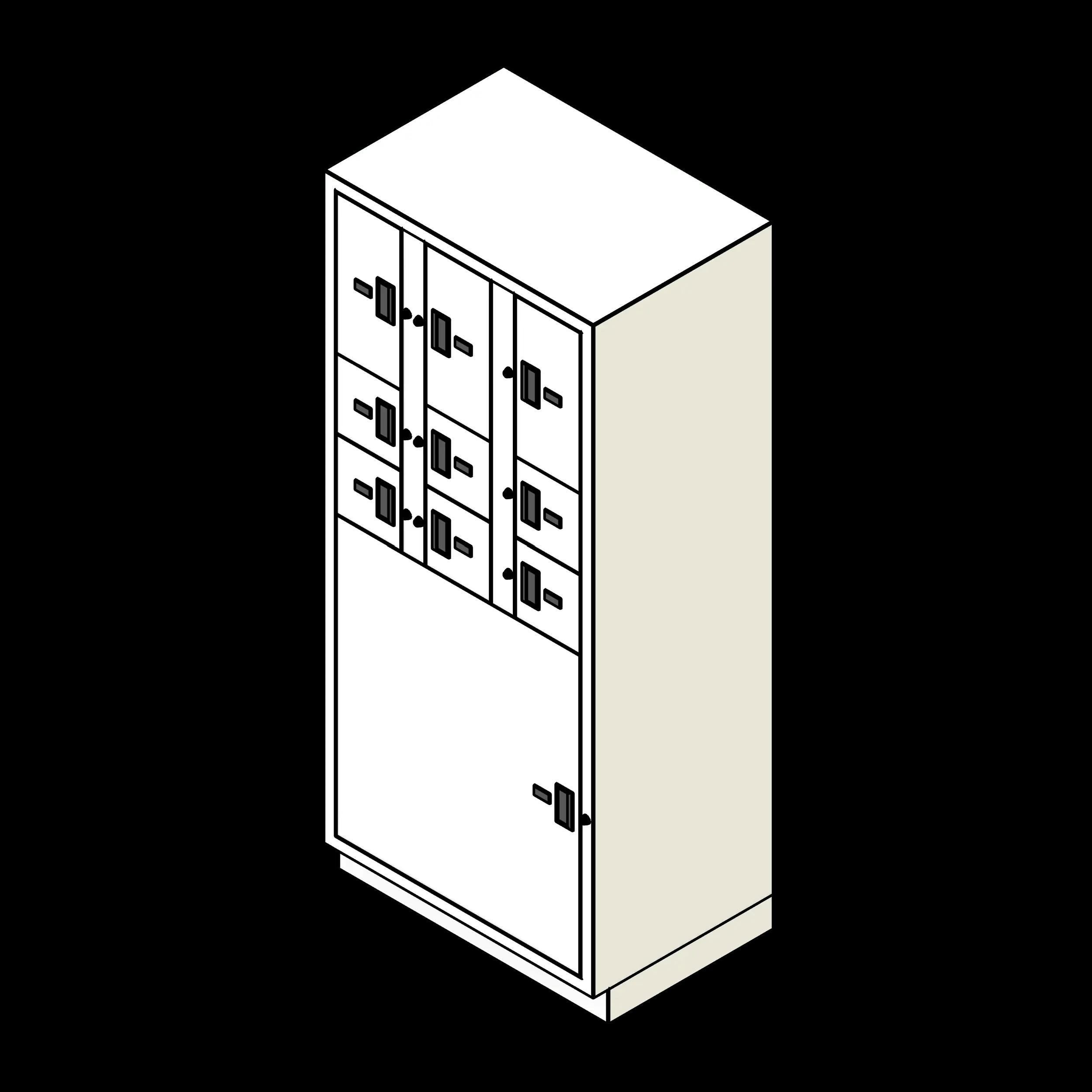

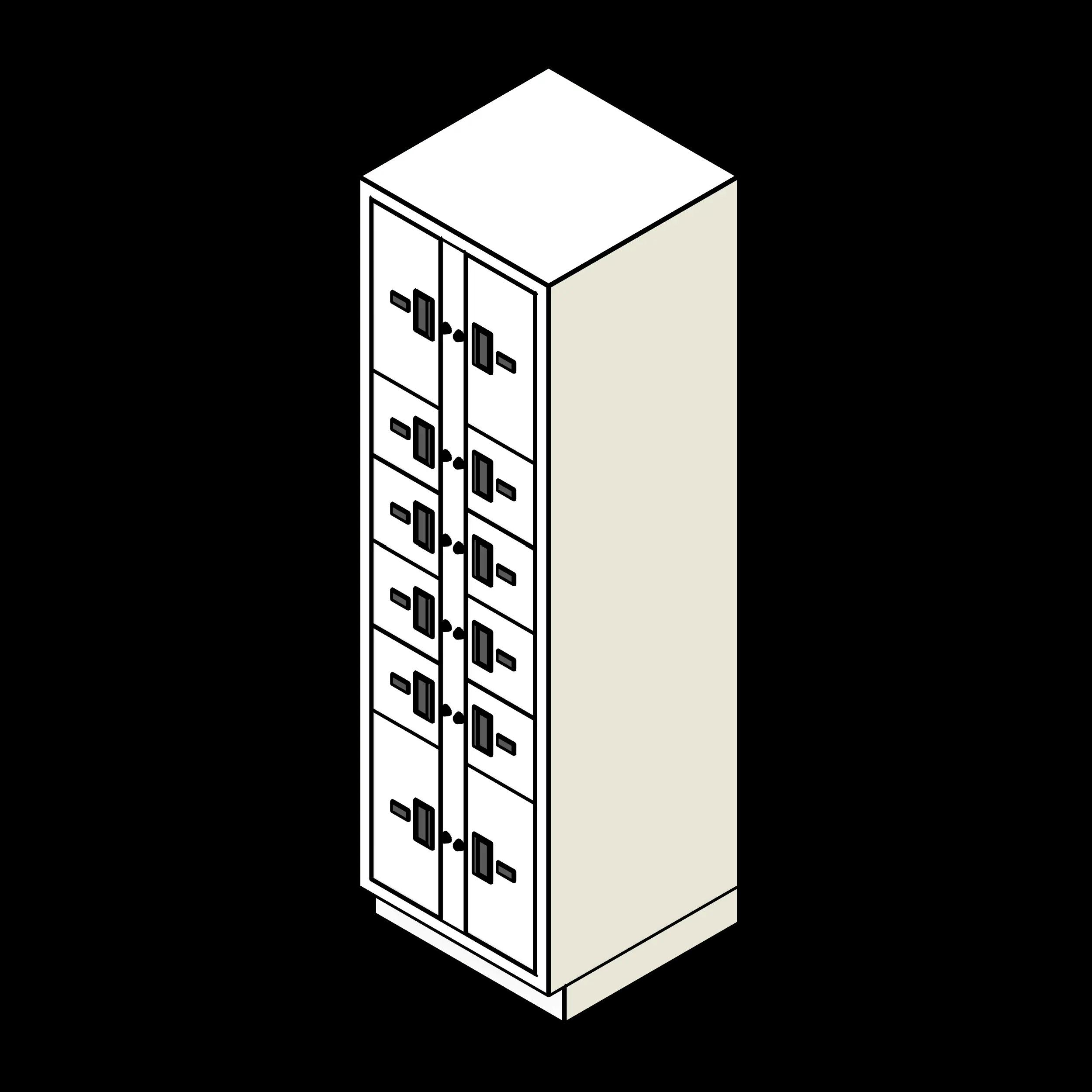

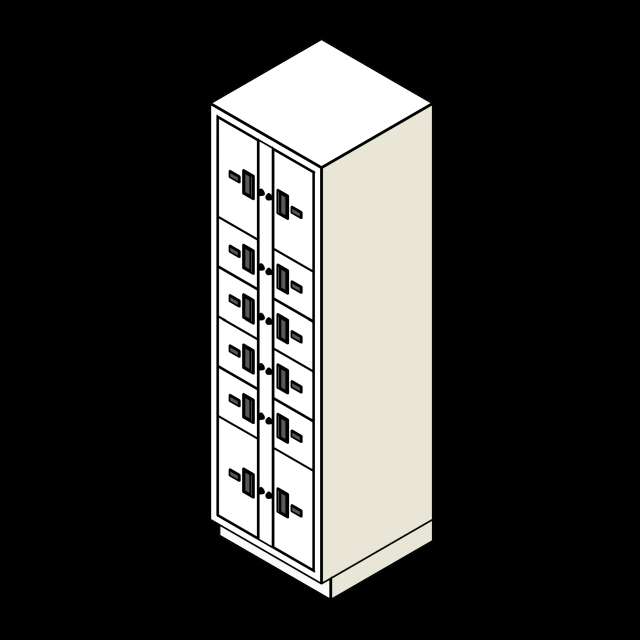

Evidence Lockers 40-59

These evidence lockers come with a variety of configurations and options, such as pass-thru or non-pass-thru. They are used by law enforcement professionals in public safety departments. To use this family, open the fetch app, then click on the model to insert it into your project. In the properties browser, under construction, you can choose between pass-through and non-pass-through locker styles. Some configurations can add a refrigerated door in the bottom right corner. This model lets you choose from the 19 configurations in the types tab.

Each kit comes with various options with a unique price attached to them. A typical solution would be a run of lockers in a linear direction.

Lockers

  • Lockers come in either Pass-thru or Non Pass-thru
  • Each model comes with a variety of compartments and sizes with self-closing doors
  • Push-button locks on the front of each door
  • For Pass-thru lockers, a single hinged rear door provides access and cannot be accessed from the front
  • Rear door comes with a different master key for evidence retrieval
  • No keys required for evidence drop off
  • Units come shipped fully assembled
  • Pre-drilled mounting holes in base and sides of locker
  • Number tags w/ instructions are installed on all front doors
  • Base comes with adjustable floor levelers
  • High quality Powder coat paint
  • Standard trim and installation hardware comes with each locker
  • Lifetime warranty
  • One-year limited warranty on all refrigeration units
  • Mesh rear doors available
  • Lockers are typically 36" Wide x 82" Tall and 24" Deep w/ base. Some lockers come 24" Wide
  • Optional front lockout system

Small Evidence Refrigerator

  • Stainless steel throughout
  • Keyless locking system prevents re-access
  • Available in Pass-thru and Non Pass-thru
  • Four standard configurations
ParameterValue
Standard Widths12", 24", 36"
Minimum Width1
Maximum Width3
Standard Depths24"
Minimum Depth2
Maximum Depth2
Standard Heights40 21/32", 63 13/32", 82"
Minimum Height3.38802083333333
Maximum Height6.83333333333333
ManufacturerSouthwest Solutions Group_SPA
Lead Time4-6 Weeks
ModelED3
Keynote10 51 13
Assembly CodeE20
AuthorAZuniga
Toll Free Number1-800-803-1083
PropertyValue
EqualisYes
Includes SustainabilityYes
OmniaYes
SourcewellYes
SystecYes
VizientYes
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Includes SustainabilityYes
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-29 15 15 11
