Product SKU
Description
- Ideal for commercial and residential acoustic applications.
- Available in fabric cores for tailored sound absorption.
- Choose from 20 sizes for custom design integration.
Revit 2022 (0.71 MB)
Revit 2023 (0.71 MB)
Revit 2024 (0.71 MB)
Revit 2025 (0.71 MB)
Revit 2026 (0.71 MB)
Acoustic Wall Partition

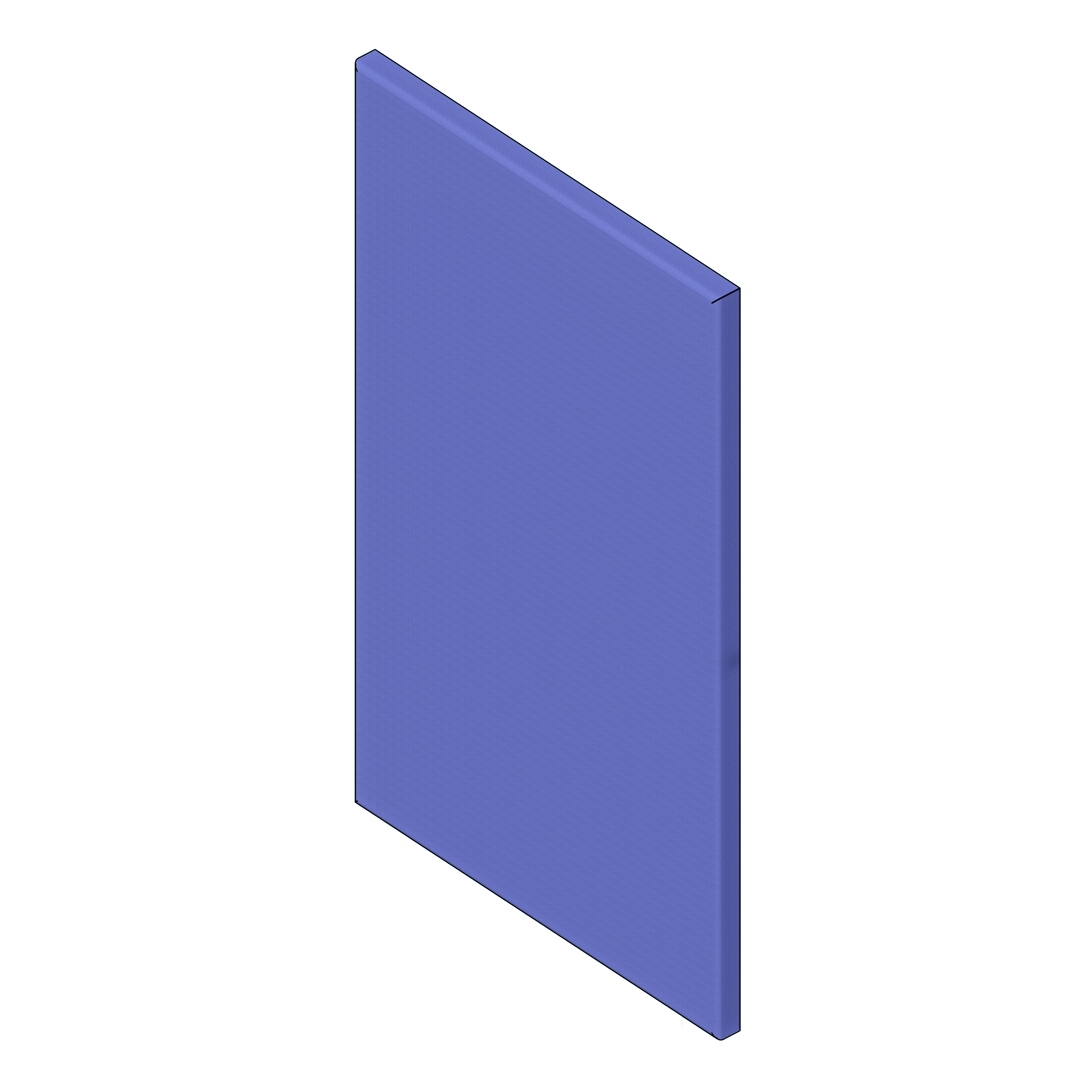

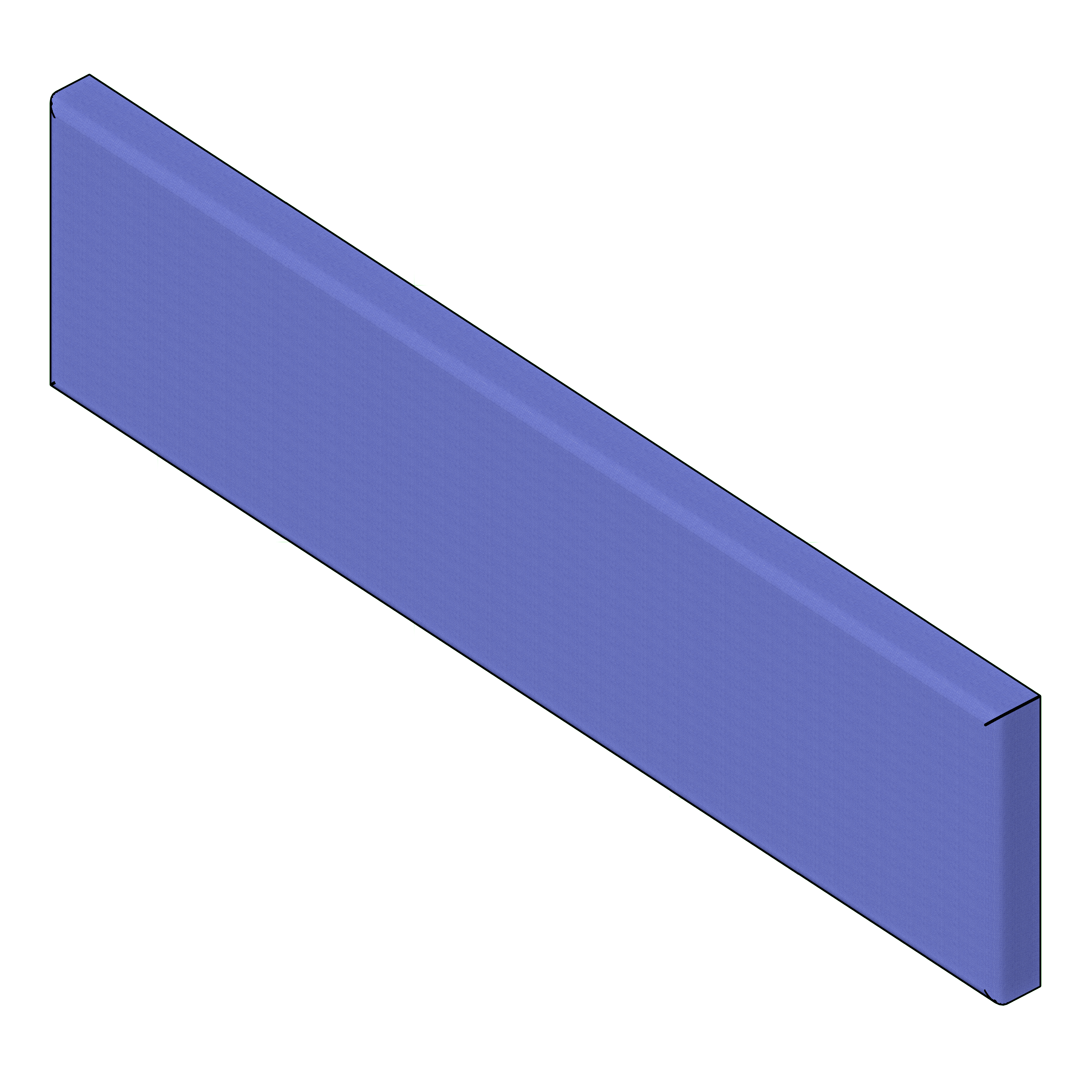

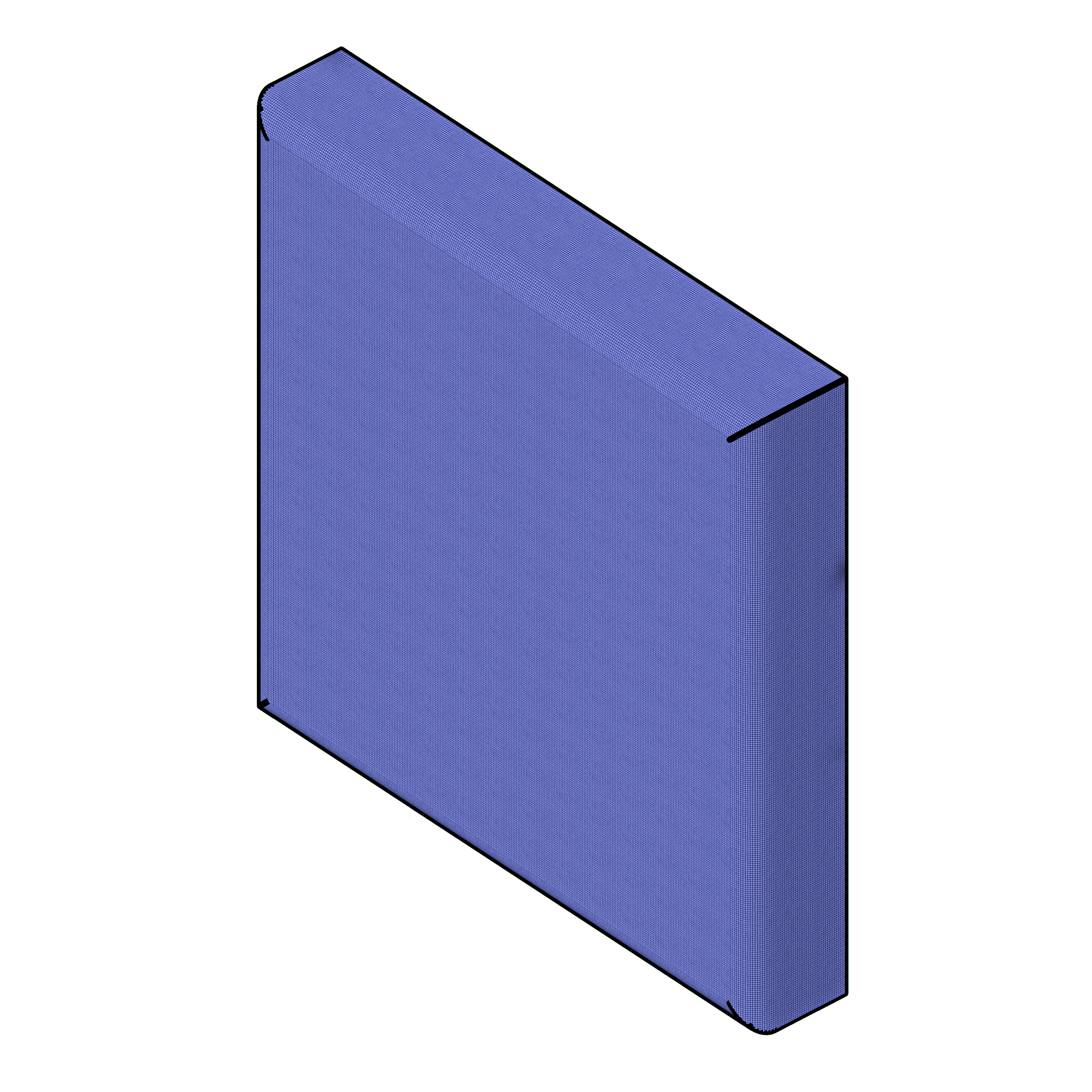

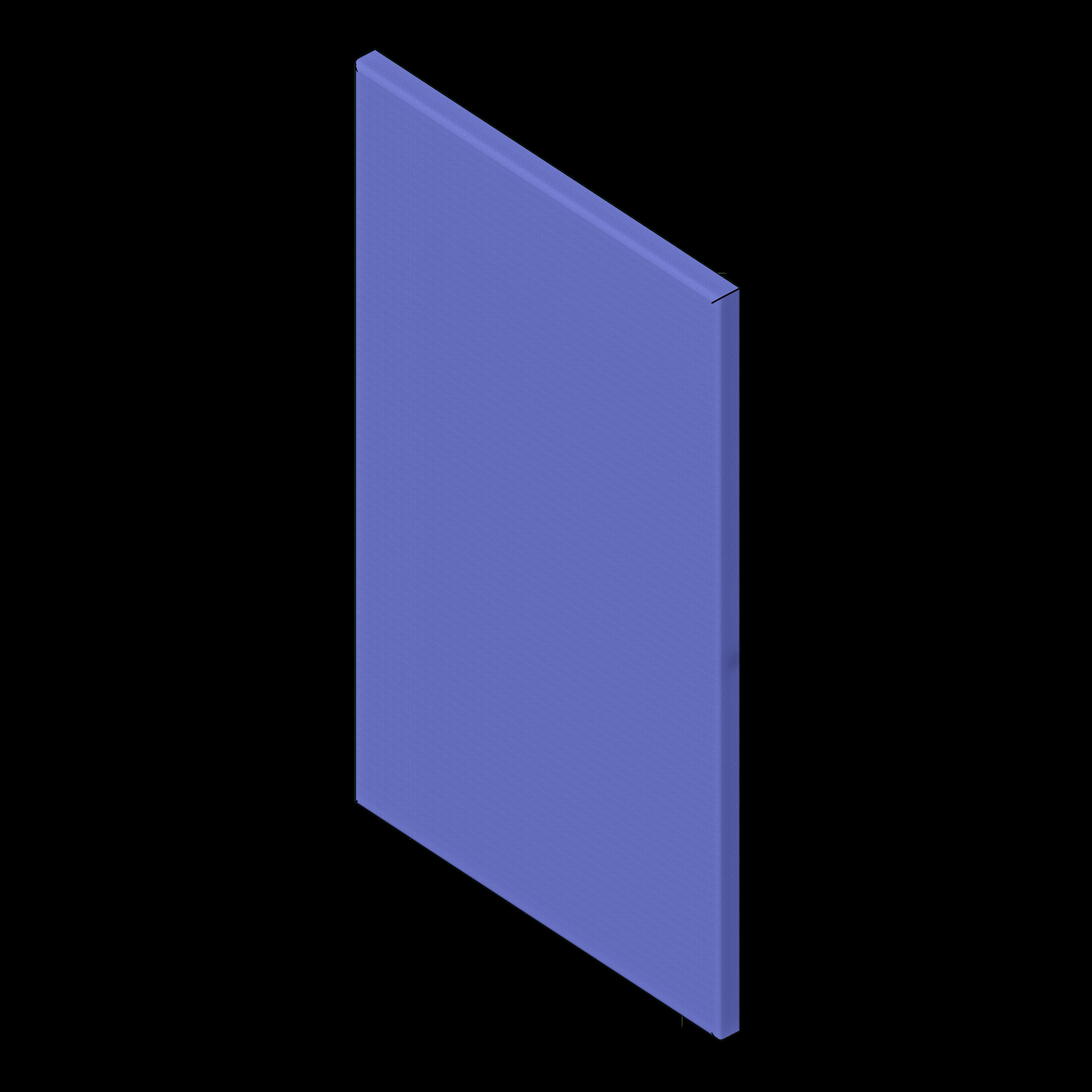

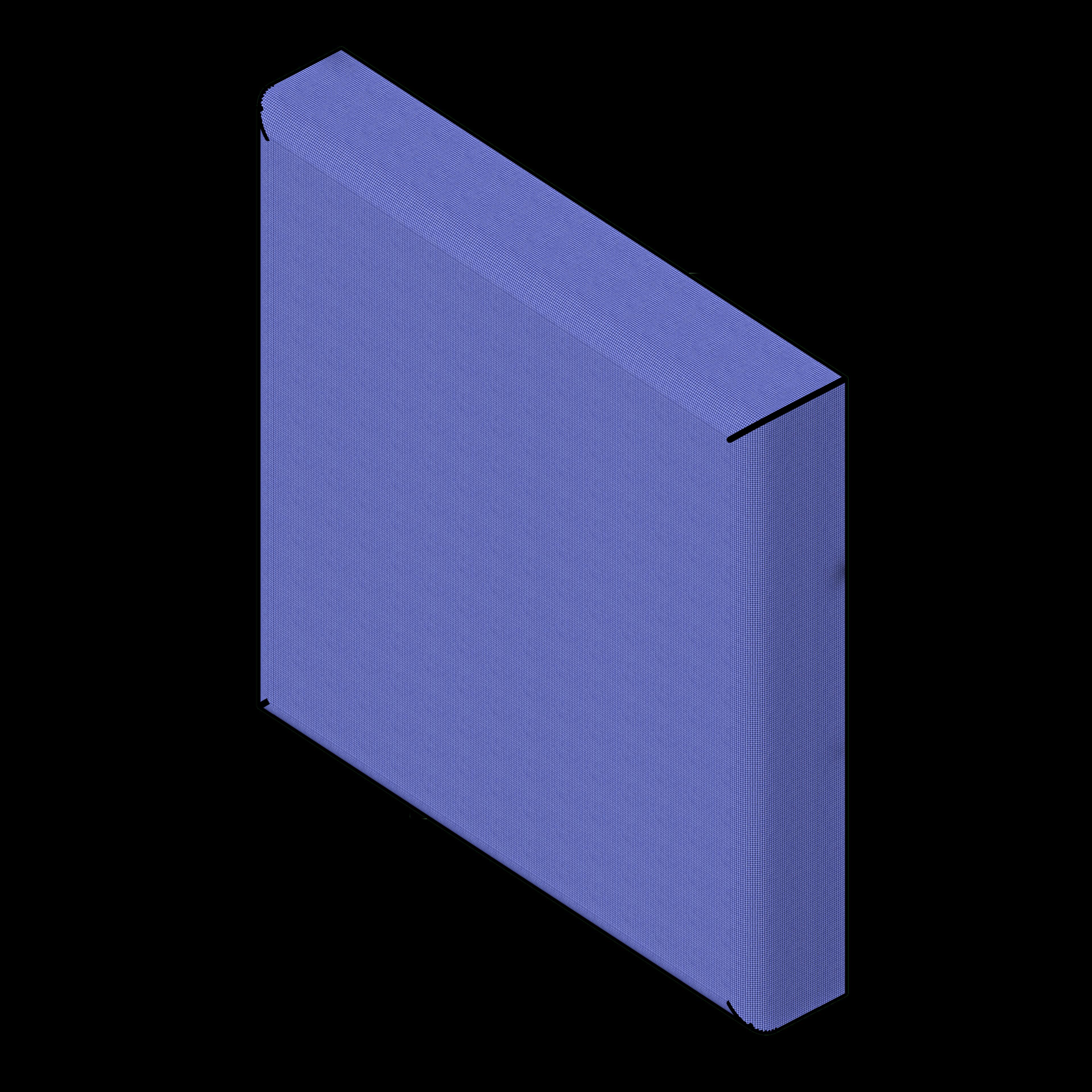

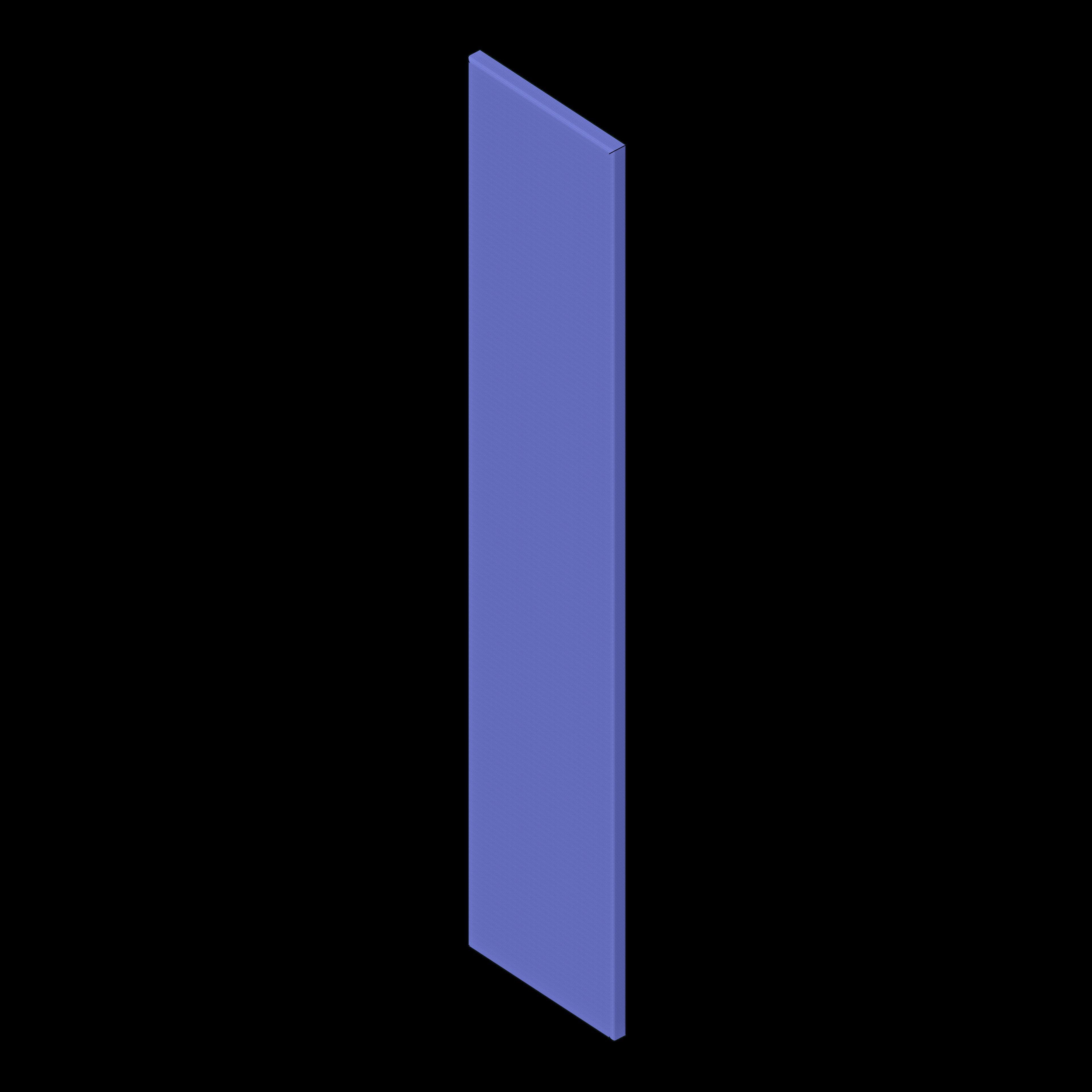

The Acoustic Panel is a versatile, fabric-wrapped sound-absorption solution designed to address echo and reverberation in various architectural settings.
Available in 20 sizes, from compact 12” x 12” panels to expansive 120” x 48” options, and offered in thicknesses of 1" and 2", these panels provide tailored acoustic treatment for settings ranging from residential areas to large commercial spaces. The panels' acoustically transparent fabric is available in a broad palette across four fabric lines, allowing architects and designers to match any aesthetic. With a Class A fire rating, this product ensures safety and performance, making it a vital component in creating acoustically optimized environments.
| Parameter | Value |
|---|---|
| Lead Time | Contact SSG for more information |
| Keynote | 10 22 23 |
| Assembly Code | E2050.10 |
| Standard Widths | 12", 24", 36", 48" |
| Minimum Width | 1' 0" (12") |
| Maximum Width | 4' 0" (48") |
| Standard Depths | 1", 2" |
| Minimum Depth | 0' 1" (0") |
| Maximum Depth | 0' 2" (2") |
| Standard Heights | 12", 24", 36", 48", 60", 72", 84", 96", 108", 120" |
| Minimum Height | 1' 0" (12") |
| Maximum Height | 10' 0" (120") |
| Manufacturer | Southwest Solutions Group_FETCH |
| Model | Generic |
| Author | AZuniga |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | No |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Meta Description | Optimize your space with Acoustic Wall Panels in Revit. These fabric-wrapped, sound-absorbing panels come in various colors, sizes, and thicknesses to suit any design need. Enhance your architectural projects with polyester cores. Class A fire-rated. Download now! |
| Meta Title | Acoustic Wall Panels for Revit: Sound Absorption Solutions |
