Ducted Fume Hood
Product SKU
Description
- Fume hoods can be used in any laboratory or workshop setting where caustic and harmful substances are handled
- Multiple width options ensure that the product will fit into your laboratory design
- Clear polycarbonate front allows users to easily look inside the hood to work

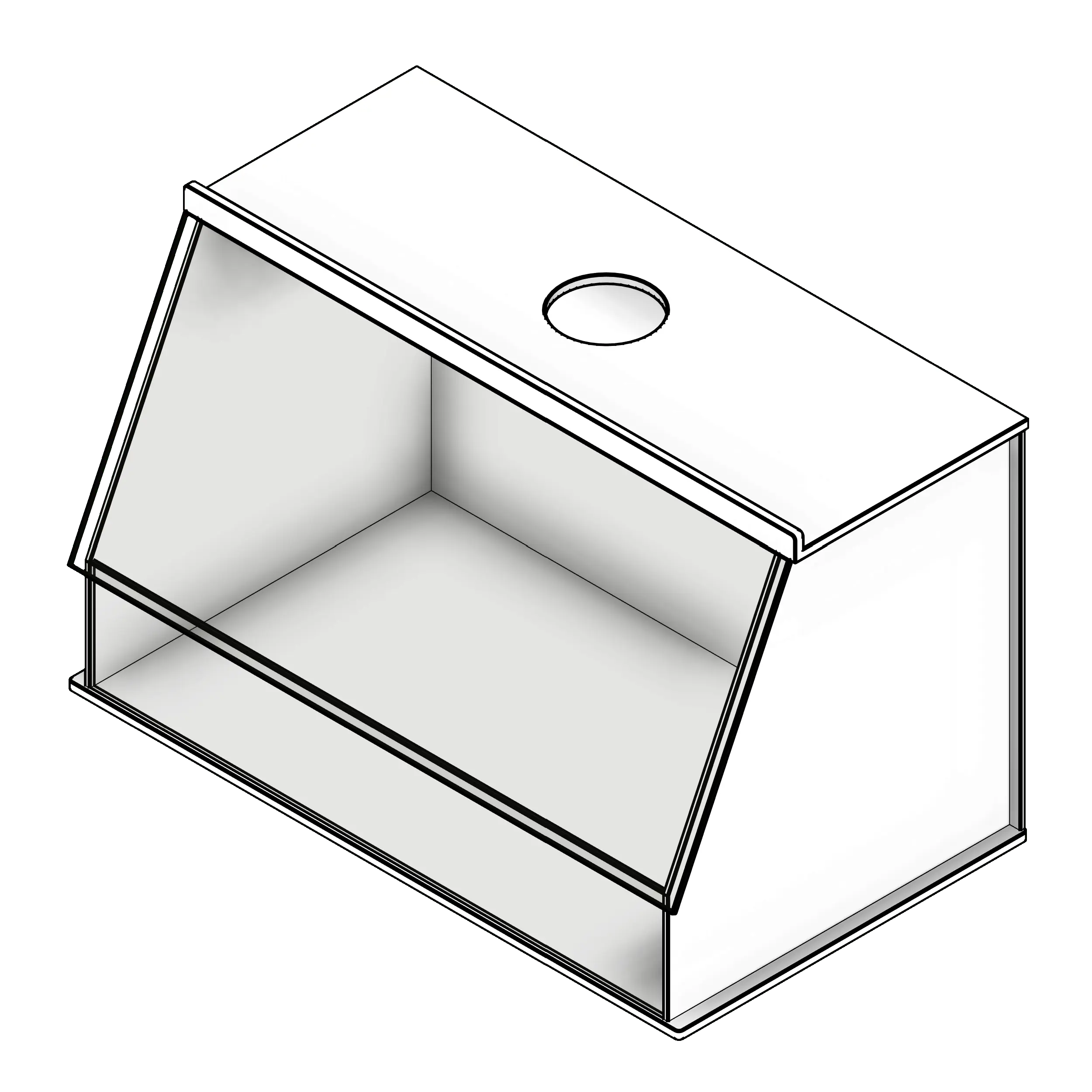

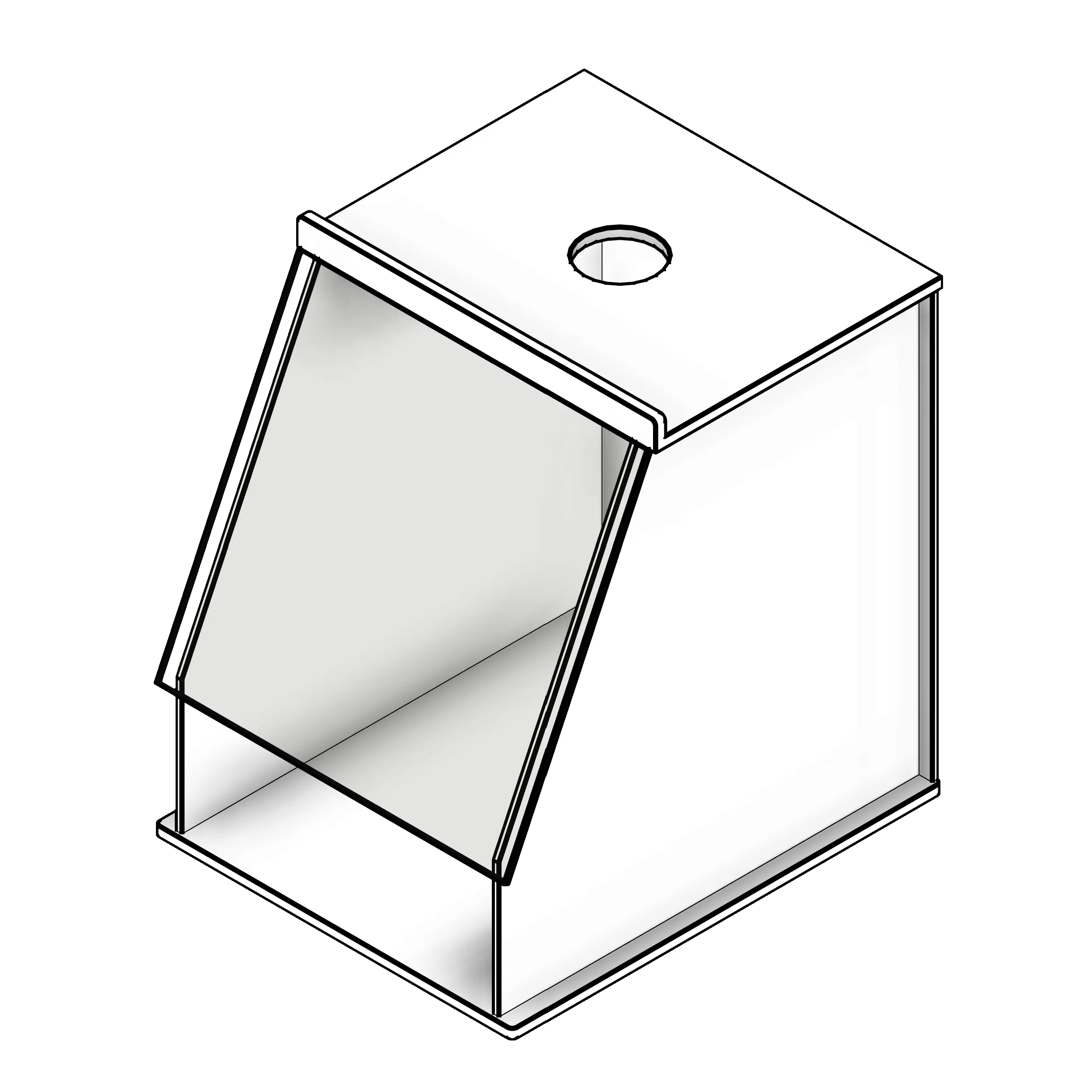

Ducted Fume Hood
To use this family, insert it into your project from the Fetch app and enter a width to set the interior width. The family will automatically scale to meet your specified dimensions. The exhaust outlet will also scale to match the manufacturer's specifications. Exhaust airflow settings can be adjusted in the type menu, where users can set the CFM and loss coefficient.
| Parameter | Value |
|---|---|

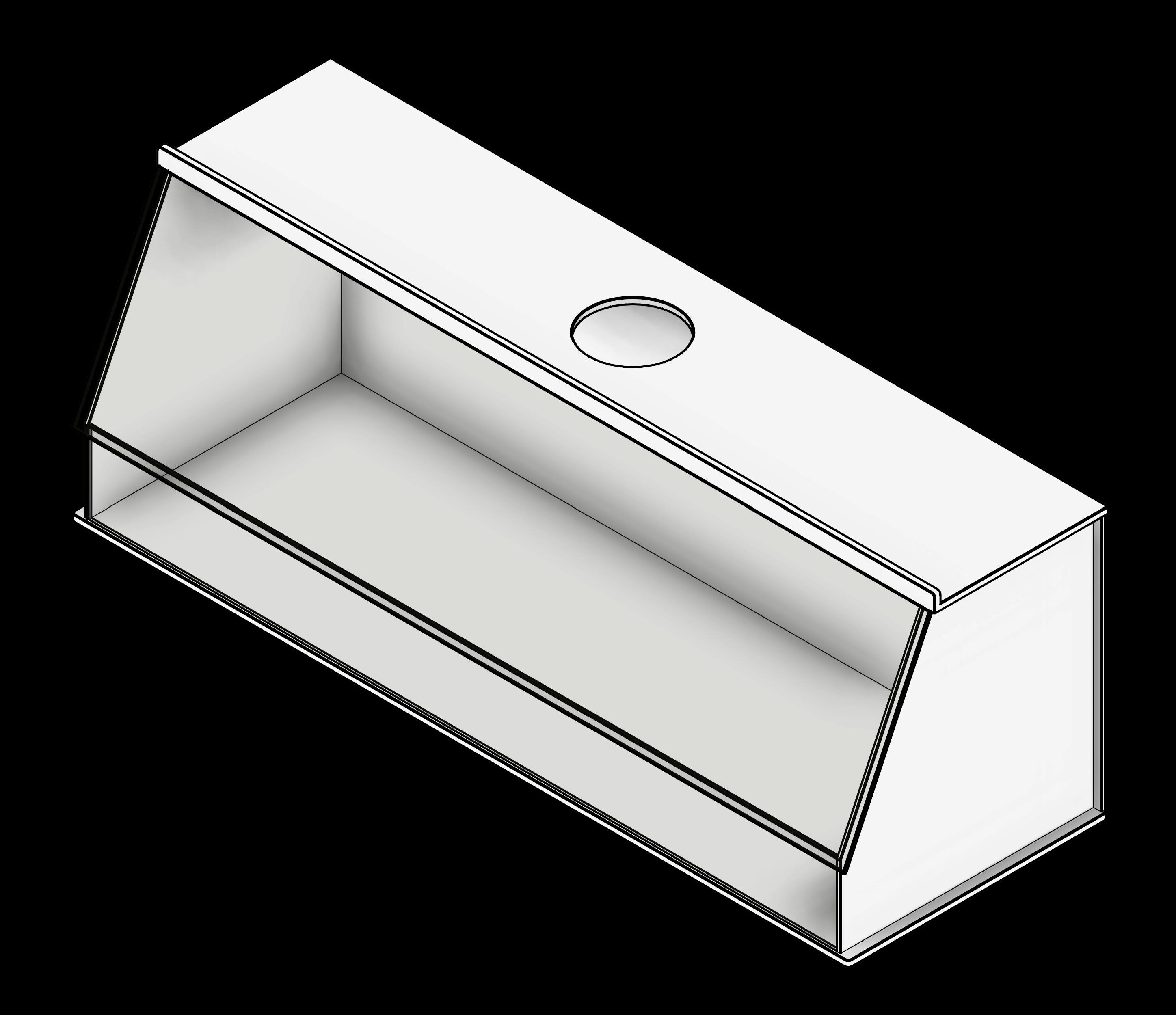

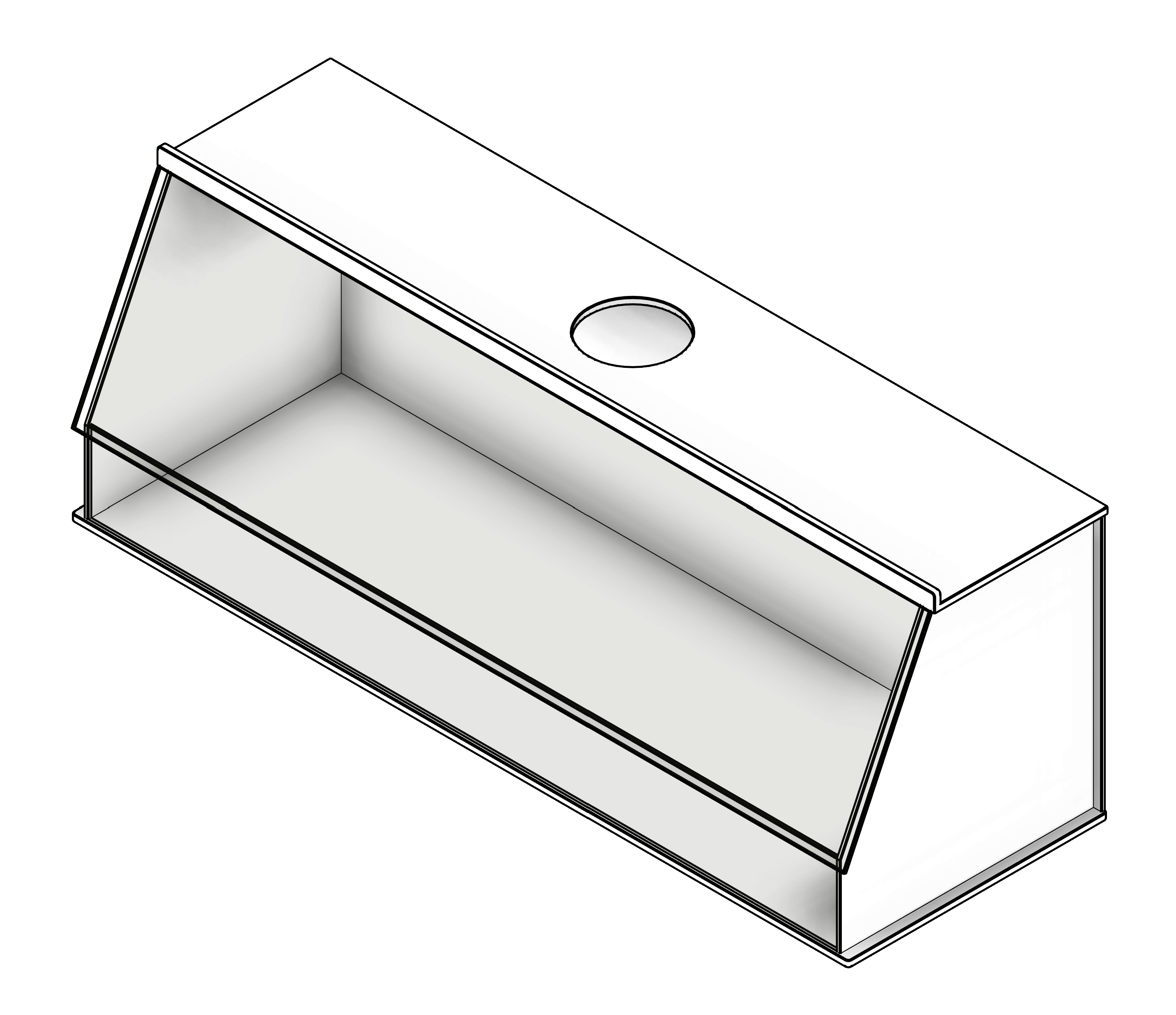

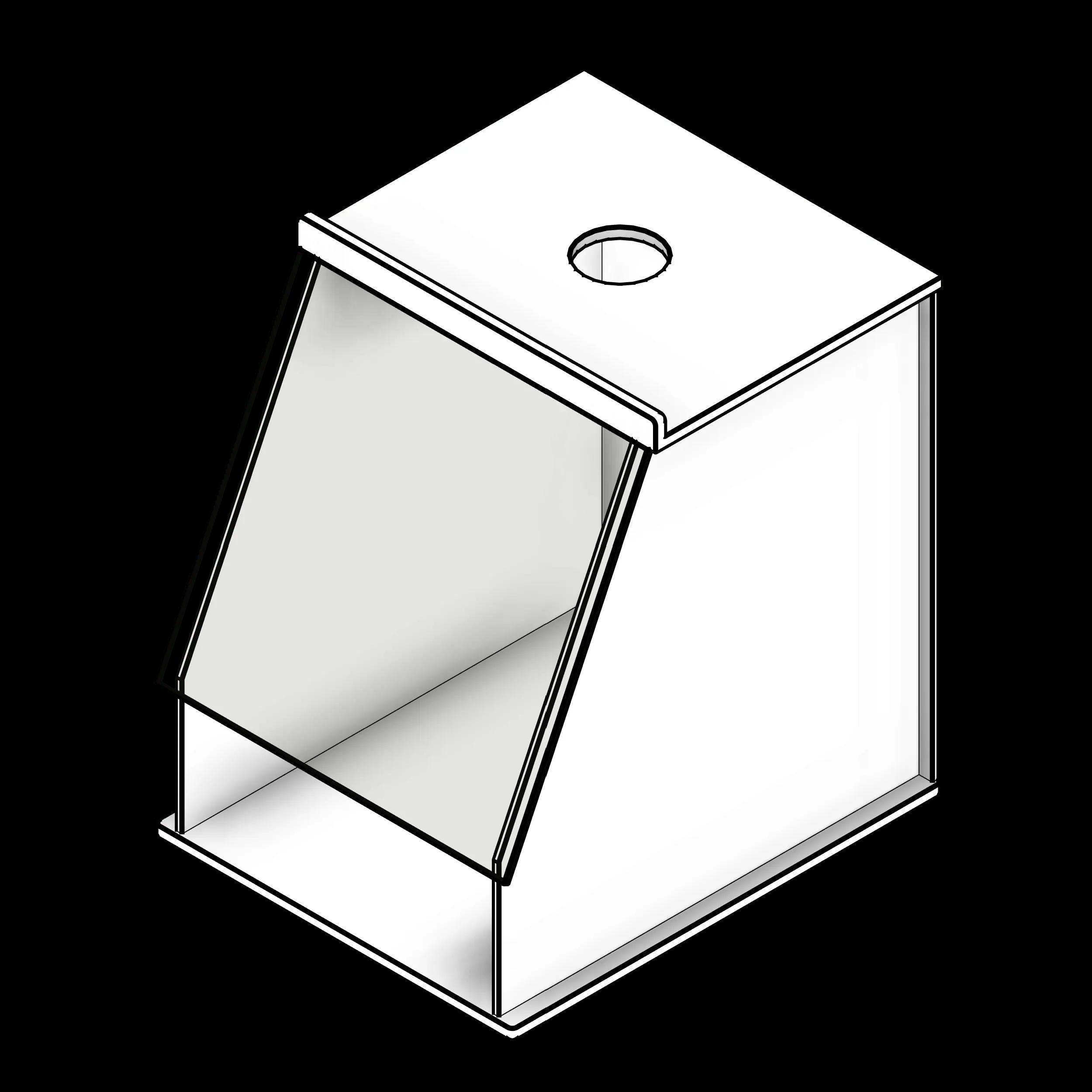

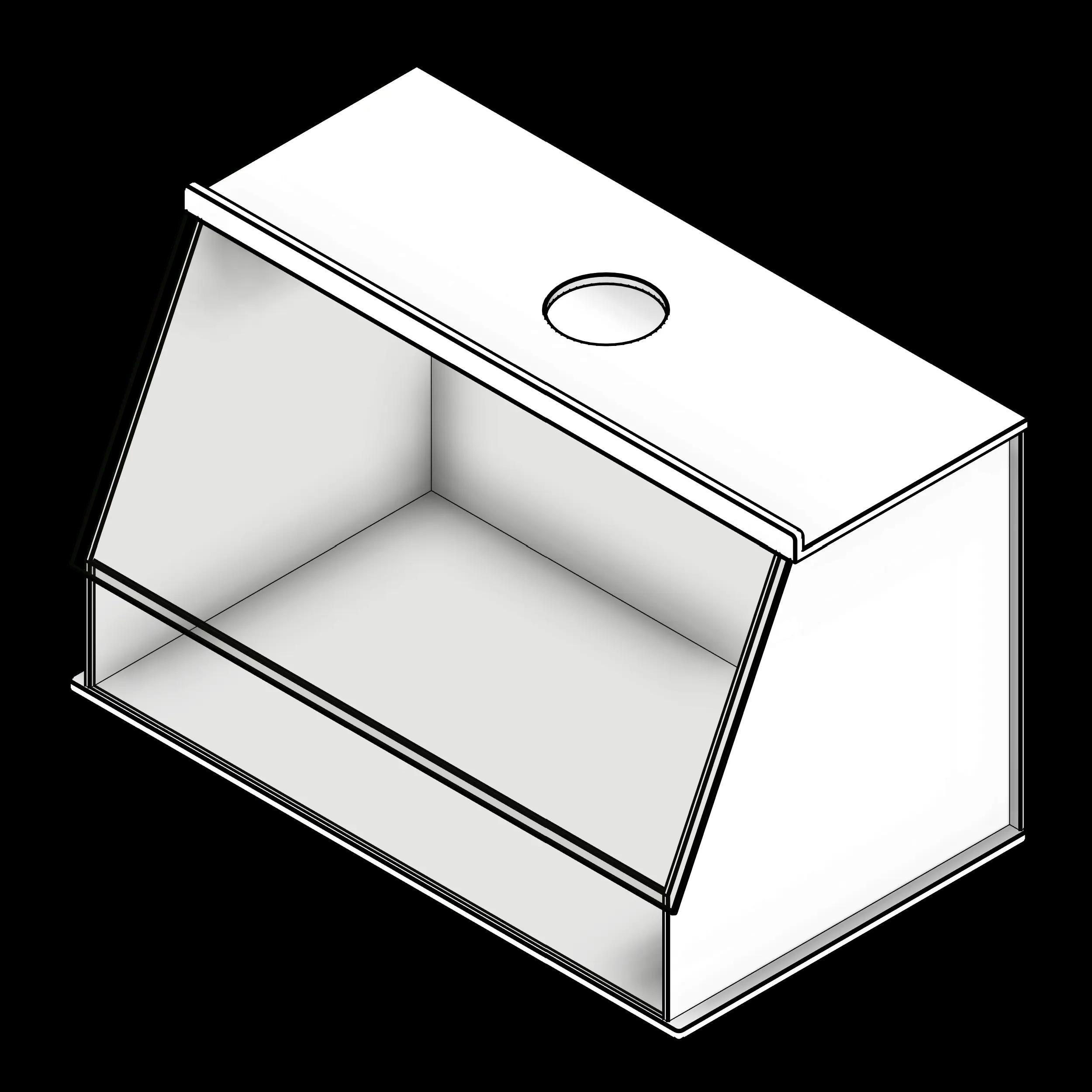

| Standard Widths | 18", 24", 30", 40", 50", 60", 70" |
| Minimum Width | 1.5 |
| Maximum Width | 5.83333333333333 |
| Standard Depths | 24" |
| Minimum Depth | 2 |
| Maximum Depth | 2 |
| Standard Heights | 25" |
| Minimum Height | 2.08333333333333 |
| Maximum Height | 2.08333333333333 |
| Manufacturer | Southwest Solutions Group_SAS |
| Lead Time | Contact SSG for more information |
| zM | 0 |
| Model | DFH |
| Keynote | 11 53 13 |
| Assembly Code | E1040.10 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| URL Finish Options | no link |
| URL Specification Manual | https://app.fetchbim.com/Family/1d7459d0-7348-4039-92d0-1baa54c7dd11/File/PDF-SpecManual |
| Property | Value |
|---|---|
| Includes Pricing | No |
| ADA Compliant | No |
| HAS MEP Connectors | Yes |
| Primary Material | Acrylic |
| Secondary Material | Polyethylene |
| BIMobject Category | Medical: Laboratory Equipment |
| IFC | Furniture |
| Omniclass | 23.40.70.11.11.11 |
