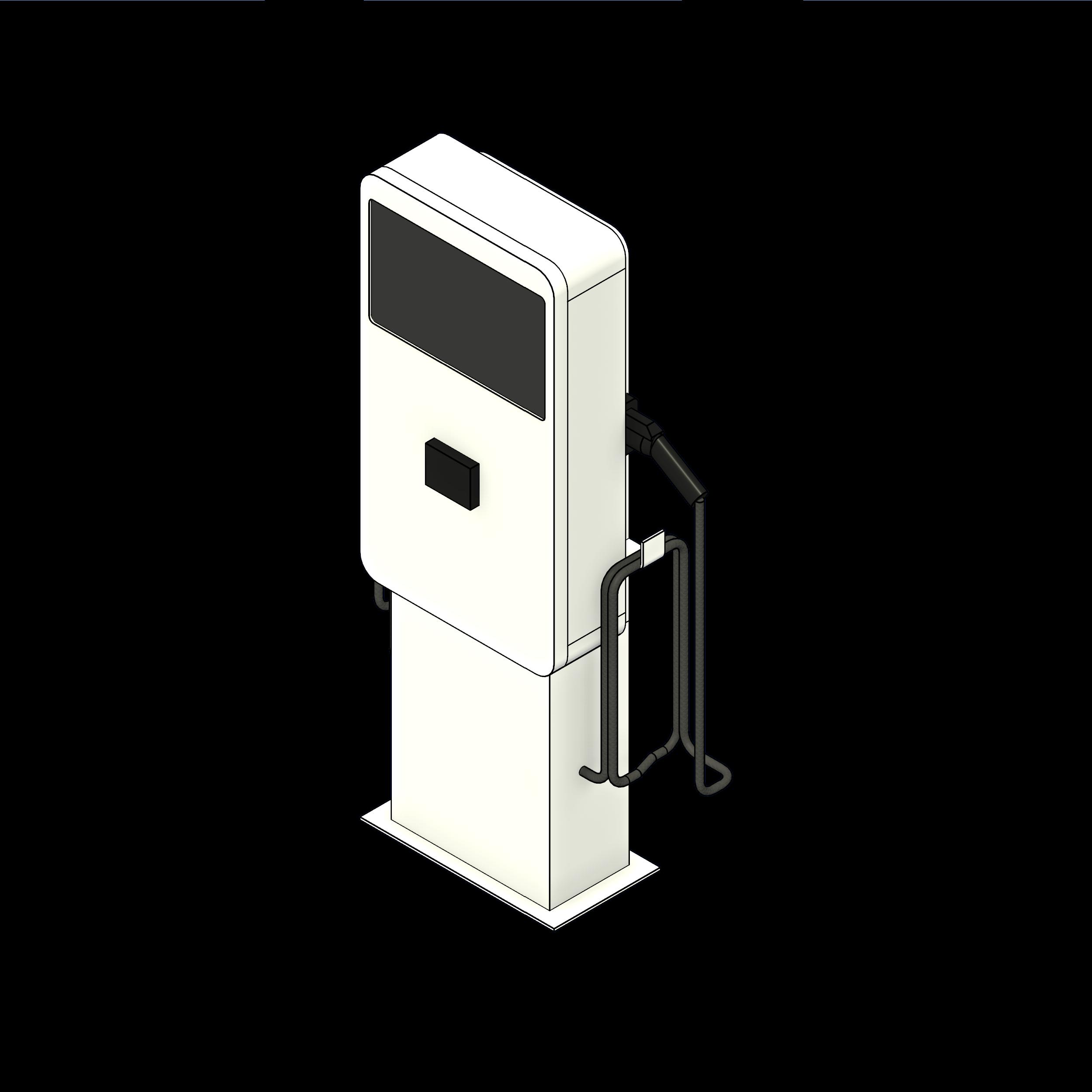

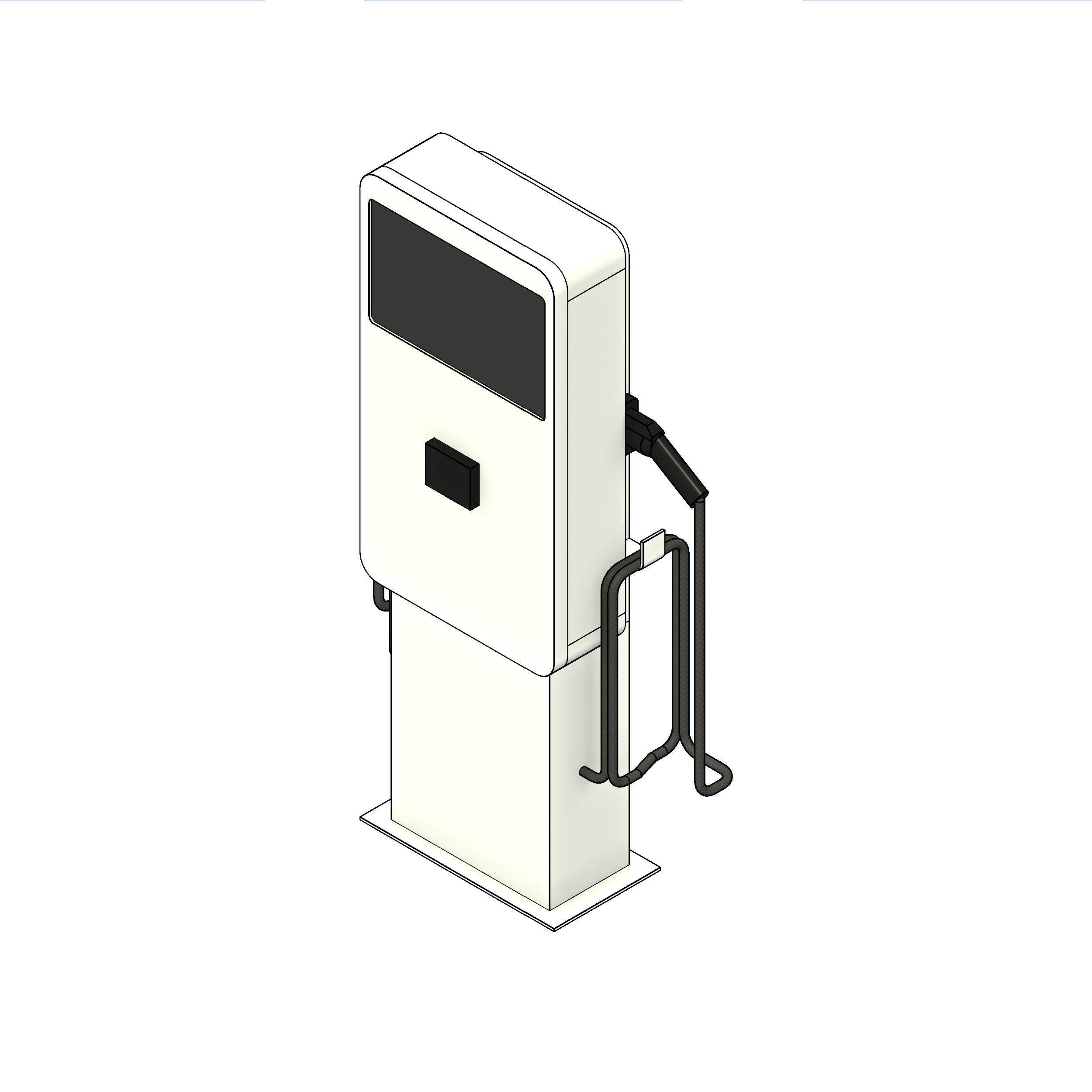

DC Compact Level 3 Electric Vehicle Charger
Product SKU
Description
- Best suited for urban infrastructure and commercial EV charging stations.
- Delivers up to 40kW output power with 96% charging efficiency.
- Compatible with CCS1 and CHAdeMO standards; supports dual charging modes.
- Features a 21.5-inch LCD touchscreen for enhanced user interaction.
DC Compact Electric Vehicle Charging Station
Specifically engineered for robust performance, this charger supports multiple payment methods, including app, RFID card, and mobile payments, ensuring seamless user interaction and accessibility. Its weather-resistant design makes it suitable for various outdoor installations.
This model stands out with its compatibility with CCS1 and CHAdeMO standards. It offers a flexible charging mode that can handle up to 40kW of output power. It operates with a peak efficiency of over 96%, making it an energy-efficient choice for large-scale projects. The compact dimensions of 39.4" x 21.7" x 10.4" allow for easy integration into urban environments, whether wall-mounted or installed on a pedestal.
This charger is designed for ease of use and management. It is equipped with a 21.5-inch LCD touchscreen and offers connectivity options like 4G, Wi-Fi, and Ethernet. Its compliance with OCPP standards ensures compatibility with a wide range of network management systems. The DC Compact is ideal for architects and designers looking to incorporate advanced, reliable charging infrastructure into their projects.
| Parameter | Value |
|---|---|
| Standard Widths | 21 179/256" |
| Minimum Width | 1.80826822916667 |
| Maximum Width | 1.80826822916667 |
| Standard Depths | 10 51/128" |
| Minimum Depth | 0.866536458333333 |
| Maximum Depth | 0.866536458333333 |
| Standard Heights | 63 51/128" |
| Minimum Height | 5.283203125 |
| Maximum Height | 5.283203125 |
| Output Voltage | 150-950 V |
| Data Connector | OCPP 1.6J |
| Enclosure Rating | NEMA 3S |
| Operating Altitude | 6561.7 ft (2000m) |
| Operating Temperature | -22°F ~ +131°F (-30°C ~ +55°C) |
| Storage Temperature | -40°F ~ +158°F (-40°C ~ +70°C) |
| Safety and Compliance | UL 2202, UL 2231-1, UL 2231-2, CSA No. 1-16, NEC Article 625, ISO 15118 |
| EMC Compliance | FCC 15 Class A |
| Manufacturer | Southwest Solutions Group_ACDI |
| Lead Time | Contact SSG for more information |
| Model | DC |
| Keynote | 48 19 13 |
| Assembly Code | D5020 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| ADA Compliant | Yes |
| Equallis | No |
| Has MEP Connectors | Yes |
| Includes Pricing | No |
| Includes Sustainability | No |
| Omnia | No |
| Primary Material | Powder coated steel |
| Sourcewell | No |
| Systec | No |
| Vizient | No |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-80 30 14 |
