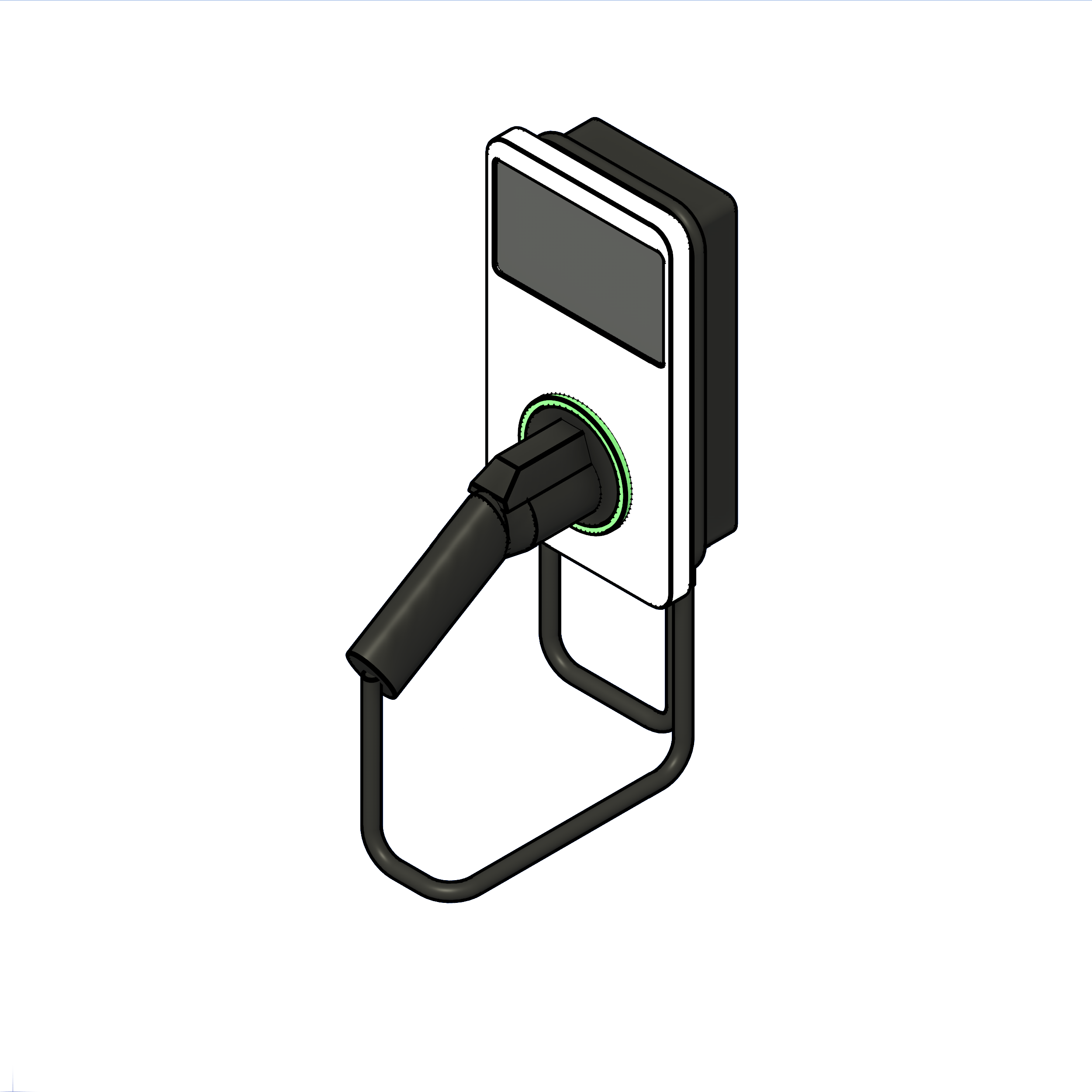

AC Home Level 2 Electric Vehicle Charger
Product SKU
Description
- Ideal for residential EV charging applications.
- Adjustable output from 6A to 50A via mobile app.
- Compatible with SAE J1772 connector; 25ft cable length.
- Unique in-body holster design for space-saving installation.
Home Electric Vehicle Charging Station
This charger stands out with its adjustable output amperage, allowing users to fine-tune charging from 6A to 50A via a mobile app. Compatible with SAE J1772 connectors and boasting a 25-foot cable, it ensures convenience and flexibility for various vehicle placements. The AC Home Charger is engineered with durable protection features, including overcurrent, overvoltage, and surge protection, and operates efficiently in extreme temperatures ranging from -40°F to +131°F. Its comprehensive connectivity options, with Bluetooth, Wi-Fi, and Ethernet, enhance user interaction through the app interface and cloud. Available in plug-and-play models with NEMA 6-50 or NEMA 14-50 plugs or a hardwired variant, this charger is certified by UL and Energy Star and complies with NEC standards, offering a reliable, efficient solution for home EV charging needs.
| Parameter | Value |
|---|---|
| Standard Widths | 7 23/64" |
| Minimum Width | 0.61328125 |
| Maximum Width | 0.61328125 |
| Standard Depths | 5 13/128" |
| Minimum Depth | 0.425130208333333 |
| Maximum Depth | 0.425130208333333 |
| Standard Heights | 13 7/32" |
| Minimum Height | 1.1015625 |
| Maximum Height | 1.1015625 |
| Connector Type | SAE J1772 |
| Ground Fault Detection | 20mA CCID |
| Protection | Overcurrent, Undercurrent, Undervoltage, Integrated Surge Protection |
| Data Connector | OCPP 1.6J |
| Operating Temperature | -31°F ~ +131°F (-35°C ~ +55°C) |
| Storage Temperature | -40°F ~ +158°F (-40°C ~ +70°C) |
| Safety and Compliance | UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2 |
| EMC Compliance | FCC 15 Class B |
| Certification | Energy Star, Open ADR 2.0b |
| Manufacturer | Southwest Solutions Group_ACDI |
| Lead Time | Contact SSG for more information |
| Model | MAXI US AC W12 |
| Keynote | 48 19 13 |
| Assembly Code | D5020 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| ADA Compliant | Yes |
| Equallis | No |
| Has MEP Connectors | Yes |
| Includes Pricing | No |
| Includes Sustainability | No |
| Omnia | No |
| Primary Material | Powder coated steel |
| Sourcewell | No |
| Systec | No |
| Vizient | No |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-80 30 14 |
