SSG Charger Electric Vehicle AC Business PCS

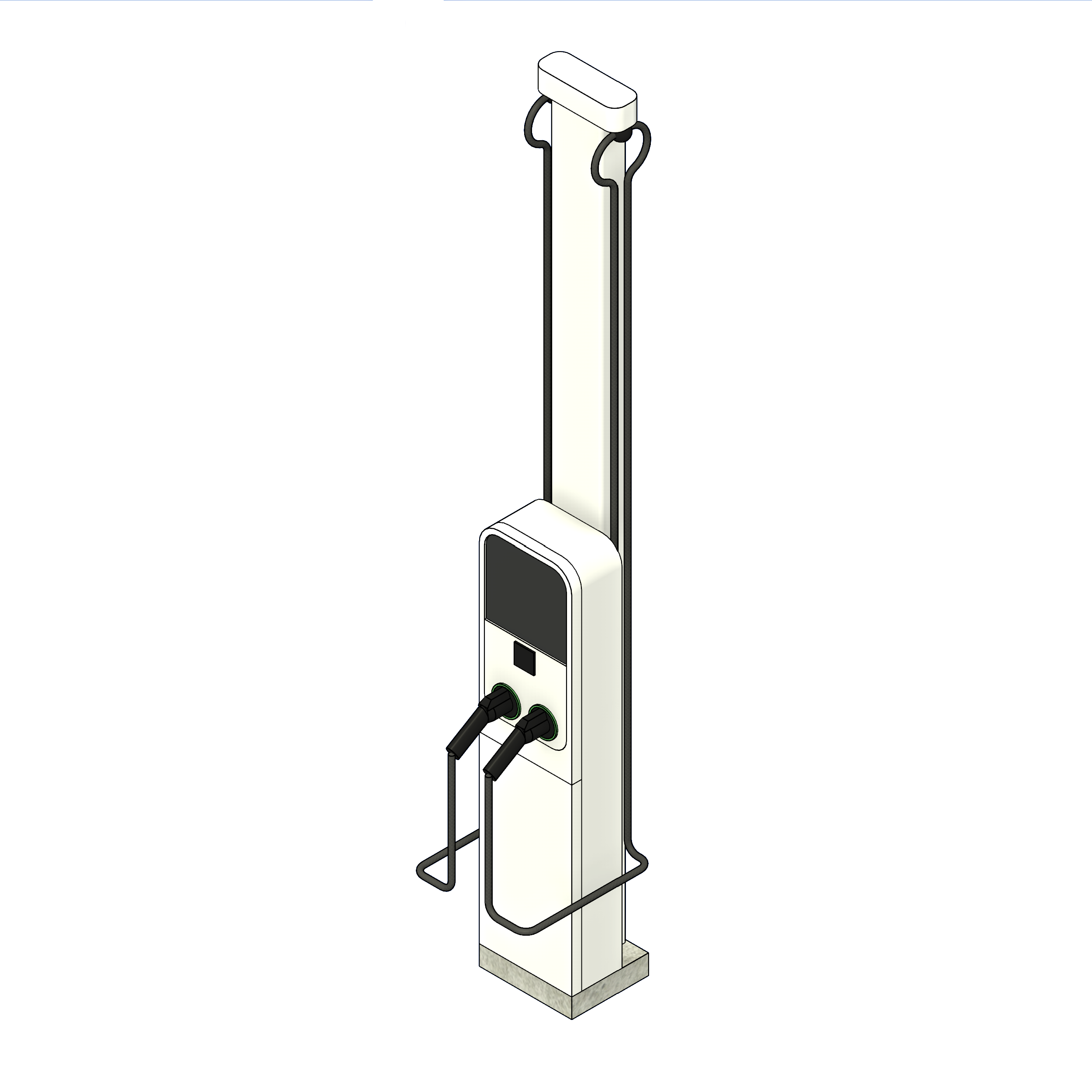

SSG Charger Electric Vehicle AC Business Extended Cable PCS
SSG Charger Electric Vehicle AC Business PCS
SSG Charger Electric Vehicle AC Business Extended Cable PCS
2024.11.13.0

Product SKU

Description

  • Ideal for electric vehicle charging in commercial and residential settings.
  • Features 19.2kW output per port, supporting dual-port configurations.
  • Equipped with an 8-inch HD touch screen for seamless user interaction and advertising.
  • Dual cable lengths available: 25 ft for flexible installation or 18 ft for compact spaces.
a square with short lines outside the corner
Family
icon of a person with gears next to its head
ADA
icon of a person with gears next to its head
Connectors
Revit file icon
Revit 2021 (1.00 MB)
Revit file icon
Revit 2022 (1.00 MB)
Revit file icon
Revit 2023 (1.00 MB)
Revit file icon
Revit 2024 (1.00 MB)
Revit file icon
Revit 2025 (1.00 MB)
adobe reader icon
(0.16 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.

AC Ultra Electric Vehicle Charging Station

The AC Business is a versatile Level 2 electric vehicle charging solution designed for dual-port configurations, delivering a powerful 19.2kW output per port at 240V AC.

The AC Business Charger's standout feature is the integrated cable management system, offering options for 7.5m (24.6') or 5m (16.4') cables, ensuring a tidy and efficient charging experience. This charger is equipped with advanced connectivity options, including Bluetooth, Wi-Fi, Ethernet, and 4G, enabling seamless integration with the Autel Charge Cloud for remote management. Its weather-resistant, one-piece pedestal housing makes it suitable for various environments, withstanding temperatures from -40℉ to +131℉. The 8-inch HD touchscreen provides an interactive user interface, supporting multiple payment methods such as RFID cards, credit cards, and mobile payments. Compliance with OCPP standards and a range of safety certifications ensure reliability and compatibility, making it an ideal choice for architects and designers seeking a cutting-edge, robust EV charging solution.

ParameterValue
Standard Widths14 11/64"
Minimum Width1' 2 1/8" (14 1/8")
Maximum Width1' 2 1/8" (14 1/8")
Standard Depths11 179/256"
Minimum Depth0' 11 3/4" (11 3/4")
Maximum Depth0' 11 3/4" (11 3/4")
Standard Heights74 33/256", 113 1/2"
Minimum Height6' 2 1/8" (74 1/8")
Maximum Height9' 5 1/2" (113 1/2")
Input/Output Voltage208/240V AC 60 Hz single phase
Connector TypeSAE J1772
Ground Fault Detection20mA CCID
ProtectionOvercurrent, overvoltage, undervoltage, integrated surge protection
Data ConnectorOCPP 1.6J
Operating Altitude6561.7 ft (2000m)
Operating Temperature-40° F ~ +131° F (-40° C ~ +55° C)
Storage Temperature-40° F ~ +185° F (-40° C ~ +85° C)
Safety & ComplianceUL 2231-1, UL 2231-2, UL2594, NEC Arcticle 625, CSA C22.2
EMC ComplianceFCC 15 Class B
CertificationEnergy Star, OpenADR 2.0b
ManufacturerSouthwest Solutions Group_ACDI
Lead TimeContact SSG for more information
ModelUF
Keynote48 19 13
Assembly CodeD5020
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
ADA CompliantYes
EquallisNo
Has MEP ConnectorsYes
Includes PricingNo
Includes SustainabilityNo
OmniaNo
Primary MaterialPowder coated steel
SourcewellNo
SystecNo
VizientNo
BIMobject CategoryElectrical: Electric Vehicle Charger
IFCFurniture
Omniclass23-80 30 14
