· Updated Aug 7, 201808' Wide - Option 06 Pharmacy
Product SKU
SKU: SSG-PH08-6-L
Description

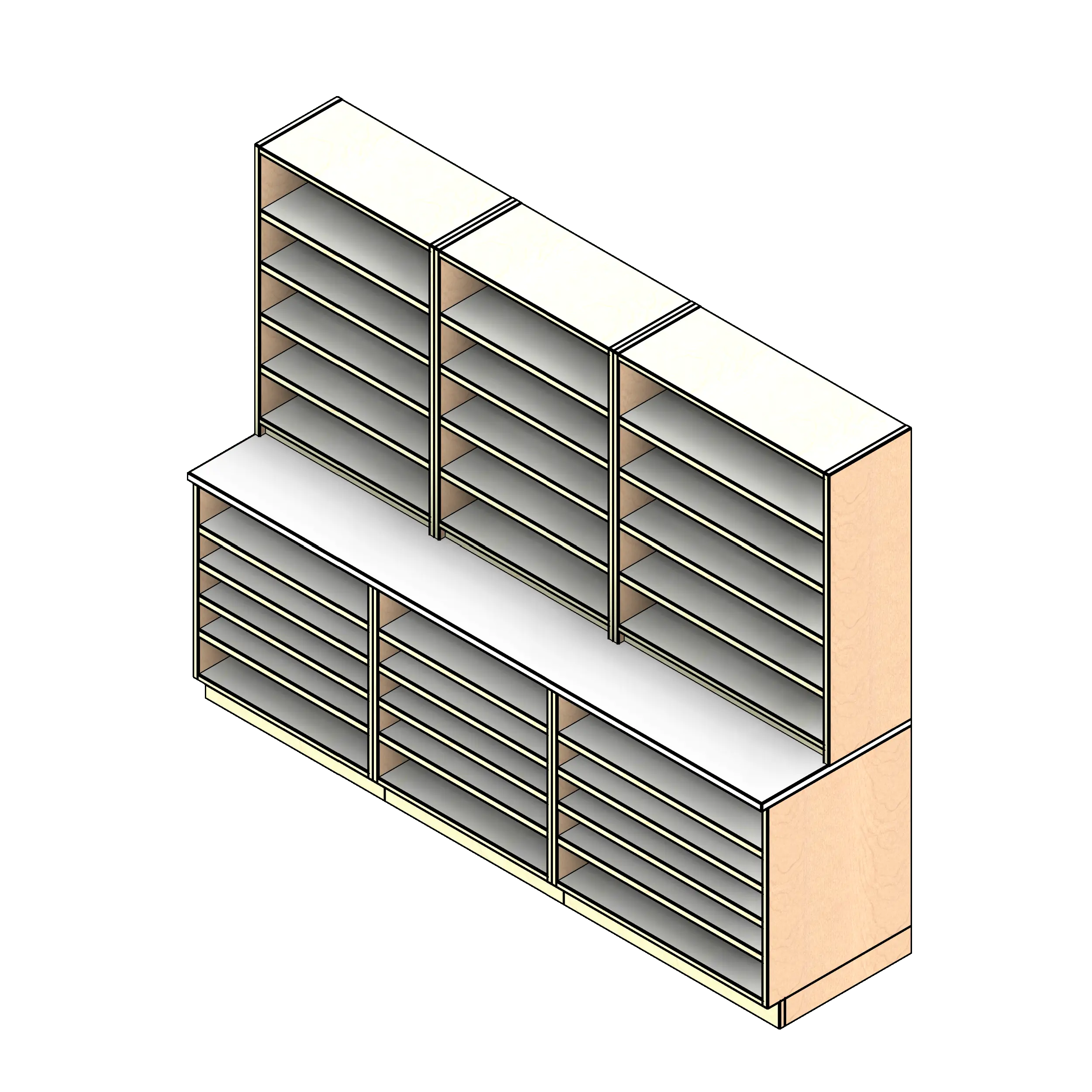

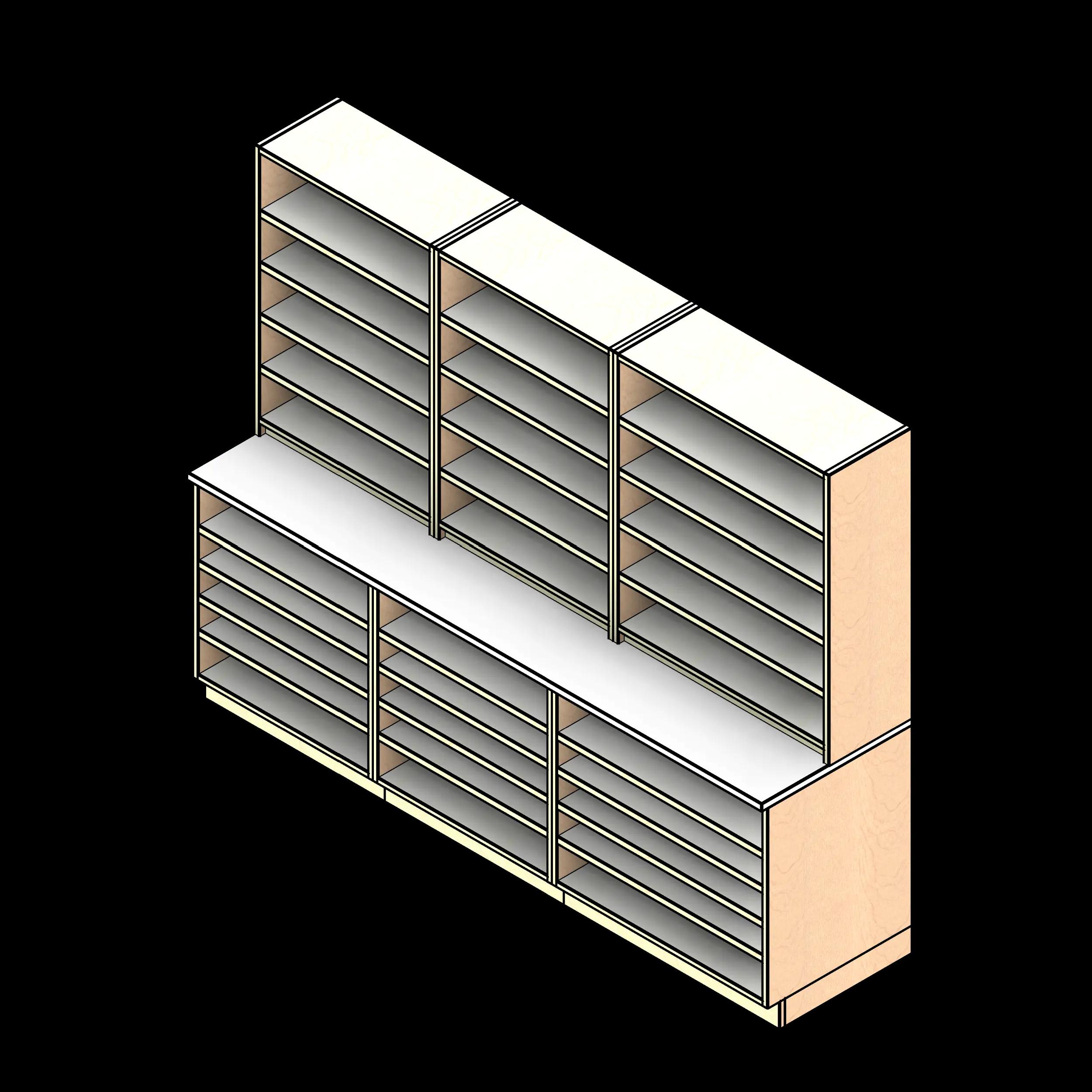

- Kit is designed to represent one common option used for Pharmacy at this Height and Width
- Kit includes three open base cabinets, one countertop, and three open wall cabinets mounted to the counter.
- Not ADA accessible.
Revit 2016 (2.60 MB)
Revit 2017 (2.60 MB)
Revit 2018 (2.60 MB)
Revit 2019 (2.60 MB)
Revit 2020 (2.60 MB)
Revit 2021 (2.60 MB)
Revit 2022 (2.60 MB)
Revit 2023 (2.60 MB)
Revit 2024 (2.60 MB)
Revit 2025 (2.60 MB)
Revit 2026 (2.60 MB)
Revit 2027 (2.60 MB)
(0.22 MB)
System Overview
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Parameter | Value |
|---|---|
| ENTER Kick Plate Number | 1 |
| ADD Shelves | 3 |
| OFFSET Top of Cabinet | 6' 4" (76") |
| OFFSET Top of Counter | 2' 10" (34") |
| ADD Back Splash | 0 |
| ADD Left Splash | 0 |
| ADD Right Splash | 0 |
| Left Overhang | 0 |
| Right Overhang | 0 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | No |
| Width | 8' 0" (96") |
| Depth | 2' 6" (30") |
| Height | 7' 0" (84") |
| Primary Material | Laminate |
| IFC | Furniture |
| OmniClass | 23-21 19 11 |
| Room Type | Pharmacy |
