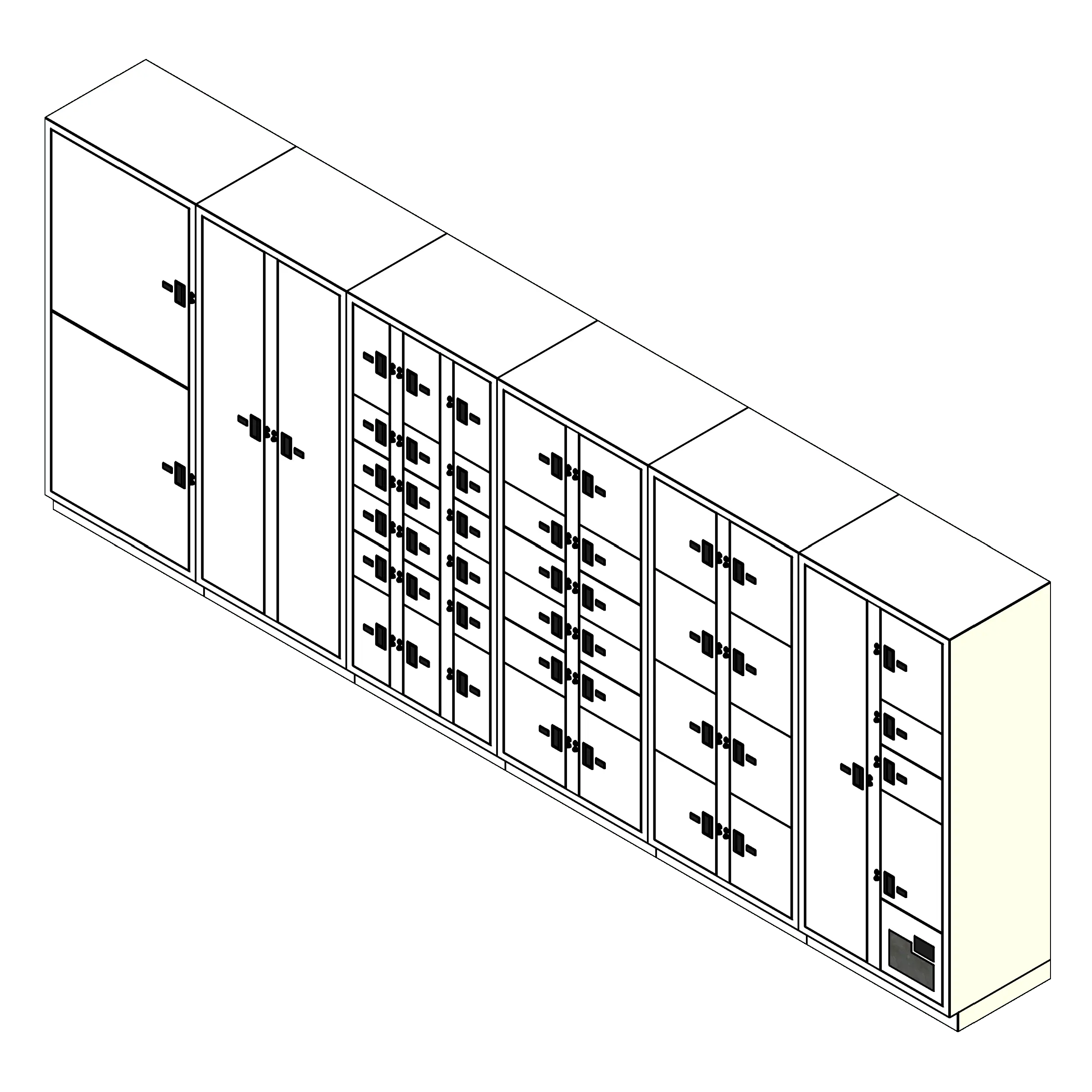

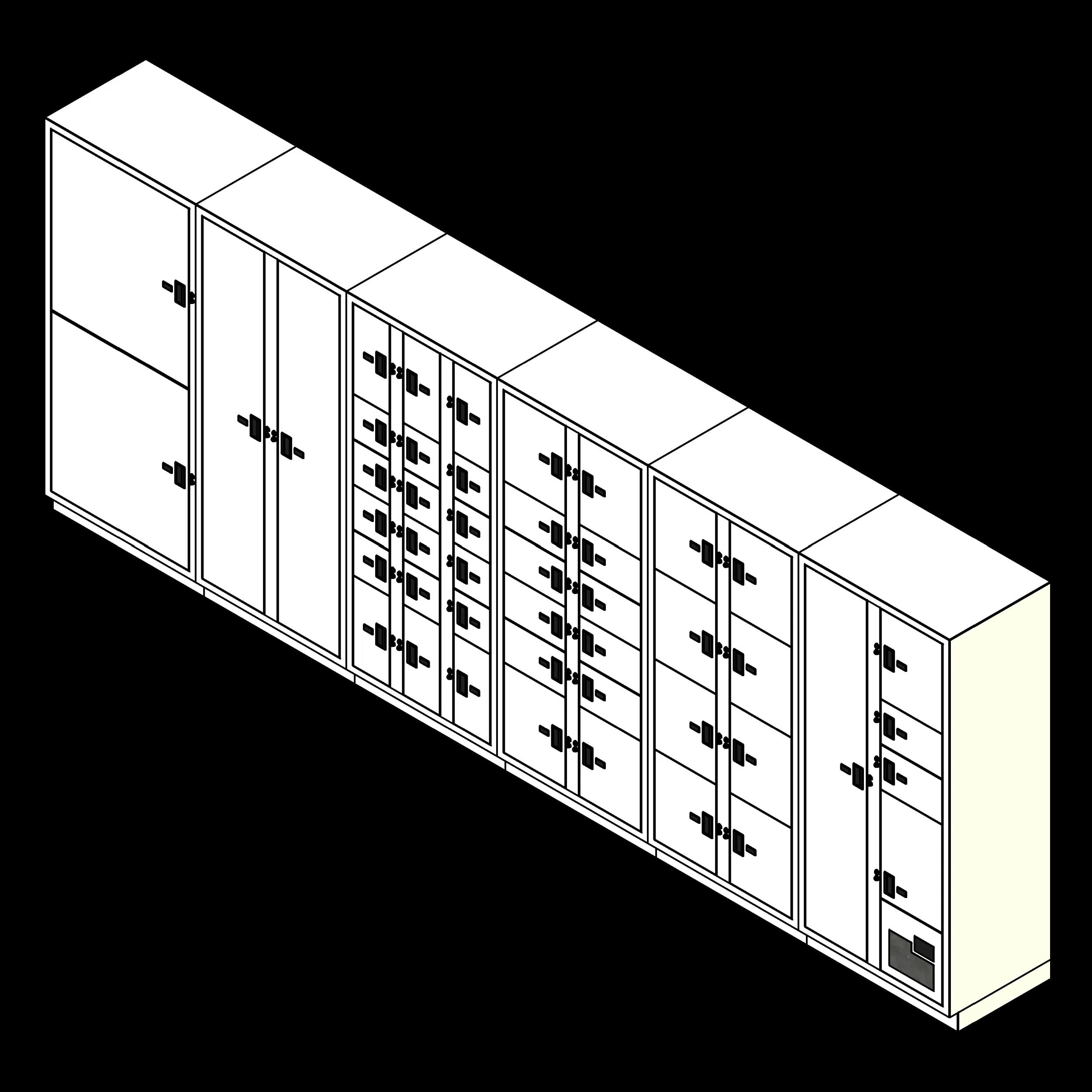

6 Columns-47 Total Openings Steel Evidence Locker
Product SKU
SKU: SSG-EVL-6_Wide-47_Total_Openings
Description
- Kit is designed to represent one common options used for Evidence Storage
- Kit is 100% CALEA certified and exceeds all IAPE standards
- Kit includes six Evidence Lockers
- Kit is not pass-through
Revit 2021 (5.02 MB)
Revit 2022 (5.02 MB)
Revit 2023 (5.02 MB)
Revit 2024 (5.02 MB)
Revit 2025 (5.02 MB)
These lockers are used in police departments and crime labs to ensure the proper chain of custody for sensitive evidence. This preconfigured group contains a total of 47 doors with pass-back capabilities.
System Overview
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would be a run of lockers in a linear direction
Lockers
- Lockers come in either pass-through or non-pass-through
- Each model comes with a variety of compartments and sizes with self-closing doors
- Push-Button locks on the front of each door
- For pass-through lockers, a single hinged rear door provides access and cannot be accessed from the front
- Mesh rear doors available
- Rear door comes with a different master key for evidence retrieval
- No keys required for evidence drop off
- Units come shipped fully assembled
- Pre-drilled mounting holes in base and sides of locker
- Number tags w/ instructions are installed on all front doors
- Base comes with adjustable floor levelers
- High quality powder coat paint
- Standard trim and installation hardware comes with each locker
- Lockers are typically 36" wide x 82" tall x 24" deep with base. Some lockers come 24" wide
- Optional front lock out system
Small Evidence Refrigerator
- Stainless steel throughout
- Keyless locking system prevents re-access
- Available in pass-through and non-pass-through
- Four standard configurations
| Parameter | Value |
|---|
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Width | 18' 0" (216") |
| Depth | 2' 0" (24") |
| Height | 6' 10" (82") |
| Primary Material | Powder coated steel |
| sku | SSG-EVL-6_Wide-47_Total_Openings |
| SMS Part Number | SSG-EVL-6_Wide-47_Total_Openings |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-29 15 15 11 |
