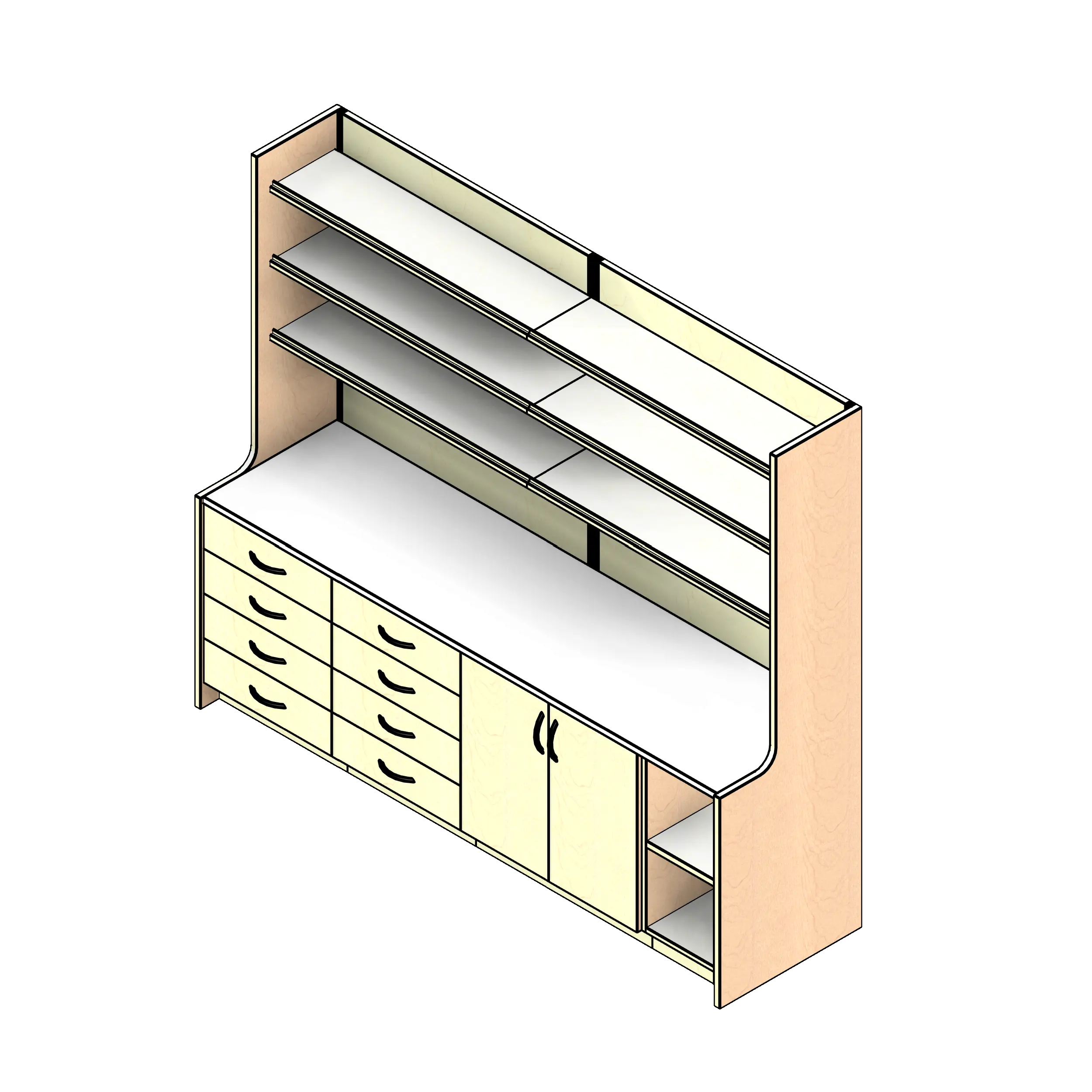

08' Wide - Option 03 Pharmacy
Product SKU
SKU: SSG-PH08-3-L
Description
- Kit is designed to represent one common option used for Pharmacy at this Height and Width
- Kit includes two four drawer indexing base cabinets, one two door base cabinet, one open base cabinet, one countertop, six adjustable shelves, two back panels, and two side panels.
- ADA accessible.
Revit 2016 (4.09 MB)
Revit 2017 (4.09 MB)
Revit 2018 (4.09 MB)
Revit 2019 (4.09 MB)
Revit 2020 (4.09 MB)
Revit 2021 (4.09 MB)
Revit 2022 (4.09 MB)
Revit 2023 (4.09 MB)
Revit 2024 (4.09 MB)
Revit 2025 (4.09 MB)
System Overview
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Parameter | Value |
|---|---|
| ENTER Handle Number | 1 |
| ENTER Kick Plate Number | 1 |
| ENTER Shelf Rotation Number | 0 |
| Counter Depth | 2' 1" (24") |
| Counter Height | 2' 10" (33") |
| Height | 2' 9" (33") |
| OFFSET Top of Counter | 2' 10" (33") |
| ADD Back Splash | 0 |
| ADD Left Splash | 0 |
| ADD Right Splash | 0 |
| Left Overhang | 0 |
| MODIFY Pass Through Panel | 0 |
| Right Overhang | 0 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | No |
| Width | 8' 0" (96") |
| Depth | 2' 2" (26") |
| Height | 7' 0" (84") |
| Primary Material | Laminate |
| sku | SSG-PH08-3-L |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-21 19 11 |
| Room Type | Pharmacy |
