09' Wide - Option 06 Pharmacy
Product SKU
SKU: SSG-PH09-6-L
Downloads
- 232 KB
Description
- Kit is designed to represent one common option used for Pharmacy at this Height and Width
- Kit includes three two drawer two door base cabinets, one countertop, twelve adjustable shelves, three back panels with openings cut out, and two side panels.
- Not ADA accessible.

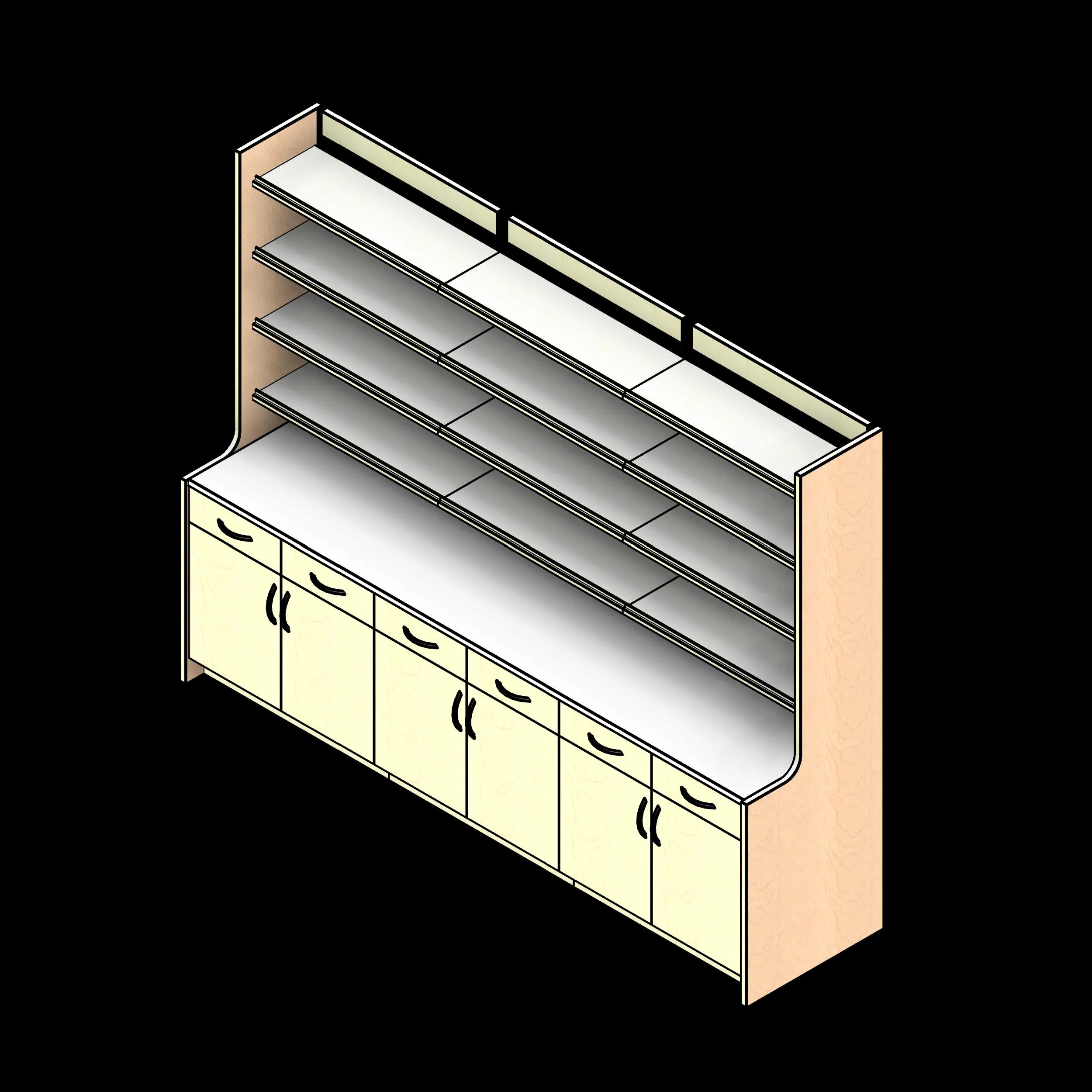

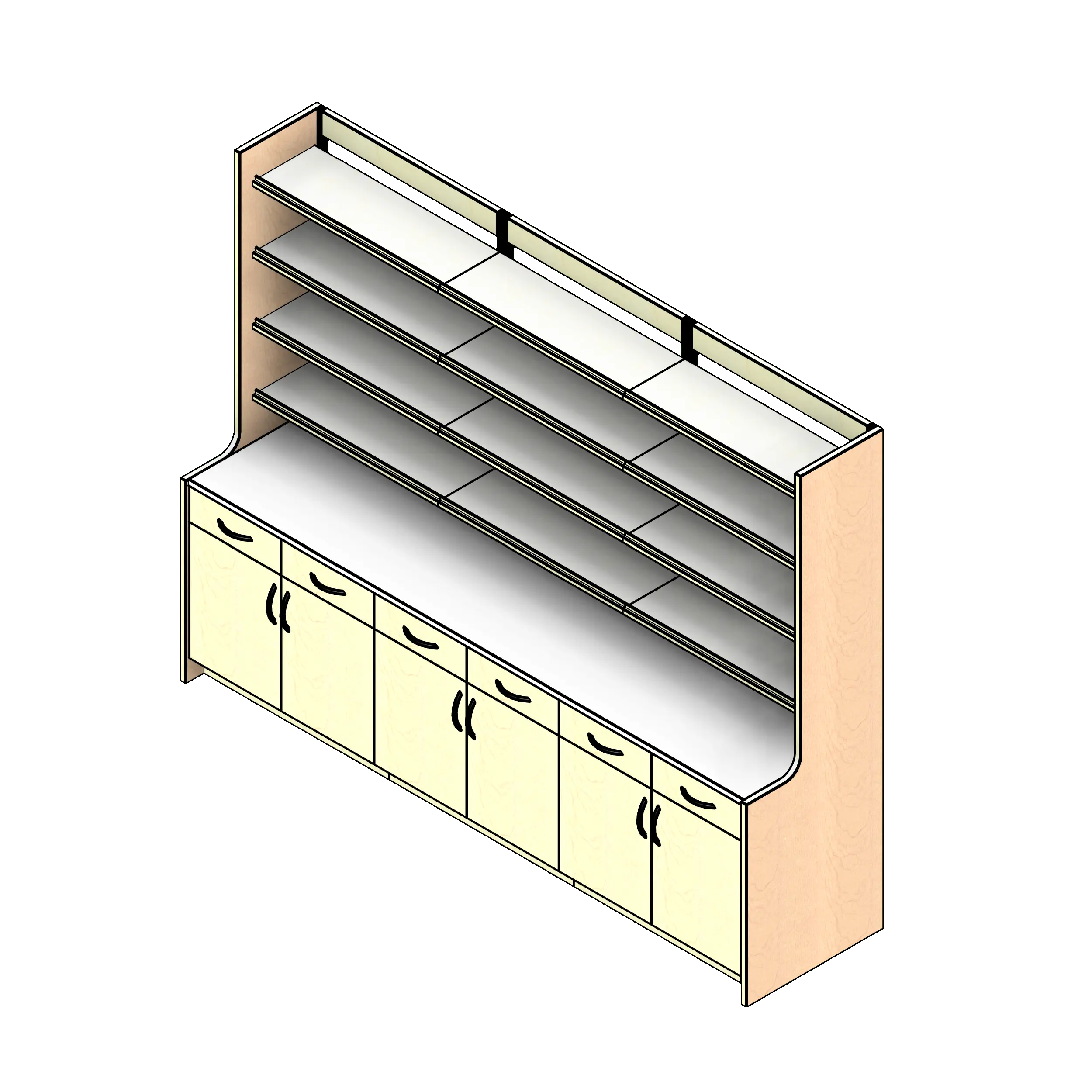

This 108-inch-wide laminate pharmacy casework kit combines three 36-inch two-door, two-drawer base cabinets with 12 adjustable 36-inch shelves for pharmacy storage and countertop work. The stationary 9-foot run keeps enclosed cabinet storage and adjustable shelving together in a single 26-inch-deep, 84-inch-high arrangement for pharmacy rooms. It includes a 108-inch laminate countertop, three 36-inch back panels with cutout openings, and two contour laminate end panels. Cabinets use 3/4-inch industrial-grade double-faced melamine substrate with 2 mm PVC edge banding, while the work surface is 1 1/16-inch high-pressure laminate.
System Overview
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Dimensions | |
|---|---|
| Counter Depth | 25" |
| Counter Height | 34" |
| Height | 33" |
| Opening Height | 43" |
| Width | 108" |
| Depth | 26" |
| Product | |
| Opening Distance from Floor | 3' 1" (37") |
| Left Overhang | 0 |
| Right Overhang | 0 |
| Primary Material | Laminate |
| Room Type | Pharmacy |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-21 19 11 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | No |
| Configurable options |
|
