07' Wide - Option 06 Exam Room Revit model group
07' Wide - Option 06 Exam Room Revit model group
Updated Aug 7, 2018

07' Wide - Option 06 Exam Room

Product SKU

SKU: SSG-EX07-6-L

Downloads

Model group
Pricing
ADA

Description

  • Kit is designed to represent one common option used for Exam rooms at this Height and Width
  • Kit includes two base cabinets, two upper wall cabinets, one countertop with backsplash, and one sink with faucet.
  • ADA accessible.

Questions about this product?

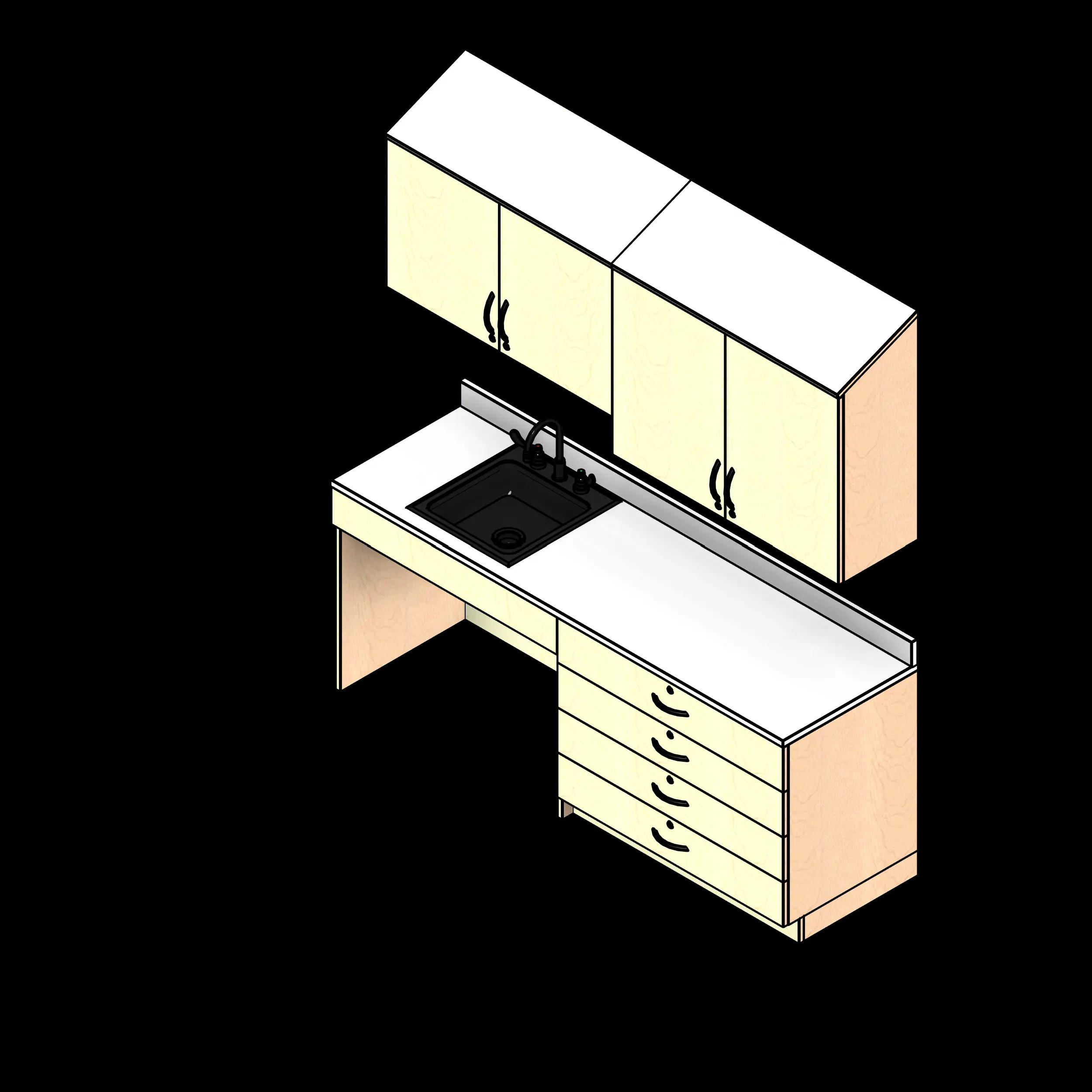

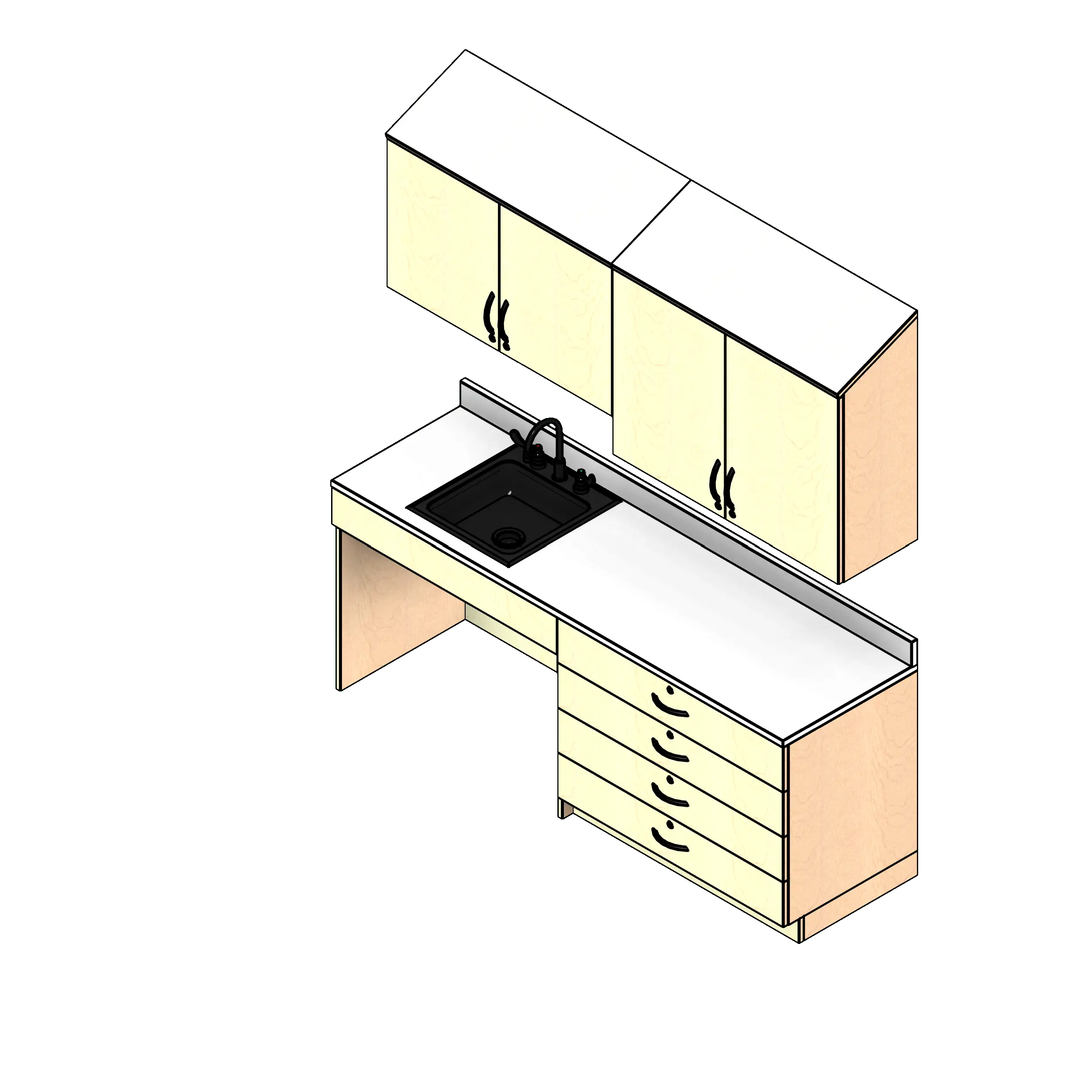

This 84-inch-wide ADA-accessible laminate exam room casework kit combines a 42-inch multi-drawer base cabinet with a 42-inch ADA sink base for exam rooms that need drawer storage and an accessible sink in one wall run. The 25-inch-deep, 84-inch-high configuration provides a continuous 84-inch laminate countertop with backsplash, a single-bowl stainless steel sink with faucet ledge, and a laboratory deck-mounted chrome-plated brass faucet. Two 42-inch two-door laminate wall cabinets add enclosed overhead storage above the counter. It is suited to healthcare, education, and business exam rooms where sink access and dedicated drawer storage need to fit within a 7-foot casework run.

System Overview

Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.

Design

  • Multiple pull options
  • Angled top is optional
  • Counter can be equipped with side splash if necessary
  • Lock options available
Specifications
Dimensions
Width84"
Depth25"
Height84"
Product
Primary MaterialLaminate
Room TypeExam Room
Classification
IFCFurniture
OmniClass23-21 19 11
Revit family
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsNo
Configurable options
  • Back splash
  • Door
  • Handle
  • Kick plate
  • Locks
  • Top of cabinet
  • Angled top
