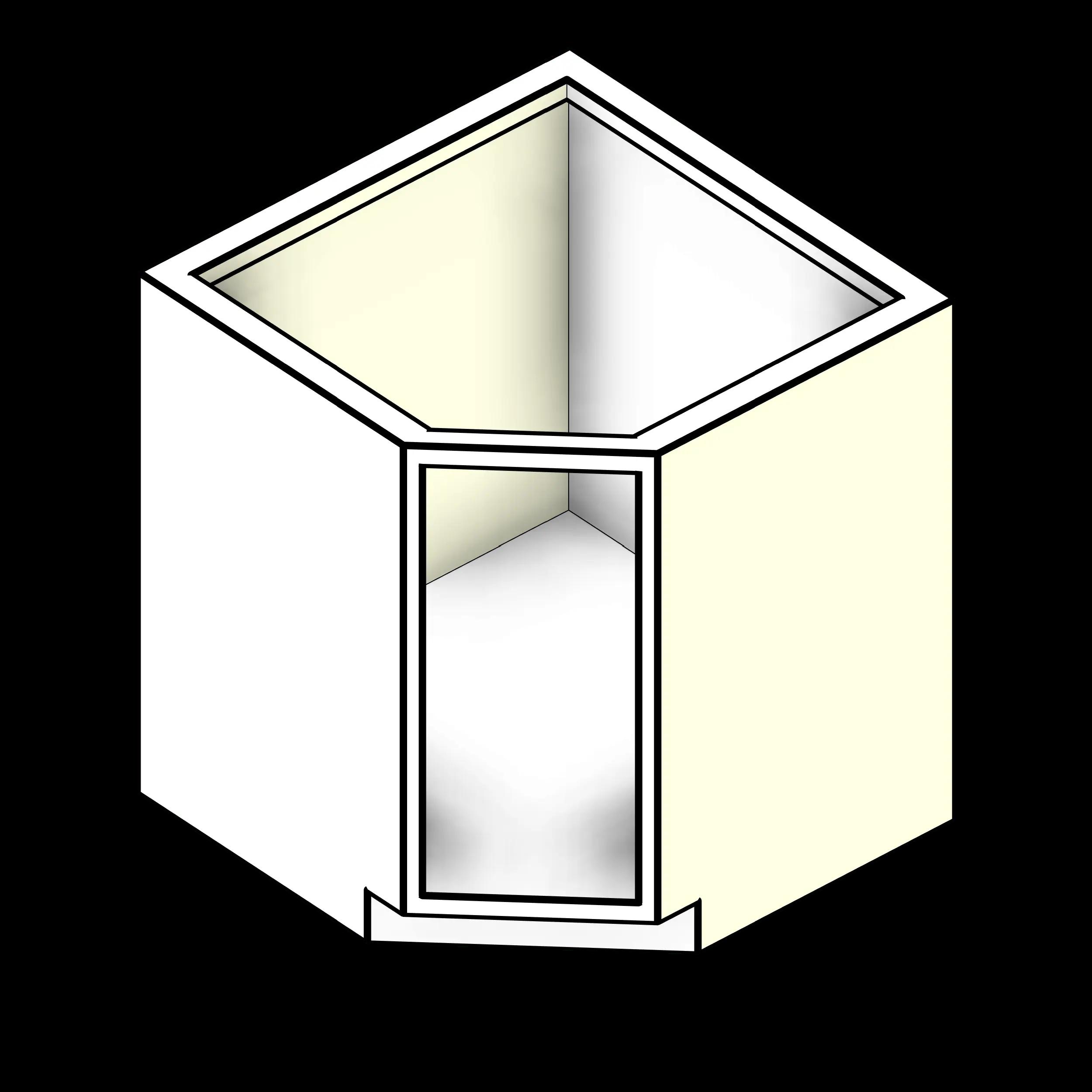

SSG Cabinet Lab Base Angle Corner PCS Open

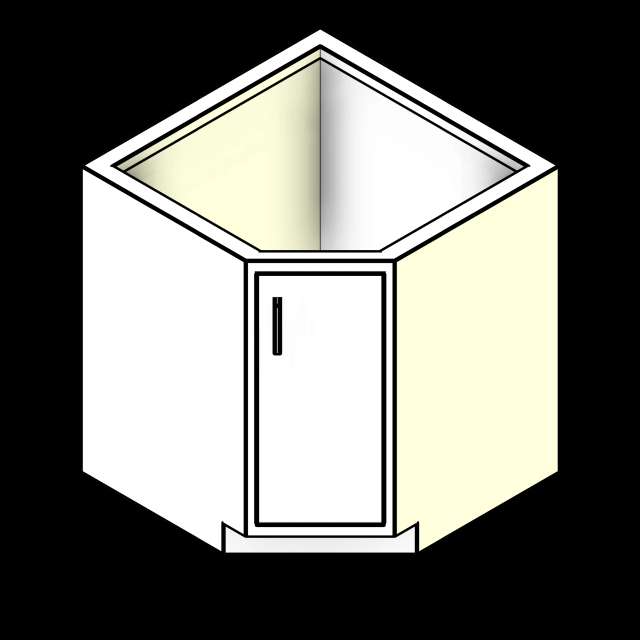

SSG Cabinet Lab Base Angle Corner PCS Inset Door

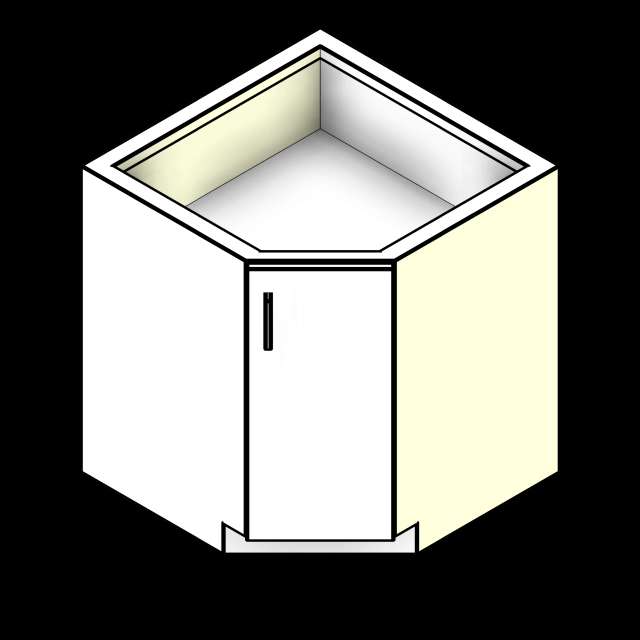

SSG Cabinet Lab Base Angle Corner PCS Overlay Door with Shelves

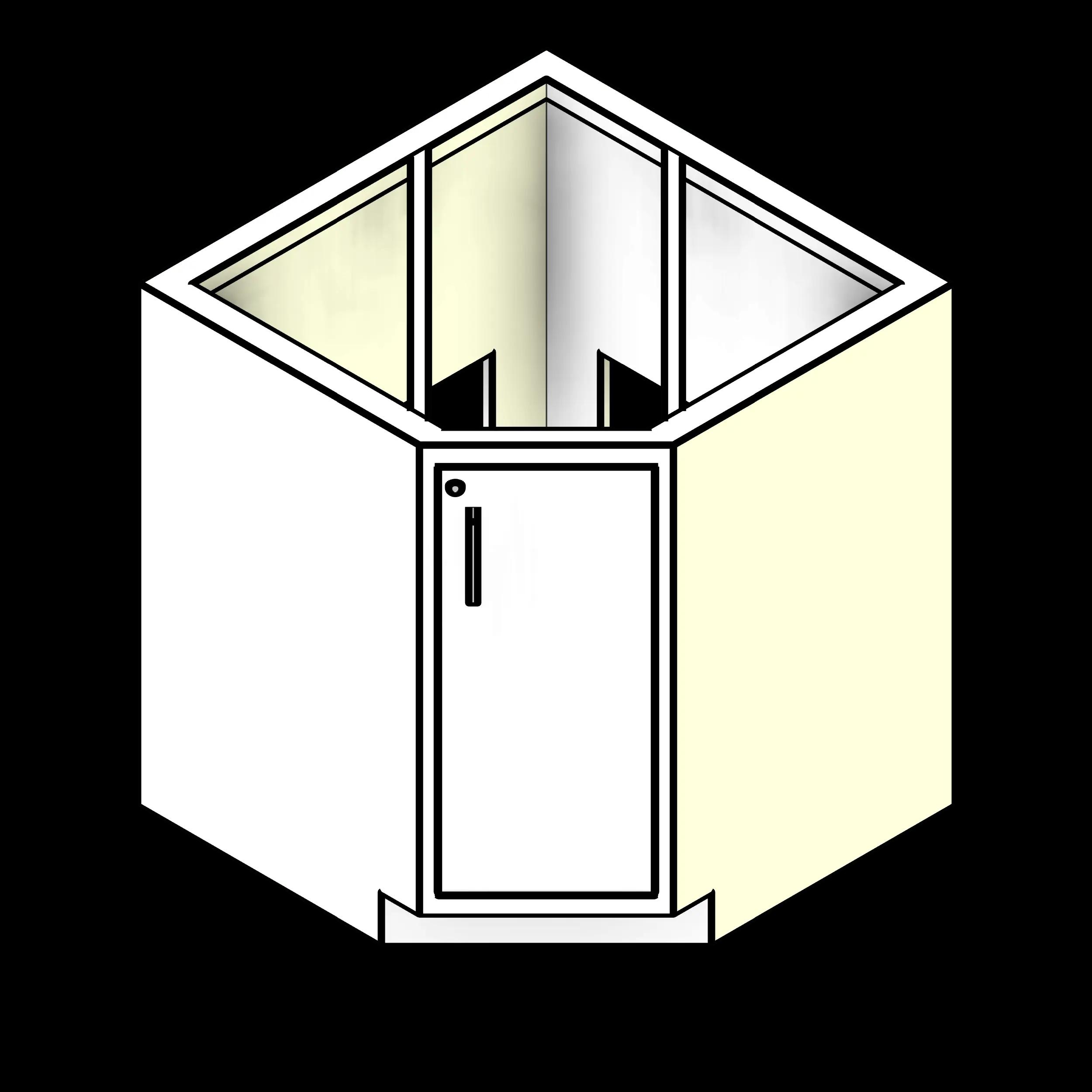

SSG Cabinet Lab Base Angle Corner PCS Inset Door with Sink Mount
SSG Cabinet Lab Base Angle Corner PCS Open
SSG Cabinet Lab Base Angle Corner PCS Inset Door
SSG Cabinet Lab Base Angle Corner PCS Overlay Door with Shelves
SSG Cabinet Lab Base Angle Corner PCS Inset Door with Sink Mount
2026.8.12.0
· Updated Aug 12, 2026

Angle Corner Steel Lab Base Cabinet

Product SKU

Description

  • Ideal for scientific, research, or technical labs
  • Fully-welded, heavy-gauge steel construction, lab grade finish
  • Turn corners without sacrificing storage space
  • Optional door, shelves, and sink mount
Family
ADA
Revit file icon
Revit 2023 (0.98 MB)
Revit file icon
Revit 2024 (0.98 MB)
Revit file icon
Revit 2025 (0.98 MB)
Revit file icon
Revit 2026 (0.98 MB)
Revit file icon
Revit 2027 (0.98 MB)
Material icon
(2.75 MB)
adobe reader icon
(0.49 MB)
adobe reader icon
(0.11 MB)
adobe reader icon
(0.19 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.

Steel Lab Base Cabinet Angle Corner Units

Our fully-welded, heavy-gauge, steel cabinets are designed to SEFA 8 performance standards and built to rigorous benchmarks. The classic "unit" design allows doors and drawers to be reconfigured in place. The configurable design provides a rich offering of hardware and aesthetic options.

Additional features include
  • Four sided, flush front, frame construction
  • Solid finished back with optional removable back
  • Full-depth adjustable shelf
  • Leveling bolts accessible through cabinet top
Cabinet styles are available in inset with square edge, overlay with square edge, overlay with bevel edge, and overlay with wood on steel.
ParameterValue
Standard Widths32"
Minimum Width2' 8" (32")
Maximum Width2' 8" (32")
Standard Depths32"
Minimum Depth2' 8" (32")
Maximum Depth2' 8" (32")
Standard Heights28 1/4", 31 109/128", 35 1/8"
Minimum Height2' 4 1/4" (28 1/4")
Maximum Height2' 11 1/8" (35 1/8")
ManufacturerSouthwest Solutions Group_ICI
Lead TimeContact SSG for info
Construction TypeWelded, cold-rolled steel Frame with flush overlay Steel, inset steel, or flush overlay wood doors
ModelP
MasterFormat12 35 53.13 – Metal Laboratory Casework
UniFormatE2020 – Moveable Furnishings
PropertyValue
EqualisNo
Includes SustainabilityYes
OmniaNo
SourcewellNo
SystecYes
VizientYes
Includes PricingNo
ADA CompliantYes
Has MEP ConnectorsNo
Primary MaterialPowder coated steel
Secondary MaterialWood
IFCFurniture
OmniClass23-21 19 15 25 11
