Casters Cantilever Shelving
Product SKU
Description
- Gray Casters
- Cold rolled steel
- Standard 5" Height
Revit 2018 (0.46 MB)
Revit 2019 (0.46 MB)
Revit 2020 (0.46 MB)
Revit 2021 (0.46 MB)
Revit 2022 (0.46 MB)
Revit 2023 (0.46 MB)
Revit 2024 (0.46 MB)
Revit 2025 (0.46 MB)

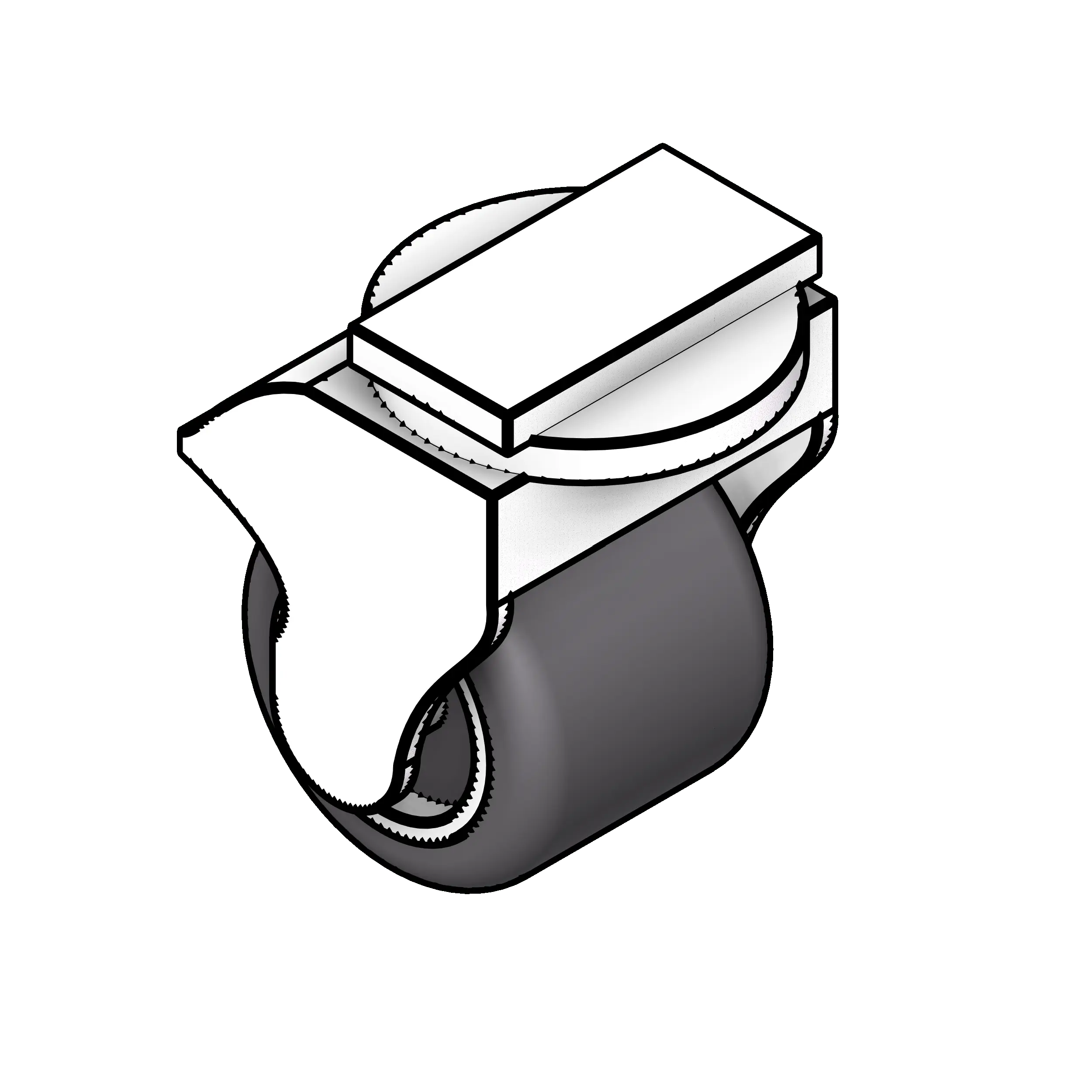

Caster for SSG Cantilever Families
The cantilever shelving line is designed to be highly flexible with every model built to reflect its real-world counterpart as closely as possible. Use the prebuilt cantilever shelving family to easily visualize your storage solution. You can also use the shared sub-component families to build custom shelving solutions.
All shelf units are assembled without the use of nuts, bolts, or clips and are available for both single entry and double entry (back to back storage) allowing for maximum filing/storage capacity with minimal floor intrusion. Shelves are available slotted to accept adjustable file dividers.
Parameter | Value |
---|---|
Standard Widths | 5" |
Standard Depths | 2 1/4" |
Minimum Depth | 0' 2 1/4" (2 1/4") |
Maximum Depth | 0' 2 1/4" (2 1/4") |
Standard Heights | 6 1/2" |
Minimum Height | 0' 6 1/2" (6 1/2") |
Maximum Height | 0' 6 1/2" (6 1/2") |
Manufacturer | Southwest Solutions Group_SPA |
Lead Time | 4-6 Weeks |
Construction Type | Welded Steel |
Keynote | 11 51 23 |
Assembly Code | E2010 |
Author | ssmartin |
Toll Free Number | 1-800-803-1083 |
Property | Value |
---|---|
Includes Pricing | Yes |
ADA Compliant | No |
Has MEP Connectors | No |
Includes Sustainability | Yes |
Primary Material | Powder coated steel |
BIMobject Category | Furniture: Shelving & Storage |
IFC | Furniture |
Omniclass | 23 40 20 27 11 |
Omnia | Yes |
Sourcewell | Yes |
Equalis | Yes |
Vizient | Yes |
Systec | Yes |
