· Updated Jun 3, 2024Storage Heavy Duty Cabinet
Product SKU
Description
- Industrial heavy-duty drawers store tools and small parts for easy retrieval
- Cabinets can be secured to the upright with tapping screws or hung under work surfaces
- Option to add a door with a lock to keep equipment and tools secure
Revit 2020 (0.77 MB)
Revit 2021 (0.77 MB)
Revit 2022 (0.77 MB)
Revit 2023 (0.77 MB)
Revit 2024 (0.77 MB)
Revit 2025 (0.77 MB)
Revit 2026 (0.77 MB)
Revit 2027 (0.77 MB)
(1.38 MB)
(0.03 MB)
(0.17 MB)

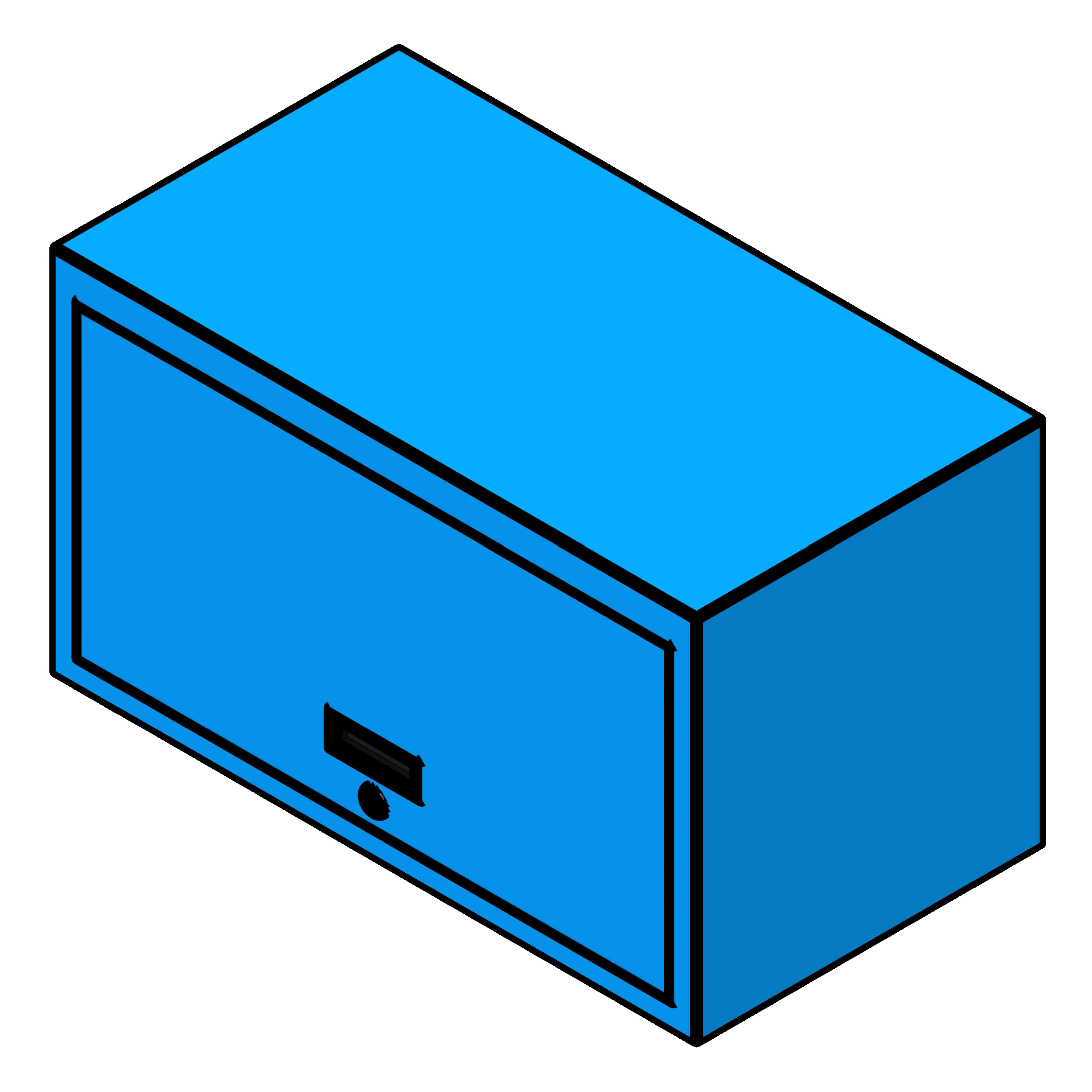

Storage Cabinet
Heavy-duty industrial cabinets store small tools, parts, and equipment in any industrial or manufacturing environment. They can be hooked onto uprights or hung under work surfaces. To keep items organized, they can be subdivided with shelves or dividers.
This storage cabinet includes the option to add the door with a lock for more security. To use this family, open the fetch app, then click on the model to insert it into your project. In the properties browser under construction, you will find the option to add a door. The dimensions category allows you to choose between the two widths.
| Parameter | Value |
|---|---|
| Standard Widths | 28", 34" |
| Minimum Width | 2' 4" (28") |
| Maximum Width | 2' 10" (34") |
| Standard Depths | 15" |
| Minimum Depth | 1' 3" (15") |
| Maximum Depth | 1' 3" (15") |
| Standard Heights | 16" |
| Minimum Height | 1' 4" (16") |
| Maximum Height | 1' 4" (16") |
| Manufacturer | Southwest Solutions Group_ROU |
| Lead Time | 3-4 Weeks |
| Model | WM |
| UniFormat | E2020 – Moveable Furnishings |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Includes Sustainability | Yes |
| Primary Material | Powder coated steel |
| IFC | Furniture |
