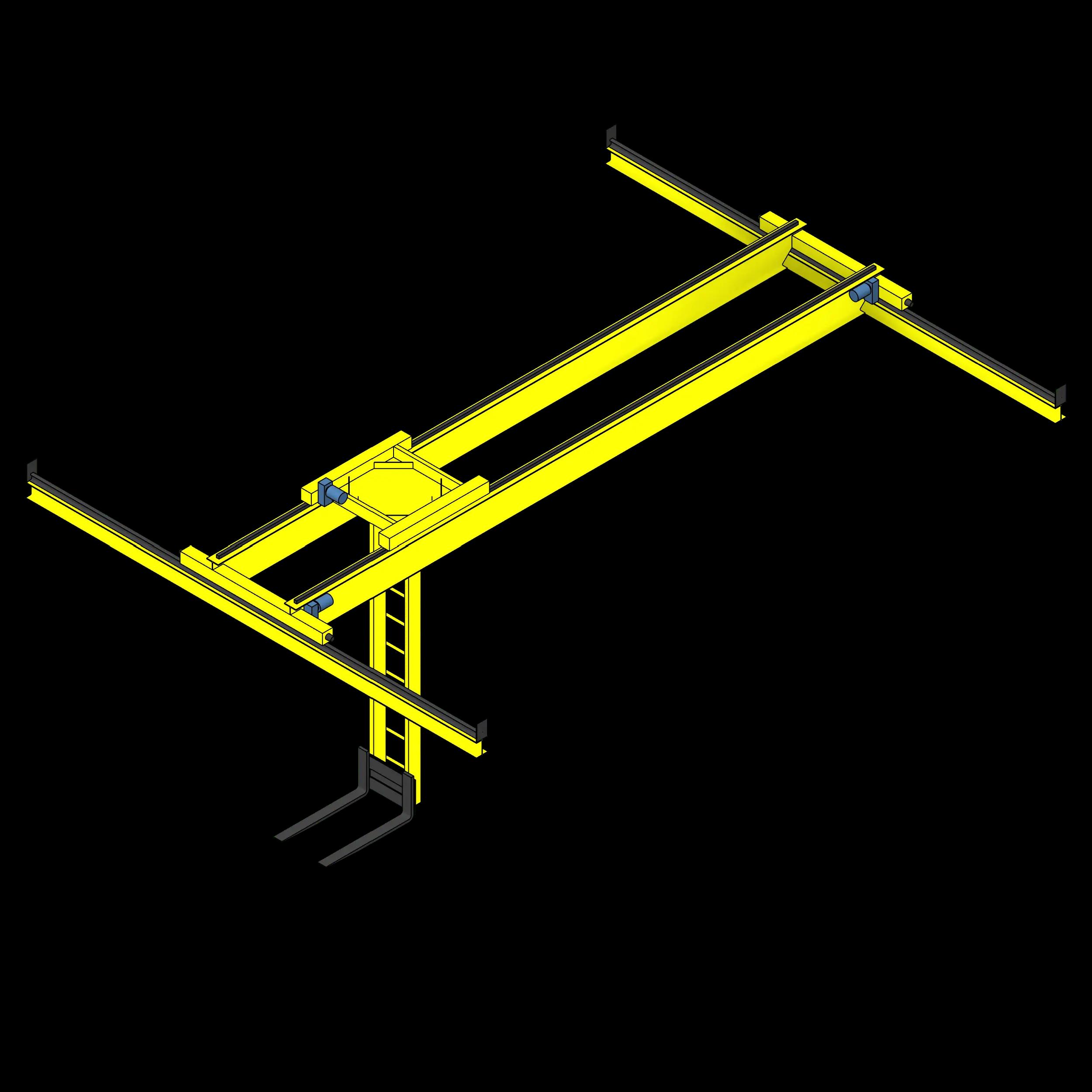

Double Aisle Pallet Retrieval

This family is intended to be used with the Modular Pallet Rack family, as the gantry is designed to sit directly on top of the rack. To use this family, insert it into your project from the Fetch app and click to place it in your project. The easy-to-use parameters are in the properties window while the family is selected. Use the parameters to choose your desired pallet size, number of bays, and shelving height to automatically size the system to fit your shelving configuration. Use the align tool to snap the shelving units to the strong references in the gantry family to ensure proper aisle spacing. The maximum capacity can be adjusted using the ENTER_Max Capacity Number parameter and will automatically scale to the capacity limits set.
