Medium Narrow Storage Vertical Carousels

Specially designed for spaces with limited width
Used extensively in manufacturing and material handeling environments
Quickly access small parts with auto-picking system
Reclaim floorspace by storing objects vertically
350 kg max load per carrier

Family

Pricing

Connectors

Revit 2020 (0.79 MB)

Revit 2021 (0.79 MB)

Revit 2022 (0.79 MB)

Revit 2023 (0.79 MB)

Revit 2024 (0.79 MB)

Revit 2025 (0.79 MB)

Questions

Need some help? Send us a message if you have any sales or model related questions.

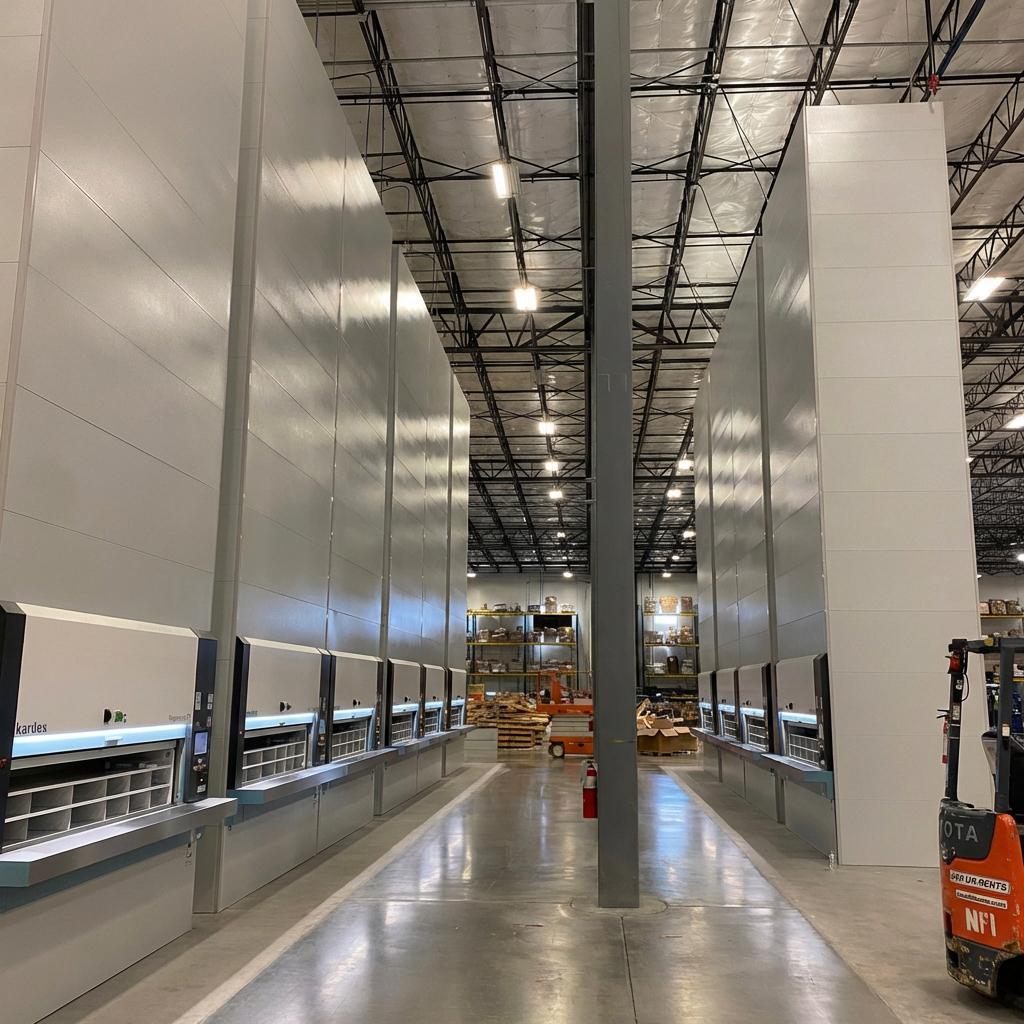

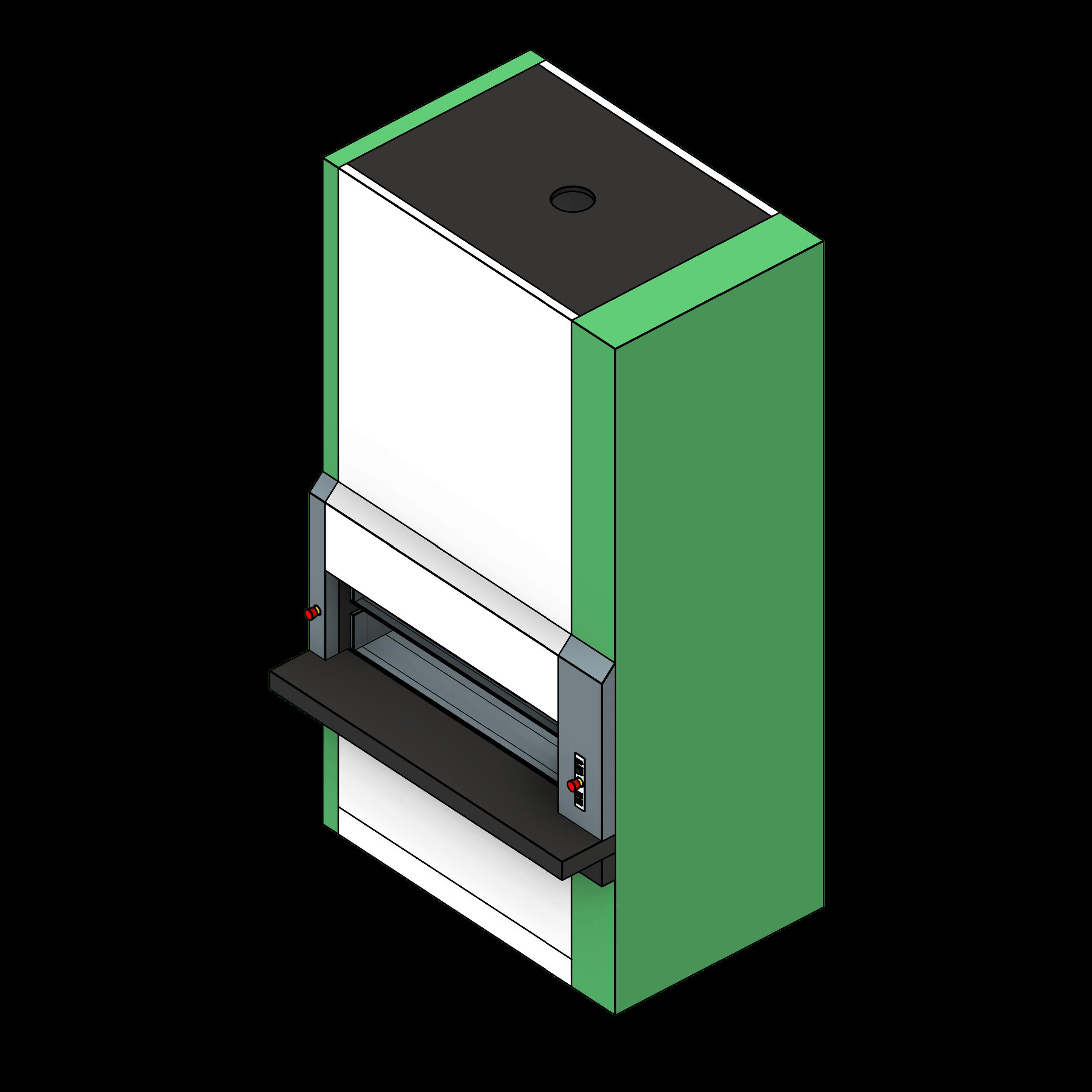

Vertical Carousel Narrow - Medium Object Storage

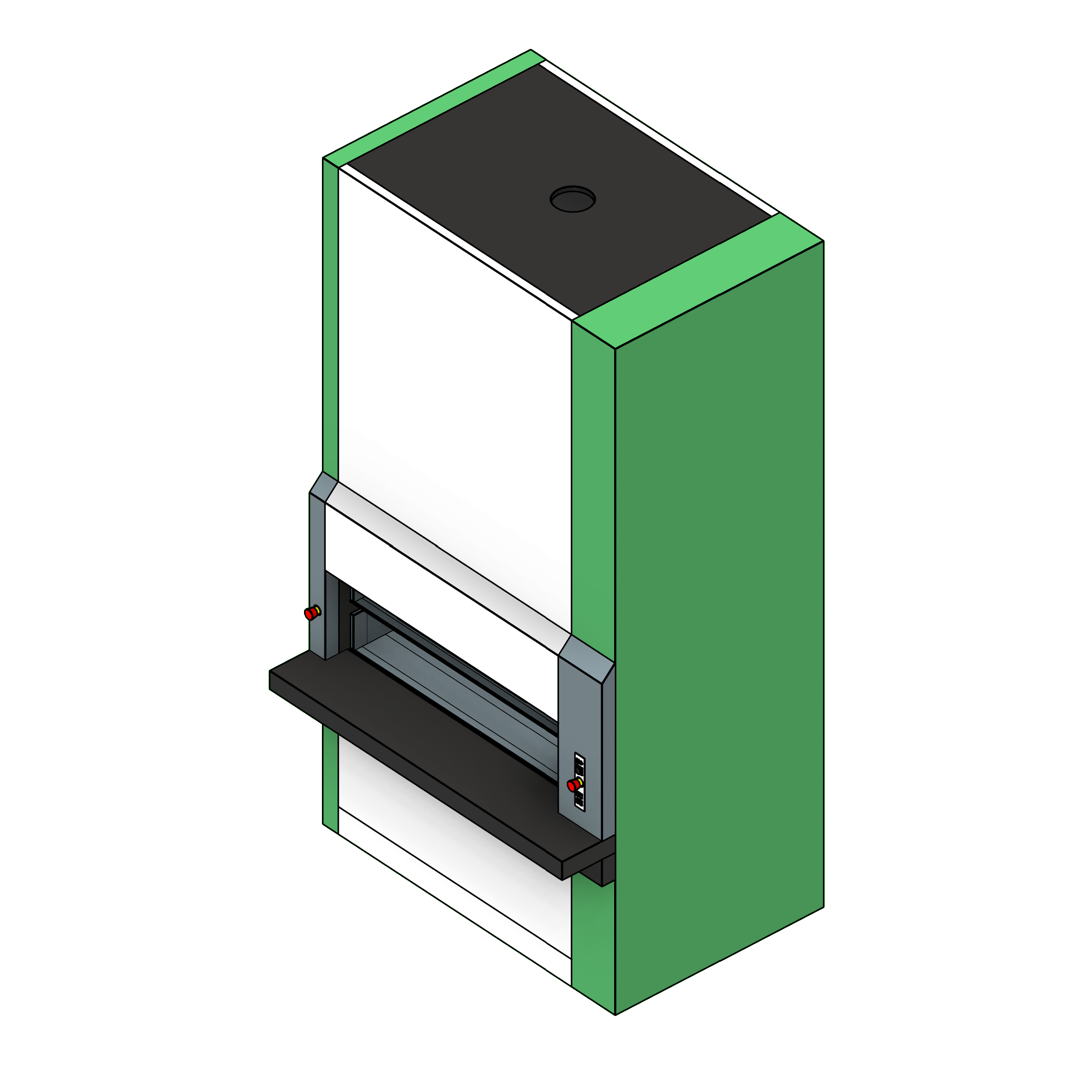

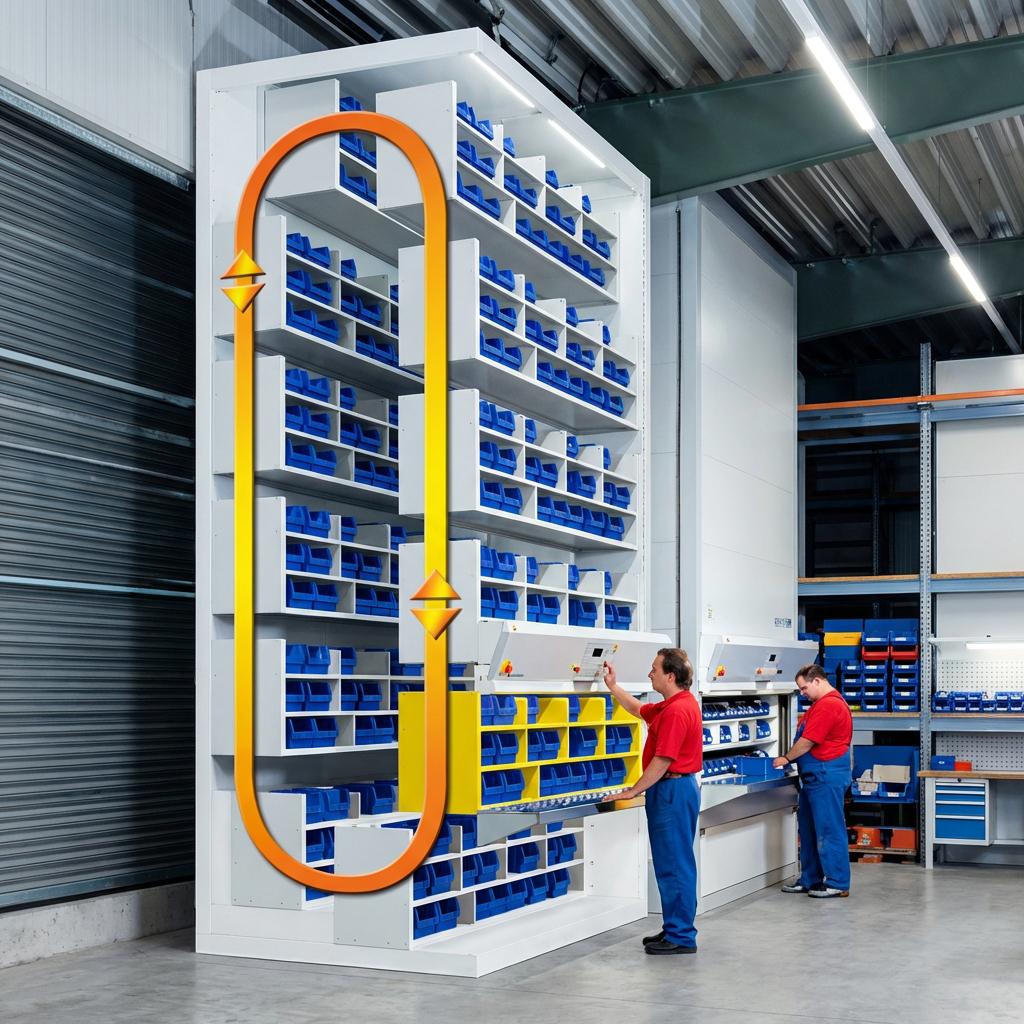

This medium vertical carousel is designed to efficiently store and quickly access to small bulk items less than 20” tall and up to 350 kg. This narrow unit is specially designed for material handling and warehouse environments with strict space requirements. This narrow unit maximizes storage while minimizing floor space usage in the warehouse.

To configure this family, simply select the desired tray width from eleven available options ranging from 1250 mm to 4050 mm, and choose a tray depth of 609.6 mm, 812.8 mm, or 863.6 mm. The Vertical Lift Module is highly versatile, offering hundreds of height variations between 2550 mm and 30,050 mm (just under 100 feet) to suit a wide range of design requirements.

Parameter	Value
Standard Widths	1250 - 2425 on 25mm increments
Minimum Width	4' 1 1/4" (49 1/4")
Maximum Width	7' 11 1/2" (95 1/2")
Standard Depths	428, 528, 628
Minimum Depth	1' 4 7/8" (16 7/8")
Maximum Depth	2' 0 3/4" (24 3/4")
Standard Heights	2235 mm - 9810 mm
Minimum Height	7' 4" (87")
Maximum Height	32' 2 1/4" (386 1/4")
Manufacturer	Southwest Solutions Group_KAR
Lead Time	Contact SSG for info
Model	MEG RS 350
Keynote	41 51 13
Assembly Code	E10
Author	AWright
Toll Free Number	1-800-803-1083

Property	Value
Equalis	No
Omnia	No
Sourcewell	Yes
Systec	No
Vizient	Yes
Includes Pricing	Yes
ADA Compliant	Yes
Has MEP Connectors	Yes
Primary Material	Powder coated steel
BIMobject Category	Furniture: Shelving & Storage
IFC	Furniture
Omniclass	23-23 17 00

Model	Width	Depth	Height	Weight
SSG-MEG RS 350.2.1250.4.305.11	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	7' 10 7/8" (94 7/8")	6545
SSG-MEG RS 350.2.1250.4.305.12	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	8' 4 3/4" (100 3/4")	6916
SSG-MEG RS 350.2.1250.4.305.13	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	8' 10 3/4" (106 3/4")	7277
SSG-MEG RS 350.2.1250.4.305.14	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	9' 5 5/8" (113 5/8")	7652
SSG-MEG RS 350.2.1250.4.305.15	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	9' 11 1/2" (119 1/2")	8023
SSG-MEG RS 350.2.1250.4.305.16	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	10' 5 3/8" (125 3/8")	8384
SSG-MEG RS 350.2.1250.4.305.17	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	10' 11 1/4" (131 1/4")	9127
SSG-MEG RS 350.2.1250.4.305.18	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	11' 5 1/4" (137 1/4")	9127
SSG-MEG RS 350.2.1250.4.305.19	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	11' 11 1/8" (143 1/8")	9861
SSG-MEG RS 350.2.1250.4.305.20	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	12' 5" (149")	9861
SSG-MEG RS 350.2.1250.4.305.21	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	12' 10 7/8" (154 7/8")	10598
SSG-MEG RS 350.2.1250.4.305.22	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	13' 4 7/8" (160 7/8")	10598
SSG-MEG RS 350.2.1250.4.305.23	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	13' 10 3/4" (166 3/4")	11338
SSG-MEG RS 350.2.1250.4.305.24	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	14' 4 5/8" (172 5/8")	11338
SSG-MEG RS 350.2.1250.4.305.25	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	14' 11 1/2" (179 1/2")	12070
SSG-MEG RS 350.2.1250.4.305.26	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	15' 5 3/8" (185 3/8")	12070
SSG-MEG RS 350.2.1250.4.305.27	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	15' 11 3/8" (191 3/8")	12804
SSG-MEG RS 350.2.1250.4.305.28	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	16' 5 1/4" (197 1/4")	12804
SSG-MEG RS 350.2.1250.4.305.29	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	16' 11 1/8" (203 1/8")	13547
SSG-MEG RS 350.2.1250.4.305.30	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	17' 5" (209")	13547
SSG-MEG RS 350.2.1250.4.305.31	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	17' 11" (214")	14284
SSG-MEG RS 350.2.1250.4.305.31	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	18' 4 7/8" (220 7/8")	14284
SSG-MEG RS 350.2.1250.4.305.33	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	18' 10 3/4" (226 3/4")	14524
SSG-MEG RS 350.2.1250.4.305.34	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	19' 4 5/8" (232 5/8")	14524
SSG-MEG RS 350.2.1250.4.305.35	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	19' 11 5/8" (239 5/8")	15324
SSG-MEG RS 350.2.1250.4.305.36	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	20' 5 1/2" (245 1/2")	15324
SSG-MEG RS 350.2.1250.4.305.37	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	20' 11 3/8" (251 3/8")	15381
SSG-MEG RS 350.2.1250.4.305.38	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	21' 5 1/4" (257 1/4")	15381
SSG-MEG RS 350.2.1250.4.305.39	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	21' 11 1/4" (263 1/4")	15399
SSG-MEG RS 350.2.1250.4.305.40	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	22' 5 1/8" (269 1/8")	15399
SSG-MEG RS 350.2.1250.4.305.41	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	22' 11" (275")	16045
SSG-MEG RS 350.2.1250.4.305.42	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	23' 4 7/8" (280 7/8")	16045
SSG-MEG RS 350.2.1250.4.305.43	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	23' 10 3/4" (286 3/4")	16049
SSG-MEG RS 350.2.1250.4.305.44	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	24' 4 3/4" (292 3/4")	16049
SSG-MEG RS 350.2.1250.4.305.45	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	24' 11 5/8" (299 5/8")	16662
SSG-MEG RS 350.2.1250.4.305.46	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	25' 5 1/2" (305 1/2")	16662
SSG-MEG RS 350.2.1250.4.305.47	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	25' 11 3/8" (311 3/8")	16594
SSG-MEG RS 350.2.1250.4.305.48	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	26' 5 3/8" (317 3/8")	16594
SSG-MEG RS 350.2.1250.4.305.49	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	26' 11 1/4" (323 1/4")	17176
SSG-MEG RS 350.2.1250.4.305.50	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	27' 5 1/8" (329 1/8")	17176
SSG-MEG RS 350.2.1250.4.305.51	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	27' 11" (335")	17767
SSG-MEG RS 350.2.1250.4.305.52	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	28' 5" (340")	17767
SSG-MEG RS 350.2.1250.4.305.53	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	28' 10 7/8" (346 7/8")	17487
SSG-MEG RS 350.2.1250.4.305.54	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	29' 4 3/4" (352 3/4")	17487
SSG-MEG RS 350.2.1250.4.305.55	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	29' 10 5/8" (358 5/8")	18040
SSG-MEG RS 350.2.1250.4.305.56	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	30' 5 1/2" (365 1/2")	18040
SSG-MEG RS 350.2.1250.4.305.57	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	30' 11 1/2" (371 1/2")	18596
SSG-MEG RS 350.2.1250.4.305.58	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	31' 5 3/8" (377 3/8")	18596
SSG-MEG RS 350.2.1250.4.305.59	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	31' 11 1/4" (383 1/4")	18305
SSG-MEG RS 350.2.1250.4.305.60	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	32' 5 1/8" (389 1/8")	18305
