Day Use Metal Locker

Downloads

RFARevit family
PDFFinish options29 KB
PDFCut sheet202 KB
LIBMaterial library1.3 MB

Get Fetch to load families straight into Revit →

Family

Pricing

Day use lockers are popular in spas, fitness centers, offices, and any facility on a shift schedule
Modular design makes it easy to build locker walls, islands, or even islands
Keypad or RFID lock keeps belongings secure while in use

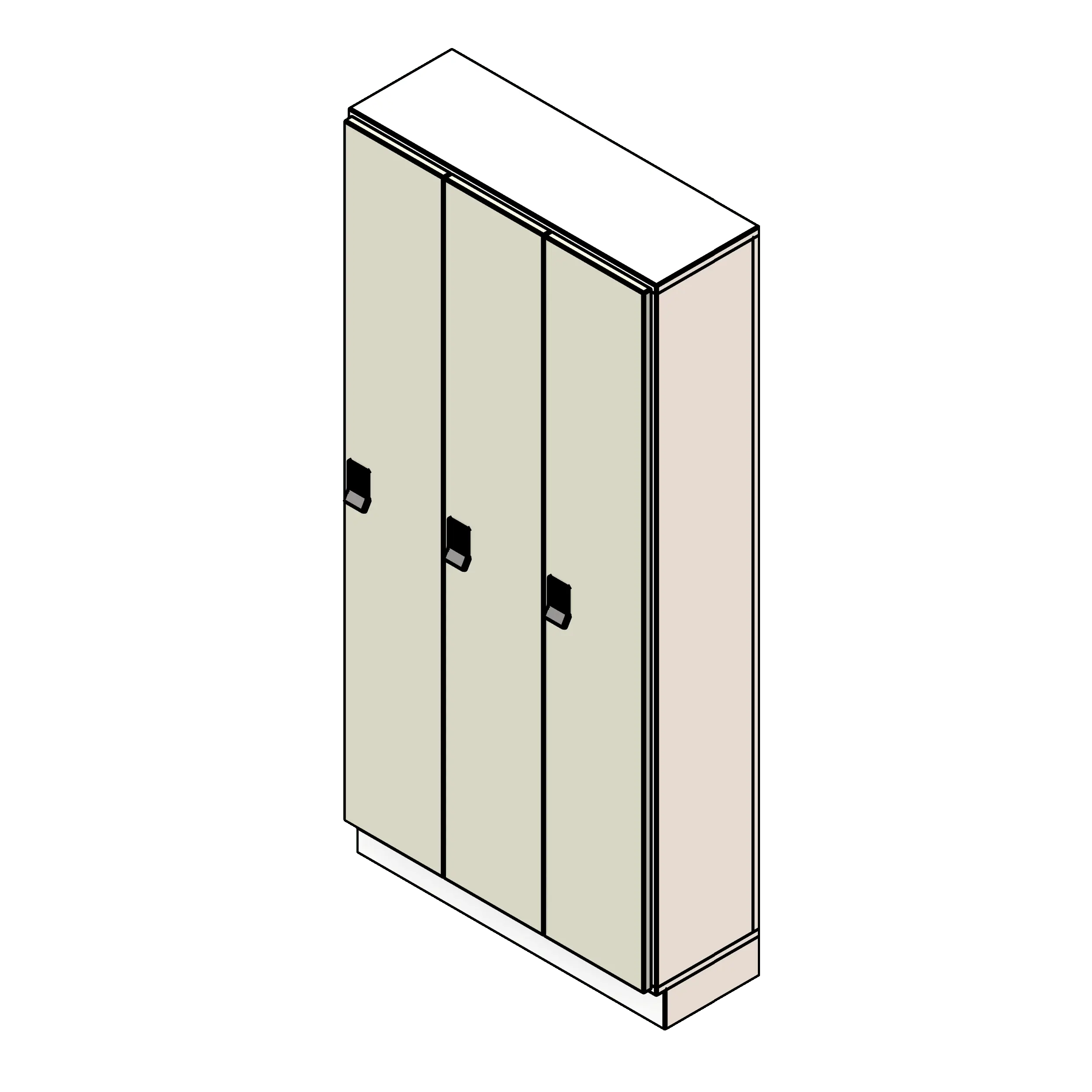

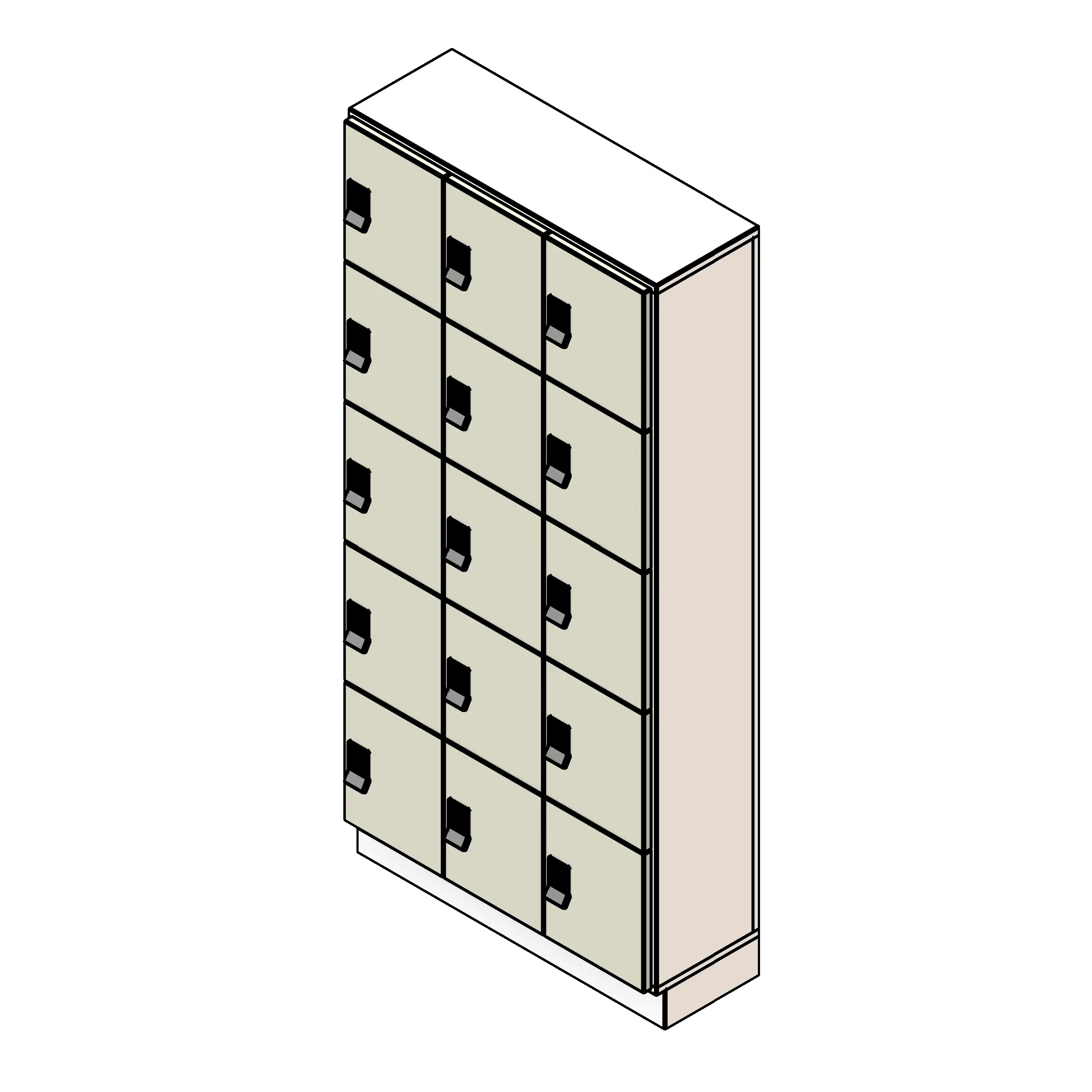

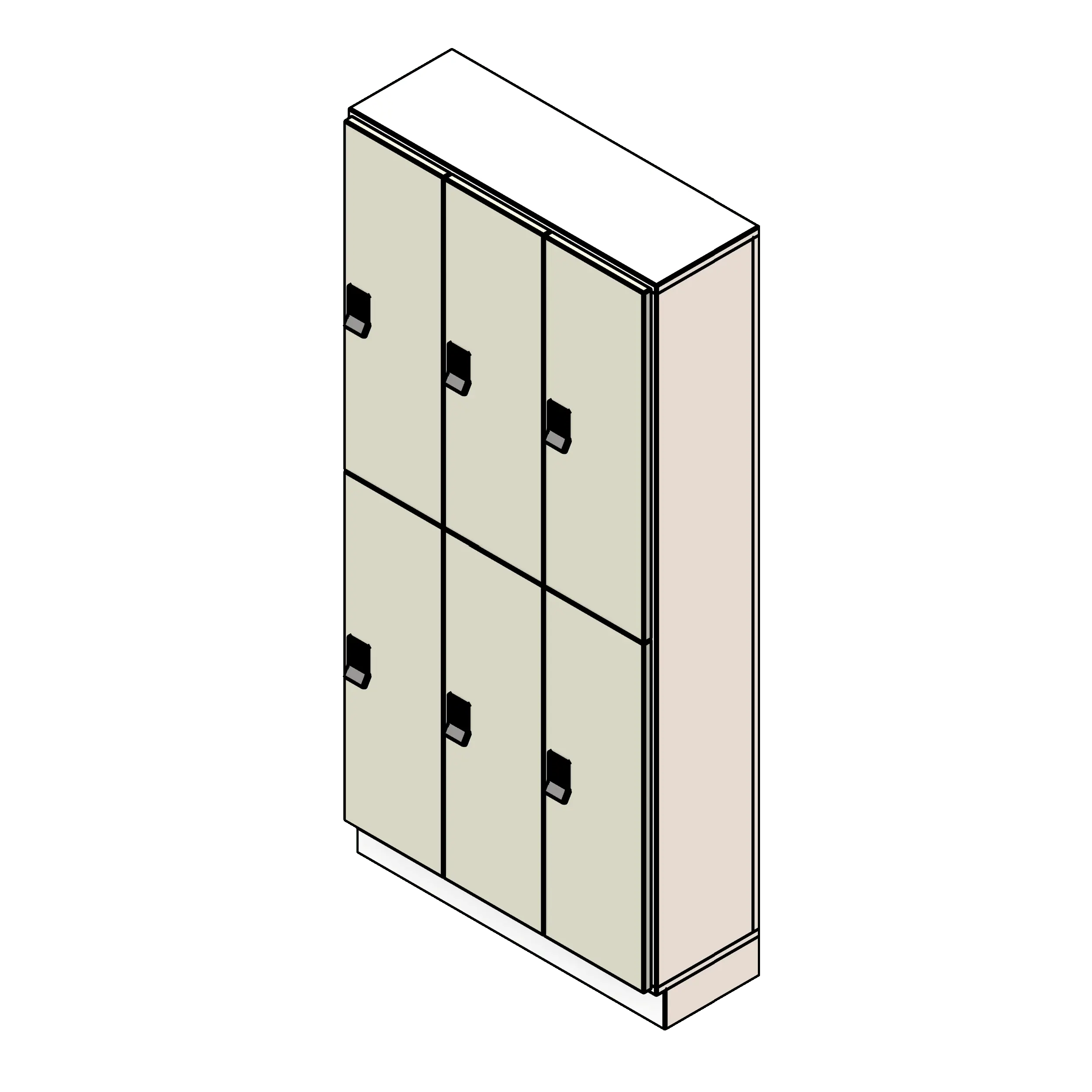

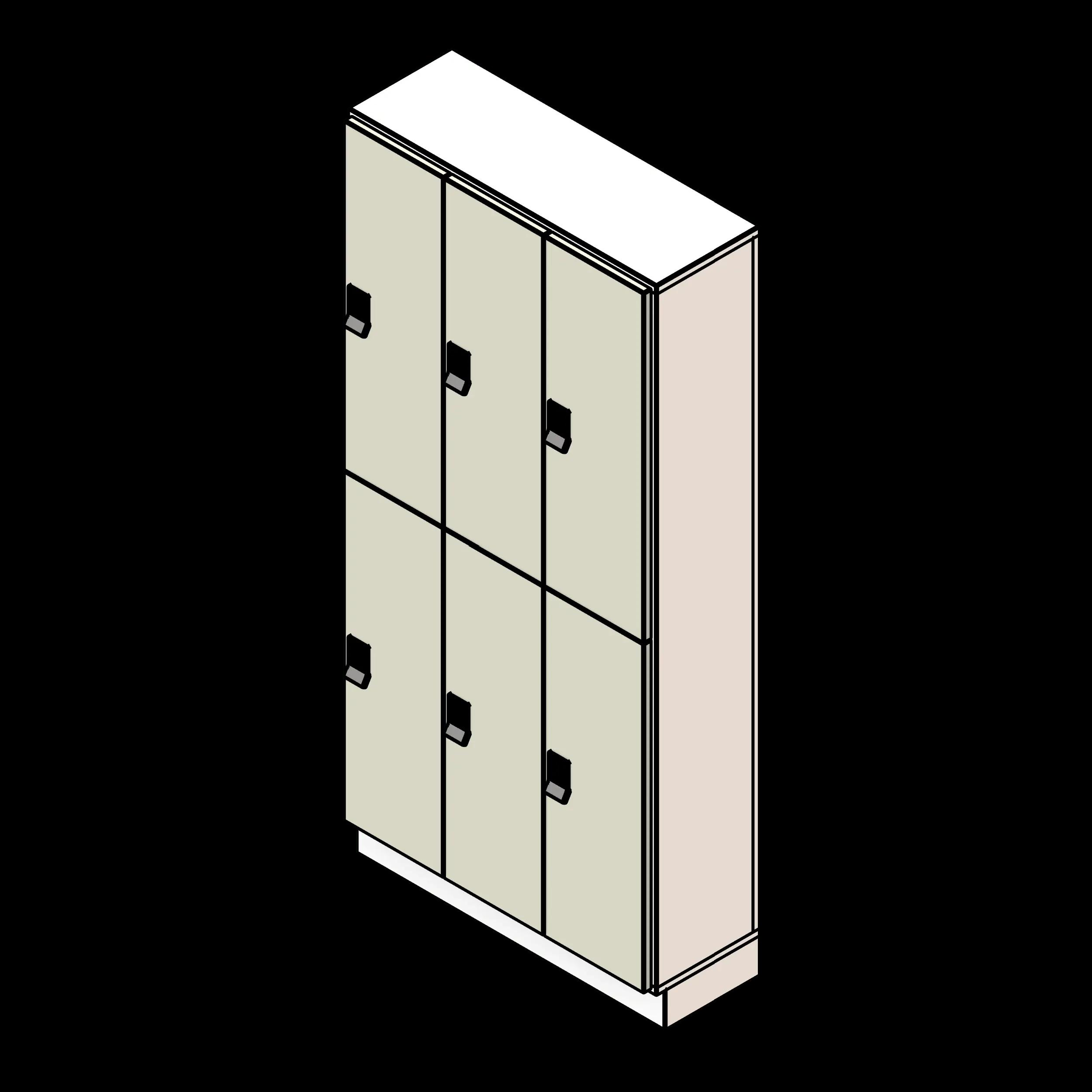

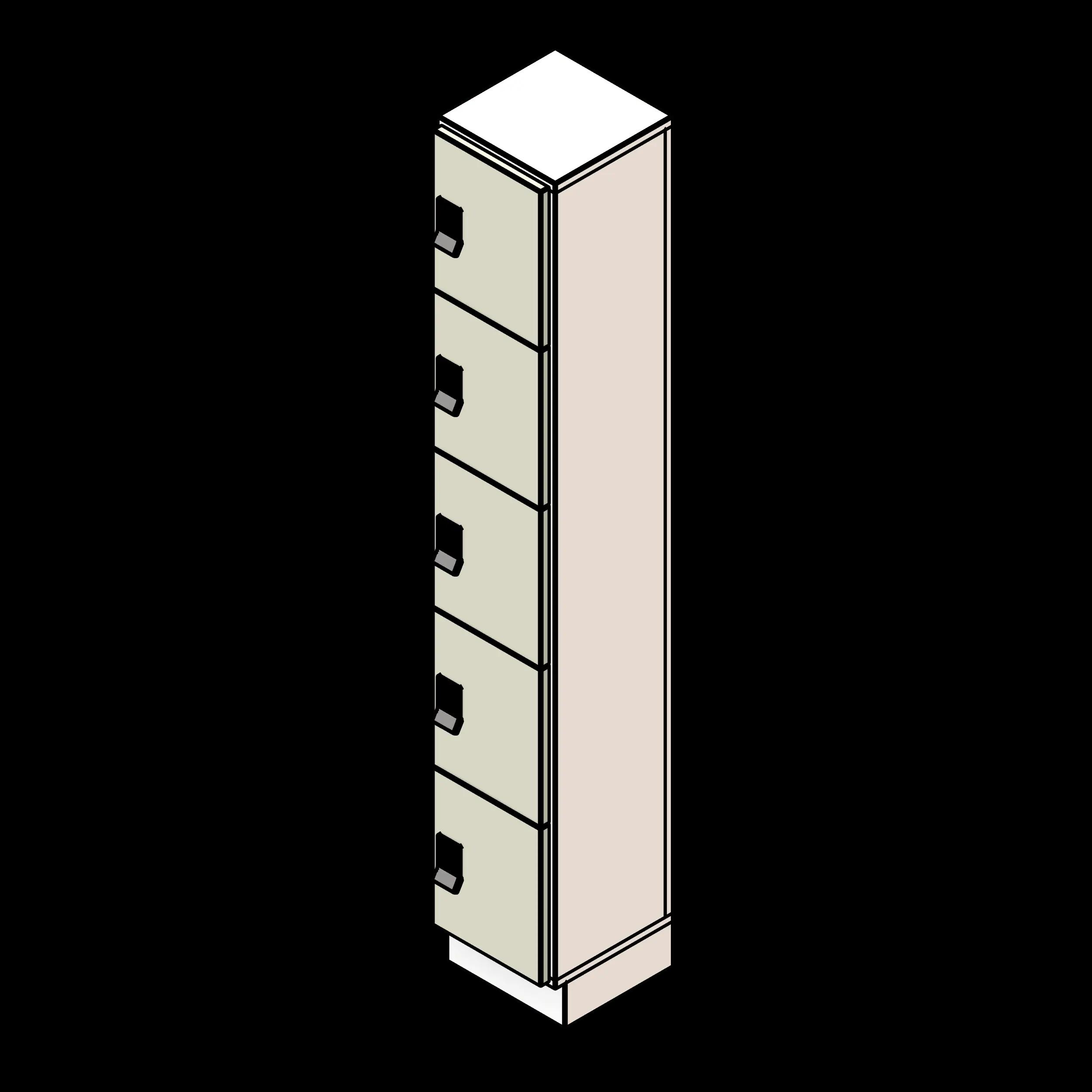

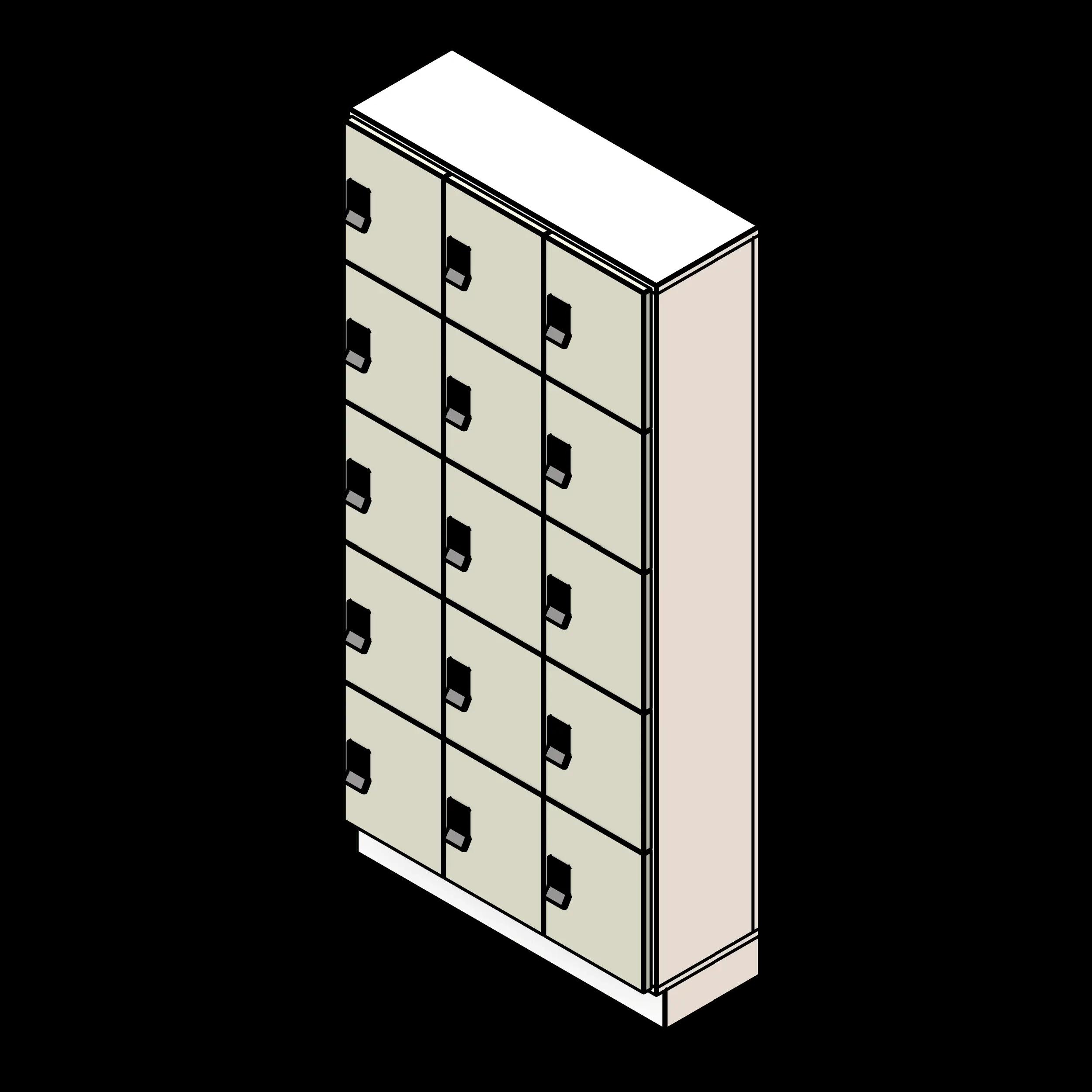

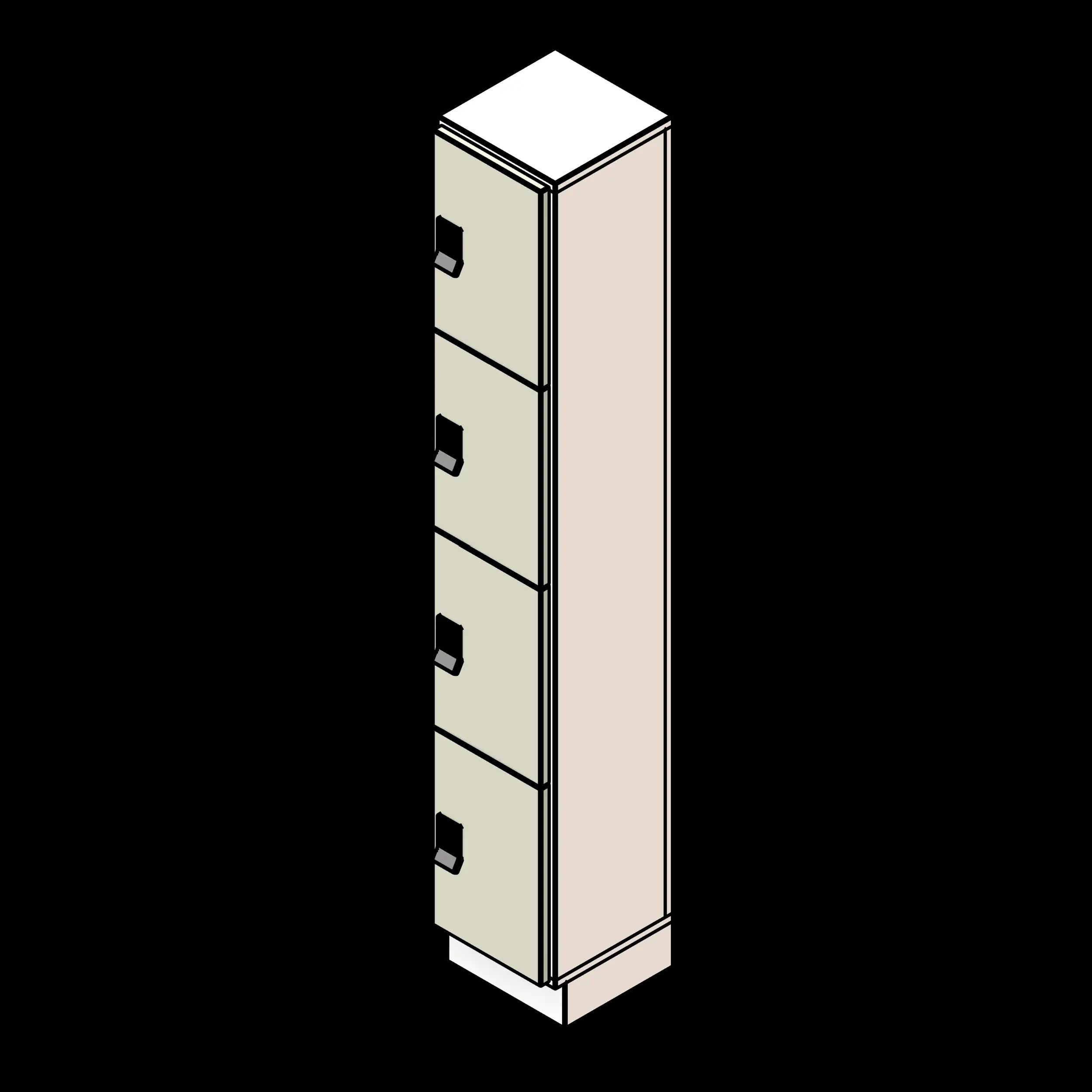

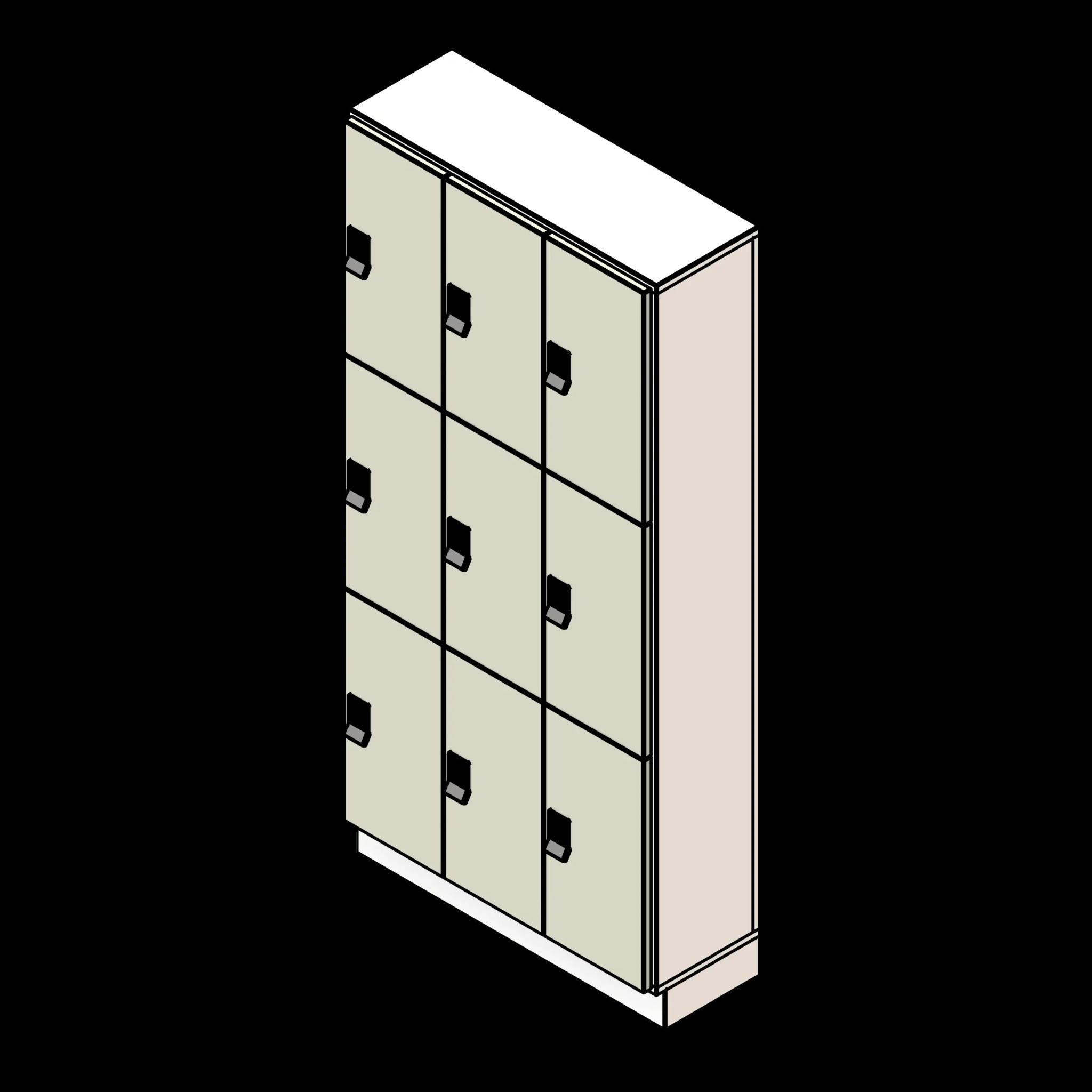

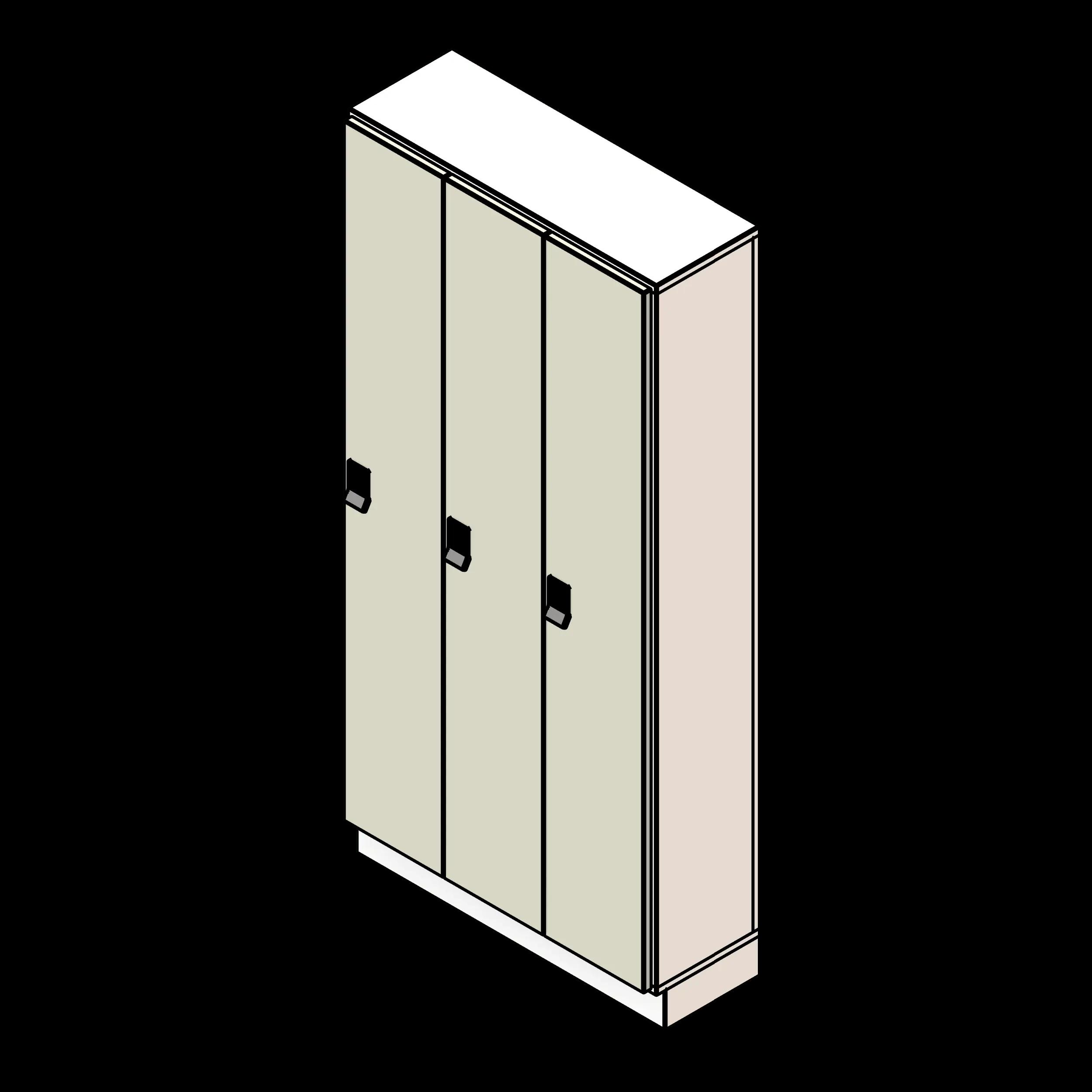

Select from 1 to 3 columns and 1 to 5 tiers for your ideal storage solution

Questions about this product?

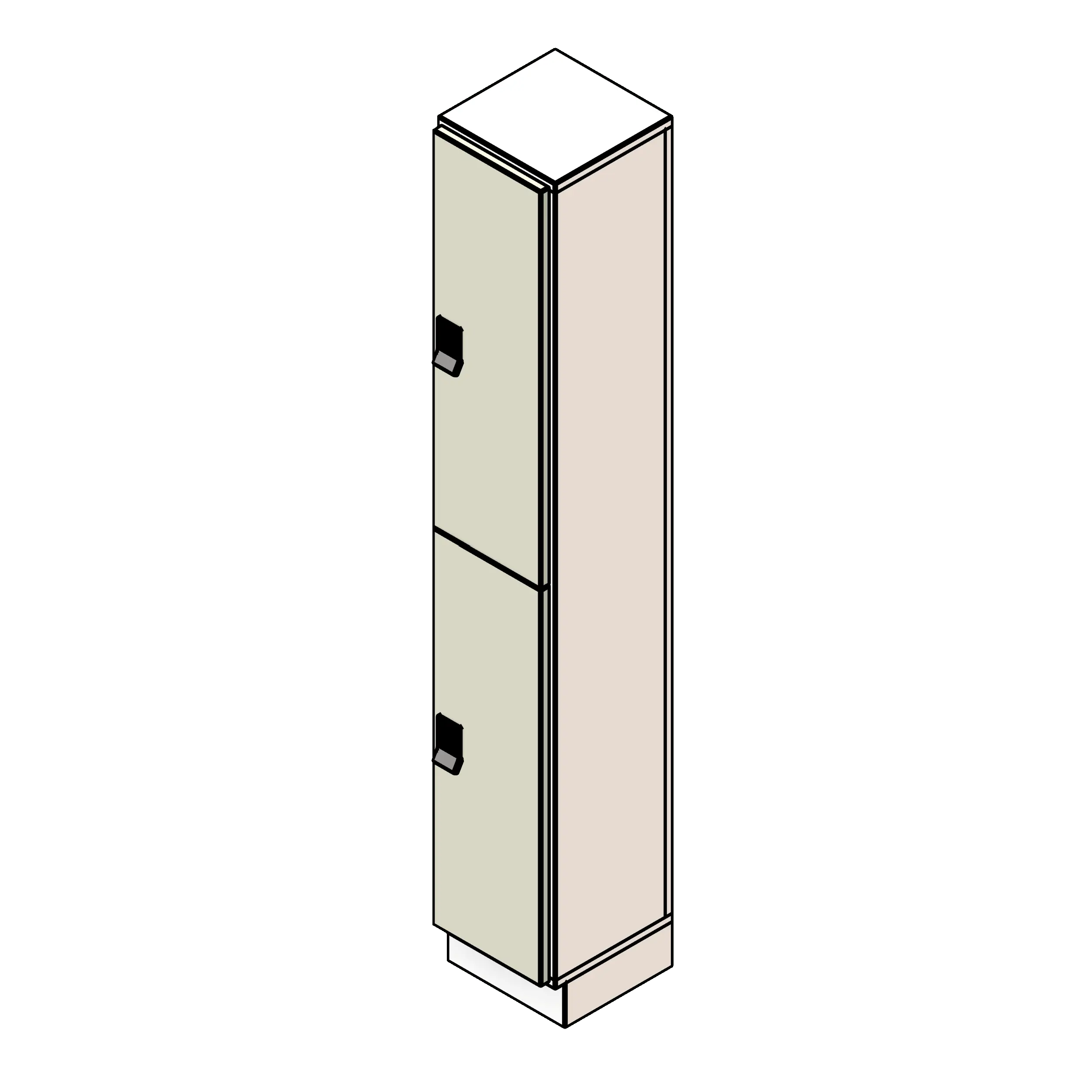

Day Use Metal Locker

Day use lockers provide secure and flexible storage for a variety of uses. Modular day use lockers can be used in offices, spas, fitness centers, or any facility that uses a shift schedule. The locker's keypad lock can be reprogrammed in between each use, allowing multiple people to use the same opening over the course of a day.

This family is designed to integrate seamlessly into your ongoing Revit project. Select the family from the Fetch app and click inside your Revit project to place a unit. The easy-to-use parameters in the Dimensions category of the properties browser will help you select the opening width and depth and the overall locker height. The parameters in the Construction category of the properties tab can be used to choose between more options, such as the number of columns and tiers, lock types, mail slots, finish panels, and toe kicks.

To explore custom size options or to see more columns or tiers, check the CUSTOM_Dimensions box. This will allow you to enter any dimension, column, or tier number to create custom solutions for your particular space. Please note that custom products cannot be priced inside of Revit and will require consultation with your SSG sales rep.

Specifications
Dimensions
Width	12", 15", 18"
Depth	12", 15", 18", 24"
Height	24", 36", 54", 60", 72"
Product
Manufacturer	Southwest Solutions Group_SPA
Lead Time	4-6 Weeks
Model	DUL
Primary Material	Powder coated steel
Classification
MasterFormat	10 51 13 – Metal Lockers
UniFormat	E2010 – Fixed Furnishings
IFC	Furniture
OmniClass	23.40.20.11.17 – Lockers
Purchasing
Contracts	Omnia, Sourcewell, Equalis, Vizient, Systec
Revit family
Includes Pricing	Yes
ADA Compliant	No
Has MEP Connectors	No
Includes Sustainability	Yes

Model	# Columns	# Tiers	Opening Width	Width	Opening Depth	Depth	Height

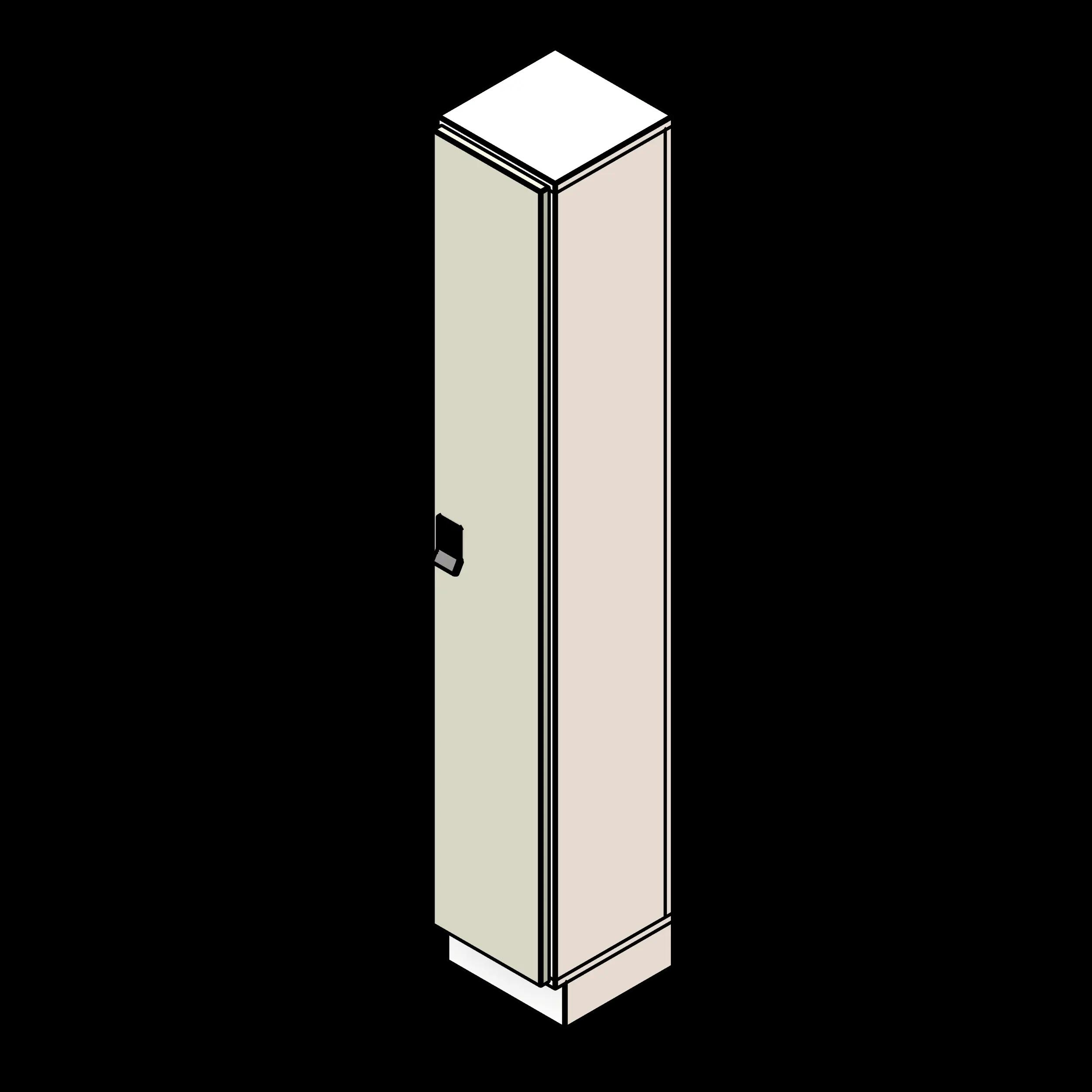

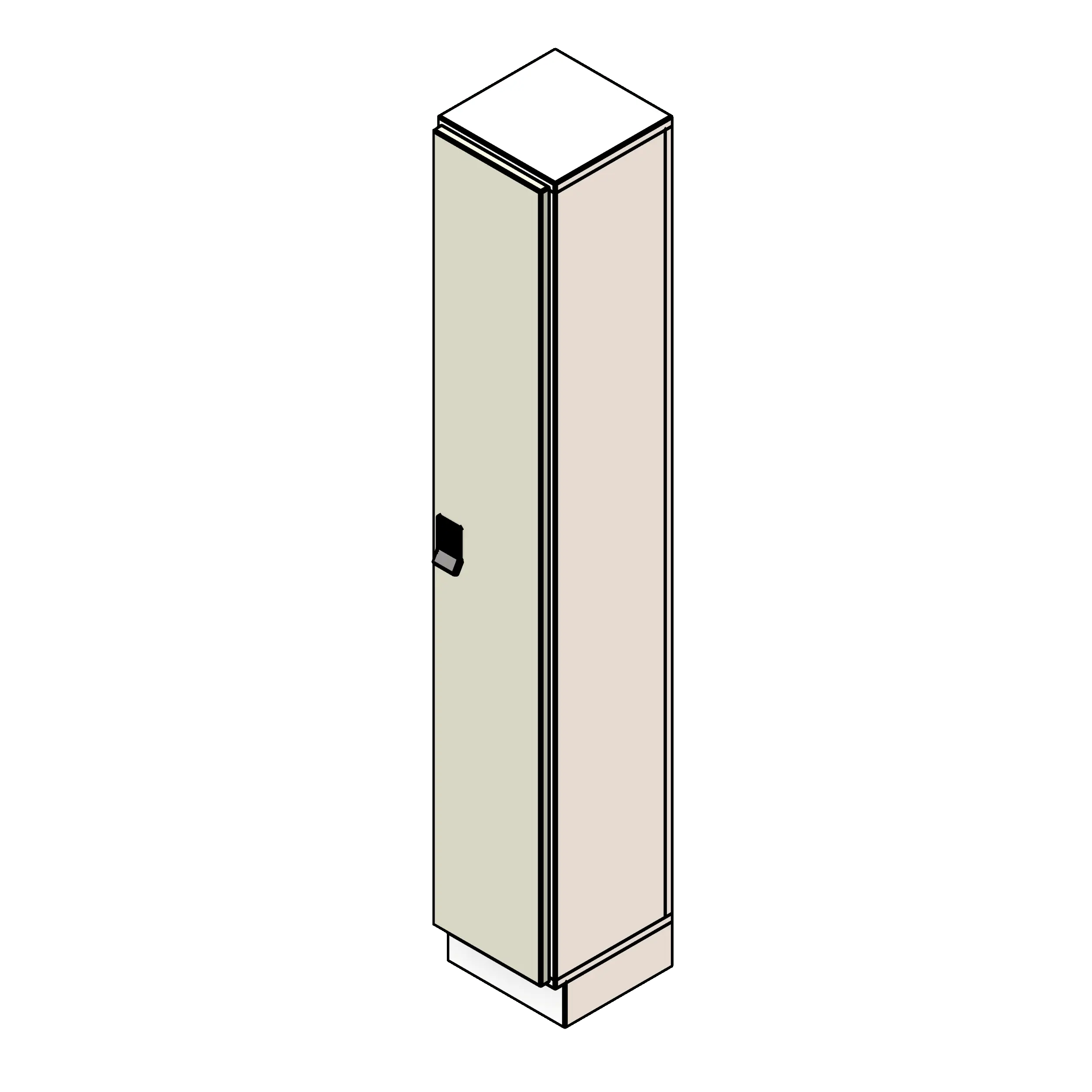

DUL1T1C241212	1	1	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL1T1C361212	1	1	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL1T1C541212	1	1	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL1T1C721212	1	1	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL1T1C241512	1	1	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL1T1C361512	1	1	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL1T1C541512	1	1	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL1T1C721512	1	1	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL1T1C241812	1	1	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL1T1C361812	1	1	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL1T1C541812	1	1	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL1T1C721812	1	1	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL1T1C242412	1	1	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL1T1C362412	1	1	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL1T1C542412	1	1	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL1T1C722412	1	1	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL1T1C241215	1	1	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL1T1C361215	1	1	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL1T1C541215	1	1	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL1T1C721215	1	1	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL1T1C241515	1	1	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL1T1C361515	1	1	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL1T1C541515	1	1	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL1T1C721515	1	1	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL1T1C241815	1	1	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL1T1C361815	1	1	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL1T1C541815	1	1	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL1T1C721815	1	1	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL1T1C242415	1	1	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL1T1C362415	1	1	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL1T1C542415	1	1	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL1T1C722415	1	1	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL1T1C241218	1	1	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL1T1C361218	1	1	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL1T1C541218	1	1	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL1T1C721218	1	1	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL1T1C241518	1	1	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL1T1C361518	1	1	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL1T1C541518	1	1	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL1T1C721518	1	1	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL1T1C241818	1	1	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL1T1C361818	1	1	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL1T1C541818	1	1	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL1T1C721818	1	1	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL1T1C242418	1	1	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL1T1C362418	1	1	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL1T1C542418	1	1	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL1T1C722418	1	1	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	6' 0" (72")

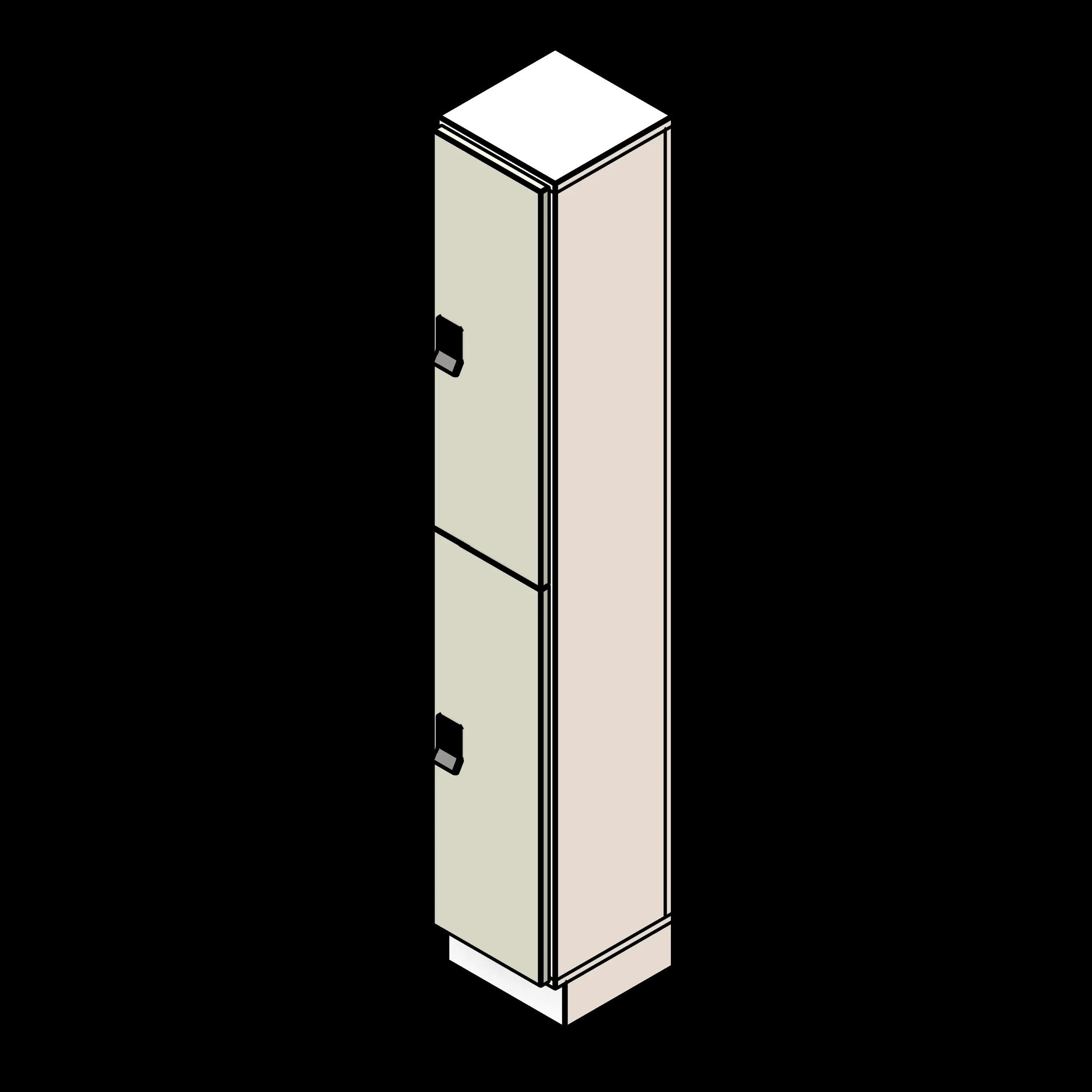

DUL2T1C241212	1	2	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL2T1C361212	1	2	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL2T1C541212	1	2	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL2T1C601212	1	2	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL2T1C721212	1	2	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL2T1C241512	1	2	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL2T1C361512	1	2	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL2T1C541512	1	2	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL2T1C601512	1	2	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL2T1C721512	1	2	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL2T1C241812	1	2	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL2T1C361812	1	2	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL2T1C541812	1	2	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL2T1C601812	1	2	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL2T1C721812	1	2	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL2T1C242412	1	2	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL2T1C362412	1	2	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL2T1C542412	1	2	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL2T1C602412	1	2	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL2T1C722412	1	2	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL2T1C361215	1	2	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL2T1C541215	1	2	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL2T1C601215	1	2	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL2T1C721215	1	2	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL2T1C361515	1	2	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL2T1C541515	1	2	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL2T1C601515	1	2	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL2T1C721515	1	2	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL2T1C361815	1	2	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL2T1C541815	1	2	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL2T1C601815	1	2	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL2T1C721815	1	2	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL2T1C362415	1	2	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL2T1C542415	1	2	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL2T1C602415	1	2	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL2T1C722415	1	2	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL1T1C361218	1	2	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL2T1C541218	1	2	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL2T1C601218	1	2	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL2T1C721218	1	2	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL1T1C361518	1	2	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL2T1C541518	1	2	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL2T1C601518	1	2	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL2T1C721518	1	2	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL1T1C361818	1	2	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL2T1C541818	1	2	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL2T1C601818	1	2	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL2T1C721818	1	2	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL1T1C362418	1	2	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL2T1C542418	1	2	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL2T1C602418	1	2	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL2T1C722418	1	2	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	6' 0" (72")

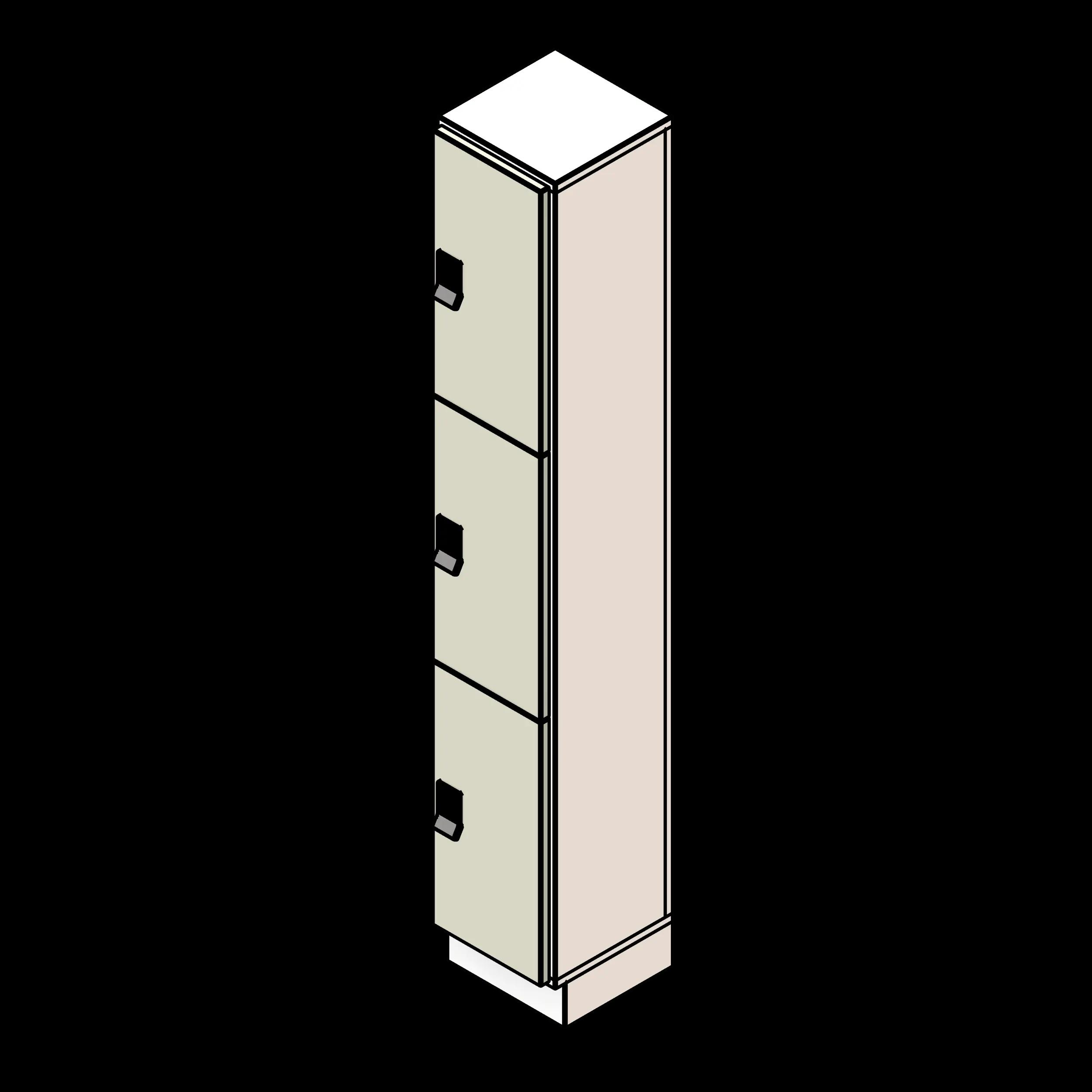

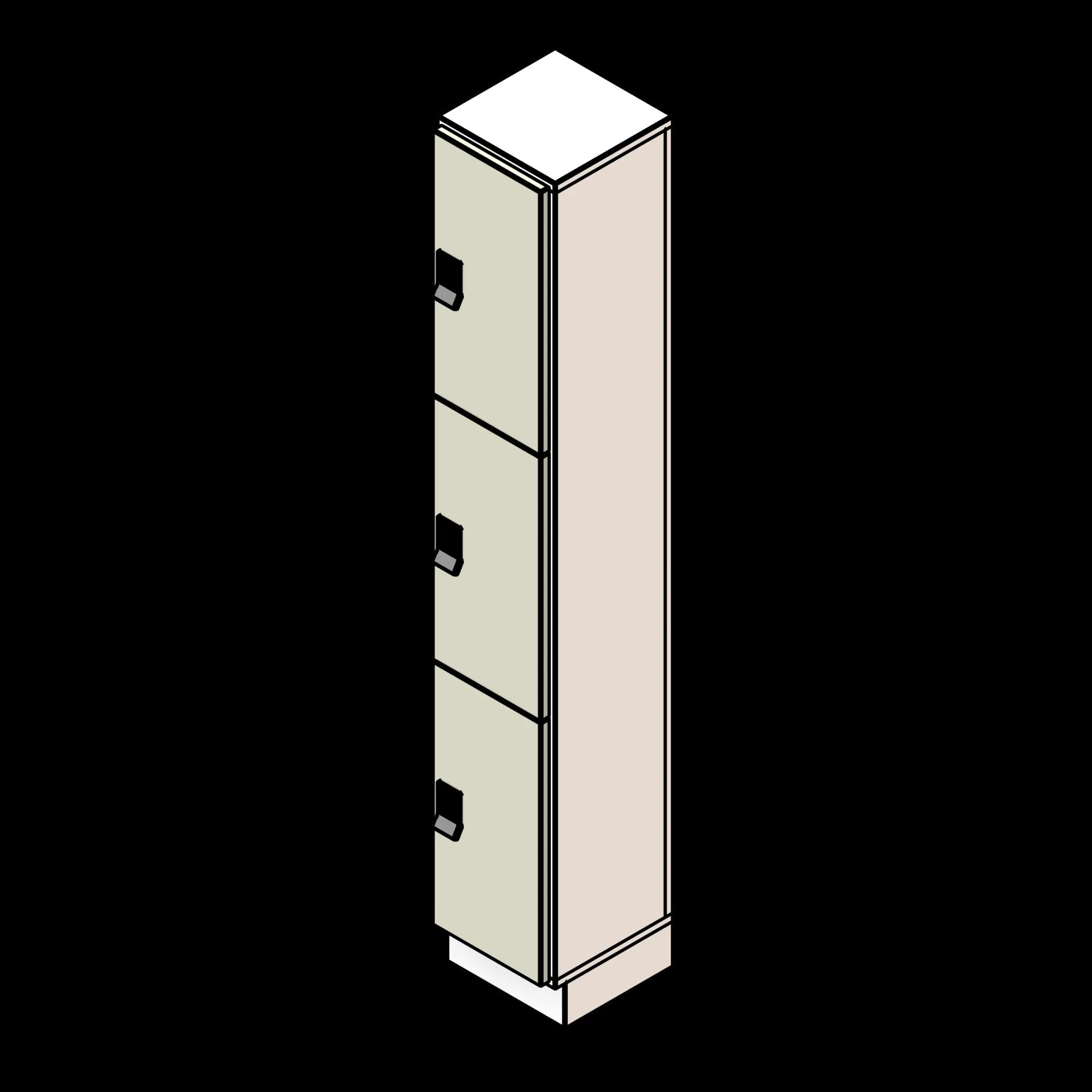

DUL3T1C361212	1	3	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL3T1C541212	1	3	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL3T1C601212	1	3	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL3T1C721212	1	3	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL3T1C361512	1	3	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL3T1C541512	1	3	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL3T1C601512	1	3	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL3T1C721512	1	3	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL3T1C361812	1	3	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL3T1C541812	1	3	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL3T1C601812	1	3	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL3T1C721812	1	3	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL3T1C362412	1	3	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL3T1C542412	1	3	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL3T1C602412	1	3	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL3T1C722412	1	3	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL3T1C541215	1	3	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL3T1C601215	1	3	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL3T1C721215	1	3	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL3T1C541515	1	3	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL3T1C601515	1	3	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL3T1C721515	1	3	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL3T1C541815	1	3	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL3T1C601815	1	3	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL3T1C721815	1	3	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL3T1C542415	1	3	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL3T1C602415	1	3	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL3T1C722415	1	3	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL3T1C541218	1	3	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL3T1C601218	1	3	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL3T1C721218	1	3	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL3T1C541518	1	3	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL3T1C601518	1	3	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL3T1C721518	1	3	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL3T1C541818	1	3	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL3T1C601818	1	3	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL3T1C721818	1	3	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL3T1C542418	1	3	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL3T1C602418	1	3	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL3T1C722418	1	3	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL4T1C541212	1	4	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL4T1C601212	1	4	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL4T1C721212	1	4	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL4T1C541512	1	4	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL4T1C601512	1	4	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL4T1C721512	1	4	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL4T1C541812	1	4	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL4T1C601812	1	4	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL4T1C721812	1	4	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL4T1C542412	1	4	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL4T1C602412	1	4	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL4T1C722412	1	4	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL4T1C601215	1	4	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL4T1C721215	1	4	1' 3" (15")	1' 3" (15")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL4T1C601515	1	4	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL4T1C721515	1	4	1' 3" (15")	1' 3" (15")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL4T1C601815	1	4	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL4T1C721815	1	4	1' 3" (15")	1' 3" (15")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL4T1C602415	1	4	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL4T1C722415	1	4	1' 3" (15")	1' 3" (15")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL4T1C721218	1	4	1' 6" (18")	1' 6" (18")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL4T1C721518	1	4	1' 6" (18")	1' 6" (18")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL4T1C721818	1	4	1' 6" (18")	1' 6" (18")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL4T1C722418	1	4	1' 6" (18")	1' 6" (18")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL5T1C601212	1	5	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL5T1C721212	1	5	1' 0" (12")	1' 0" (12")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL5T1C601512	1	5	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL5T1C721512	1	5	1' 0" (12")	1' 0" (12")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL5T1C601812	1	5	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL5T1C721812	1	5	1' 0" (12")	1' 0" (12")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL5T1C602412	1	5	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL5T1C722412	1	5	1' 0" (12")	1' 0" (12")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL1T2C241224	2	1	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL1T2C361224	2	1	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL1T2C541224	2	1	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL1T2C721224	2	1	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL1T2C241524	2	1	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL1T2C361524	2	1	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL1T2C541524	2	1	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL1T2C721524	2	1	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL1T2C241824	2	1	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL1T2C361824	2	1	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL1T2C541824	2	1	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL1T2C721824	2	1	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL1T2C242424	2	1	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL1T2C362424	2	1	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL1T2C542424	2	1	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL1T2C722424	2	1	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL1T2C241230	2	1	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL1T2C361230	2	1	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL1T2C541230	2	1	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL1T2C721230	2	1	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL1T2C241530	2	1	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL1T2C361530	2	1	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL1T2C541530	2	1	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL1T2C721530	2	1	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL1T2C241830	2	1	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL1T2C361830	2	1	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL1T2C541830	2	1	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL1T2C721830	2	1	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL1T2C242430	2	1	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL1T2C362430	2	1	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL1T2C542430	2	1	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL1T2C722430	2	1	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL1T2C241236	2	1	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL1T2C361236	2	1	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL1T2C541236	2	1	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL1T2C721236	2	1	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL1T2C241536	2	1	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL1T2C361536	2	1	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL1T2C541536	2	1	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL1T2C721536	2	1	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL1T2C241836	2	1	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL1T2C361836	2	1	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL1T2C541836	2	1	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL1T2C721836	2	1	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL1T2C242436	2	1	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL1T2C362436	2	1	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL1T2C542436	2	1	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL1T2C722436	2	1	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL2T2C241224	2	2	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL2T2C361224	2	2	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL2T2C541224	2	2	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL2T2C601224	2	2	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL2T2C721224	2	2	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL2T2C241524	2	2	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL2T2C361524	2	2	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL2T2C541524	2	2	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL2T2C601524	2	2	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL2T2C721524	2	2	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL2T2C241824	2	2	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL2T2C361824	2	2	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL2T2C541824	2	2	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL2T2C601824	2	2	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL2T2C721824	2	2	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL2T2C242424	2	2	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL2T2C362424	2	2	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL2T2C542424	2	2	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL2T2C602424	2	2	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL2T2C722424	2	2	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL2T2C361230	2	2	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL2T2C541230	2	2	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL2T2C601230	2	2	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL2T2C721230	2	2	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL2T2C361530	2	2	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL2T2C541530	2	2	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL2T2C601530	2	2	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL2T2C721530	2	2	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL2T2C361830	2	2	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL2T2C541830	2	2	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL2T2C601830	2	2	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL2T2C721830	2	2	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL2T2C362430	2	2	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL2T2C542430	2	2	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL2T2C602430	2	2	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL2T2C722430	2	2	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL2T2C361236	2	2	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL2T2C541236	2	2	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL2T2C601236	2	2	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL2T2C721236	2	2	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL2T2C361536	2	2	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL2T2C541536	2	2	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL2T2C601536	2	2	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL2T2C721536	2	2	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL2T2C361836	2	2	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL2T2C541836	2	2	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL2T2C601836	2	2	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL2T2C721836	2	2	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL2T2C362436	2	2	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL2T2C542436	2	2	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL2T2C602436	2	2	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL2T2C722436	2	2	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL3T2C361224	2	3	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL3T2C541224	2	3	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL3T2C601224	2	3	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL3T2C721224	2	3	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL3T2C361524	2	3	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL3T2C541524	2	3	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL3T2C601524	2	3	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL3T2C721524	2	3	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL3T2C361824	2	3	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL3T2C541824	2	3	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL3T2C601824	2	3	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL3T2C721824	2	3	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL3T2C362424	2	3	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL3T2C542424	2	3	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL3T2C602424	2	3	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL3T2C722424	2	3	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL3T2C541230	2	3	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL3T2C601230	2	3	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL3T2C721230	2	3	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL3T2C541530	2	3	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL3T2C601530	2	3	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL3T2C721530	2	3	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL3T2C541830	2	3	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL3T2C601830	2	3	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL3T2C721830	2	3	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL3T2C542430	2	3	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL3T2C602430	2	3	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL3T2C722430	2	3	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL3T2C541236	2	3	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL3T2C601236	2	3	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL3T2C721236	2	3	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL3T2C541536	2	3	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL3T2C601536	2	3	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL3T2C721536	2	3	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL3T2C541836	2	3	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL3T2C601836	2	3	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL3T2C721836	2	3	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL3T2C542436	2	3	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL3T2C602436	2	3	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL3T2C722436	2	3	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL4T2C541224	2	4	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL4T2C601224	2	4	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL4T2C721224	2	4	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL4T2C541524	2	4	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL4T2C601524	2	4	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL4T2C721524	2	4	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL4T2C541824	2	4	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL4T2C601824	2	4	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL4T2C721824	2	4	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL4T2C542424	2	4	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL4T2C602424	2	4	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL4T2C722424	2	4	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL4T2C601230	2	4	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL4T2C721230	2	4	2' 6" (30")	5' 0" (60")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL4T2C601530	2	4	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL4T2C721530	2	4	2' 6" (30")	5' 0" (60")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL4T2C601830	2	4	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL4T2C721830	2	4	2' 6" (30")	5' 0" (60")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL4T2C602430	2	4	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL4T2C722430	2	4	2' 6" (30")	5' 0" (60")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL4T2C721236	2	4	3' 0" (36")	6' 0" (72")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL4T2C721536	2	4	3' 0" (36")	6' 0" (72")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL4T2C721836	2	4	3' 0" (36")	6' 0" (72")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL4T2C722436	2	4	3' 0" (36")	6' 0" (72")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL5T2C601224	2	5	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL5T2C721224	2	5	2' 0" (24")	4' 0" (48")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL5T2C601524	2	5	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL5T2C721524	2	5	2' 0" (24")	4' 0" (48")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL5T2C601824	2	5	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL5T2C721824	2	5	2' 0" (24")	4' 0" (48")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL5T2C602424	2	5	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL5T2C722424	2	5	2' 0" (24")	4' 0" (48")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL1T3C241236	3	1	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL1T3C361236	3	1	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL1T3C541236	3	1	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL1T3C721236	3	1	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL1T3C241536	3	1	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL1T3C361536	3	1	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL1T3C541536	3	1	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL1T3C721536	3	1	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL1T3C241836	3	1	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL1T3C361836	3	1	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL1T3C541836	3	1	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL1T3C721836	3	1	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL1T3C242436	3	1	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL1T3C362436	3	1	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL1T3C542436	3	1	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL1T3C722436	3	1	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL1T3C241245	3	1	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL1T3C361245	3	1	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL1T3C541245	3	1	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL1T3C721245	3	1	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL1T3C241545	3	1	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL1T3C361545	3	1	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL1T3C541545	3	1	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL1T3C721545	3	1	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL1T3C241845	3	1	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL1T3C361845	3	1	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL1T3C541845	3	1	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL1T3C721845	3	1	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL1T3C242445	3	1	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL1T3C362445	3	1	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL1T3C542445	3	1	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL1T3C722445	3	1	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL2T3C241236	3	2	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	2' 0" (24")
DUL2T3C361236	3	2	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL2T3C541236	3	2	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL2T3C601236	3	2	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL2T3C721236	3	2	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL2T3C241536	3	2	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	2' 0" (24")
DUL2T3C361536	3	2	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL2T3C541536	3	2	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL2T3C601536	3	2	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL2T3C721536	3	2	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL2T3C241836	3	2	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	2' 0" (24")
DUL2T3C361836	3	2	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL2T3C541836	3	2	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL2T3C601836	3	2	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL2T3C721836	3	2	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL2T3C242436	3	2	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	2' 0" (24")
DUL2T3C362436	3	2	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL2T3C542436	3	2	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL2T3C602436	3	2	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL2T3C722436	3	2	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL2T3C361245	3	2	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL2T3C541245	3	2	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL2T3C601245	3	2	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL2T3C721245	3	2	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL2T3C361545	3	2	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL2T3C541545	3	2	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL2T3C601545	3	2	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL2T3C721545	3	2	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL2T3C361845	3	2	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL2T3C541845	3	2	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL2T3C601845	3	2	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL2T3C721845	3	2	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL2T3C362445	3	2	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL2T3C542445	3	2	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL2T3C602445	3	2	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL2T3C722445	3	2	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL3T3C361236	3	3	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	3' 0" (36")
DUL3T3C541236	3	3	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL3T3C601236	3	3	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL3T3C721236	3	3	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL3T3C361536	3	3	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	3' 0" (36")
DUL3T3C541536	3	3	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL3T3C601536	3	3	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL3T3C721536	3	3	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL3T3C361836	3	3	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	3' 0" (36")
DUL3T3C541836	3	3	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL3T3C601836	3	3	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL3T3C721836	3	3	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL3T3C362436	3	3	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	3' 0" (36")
DUL3T3C542436	3	3	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL3T3C602436	3	3	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL3T3C722436	3	3	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL3T3C541245	3	3	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL3T3C601245	3	3	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL3T3C721245	3	3	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL3T3C541545	3	3	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL3T3C601545	3	3	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL3T3C721545	3	3	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL3T3C541845	3	3	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL3T3C601845	3	3	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL3T3C721845	3	3	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL3T3C542445	3	3	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL3T3C602445	3	3	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL3T3C722445	3	3	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL4T3C541236	3	4	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	4' 6" (54")
DUL4T3C601236	3	4	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL4T3C721236	3	4	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL4T3C541536	3	4	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	4' 6" (54")
DUL4T3C601536	3	4	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL4T3C721536	3	4	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL4T3C541836	3	4	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	4' 6" (54")
DUL4T3C601836	3	4	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL4T3C721836	3	4	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL4T3C542436	3	4	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	4' 6" (54")
DUL4T3C602436	3	4	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL4T3C722436	3	4	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL4T3C601245	3	4	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL4T3C721245	3	4	3' 9" (45")	11' 3" (135")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL4T3C601545	3	4	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL4T3C721545	3	4	3' 9" (45")	11' 3" (135")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL4T3C601845	3	4	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL4T3C721845	3	4	3' 9" (45")	11' 3" (135")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL4T3C602445	3	4	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL4T3C722445	3	4	3' 9" (45")	11' 3" (135")	2' 0" (24")	2' 1" (25")	6' 0" (72")
DUL5T3C601236	3	5	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	5' 0" (60")
DUL5T3C721236	3	5	3' 0" (36")	9' 0" (108")	1' 0" (12")	1' 1" (13")	6' 0" (72")
DUL5T3C601536	3	5	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	5' 0" (60")
DUL5T3C721536	3	5	3' 0" (36")	9' 0" (108")	1' 3" (15")	1' 4" (16")	6' 0" (72")
DUL5T3C601836	3	5	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	5' 0" (60")
DUL5T3C721836	3	5	3' 0" (36")	9' 0" (108")	1' 6" (18")	1' 7" (19")	6' 0" (72")
DUL5T3C602436	3	5	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	5' 0" (60")
DUL5T3C722436	3	5	3' 0" (36")	9' 0" (108")	2' 0" (24")	2' 1" (25")	6' 0" (72")

DUL1T1C241212
12" W × 13" D × 24" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 0" (12") · Weight 0
DUL1T1C361212
12" W × 13" D × 36" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 0" (12") · Weight 0
DUL1T1C541212
12" W × 13" D × 54" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 0" (12") · Weight 0
DUL1T1C721212
12" W × 13" D × 72" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 0" (12") · Weight 0
DUL1T1C241512
12" W × 16" D × 24" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 3" (15") · Weight 0
DUL1T1C361512
12" W × 16" D × 36" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 3" (15") · Weight 0
DUL1T1C541512
12" W × 16" D × 54" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 3" (15") · Weight 0
DUL1T1C721512
12" W × 16" D × 72" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 3" (15") · Weight 0
DUL1T1C241812
12" W × 19" D × 24" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 6" (18") · Weight 0
DUL1T1C361812
12" W × 19" D × 36" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 6" (18") · Weight 0
DUL1T1C541812
12" W × 19" D × 54" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 6" (18") · Weight 0
DUL1T1C721812
12" W × 19" D × 72" H · # Columns 1 · # Tiers 1 · Opening Width 1' 0" (12") · Opening Depth 1' 6" (18") · Weight 0

View all

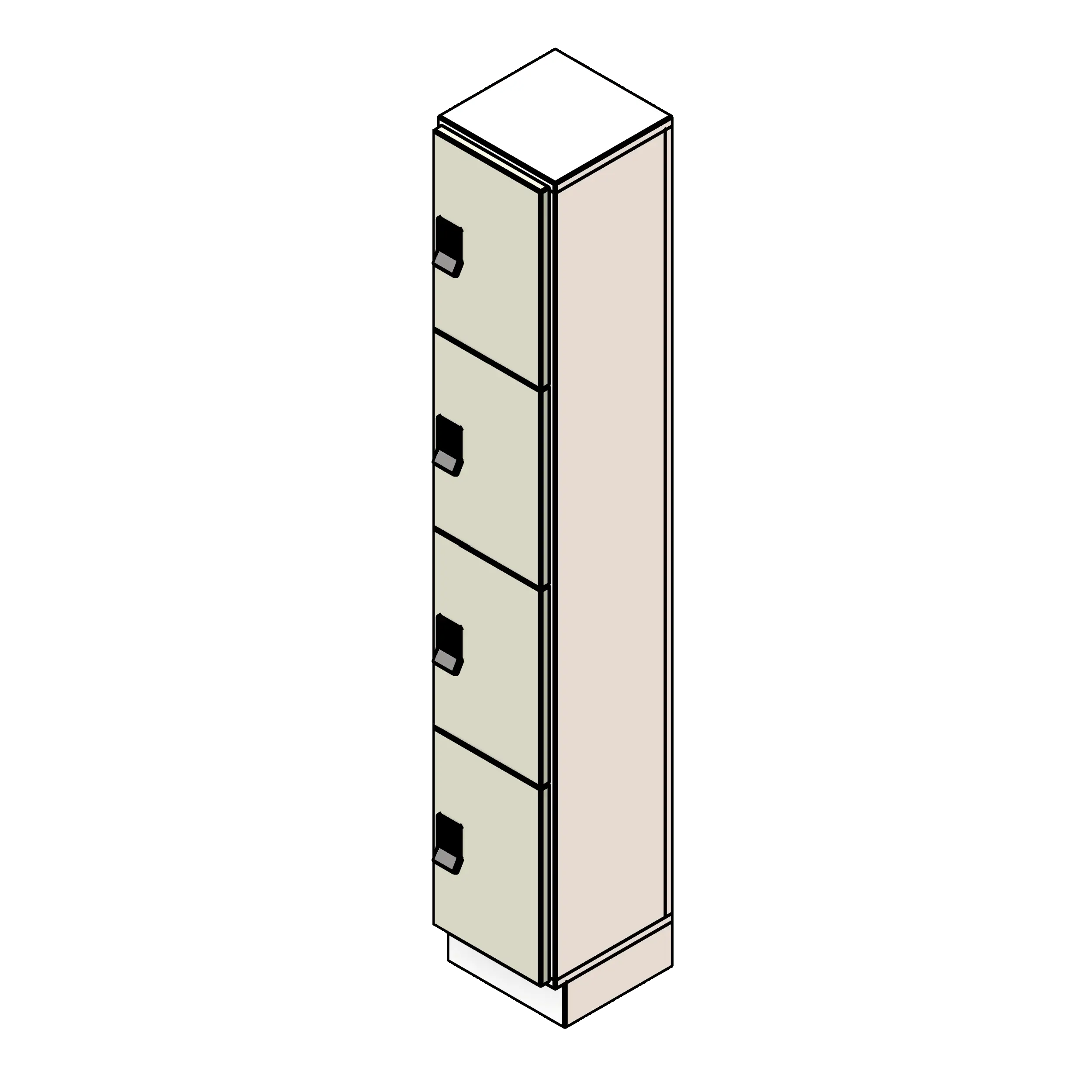

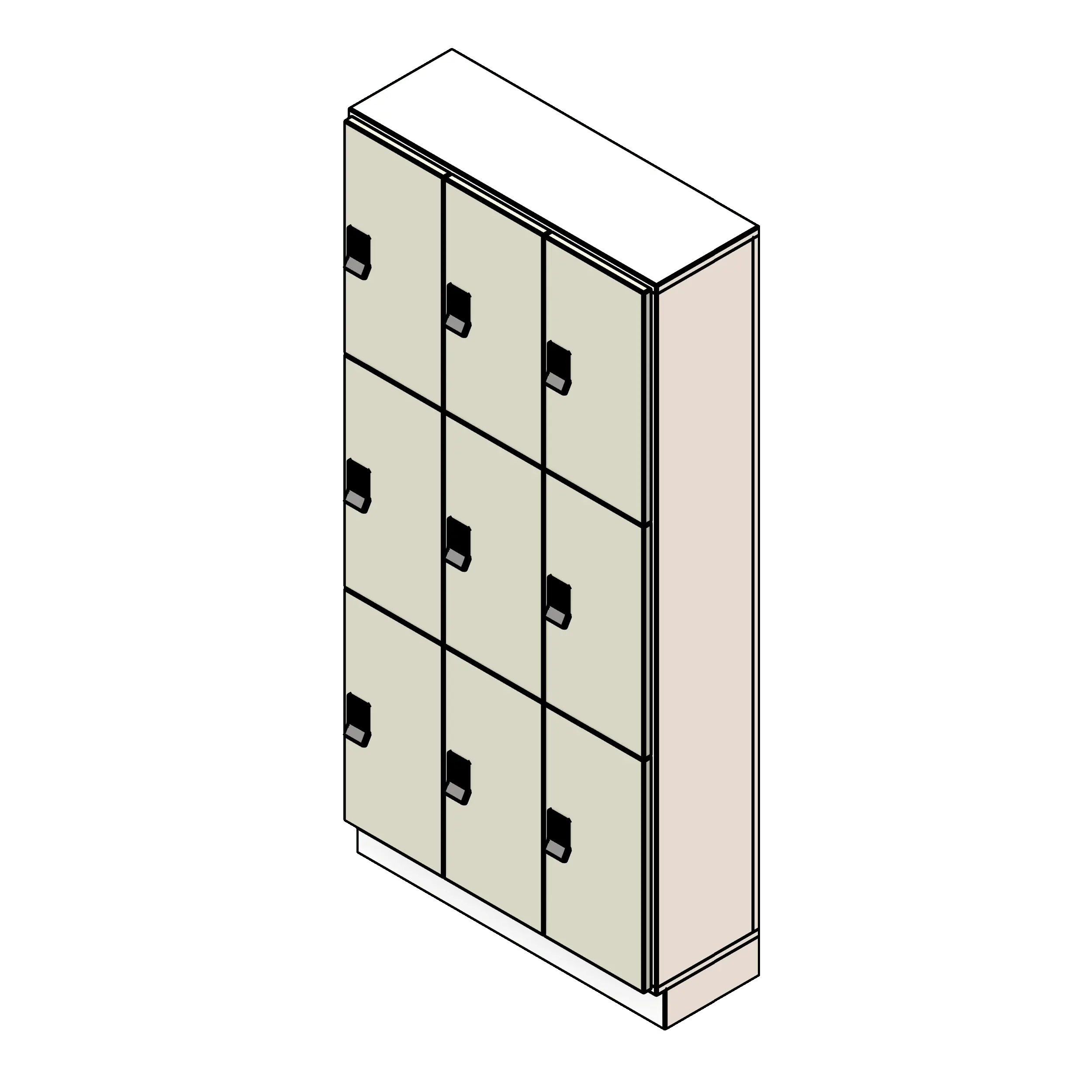

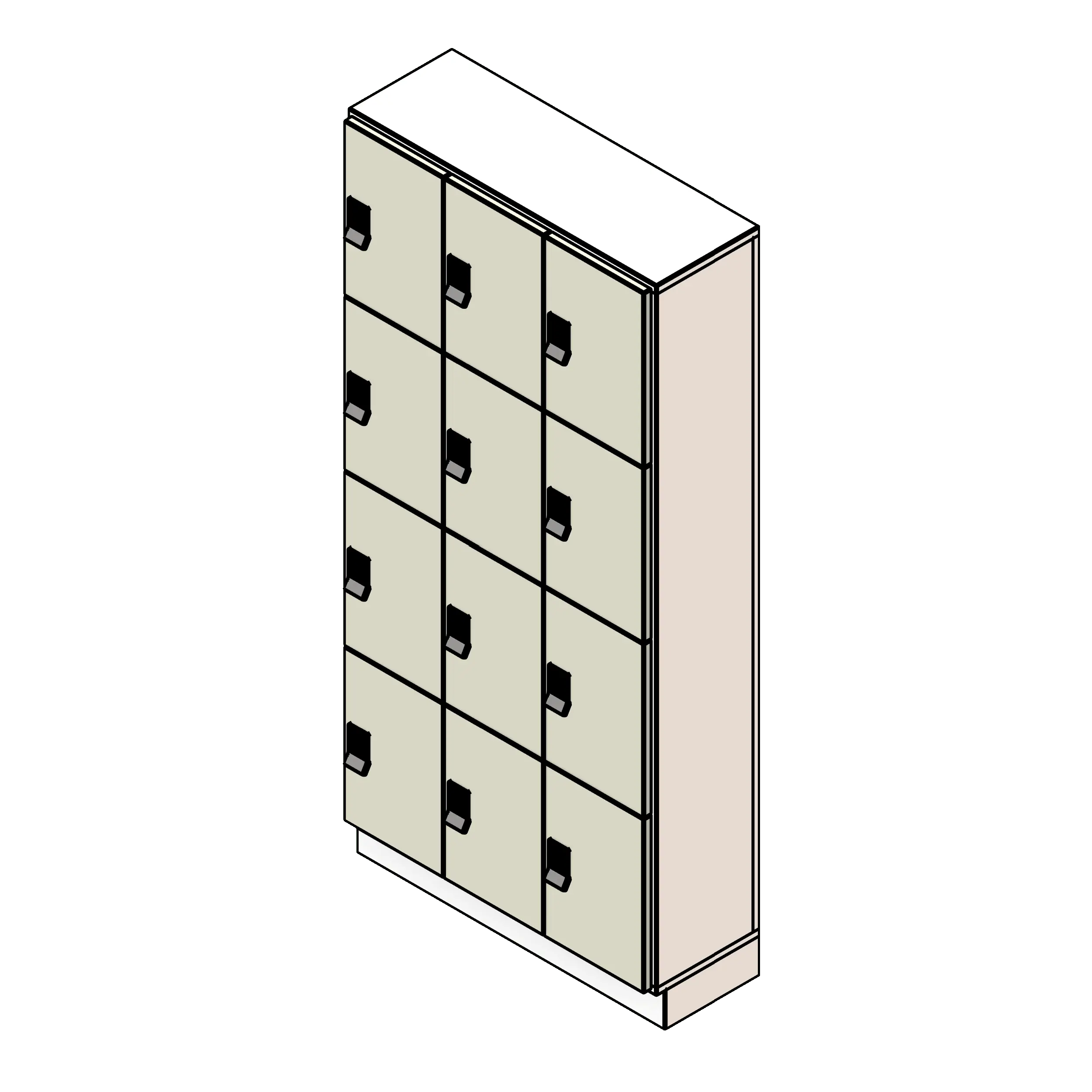

Day Use Metal Locker

Product SKU

Downloads

Description

Day Use Metal Locker

More in Metal Lockers

More in Metal Lockers
