Large Storage Vertical Carousel
Product SKU
Description
- Used extensively in manufacturing and material handeling environments
- Quickly access large parts with auto-picking system
- Reclaim floorspace by storing objects vertically
- 650 kg max load per carrier

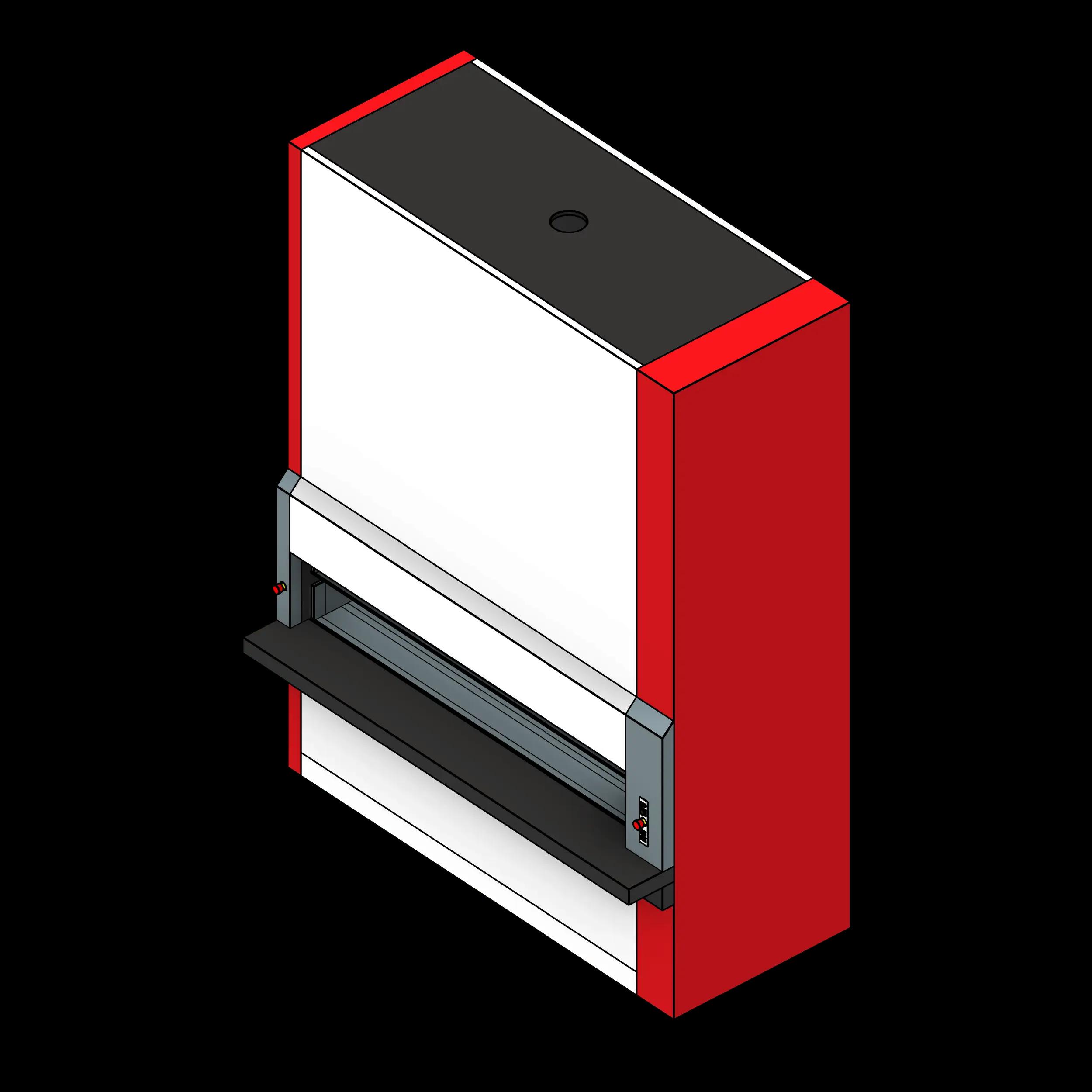

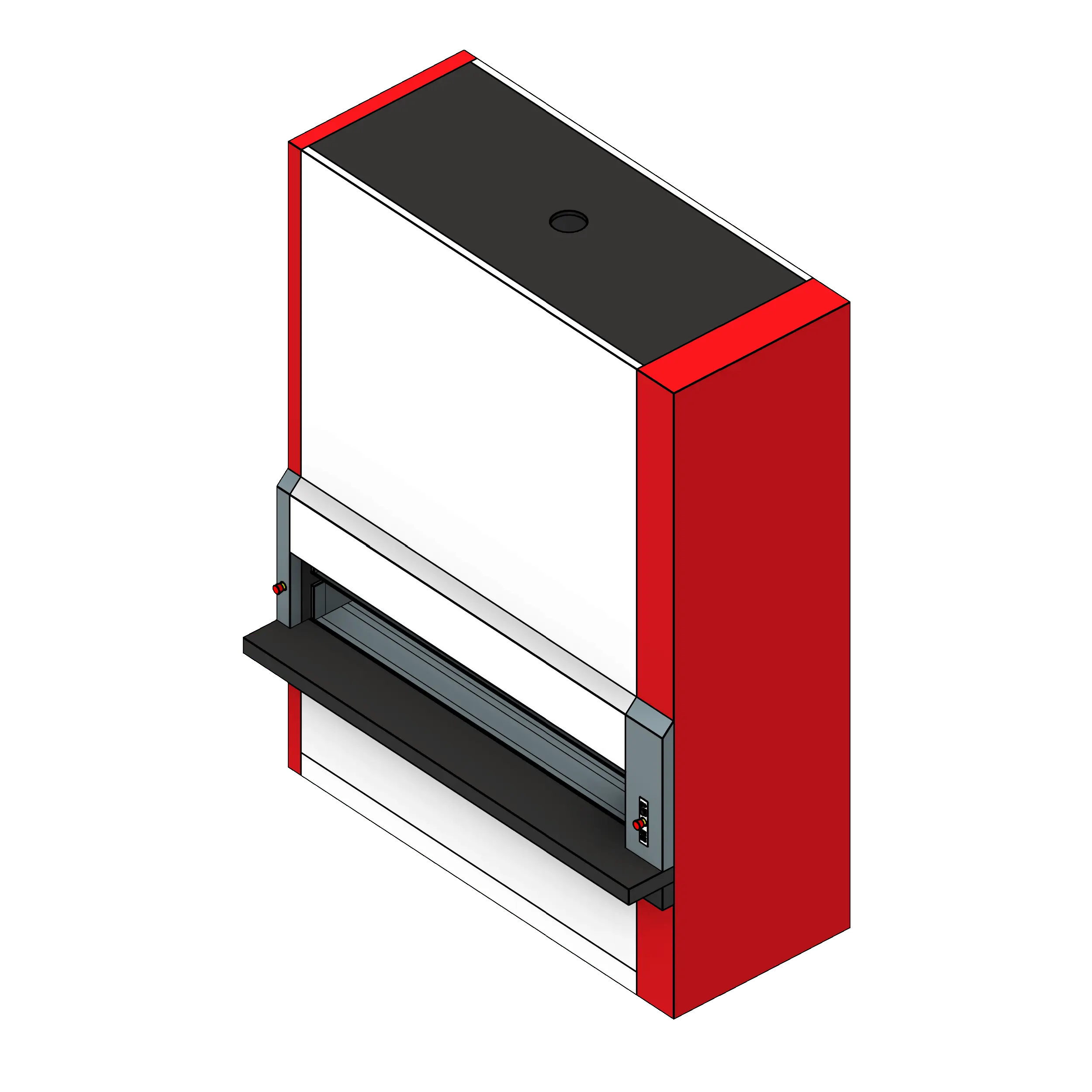

Vertical Carousel - Large Object Storage
This large vertical carousel is designed to efficiently store and quickly access a range of bulk items. Ideal for use in material handling and warehouse environments.
To use this family, simply input the desired tray width (eleven options between 1250 mm and 4050 mm), and the desired tray depth (609.6 mm, 812.8 mm, and 863.6 mm). The Vertical Lift Module is an extremely adaptable unit and is capable of hundreds of heights between 2550 mm and 30050 mm (< 100').
| Parameter | Value |
|---|---|
| Standard Widths | 2450, 2650, 2850, 3050, 3250 |
| Minimum Width | 8.038058 |
| Maximum Width | 10.66273 |
| Standard Depths | 428, 528, 628 |
| Minimum Depth | 1.404199 |
| Maximum Depth | 2.060367 |
| Standard Heights | 2285 mm - 9910 mm |
| Minimum Height | 7.496719 |
| Maximum Height | 32.51312 |
| Manufacturer | Southwest Solutions Group_KAR |
| Lead Time | Contact SSG for info |
| Model | MEG RS 650 |
| Keynote | 41 51 13 |
| Assembly Code | E10 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Equalis | No |
| Omnia | No |
| Sourcewell | Yes |
| Systec | No |
| Vizient | Yes |
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-23 17 00 |
