BIM Library> All families>Key Box Frame Security Lock

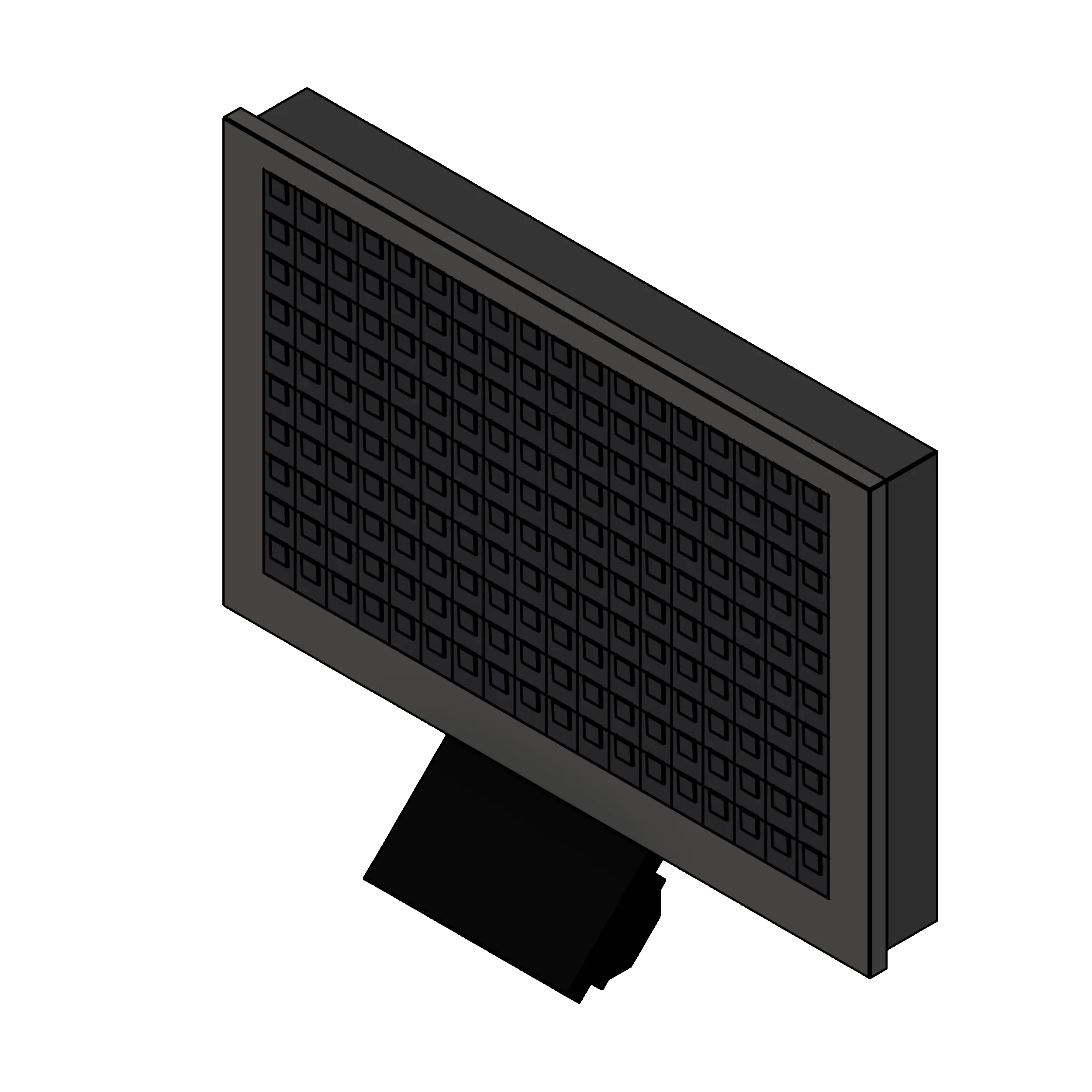

SSG Locker Box Key PCS Full Size

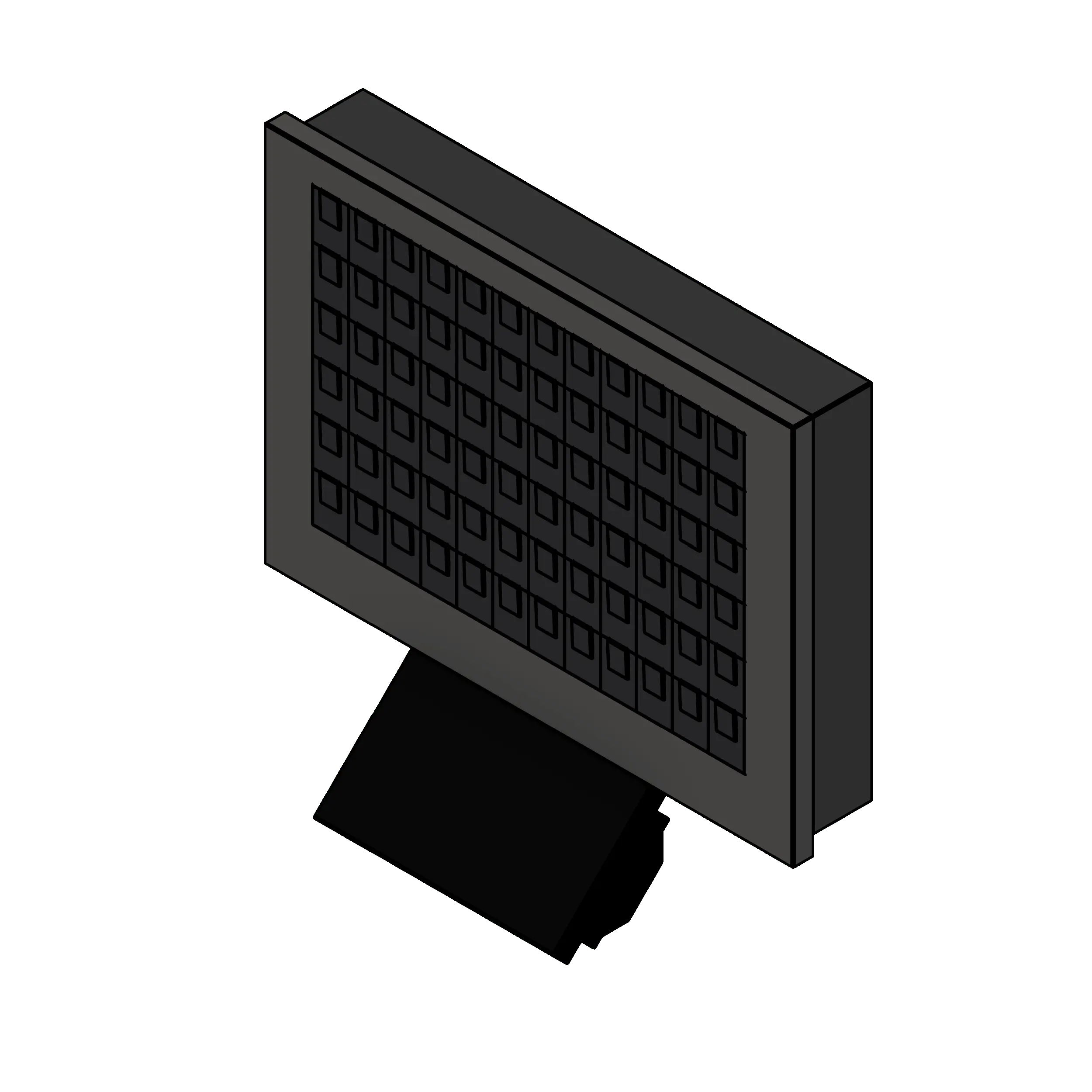

SSG Locker Box Key PCS Mini Size
SSG Locker Box Key PCS Full Size
SSG Locker Box Key PCS Mini Size
2024.10.1.0

Product SKU

Description

  • Key box frame security lock.
  • Available in two standard dimensions with a 10" panel P.C.
  • Configurable bin sizes and arrangements available.
a square with short lines outside the corner
Family
Revit file icon
Revit 2020 (0.64 MB)
Revit file icon
Revit 2021 (0.64 MB)
Revit file icon
Revit 2022 (0.64 MB)
Revit file icon
Revit 2023 (0.64 MB)
Revit file icon
Revit 2024 (0.64 MB)
Revit file icon
Revit 2025 (0.64 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.

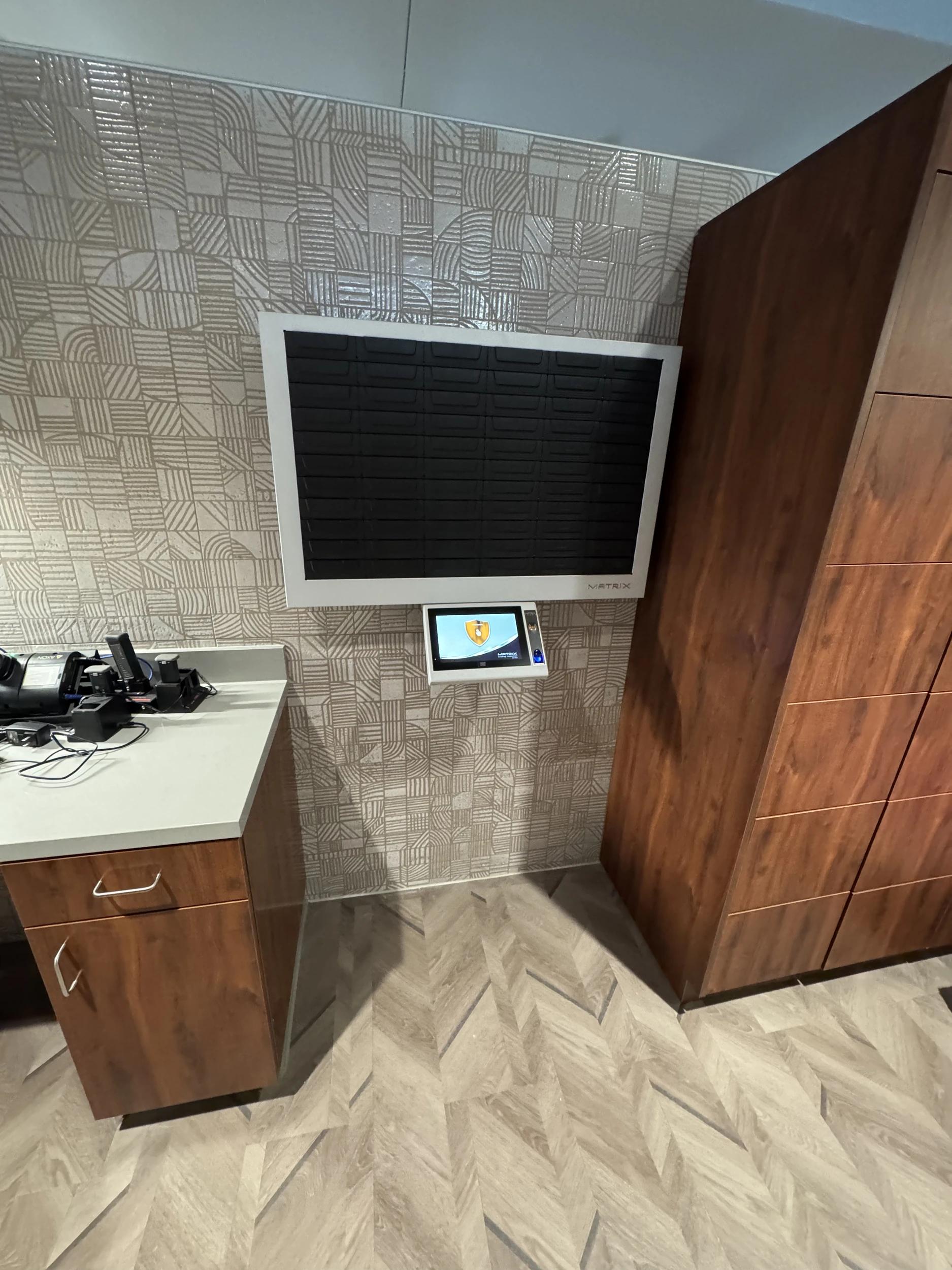

Secured key control system

  • Available in two sizes: standard frame 39.8"x26"x4.6" and mini frame 27.6"x19.9x4.6"
  • Weight: standard frame 79lbs and mini frame: 61.7lbs
  • Standard monitor: 10.1" panel P.C.
  • Recommended height: standard frame 72" and mini frame 68" from floor at the center of the unit.
ParameterValue
Standard Widths27.6", 39.8"
Minimum Width2' 3 5/8" (27 5/8")
Maximum Width3' 3 3/4" (39 3/4")
Standard Depths4.57", 4.61"
Minimum Depth0' 4 5/8" (4 5/8")
Maximum Depth0' 4 5/8" (4 5/8")
Standard Heights19.9", 26"
Minimum Height1' 7 7/8" (19 7/8")
Maximum Height2' 2" (26")
AuthorTBenavides
Toll Free Number1-800-803-1083
PropertyValue
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
