· Updated Aug 11, 2026Padlock Hasp Mechanical Lock
Product SKU
Description
- Simple nut-mounted right or left hinged hasp
- Included padlock sold seperately
- Accomodates up to 8mm padlocks
Revit 2023 (0.71 MB)
Revit 2024 (0.71 MB)
Revit 2025 (0.71 MB)
Revit 2026 (0.71 MB)
Revit 2027 (0.71 MB)
(0.20 MB)
(0.06 MB)
(0.12 MB)

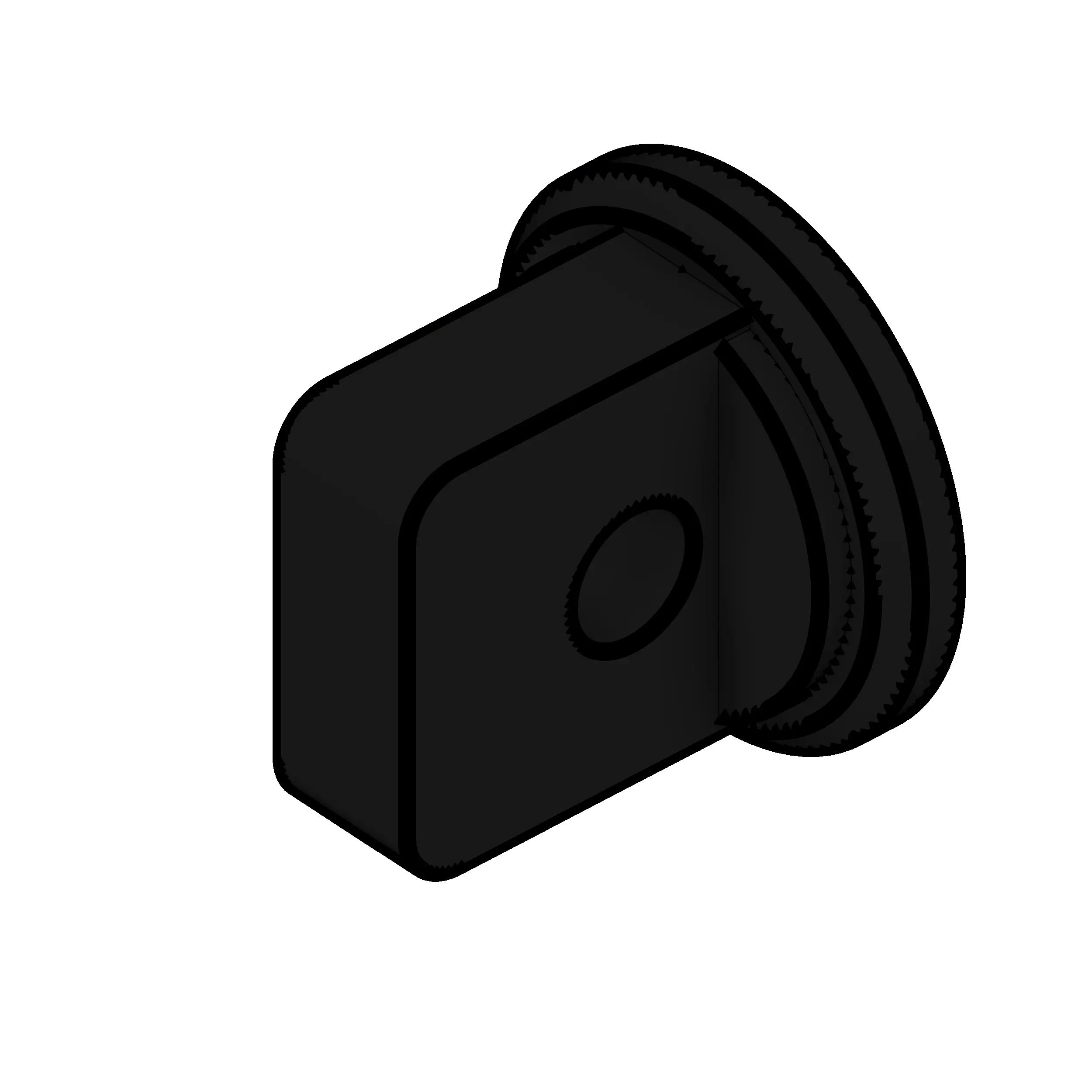

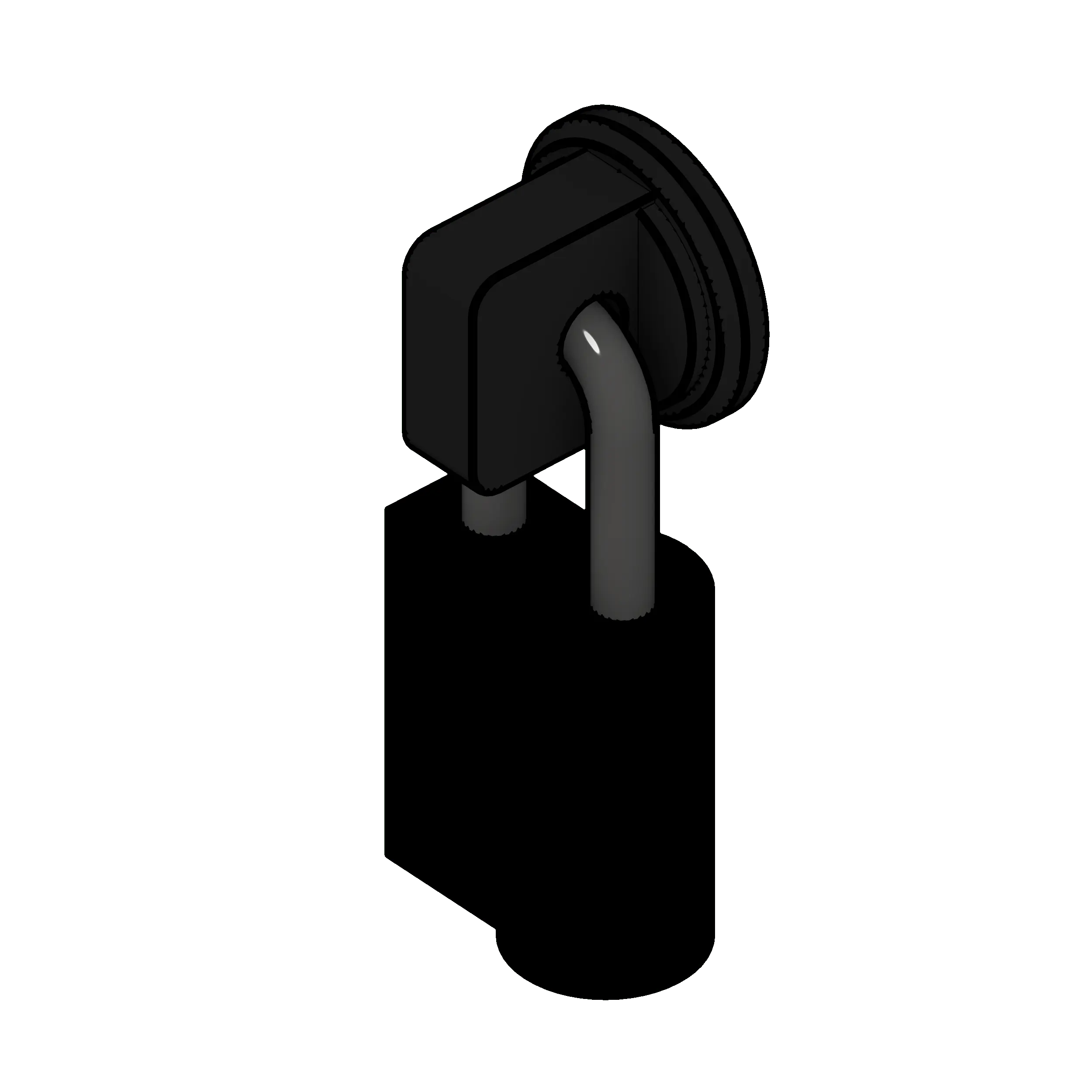

Locker Padlock Hasp
Simple Padlock Hasp Revit Family features a durable mechanical hasp designed for use with standard padlocks on lockers, cabinets, and storage systems. This face-based family supports both left- and right-hand installation, providing flexibility across a variety of applications. Ideal for architects and designers, it delivers an accurate representation of basic mechanical security hardware in Revit projects.
This face-based family can be applied to nearly any casework or furniture product by importing and placing it on any face. Adding the padlock will automatically adjust the price and product codes. This lock is now included as a locking option on the laminate locker series.
| Parameter | Value |
|---|---|
| Standard Widths | 1 23/128" |
| Minimum Width | 0' 1 1/8" (1 1/8") |
| Maximum Width | 0' 1 1/8" (1 1/8") |
| Standard Depths | 1 23/128" |
| Minimum Depth | 0' 1 1/8" (1 1/8") |
| Maximum Depth | 0' 1 1/8" (1 1/8") |
| Standard Heights | 13/128" |
| Minimum Height | 0' 1" (1") |
| Maximum Height | 0' 1" (1") |
| Manufacturer | Southwest Solutions Group_OJM |
| Lead Time | Contact SSG for info |
| Model | MM |
| MasterFormat | 08 74 00 – Access Control Hardware |
| UniFormat | E1040.60 – Security Equipment |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | No |
| Includes Sustainability | No |
| Primary Material | Brushed Nickel |
| IFC | Furniture |
| OmniClass | 23-17 11 11 25 |
