· Updated Aug 7, 201810' Wide - Option 02 Exam Room
Product SKU
SKU: SSG-EX10-2-L
Description
- Kit is designed to represent one common option used for Exam rooms at this Height and Width
- Kit includes three base cabinets, two upper wall cabinets, one roll up desk, two countertop with backsplash, and one sink with faucet.
- ADA accessible.
Revit 2016 (9.96 MB)
Revit 2017 (9.96 MB)
Revit 2018 (9.96 MB)
Revit 2019 (9.96 MB)
Revit 2020 (9.96 MB)
Revit 2021 (9.96 MB)
Revit 2022 (9.96 MB)
Revit 2023 (9.96 MB)
Revit 2024 (9.96 MB)
Revit 2025 (9.96 MB)
Revit 2026 (9.96 MB)
Revit 2027 (9.96 MB)
(0.10 MB)

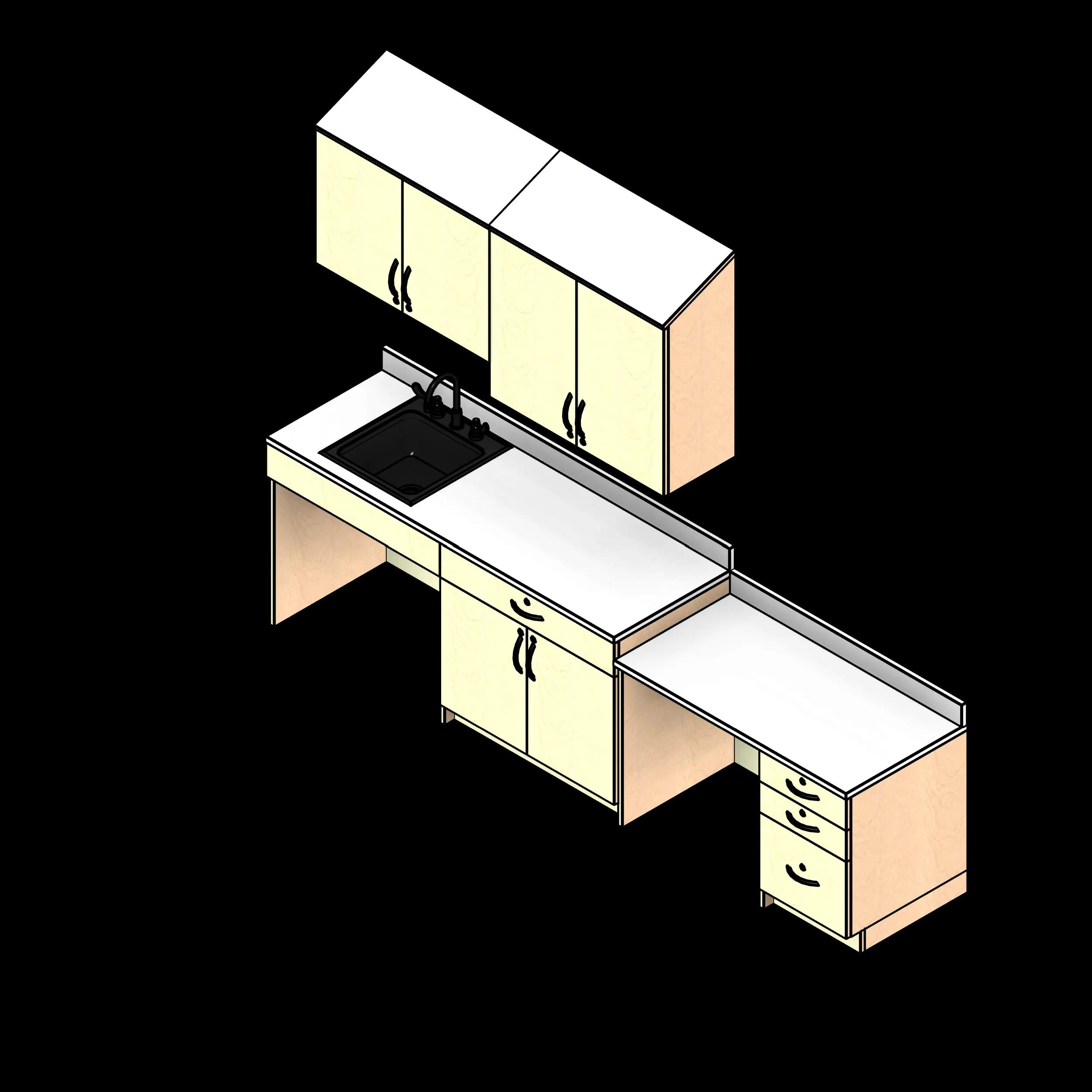

10' Wide - Option 02 Exam Room is an ADA-accessible laminate casework kit for outfitting a 120-inch-wide exam room with storage, a sink and a roll-up desk workspace. At 120 inches wide, 25 inches deep and 84 inches high, this layout combines two 36-inch two-door wall cabinets with a 36-inch two-door, one-drawer base cabinet, an 18-inch box-file drawer base cabinet and a 30-inch open knee-space base cabinet. The open knee space and ADA sink base cabinet support an accessible work area, while the file storage, drawer and enclosed cabinets keep exam-room supplies organized within the same run. Two laminate countertops—48 inches and 72 inches wide—with backsplash, a single-bowl stainless steel sink with faucet ledge, and a laboratory deck-mounted chrome-plated brass faucet complete the kit.
System Overview
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Parameter | Value |
|---|---|
| ENTER Door Number | 1 |
| ENTER Handle Number | 1 |
| ENTER Kick Plate Number | 1 |
| ADD Locks | 1 |
| OFFSET Top of Cabinet | 7' 0" (84") |
| ADD Angled Top | 1 |
| ADD Back Splash | 1 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | No |
| Width | 10' 0" (120") |
| Depth | 2' 1" (25") |
| Height | 7' 0" (84") |
| Primary Material | Laminate |
| IFC | Furniture |
| OmniClass | 23-21 19 11 |
| Room Type | Exam Room |
