Lektriever Vertical Carousel Filing solution ideal for business, office, and manufacturing.
Powder Coated Steel construction
Narrow, Standard, Wide, and Extra-Wide widths
11-28 carriers per unit

Questions about this product?

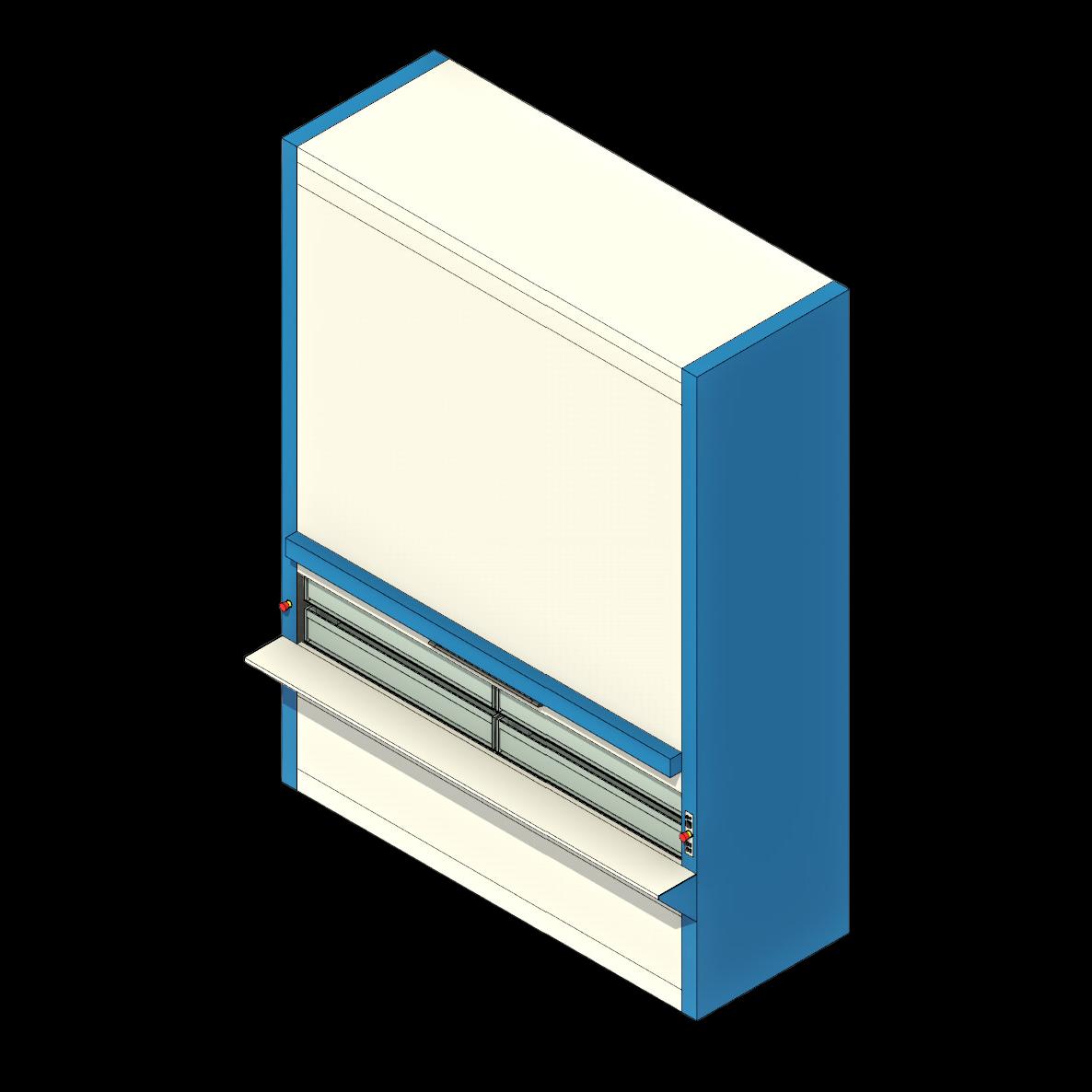

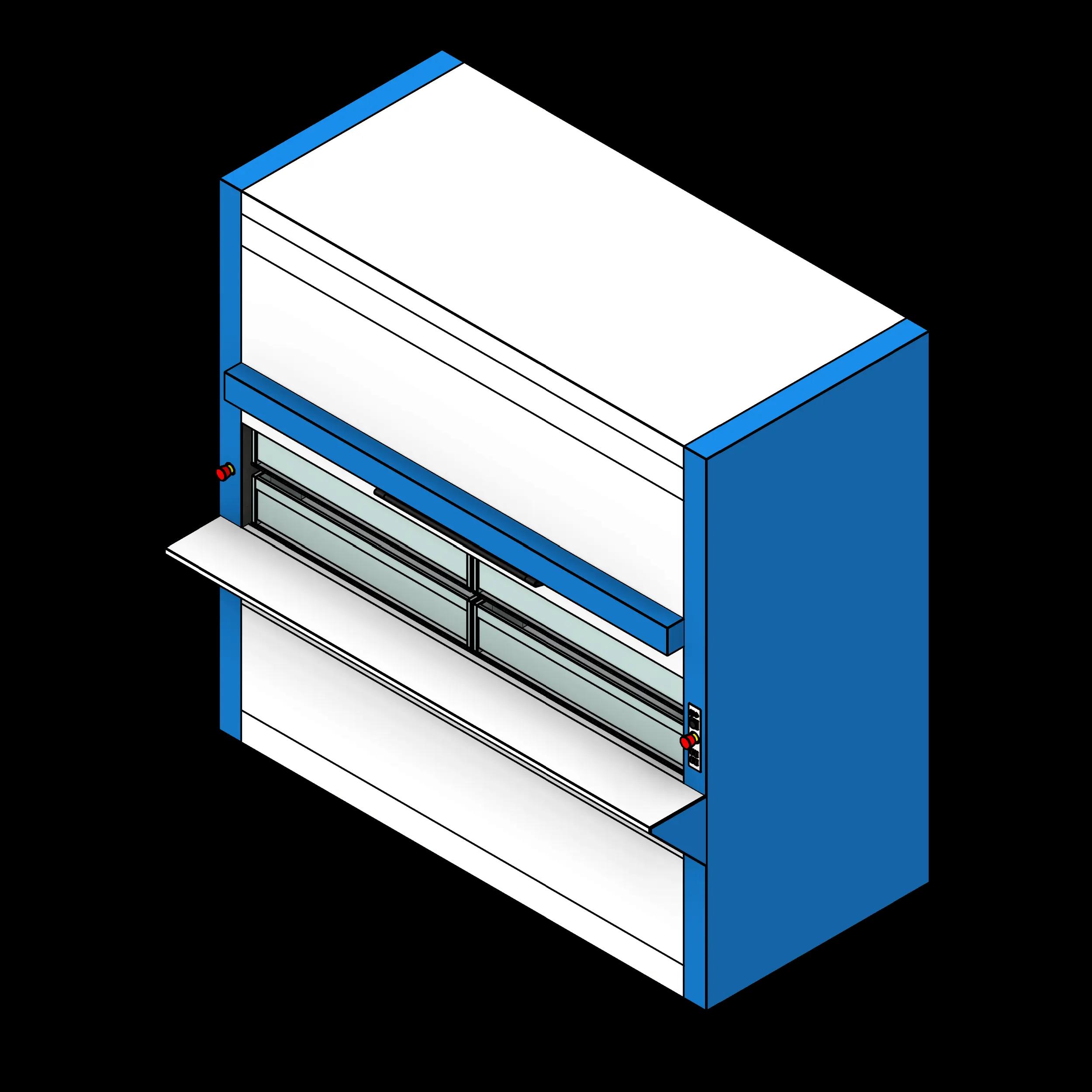

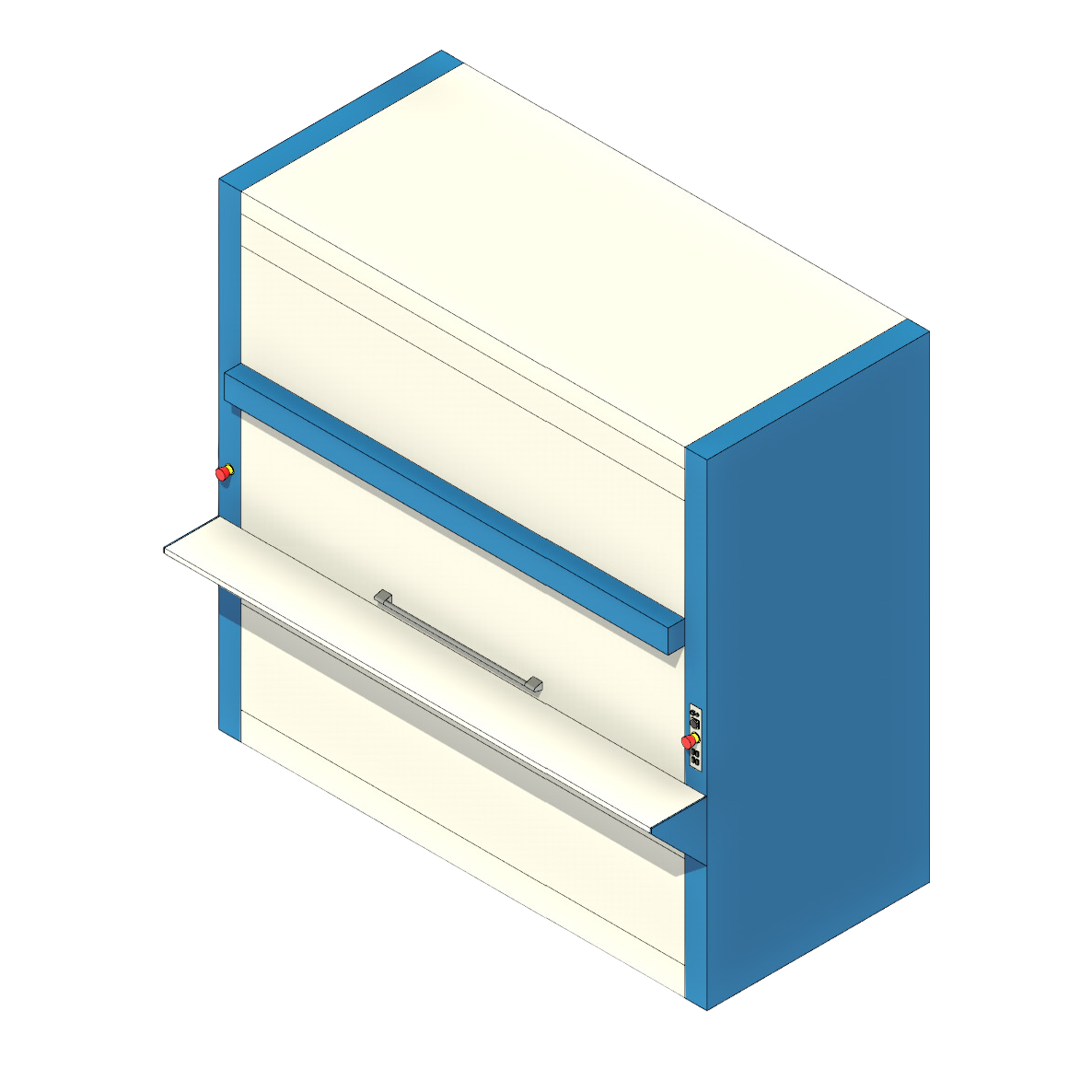

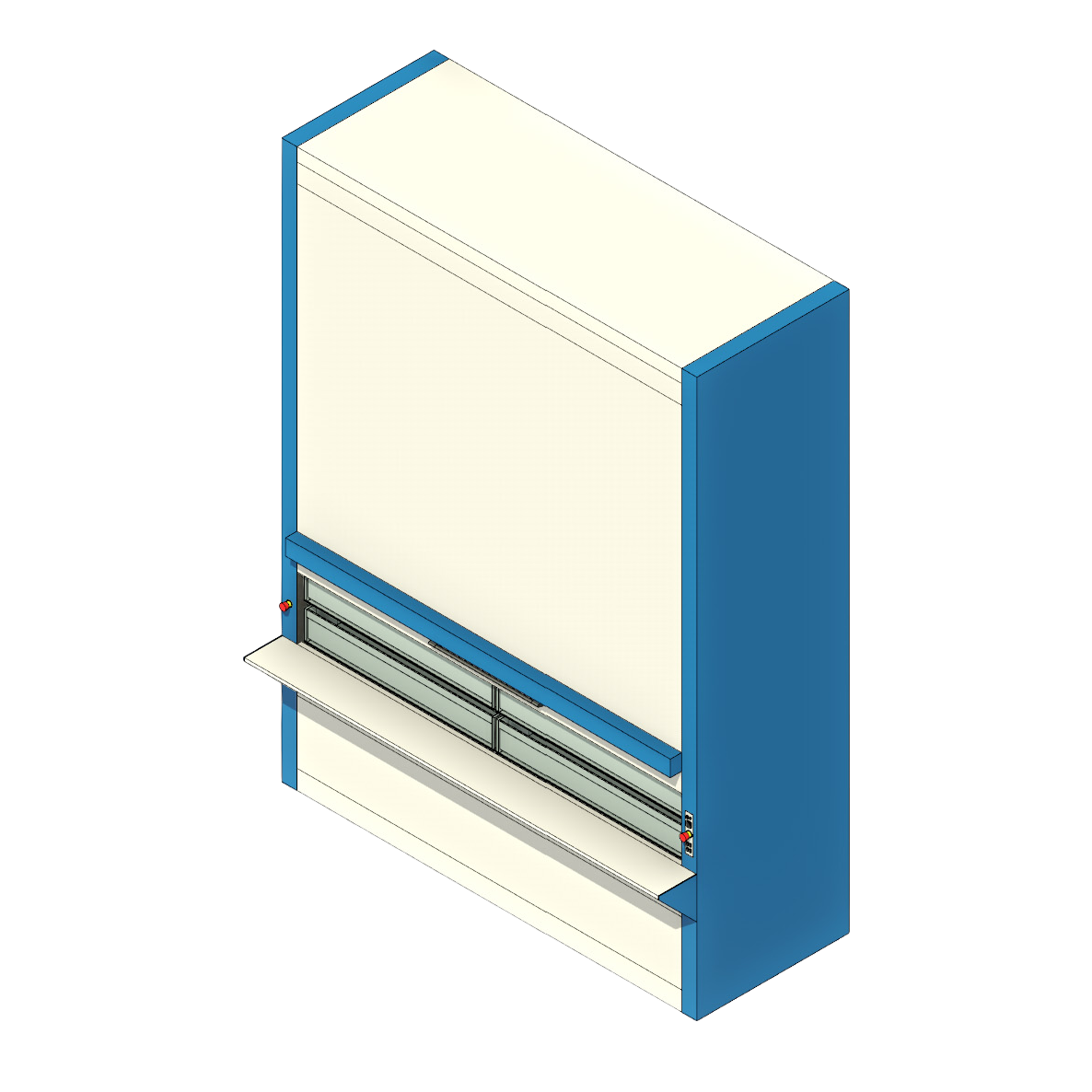

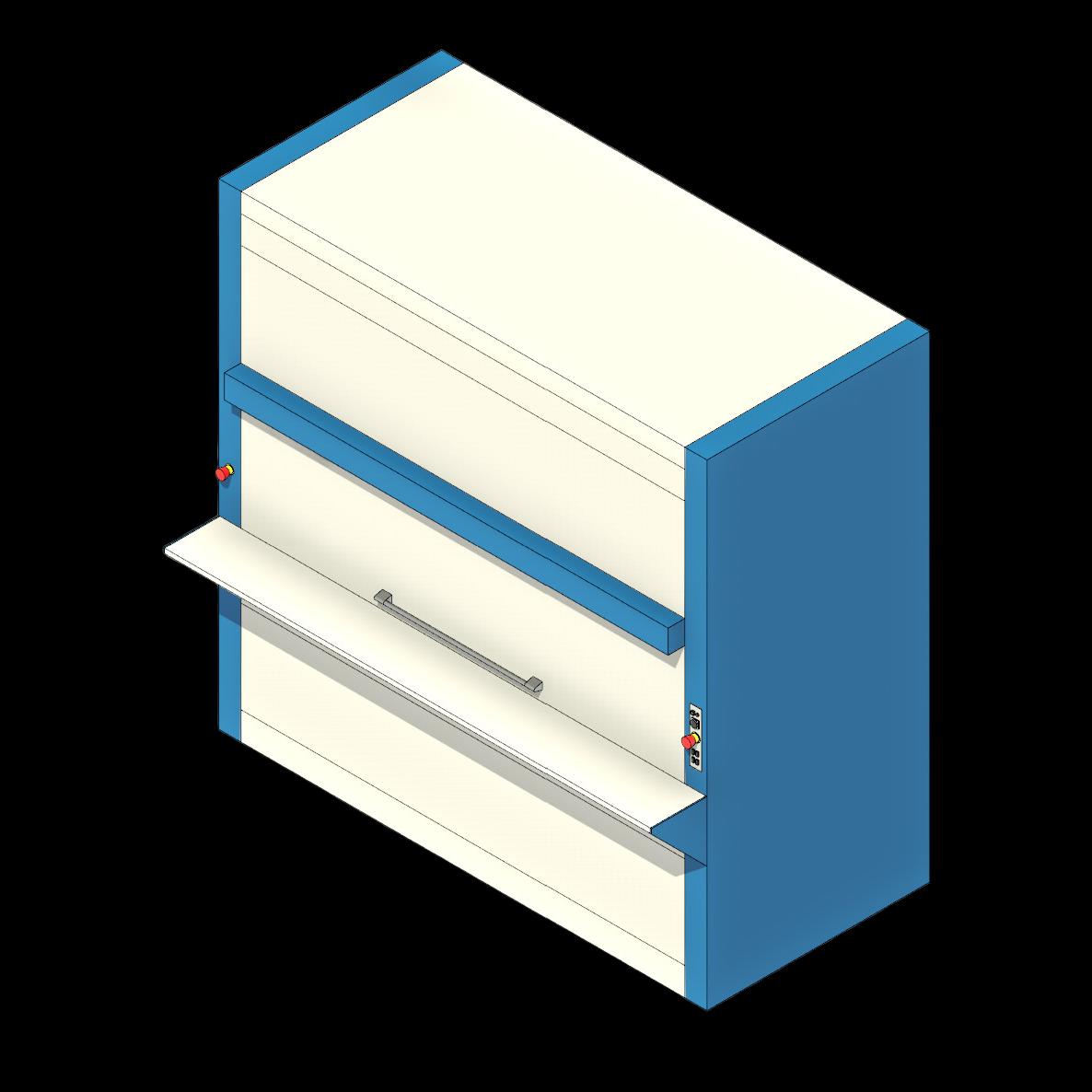

Vertical Electric Carousel Filing Cabinet

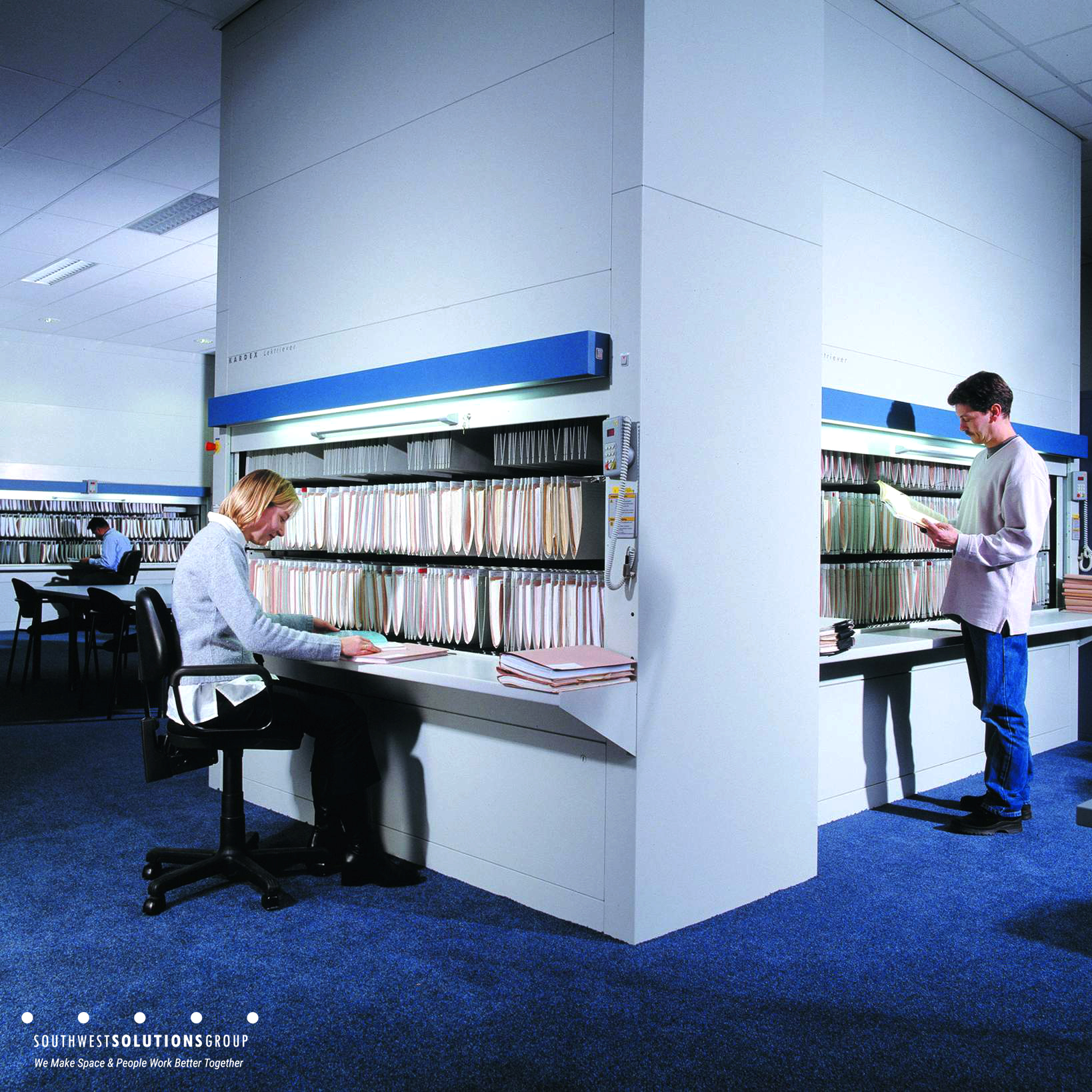

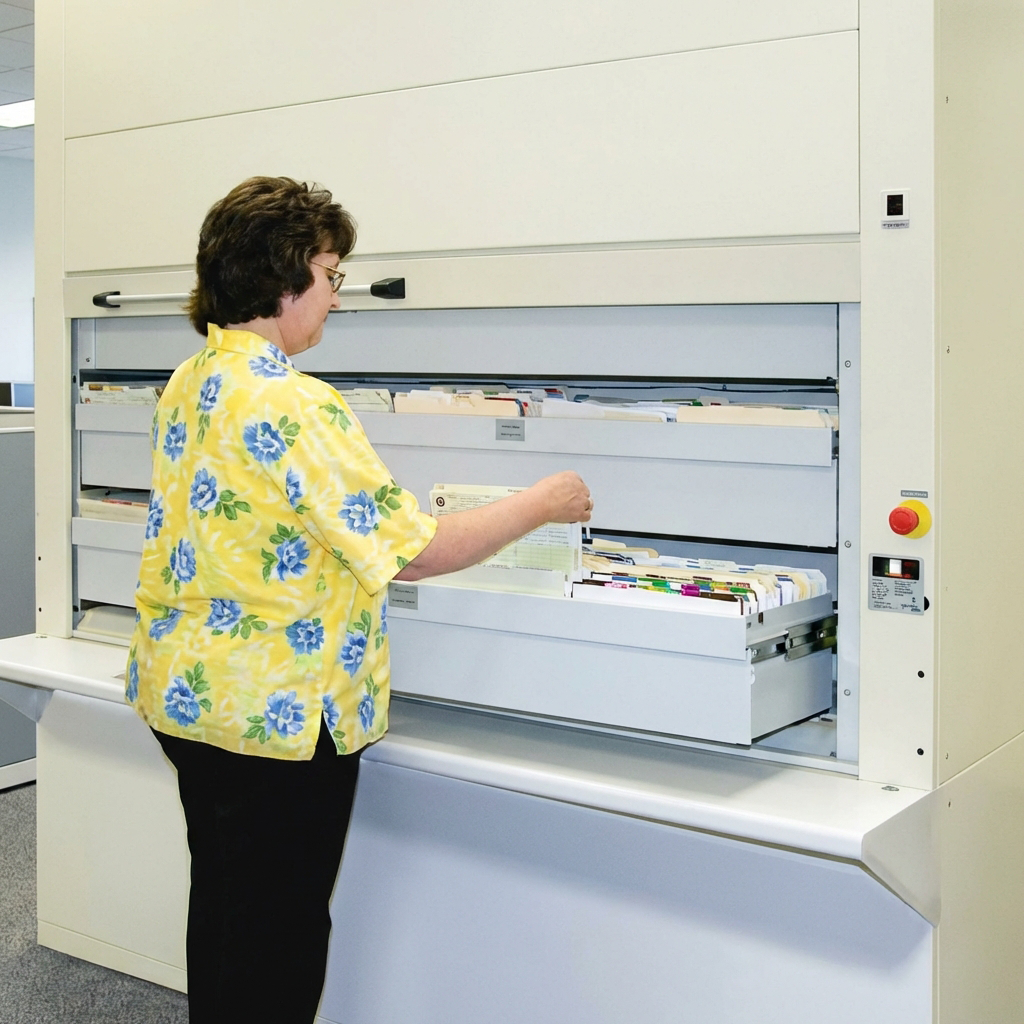

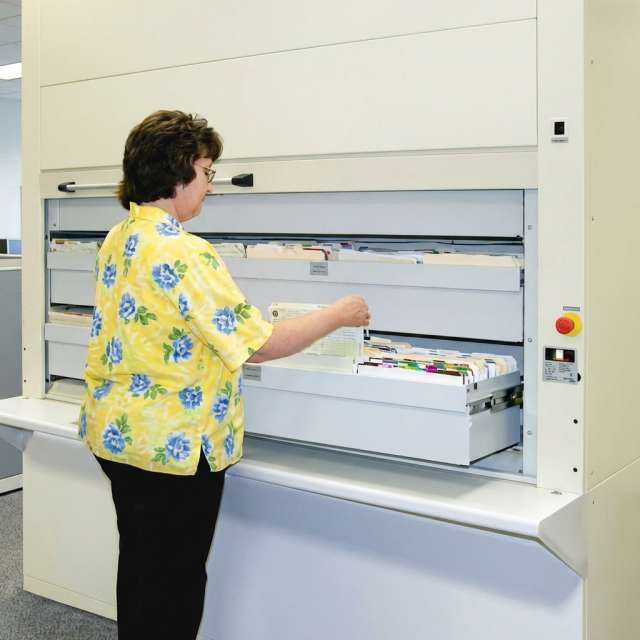

The vertical carousel filing system is a specialty high-density storage solution with a rotating carousel of file drawers. Ideal for offices and manufacturing, the individual carriers can be customized with drawers, or multi-media trays. To use this model, simply select a from the available widths (narrow, standard, wide, and extra-wide), and the number of carriers desired (11-28). Please note that the listed weight is an estimation on a fully-loaded unit of that size.

Specifications
Dimensions
Width	83 55/64", 103 69/128", 116 5/256", 128 179/256"
Depth	47 41/128"
Height	79 187/256", 84 83/128", 90 143/256", 95 123/256", 101 97/256", 107 37/128", 113 49/256", 118 31/256", 124 5/256", 128 215/256", 134 109/128", 140 3/4", 145 43/64", 151 37/64", 156 1/2", 162 105/256", 168 79/256", 173 59/256"
Product
Number of Carriers	11 - 28
AMP Draw	16 AMP
Avg. Power Consumption	2.0 KVA
Breaker NOTE	Cannot be wired to breaker or outlet that uses GFI circuits
Avg. Access Time	11 seconds
Breaker Size	20
Cycle Speed	7.0 inches/second
Noise Level	< 60 db(A)
Manufacturer	Southwest Solutions Group_KAR
Lead Time	Contact SSG for info
Model	SMS-125
Primary Material	Powder coated steel
Classification
MasterFormat	41 51 13
UniFormat	E10 – Equipment
IFC	Furniture
OmniClass	23-23 17 00
Purchasing
Contracts	Sourcewell, Equalis, Vizient
Revit family
Includes Pricing	Yes
ADA Compliant	Yes
Has MEP Connectors	Yes

Model	Width	Depth	Height	Weight
SSG-125-2811N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	14' 5 1/4" (173 1/4")	11148
SSG-125-2811S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	14' 5 1/4" (173 1/4")	11148
SSG-125-2811W	9' 8" (116")	3' 11 3/8" (47 3/8")	14' 5 1/4" (173 1/4")	12864
SSG-125-2811X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	14' 5 1/4" (173 1/4")	14197
SSG-125-2711N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	14' 0 1/4" (168 1/4")	10778
SSG-125-2711S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	14' 0 1/4" (168 1/4")	10778
SSG-125-2711W	9' 8" (116")	3' 11 3/8" (47 3/8")	14' 0 1/4" (168 1/4")	12442
SSG-125-2711X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	14' 0 1/4" (168 1/4")	13720
SSG-125-2611N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	13' 6 3/8" (162 3/8")	10410
SSG-125-2611S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	13' 6 3/8" (162 3/8")	10410
SSG-125-2611W	9' 8" (116")	3' 11 3/8" (47 3/8")	13' 6 3/8" (162 3/8")	12012
SSG-125-2611X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	13' 6 3/8" (162 3/8")	13244
SSG-125-2511N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	13' 0 1/2" (156 1/2")	10043
SSG-125-2511S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	13' 0 1/2" (156 1/2")	10043
SSG-125-2511W	9' 8" (116")	3' 11 3/8" (47 3/8")	13' 0 1/2" (156 1/2")	11583
SSG-125-2511X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	13' 0 1/2" (156 1/2")	12768
SSG-125-2411N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	12' 7 5/8" (151 5/8")	9680
SSG-125-2411S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	12' 7 5/8" (151 5/8")	9680
SSG-125-2411W	9' 8" (116")	3' 11 3/8" (47 3/8")	12' 7 5/8" (151 5/8")	11123
SSG-125-2411X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	12' 7 5/8" (151 5/8")	12291
SSG-125-2311N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	12' 1 5/8" (145 5/8")	9317
SSG-125-2311S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	12' 1 5/8" (145 5/8")	9317
SSG-125-2311W	9' 8" (116")	3' 11 3/8" (47 3/8")	12' 1 5/8" (145 5/8")	10692
SSG-125-2311X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	12' 1 5/8" (145 5/8")	11831
SSG-125-2211N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	11' 8 3/4" (140 3/4")	8936
SSG-125-2211S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	11' 8 3/4" (140 3/4")	8936
SSG-125-2211W	9' 8" (116")	3' 11 3/8" (47 3/8")	11' 8 3/4" (140 3/4")	10247
SSG-125-2211X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	11' 8 3/4" (140 3/4")	11361
SSG-125-2111N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	11' 2 7/8" (134 7/8")	8562
SSG-125-2111S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	11' 2 7/8" (134 7/8")	8562
SSG-125-2111W	9' 8" (116")	3' 11 3/8" (47 3/8")	11' 2 7/8" (134 7/8")	9829
SSG-125-2111X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	11' 2 7/8" (134 7/8")	10885
SSG-125-2011N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	10' 8 7/8" (128 7/8")	8192
SSG-125-2011S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	10' 8 7/8" (128 7/8")	8192
SSG-125-2011W	9' 8" (116")	3' 11 3/8" (47 3/8")	10' 8 7/8" (128 7/8")	9391
SSG-125-2011X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	10' 8 7/8" (128 7/8")	10406
SSG-125-1911N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	10' 4" (124")	7829
SSG-125-1911S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	10' 4" (124")	7829
SSG-125-1911W	9' 8" (116")	3' 11 3/8" (47 3/8")	10' 4" (124")	8971
SSG-125-1911X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	10' 4" (124")	9936
SSG-125-1811N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	9' 10 1/8" (118 1/8")	7466
SSG-125-1811S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	9' 10 1/8" (118 1/8")	7466
SSG-125-1811W	9' 8" (116")	3' 11 3/8" (47 3/8")	9' 10 1/8" (118 1/8")	8555
SSG-125-1811X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	9' 10 1/8" (118 1/8")	9471
SSG-125-1711N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	9' 5 1/4" (113 1/4")	7099
SSG-125-1711S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	9' 5 1/4" (113 1/4")	7099
SSG-125-1711W	9' 8" (116")	3' 11 3/8" (47 3/8")	9' 5 1/4" (113 1/4")	8128
SSG-125-1711X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	9' 5 1/4" (113 1/4")	8997
SSG-125-1611N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	8' 11 1/4" (107 1/4")	6733
SSG-125-1611S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	8' 11 1/4" (107 1/4")	6733
SSG-125-1611W	9' 8" (116")	3' 11 3/8" (47 3/8")	8' 11 1/4" (107 1/4")	7708
SSG-125-1611X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	8' 11 1/4" (107 1/4")	8529
SSG-125-1511N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	8' 5 3/8" (101 3/8")	6359
SSG-125-1511S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	8' 5 3/8" (101 3/8")	6359
SSG-125-1511W	9' 8" (116")	3' 11 3/8" (47 3/8")	8' 5 3/8" (101 3/8")	7279
SSG-125-1511X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	8' 5 3/8" (101 3/8")	8049
SSG-125-1411N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	7' 11 1/2" (95 1/2")	6003
SSG-125-1411S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	7' 11 1/2" (95 1/2")	6003
SSG-125-1411W	9' 8" (116")	3' 11 3/8" (47 3/8")	7' 11 1/2" (95 1/2")	6852
SSG-125-1411X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	7' 11 1/2" (95 1/2")	7572
SSG-125-1311N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	7' 6 1/2" (90 1/2")	5635
SSG-125-1311S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	7' 6 1/2" (90 1/2")	5635
SSG-125-1311W	9' 8" (116")	3' 11 3/8" (47 3/8")	7' 6 1/2" (90 1/2")	6436
SSG-125-1311X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	7' 6 1/2" (90 1/2")	7109
SSG-125-1211N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	7' 0 5/8" (84 5/8")	5270
SSG-125-1211S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	7' 0 5/8" (84 5/8")	5270
SSG-125-1211W	9' 8" (116")	3' 11 3/8" (47 3/8")	7' 0 5/8" (84 5/8")	6016
SSG-125-1211X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	7' 0 5/8" (84 5/8")	6637
SSG-125-1111N	6' 11 7/8" (83 7/8")	3' 11 3/8" (47 3/8")	6' 7 3/4" (79 3/4")	4900
SSG-125-1111S	8' 7 1/2" (103 1/2")	3' 11 3/8" (47 3/8")	6' 7 3/4" (79 3/4")	4900
SSG-125-1111W	9' 8" (116")	3' 11 3/8" (47 3/8")	6' 7 3/4" (79 3/4")	5591
SSG-125-1111X	10' 8 3/4" (128 3/4")	3' 11 3/8" (47 3/8")	6' 7 3/4" (79 3/4")	6163

SSG-125-2811N
83 7/8" W × 47 3/8" D × 173 1/4" H · Weight 11148
SSG-125-2811S
103 1/2" W × 47 3/8" D × 173 1/4" H · Weight 11148
SSG-125-2811W
116" W × 47 3/8" D × 173 1/4" H · Weight 12864
SSG-125-2811X
128 3/4" W × 47 3/8" D × 173 1/4" H · Weight 14197
SSG-125-2711N
83 7/8" W × 47 3/8" D × 168 1/4" H · Weight 10778
SSG-125-2711S
103 1/2" W × 47 3/8" D × 168 1/4" H · Weight 10778
SSG-125-2711W
116" W × 47 3/8" D × 168 1/4" H · Weight 12442
SSG-125-2711X
128 3/4" W × 47 3/8" D × 168 1/4" H · Weight 13720
SSG-125-2611N
83 7/8" W × 47 3/8" D × 162 3/8" H · Weight 10410
SSG-125-2611S
103 1/2" W × 47 3/8" D × 162 3/8" H · Weight 10410
SSG-125-2611W
116" W × 47 3/8" D × 162 3/8" H · Weight 12012
SSG-125-2611X
128 3/4" W × 47 3/8" D × 162 3/8" H · Weight 13244
