Small Storage Vertical Carousels
Product SKU
Description
- Used extensively in manufacturing and material handeling environments
- Quickly access small parts with auto-picking system
- Reclaim floorspace by storing objects vertically
- 180 kg max load per carrier

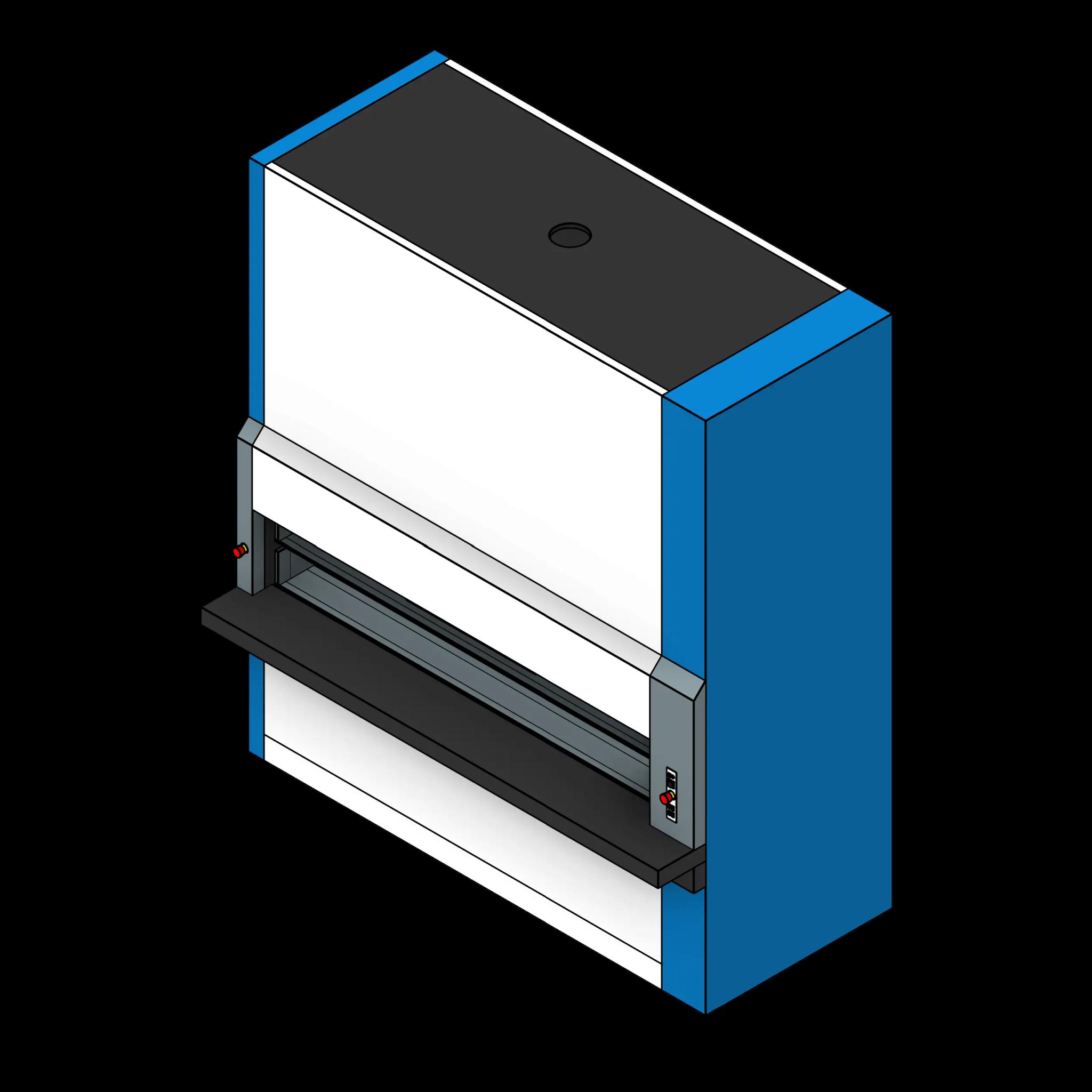

Vertical Carousel - Small Object Storage
To configure this family, simply select the desired tray width from eleven available options ranging from 1250 mm to 4050 mm, and choose a tray depth of 609.6 mm, 812.8 mm, or 863.6 mm. The Vertical Lift Module is highly versatile, offering hundreds of height variations between 2550 mm and 30,050 mm (just under 100 feet) to suit a wide range of design requirements.
Parameter | Value |
---|---|
Standard Widths | 2450, 2650, 2850, 3050, 3250 |
Minimum Width | 8' 0 1/2" (96 1/2") |
Maximum Width | 10' 8" (127") |
Standard Depths | 428, 528, 628 |
Minimum Depth | 1' 4 7/8" (16 7/8") |
Maximum Depth | 2' 0 3/4" (24 3/4") |
Standard Heights | 2210, 2335, 2460, 2585, 2710, 2835, 2960, 3085, 3210, 3335, 3460, 3610, 3735, 3860, 3985, 4110, 4235, 4360, 4485, 4610, 4735, 4860, 4985, 5135, 5360, 5385, 5510, 5635, 5760, 5885, 6010, 6135, 6260, 6385, 6510, 6635, 6785, 6910, 7035, 7160, 7285, 7410 |
Minimum Height | 7' 3" (87") |
Maximum Height | 24' 3 3/4" (291 3/4") |
Manufacturer | Southwest Solutions Group_KAR |
Lead Time | Contact SSG for info |
Model | MEG RS 180 |
Keynote | 41 51 13 |
Assembly Code | E10 |
Author | AWright |
Toll Free Number | 1-800-803-1083 |
Property | Value |
---|---|
Equalis | No |
Omnia | No |
Sourcewell | Yes |
Systec | No |
Vizient | Yes |
Includes Pricing | Yes |
ADA Compliant | Yes |
Has MEP Connectors | Yes |
Primary Material | Powder coated steel |
BIMobject Category | Furniture: Shelving & Storage |
IFC | Furniture |
Omniclass | 23-23 17 00 |
