10' Wide - Option 03 Exam Room

Product SKU

SKU: SSG-EX10-3-L

Description

  • Kit is designed to represent one common option used for Exam rooms at this Height and Width

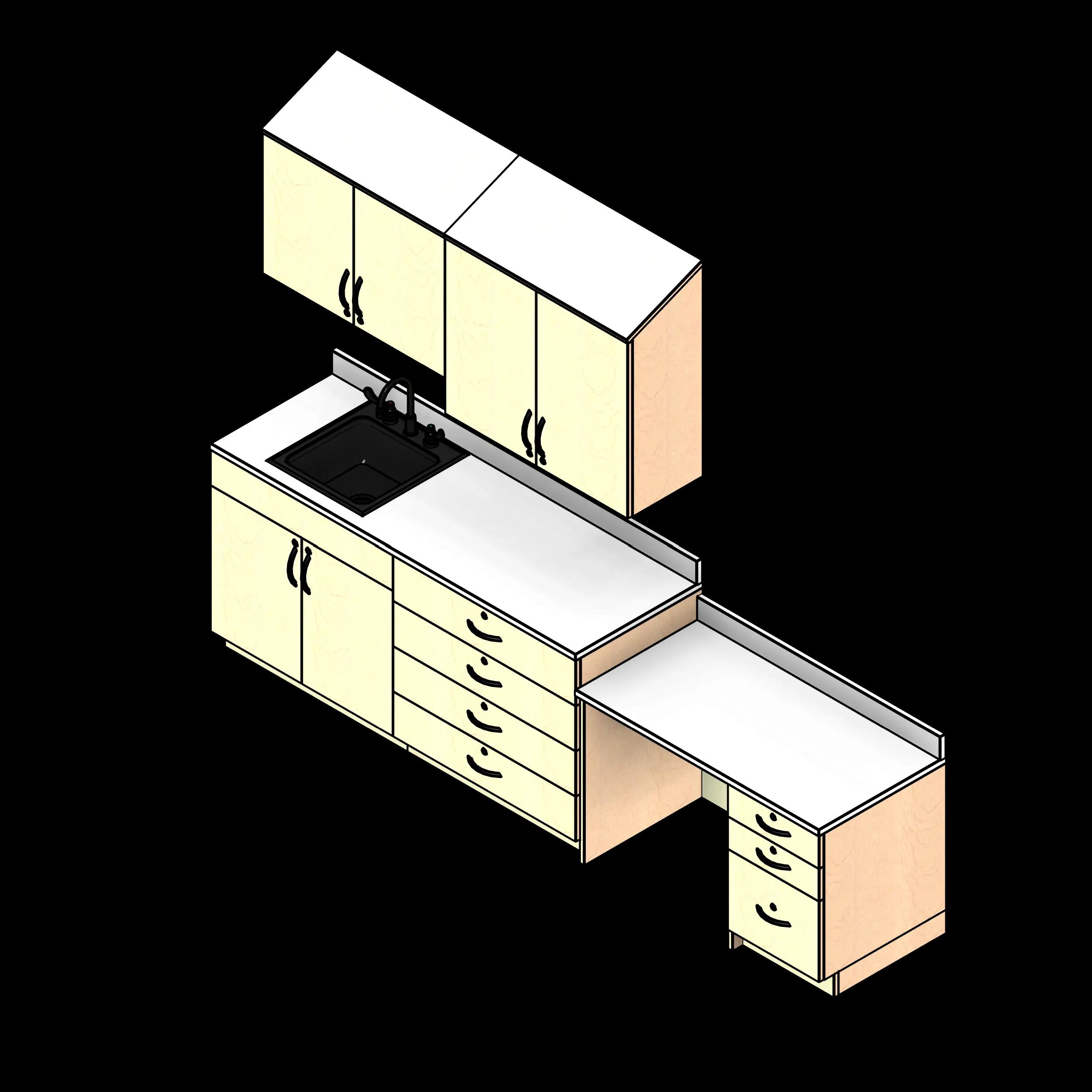

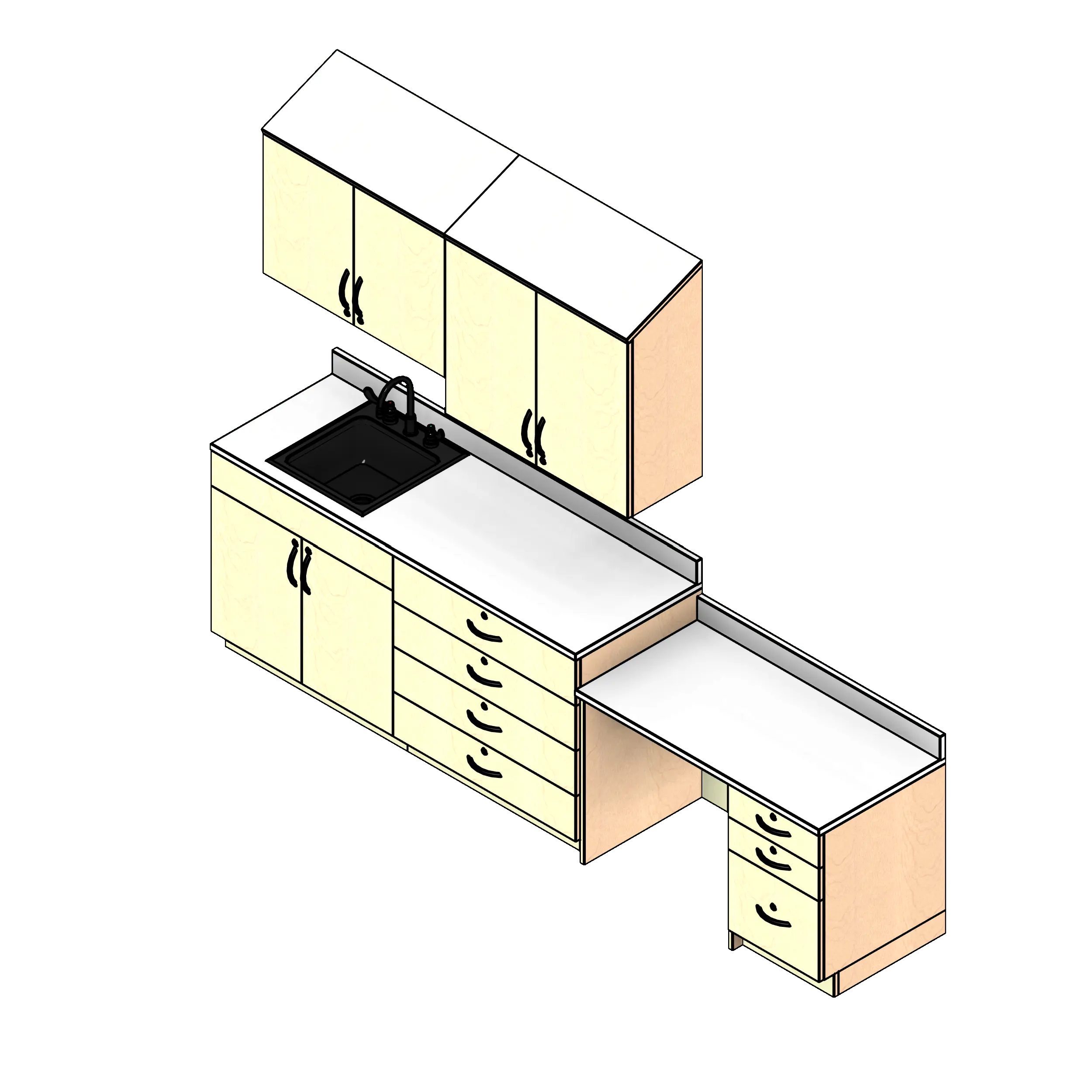

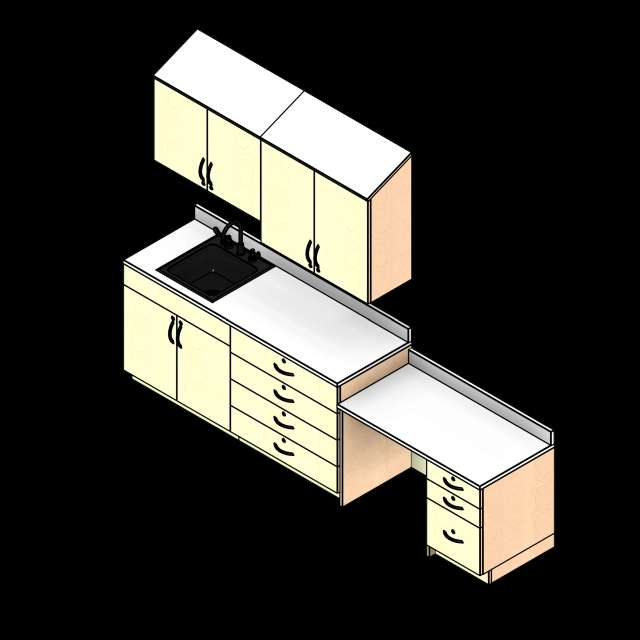

  • Kit includes three base cabinets, two upper wall cabinets, one roll up desk, two countertop with backsplash, and one sink with faucet.
  • Not ADA accessible.
icon for pricing which is a dollar sign
Model group
icon of a person with gears next to its head
Pricing
Questions
Need some help? Send us a message if you have any sales or model related questions.

System Overview

Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.

Design

  • Multiple pull options
  • Angled top is optional
  • Counter can be equipped with side splash if necessary
  • Lock options available
ParameterValue
ENTER Door Number1
ENTER Handle Number1
ENTER Kick Plate Number1
ADD Locks1
OFFSET Top of Cabinet7
ADD Angled Top1
ADD Back Splash1
PropertyValue
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Width10' 0" (120")
Depth2' 1" (25")
Height7' 0" (84")
Primary MaterialLaminate
skuSSG-EX10-3-L
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 19 11
Room TypeExam Room
