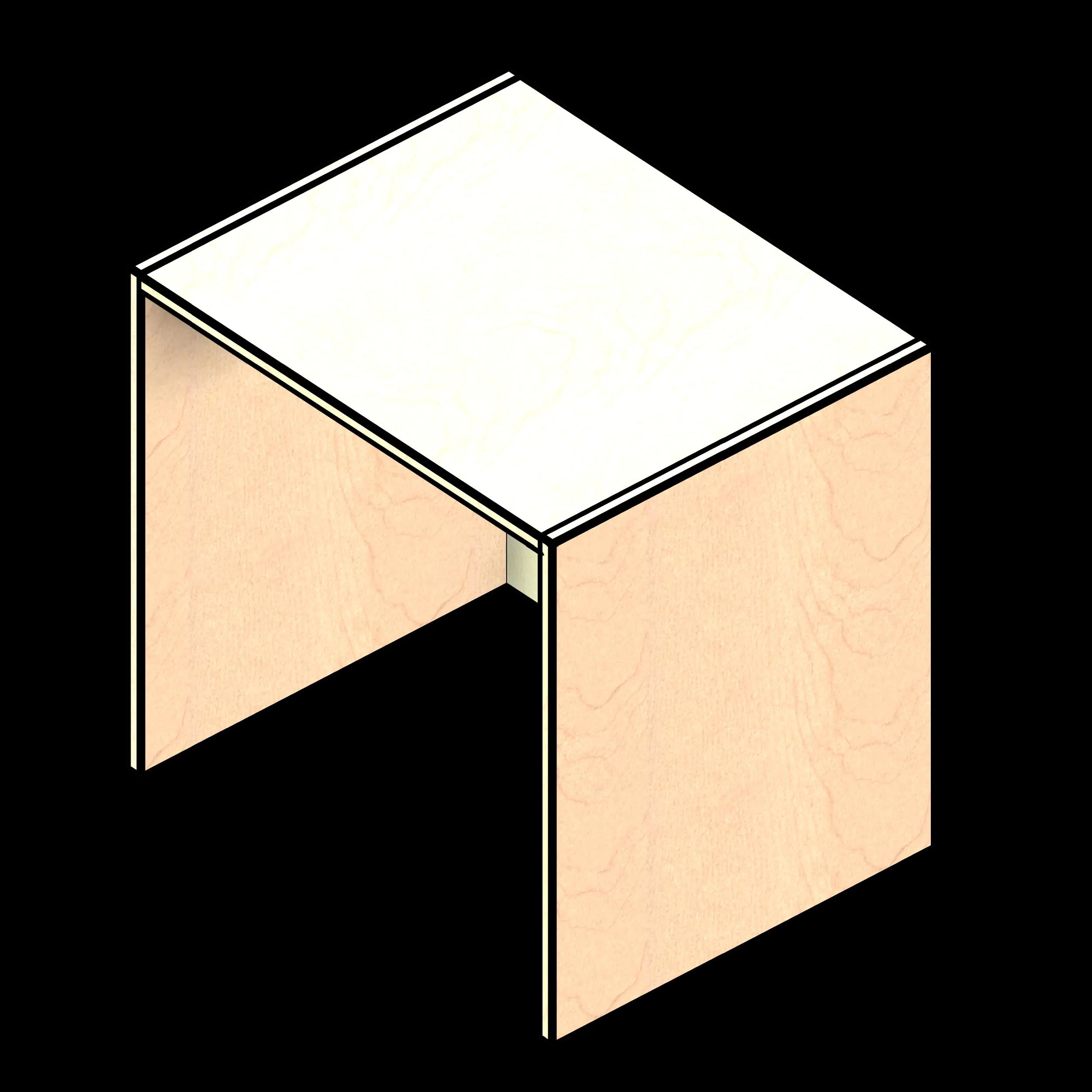

Open Knee Space Laminate Base Cabinet

Pricing is INCLUDED in model
Includes full modesty panels
Work surface purchased separately
Cost estimate updates dynamically with changes made to the model

Family

Pricing

ADA

Revit 2023 (0.99 MB)

Revit 2024 (0.99 MB)

Revit 2025 (0.99 MB)

Revit 2026 (0.99 MB)

Revit 2027 (0.99 MB)

(0.03 MB)

(4.24 MB)

(0.62 MB)

(1.17 MB)

(2.01 MB)

(0.11 MB)

(0.41 MB)

Questions

Need some help? Send us a message if you have any sales or model related questions.

Open Knee Space Plastic Laminate Base Cabinet w/ 1 Adjustable Shelf

Our open knee space base cabinet is part of Southwest Solutions’ modular casework line; a flexible and durable alternative to built-in millwork. This is a highly customizable family, and all of our casework is backed with a Limited Lifetime Warranty. The cabinet is finished on all four sides and uses 2mm PVC edge banding for a durable, long-term solution. Use simple parameters to choose various handles, door types, toe kicks, and more.

The Southwest Solutions Group casework line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. Once loaded, each model has a variety of parameters which allow you to easily manipulate and customize various aspects of the casework design without ever needing to load a type catalog ever again. Designed for versatility, this cabinet features one adjustable shelf and offers simple parameter adjustments for selecting handles, door types, and toe kicks, ensuring a perfect fit for any design aesthetic. Its compatibility with Revit software allows for dynamic cost estimate updates, streamlining project budgeting and planning. The high-quality hardware, including full-extension ball-bearing slides and soft-close options, ensures smooth operation and functionality in any environment.

Such features include:

Quickly Manipulate Sizes
Toe Kick Options
Door Styles
Handle Types
Lock Options
Angled Top Options
Material Options

In addition, each model comes with a high level of information built in, including a worst-case budget price that dynamically updates as you manipulate the model within Revit. This allows the designer and client to quickly understand where the money is being spent. Also, within each model type, there are links to more detailed information should you need it. Having this level of flexibility combined with a high level of information is truly what BIM is meant to be.

Parameter	Value
Standard Widths	18", 21", 24", 30", 36", 42", 48", 54", 60"
Minimum Width	1' 6" (18")
Maximum Width	5' 0" (60")
Standard Depths	24", 30"
Minimum Depth	2' 0" (24")
Maximum Depth	2' 6" (30")
Standard Heights	29", 33", 35", 37", 41"
Minimum Height	2' 5" (29")
Maximum Height	3' 5" (41")
Manufacturer	Southwest Solutions Group_HAM
Lead Time	4-6 Weeks
Construction Type	Frameless cabinet construction w/ flush overlay fronts
Model	MCBS
MasterFormat	12 32 16 – Manufactured Plastic-Laminate-Clad Casework
UniFormat	E2020 – Moveable Furnishings

Property	Value
Includes Pricing	Yes
ADA Compliant	Yes
Has MEP Connectors	No
Includes Sustainability	Yes
Primary Material	Laminate
IFC	Furniture
OmniClass	23-21 19 11 13
Omnia	No
Sourcewell	No
Equalis	No
Vizient	Yes
Systec	Yes

Model	Width	Depth	Height	Weight
SSG-MCBS182429	1' 6" (18")	2' 0" (24")	2' 5" (29")	62
SSG-MCBS182433	1' 6" (18")	2' 0" (24")	2' 9" (33")	68
SSG-MCBS182435	1' 6" (18")	2' 0" (24")	2' 11" (35")	72
SSG-MCBS182437	1' 6" (18")	2' 0" (24")	3' 1" (37")	77
SSG-MCBS182441	1' 6" (18")	2' 0" (24")	3' 5" (41")	82
SSG-MCBS183029	1' 6" (18")	2' 6" (30")	2' 5" (29")	73
SSG-MCBS183033	1' 6" (18")	2' 6" (30")	2' 9" (33")	81
SSG-MCBS183035	1' 6" (18")	2' 6" (30")	2' 11" (35")	85
SSG-MCBS183037	1' 6" (18")	2' 6" (30")	3' 1" (37")	92
SSG-MCBS183041	1' 6" (18")	2' 6" (30")	3' 5" (41")	98
SSG-MCBS212429	1' 9" (21")	2' 0" (24")	2' 5" (29")	62
SSG-MCBS212433	1' 9" (21")	2' 0" (24")	2' 9" (33")	68
SSG-MCBS212435	1' 9" (21")	2' 0" (24")	2' 11" (35")	72
SSG-MCBS212437	1' 9" (21")	2' 0" (24")	3' 1" (37")	77
SSG-MCBS212441	1' 9" (21")	2' 0" (24")	3' 5" (41")	82
SSG-MCBS213029	1' 9" (21")	2' 6" (30")	2' 5" (29")	73
SSG-MCBS213033	1' 9" (21")	2' 6" (30")	2' 9" (33")	81
SSG-MCBS213035	1' 9" (21")	2' 6" (30")	2' 11" (35")	85
SSG-MCBS213037	1' 9" (21")	2' 6" (30")	3' 1" (37")	92
SSG-MCBS213041	1' 9" (21")	2' 6" (30")	3' 5" (41")	98
SSG-MCBS242429	2' 0" (24")	2' 0" (24")	2' 5" (29")	66
SSG-MCBS242433	2' 0" (24")	2' 0" (24")	2' 9" (33")	73
SSG-MCBS242435	2' 0" (24")	2' 0" (24")	2' 11" (35")	76
SSG-MCBS242437	2' 0" (24")	2' 0" (24")	3' 1" (37")	82
SSG-MCBS242441	2' 0" (24")	2' 0" (24")	3' 5" (41")	87
SSG-MCBS243029	2' 0" (24")	2' 6" (30")	2' 5" (29")	78
SSG-MCBS243033	2' 0" (24")	2' 6" (30")	2' 9" (33")	86
SSG-MCBS243035	2' 0" (24")	2' 6" (30")	2' 11" (35")	90
SSG-MCBS243037	2' 0" (24")	2' 6" (30")	3' 1" (37")	97
SSG-MCBS243041	2' 0" (24")	2' 6" (30")	3' 5" (41")	103
SSG-MCBS302429	2' 6" (30")	2' 0" (24")	2' 5" (29")	74
SSG-MCBS302433	2' 6" (30")	2' 0" (24")	2' 9" (33")	81
SSG-MCBS302435	2' 6" (30")	2' 0" (24")	2' 11" (35")	85
SSG-MCBS302437	2' 6" (30")	2' 0" (24")	3' 1" (37")	91
SSG-MCBS302441	2' 6" (30")	2' 0" (24")	3' 5" (41")	97
SSG-MCBS303029	2' 6" (30")	2' 6" (30")	2' 5" (29")	87
SSG-MCBS303033	2' 6" (30")	2' 6" (30")	2' 9" (33")	96
SSG-MCBS303035	2' 6" (30")	2' 6" (30")	2' 11" (35")	100
SSG-MCBS303037	2' 6" (30")	2' 6" (30")	3' 1" (37")	107
SSG-MCBS303041	2' 6" (30")	2' 6" (30")	3' 5" (41")	114
SSG-MCBS362429	3' 0" (36")	2' 0" (24")	2' 5" (29")	82
SSG-MCBS362433	3' 0" (36")	2' 0" (24")	2' 9" (33")	90
SSG-MCBS362435	3' 0" (36")	2' 0" (24")	2' 11" (35")	94
SSG-MCBS362437	3' 0" (36")	2' 0" (24")	3' 1" (37")	101
SSG-MCBS362441	3' 0" (36")	2' 0" (24")	3' 5" (41")	107
SSG-MCBS363029	3' 0" (36")	2' 6" (30")	2' 5" (29")	96
SSG-MCBS363033	3' 0" (36")	2' 6" (30")	2' 9" (33")	105
SSG-MCBS363035	3' 0" (36")	2' 6" (30")	2' 11" (35")	110
SSG-MCBS363037	3' 0" (36")	2' 6" (30")	3' 1" (37")	118
SSG-MCBS363041	3' 0" (36")	2' 6" (30")	3' 5" (41")	125
SSG-MCBS422429	3' 6" (42")	2' 0" (24")	2' 5" (29")	90
SSG-MCBS422433	3' 6" (42")	2' 0" (24")	2' 9" (33")	99
SSG-MCBS422435	3' 6" (42")	2' 0" (24")	2' 11" (35")	103
SSG-MCBS422437	3' 6" (42")	2' 0" (24")	3' 1" (37")	110
SSG-MCBS422441	3' 6" (42")	2' 0" (24")	3' 5" (41")	117
SSG-MCBS423029	3' 6" (42")	2' 6" (30")	2' 5" (29")	105
SSG-MCBS423033	3' 6" (42")	2' 6" (30")	2' 9" (33")	115
SSG-MCBS423035	3' 6" (42")	2' 6" (30")	2' 11" (35")	120
SSG-MCBS423037	3' 6" (42")	2' 6" (30")	3' 1" (37")	128
SSG-MCBS423041	3' 6" (42")	2' 6" (30")	3' 5" (41")	135
SSG-MCBS482429	4' 0" (48")	2' 0" (24")	2' 5" (29")	98
SSG-MCBS482433	4' 0" (48")	2' 0" (24")	2' 9" (33")	107
SSG-MCBS482435	4' 0" (48")	2' 0" (24")	2' 11" (35")	112
SSG-MCBS482437	4' 0" (48")	2' 0" (24")	3' 1" (37")	120
SSG-MCBS482441	4' 0" (48")	2' 0" (24")	3' 5" (41")	127
SSG-MCBS483029	4' 0" (48")	2' 6" (30")	2' 5" (29")	114
SSG-MCBS483033	4' 0" (48")	2' 6" (30")	2' 9" (33")	125
SSG-MCBS483035	4' 0" (48")	2' 6" (30")	2' 11" (35")	130
SSG-MCBS483037	4' 0" (48")	2' 6" (30")	3' 1" (37")	138
SSG-MCBS483041	4' 0" (48")	2' 6" (30")	3' 5" (41")	146
SSG-MCBS542429	4' 6" (54")	2' 0" (24")	2' 5" (29")	106
SSG-MCBS542433	4' 6" (54")	2' 0" (24")	2' 9" (33")	116
SSG-MCBS542435	4' 6" (54")	2' 0" (24")	2' 11" (35")	121
SSG-MCBS542437	4' 6" (54")	2' 0" (24")	3' 1" (37")	129
SSG-MCBS542441	4' 6" (54")	2' 0" (24")	3' 5" (41")	136
SSG-MCBS543029	4' 6" (54")	2' 6" (30")	2' 5" (29")	123
SSG-MCBS543033	4' 6" (54")	2' 6" (30")	2' 9" (33")	134
SSG-MCBS543035	4' 6" (54")	2' 6" (30")	2' 11" (35")	140
SSG-MCBS543037	4' 6" (54")	2' 6" (30")	3' 1" (37")	149
SSG-MCBS543041	4' 6" (54")	2' 6" (30")	3' 5" (41")	157
SSG-MCBS602429	5' 0" (60")	2' 0" (24")	2' 5" (29")	114
SSG-MCBS602433	5' 0" (60")	2' 0" (24")	2' 9" (33")	125
SSG-MCBS602435	5' 0" (60")	2' 0" (24")	2' 11" (35")	130
SSG-MCBS602437	5' 0" (60")	2' 0" (24")	3' 1" (37")	138
SSG-MCBS602441	5' 0" (60")	2' 0" (24")	3' 5" (41")	146
SSG-MCBS603029	5' 0" (60")	2' 6" (30")	2' 5" (29")	132
SSG-MCBS603033	5' 0" (60")	2' 6" (30")	2' 9" (33")	144
SSG-MCBS603035	5' 0" (60")	2' 6" (30")	2' 11" (35")	150
SSG-MCBS603037	5' 0" (60")	2' 6" (30")	3' 1" (37")	159
SSG-MCBS603041	5' 0" (60")	2' 6" (30")	3' 5" (41")	168
SSG-MCBS662429	5' 6" (66")	2' 0" (24")	2' 5" (29")	122
SSG-MCBS662433	5' 6" (66")	2' 0" (24")	2' 9" (33")	133
SSG-MCBS662435	5' 6" (66")	2' 0" (24")	2' 11" (35")	139
SSG-MCBS662437	5' 6" (66")	2' 0" (24")	3' 1" (37")	148
SSG-MCBS662441	5' 6" (66")	2' 0" (24")	3' 5" (41")	156
SSG-MCBS663029	5' 6" (66")	2' 6" (30")	2' 5" (29")	141
SSG-MCBS663033	5' 6" (66")	2' 6" (30")	2' 9" (33")	153
SSG-MCBS663035	5' 6" (66")	2' 6" (30")	2' 11" (35")	160
SSG-MCBS663037	5' 6" (66")	2' 6" (30")	3' 1" (37")	170
SSG-MCBS663041	5' 6" (66")	2' 6" (30")	3' 5" (41")	179
SSG-MCBS722429	6' 0" (72")	2' 0" (24")	2' 5" (29")	130
SSG-MCBS722433	6' 0" (72")	2' 0" (24")	2' 9" (33")	142
SSG-MCBS722435	6' 0" (72")	2' 0" (24")	2' 11" (35")	148
SSG-MCBS722437	6' 0" (72")	2' 0" (24")	3' 1" (37")	157
SSG-MCBS722441	6' 0" (72")	2' 0" (24")	3' 5" (41")	166
SSG-MCBS723029	6' 0" (72")	2' 6" (30")	2' 5" (29")	150
SSG-MCBS723033	6' 0" (72")	2' 6" (30")	2' 9" (33")	163
SSG-MCBS723035	6' 0" (72")	2' 6" (30")	2' 11" (35")	170
SSG-MCBS723037	6' 0" (72")	2' 6" (30")	3' 1" (37")	180
SSG-MCBS723041	6' 0" (72")	2' 6" (30")	3' 5" (41")	189

View all

Open Knee Space Laminate Base Cabinet

Product SKU

Description

Open Knee Space Plastic Laminate Base Cabinet w/ 1 Adjustable Shelf
