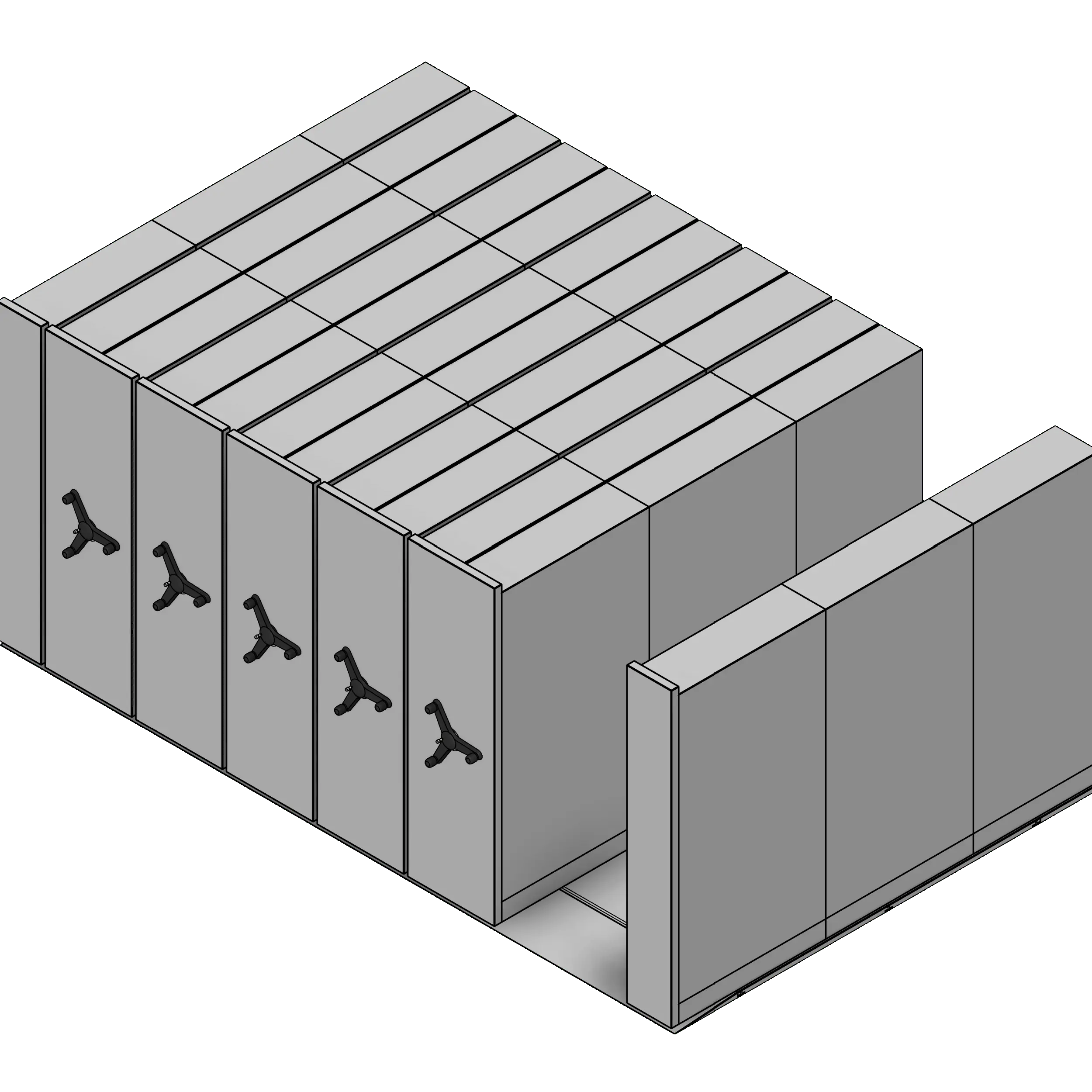

Massing Standard High Density Shelving

The High-Density Mobile Storage System is a state-of-the-art solution designed for maximizing storage efficiency by utilizing movable carriages on rails, reducing the need for fixed aisles. This innovative system offers up to three times more storage capacity per square foot compared to traditional systems, making it ideal for environments where space is at a premium. Its adaptability allows it to store virtually anything, from files in an office to artifacts in a museum, making it suitable for a range of applications including libraries, hospitals, and warehouses.

This system is particularly distinguished by its ability to be customized with various shelving and cabinet options, and its operation modes—manual, mechanically assisted, or powered—cater to different activity levels and user preferences. Thanks to its configurable design, it integrates seamlessly with existing architectural layouts and ensures user safety with features like color-coded lock indicators and safety locks.

The mobile storage system is constructed from durable materials like cold rolled steel and features a smooth, quiet operation due to its precision-machined components. It also meets ADA accessibility standards, ensuring ease of use for all users. With its intuitive control features, including a smart app for remote aisle management, the system enhances workflow and organizational efficiency, making it a valuable addition to any space-conscious design.

ParameterValue
Standard Shelf Widths30", 36", 42", 48"
Minimum Carriage Width1' 0" (12")
Maximum Carriage Width4' 0" (48")
Standard Shelf Depths10", 12", 13", 15", 16", 18", 24"
Minimum Carriage Depth3' 0" (36")
Maximum Carriage Depth30' 0" (360")
Standard Shelf Heights76 1/4", 85 1/4", 88 1/4", 97 1/4"
Minimum Shelf Height6' 4 1/4" (76 1/4")
Maximum Shelf Height8' 1 1/4" (97 1/4")
Minimum Aisle Space3' 0" (36")
ManufacturerSouthwest Solutions Group_SPA
Lead Time4-6 Weeks
Keynote10 56 26
Assembly CodeE20
AuthorKBruxvoort
Toll Free Number1-800-803-1083
PropertyValue
Includes PricingNo
ADA CompliantNo
Has MEP ConnectorsNo
Includes SustainabilityYes
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 11 11 11
OmniaYes
SourcewellYes
EqualisYes
VizientYes
SystecYes
