Product SKU
Description
- Customizable top and bottom storage options
- Includes hanger bar and two coat hooks
- Durable steel construction with high-quality powder coat
Revit 2020 (0.82 MB)
Revit 2021 (0.82 MB)
Revit 2022 (0.82 MB)
Revit 2023 (0.82 MB)
Revit 2024 (0.82 MB)
Revit 2025 (0.82 MB)
(1.64 MB)
(0.02 MB)
(0.22 MB)
Steel Athletic Locker
This customizable locker is perfect for sports teams and university locker rooms. Ventilated sides and a variety of storage options ensure this athletic locker is functional and odor free.

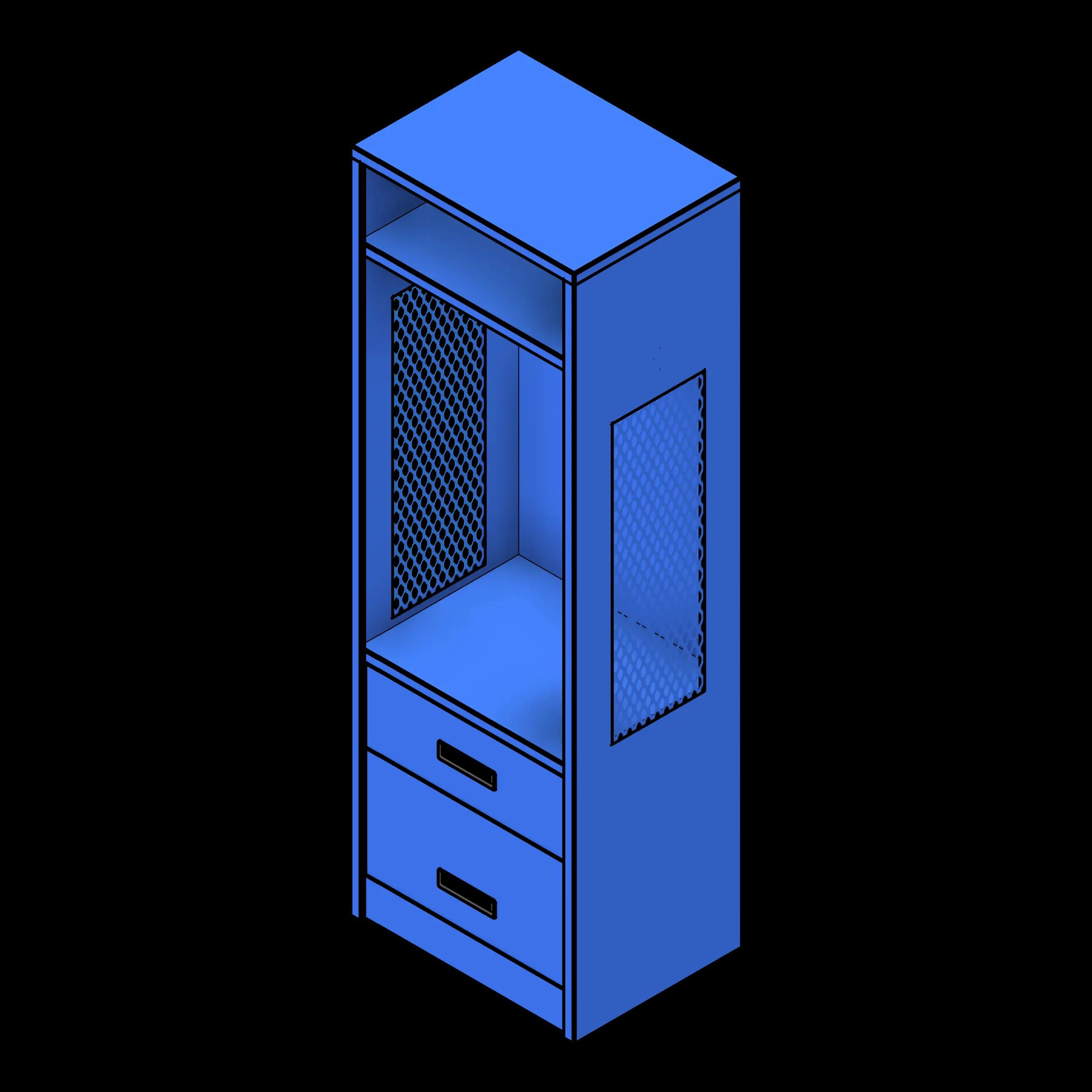

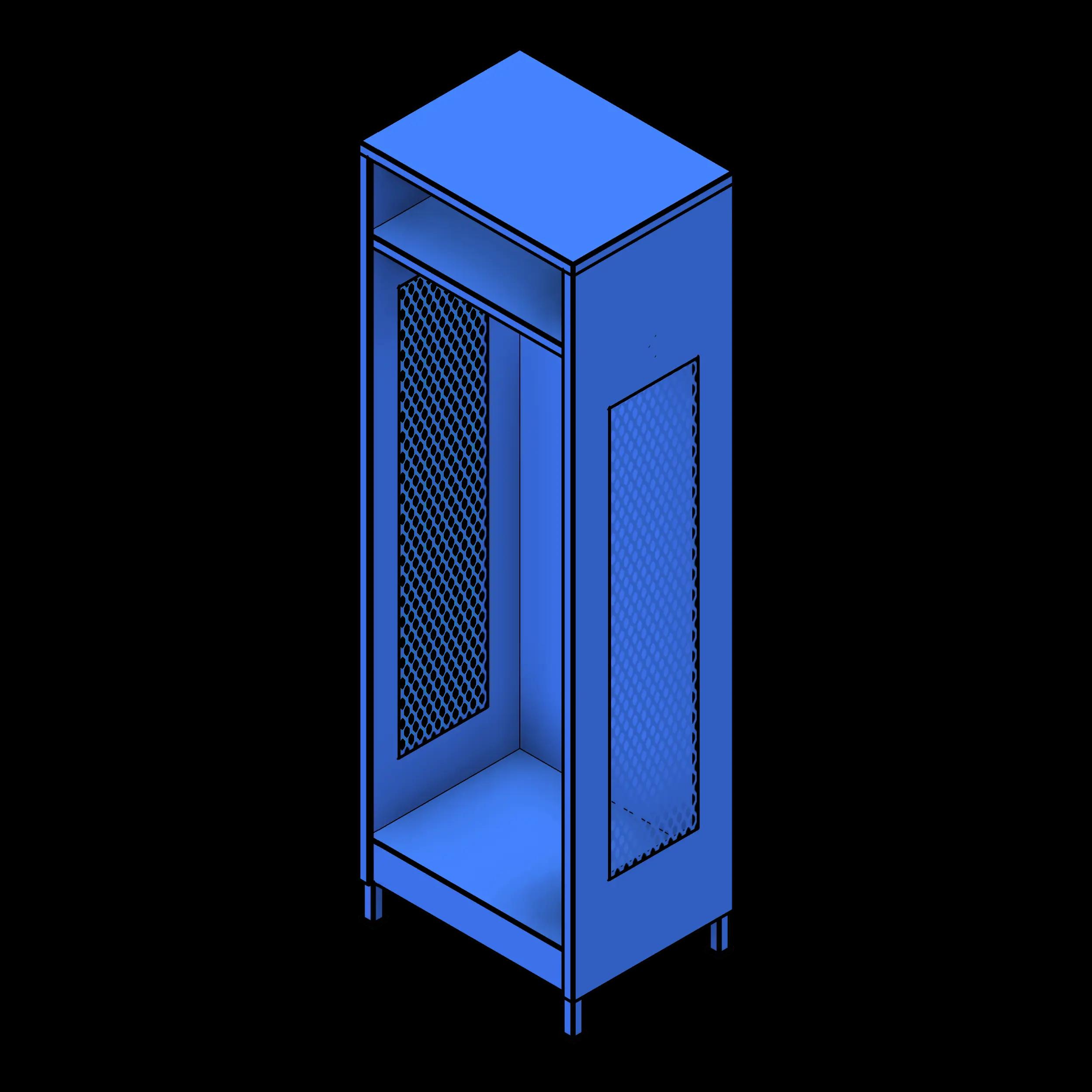

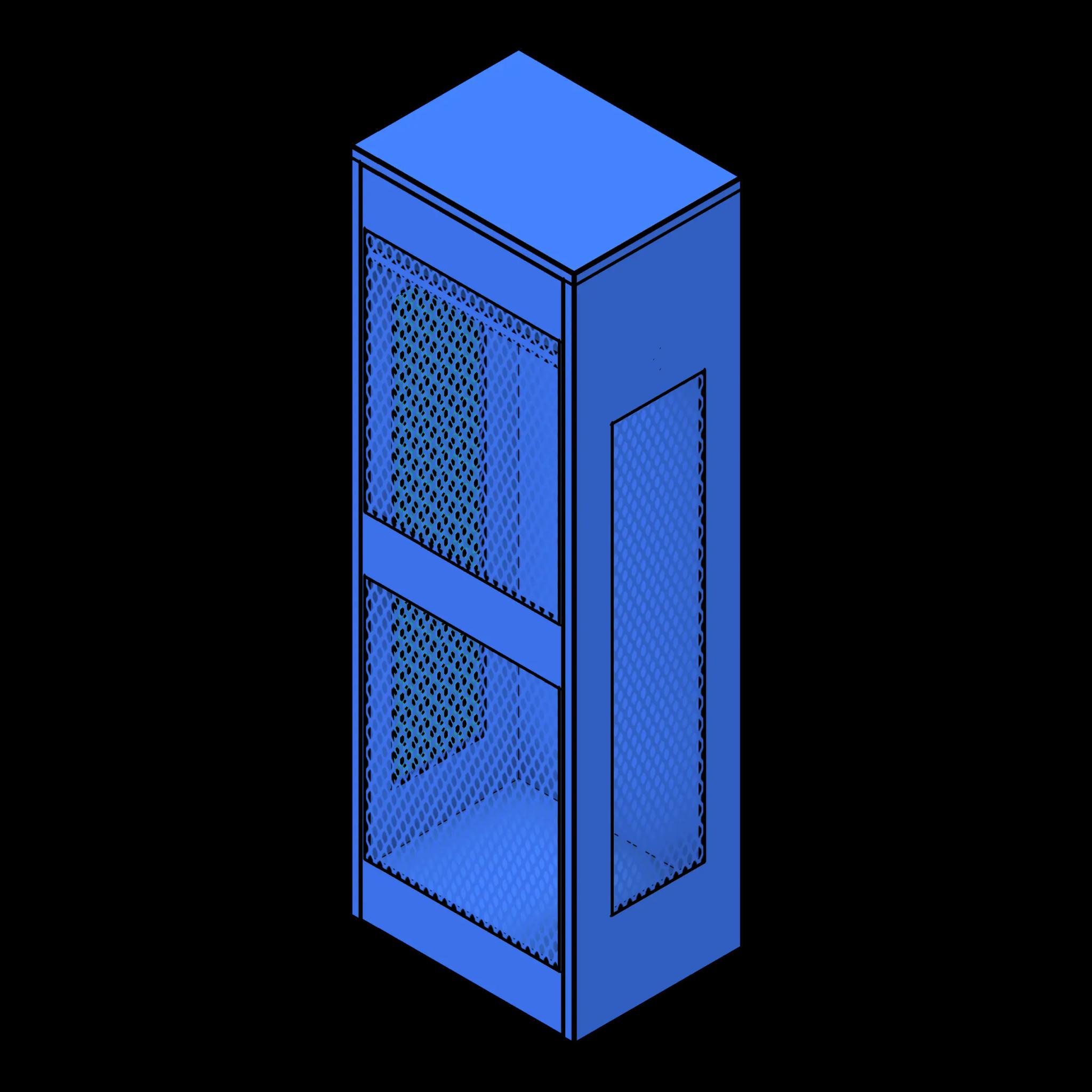

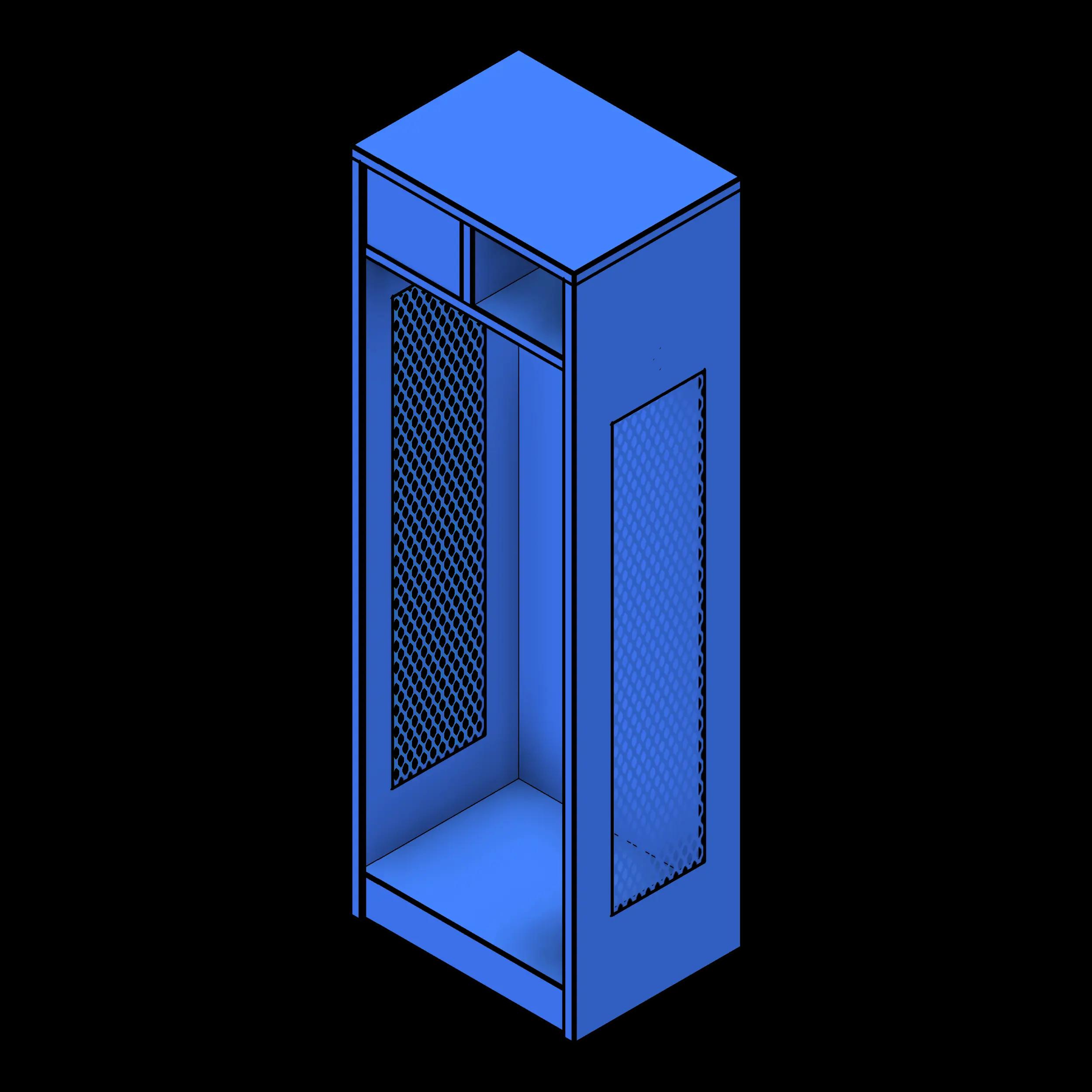

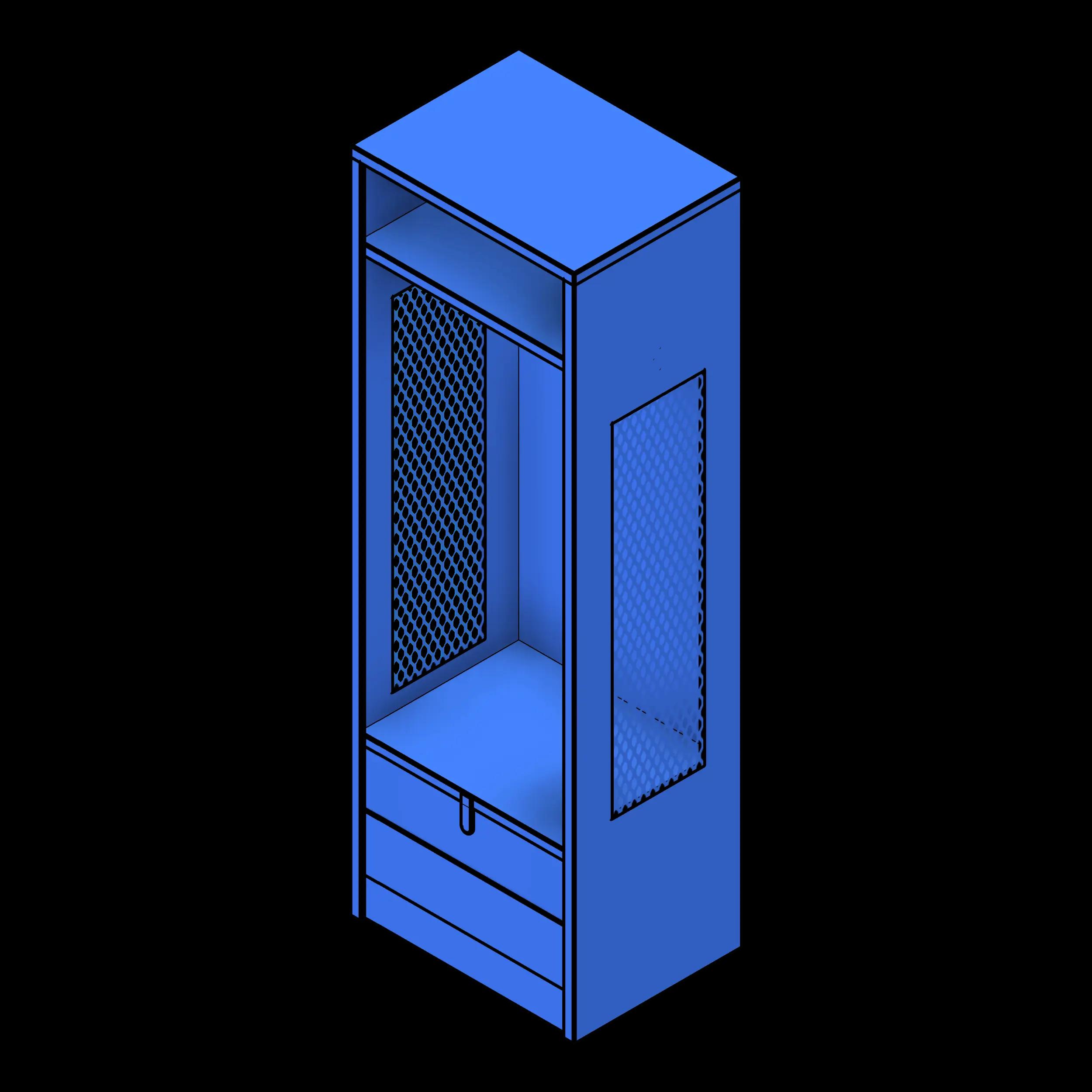

To use this family, simply load it from the Fetch app into your project. Select between 18" and 24" depth using the check boxes in the Dimensions category. Options for a door, top cabinet, drawers, foot locker, and raised legs, can be found in the construction category.
| Parameter | Value |
|---|---|
| Standard Widths | 24" |
| Minimum Width | 2' 0" (24") |
| Maximum Width | 2' 0" (24") |
| Standard Depths | 18", 24" |
| Minimum Depth | 1' 6" (18") |
| Maximum Depth | 2' 0" (24") |
| Standard Heights | 72" |
| Minimum Height | 6' 0" (72") |
| Maximum Height | 6' 0" (72") |
| Lead Time | Ships in 8-9 weeks |
| Model | GL |
| Keynote | 23.40.50.34 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Painted Steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23 40 20 11.17 |
