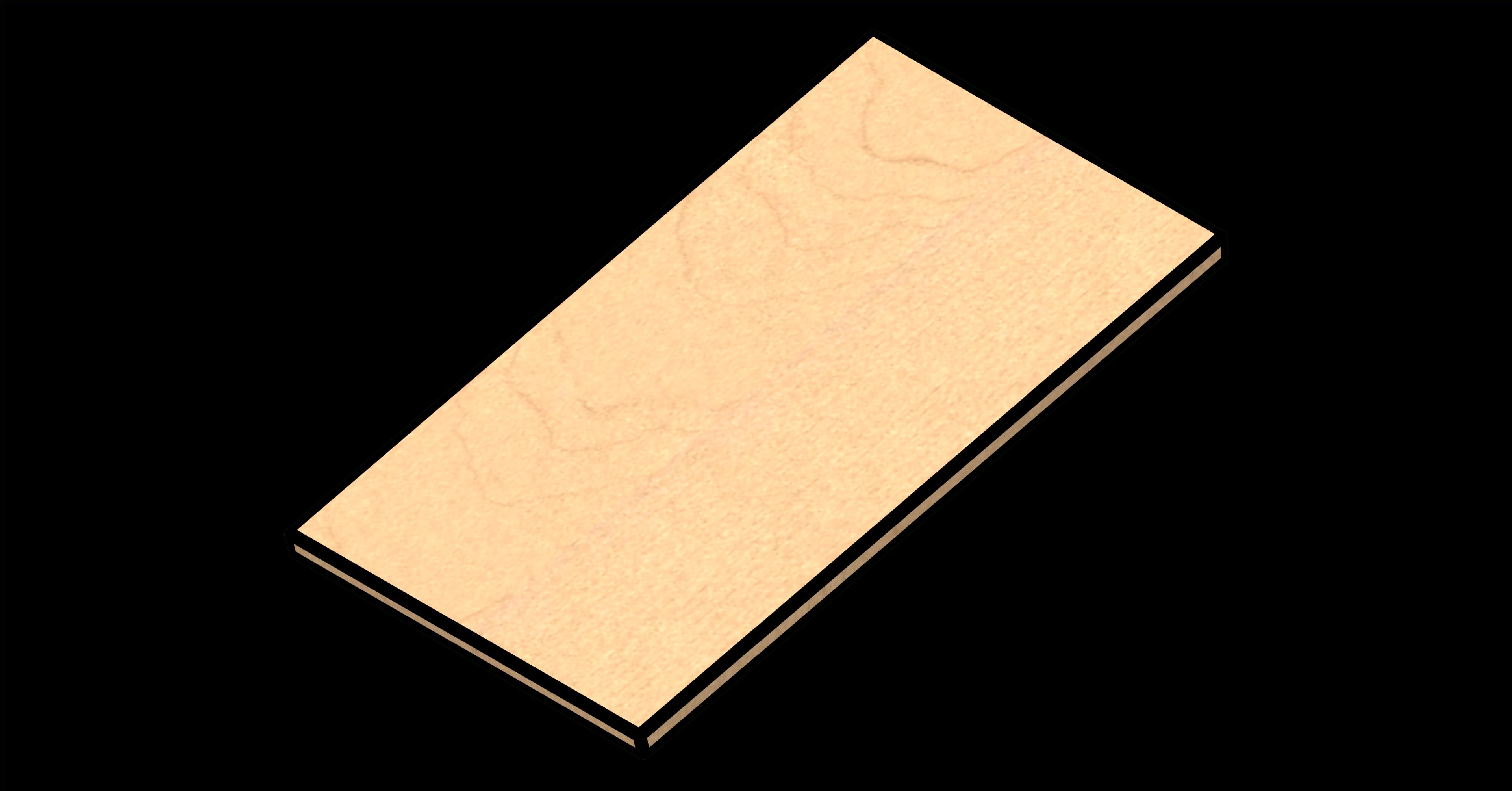

Angled Laminate Cabinet Top

Product SKU

Description

  • Can be used on wall or storage cabinets
  • Family is nested in most laminate storage and wall cabinets
  • Pricing is INCLUDED in model
  • Cost estimate updates dynamically with changes to the model
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
icon of a person with gears next to its head
ADA
Questions
Need some help? Send us a message if you have any sales or model related questions.

Plastic Laminate Angled Top

Angled tops can be used with both wall cabinets and storage cabinets. The slope helps to keep rooms clean by reducing dust collection on top of cabinets.

The Southwest Solutions Group casework line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. Once loaded, each model has a variety of parameters which allow you to easily manipulate and customize various aspects of the casework design without ever needing to load a type catalog ever again.

Such features include:

  • Quickly Manipulate Sizes
  • Toe Kick Options
  • Door Styles
  • Handle Types
  • Lock Options
  • Angled Top Options
  • Material Options

In addition, each model comes with a high level of information built in, including a worst-case budget price that dynamically updates as you manipulate the model within Revit. This allows the designer and client to quickly understand where the money is being spent. Also, within each model type, there are links to more detailed information should you need it. Having this level of flexibility combined with a high level of information is truly what BIM is meant to be.

ParameterValue
Standard Widths10"-108"
Minimum Width0.83333333
Maximum Width9
Standard Depths12"-18"
Minimum Depth1
Maximum Depth1.5
Standard Heights6"
Minimum Height.5
Maximum Height.5
ManufacturerSouthwest Solutions Group_HAM
Lead Time4-6 Weeks
Construction TypeFrameless cabinet construction w/ flush overlay fronts
Keynote12 32 16
Assembly CodeE2020
AuthorKBruxvoort
Toll Free Number1-800-803-1083
PropertyValue
EqualisNo
OmniaNo
SourcewellNo
SystecYes
VizientYes
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsNo
Primary MaterialLaminate
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 19 11 13
