07' Wide - Option 02 Break Room
Product SKU
SKU: SSG-BR07-2-L
Downloads
- 97 KB
Description
- Kit is designed to represent one common option used for Break rooms at this Height and Width

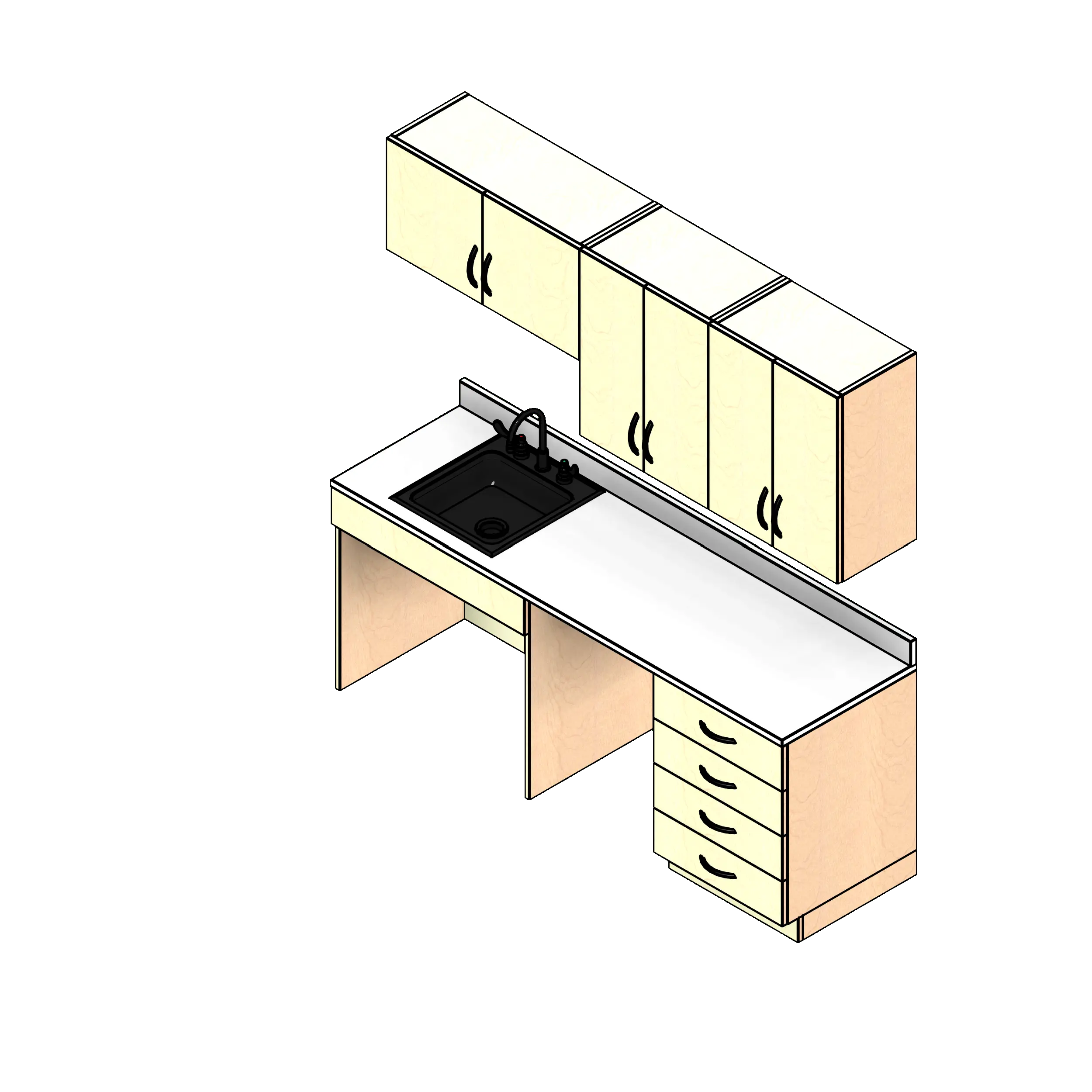

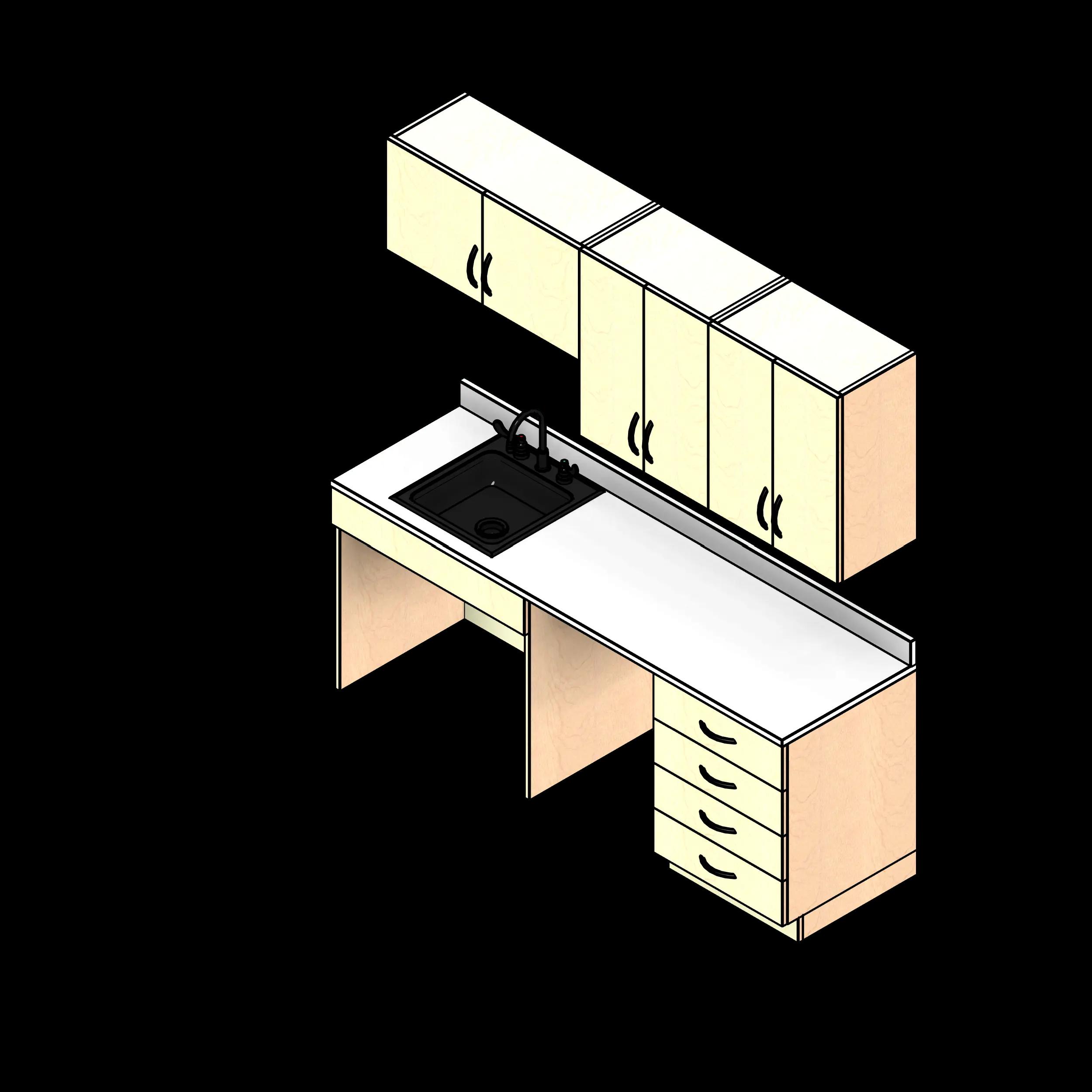

- Kit includes two base cabinets, three upper wall cabinets, one countertop with backsplash, and one sink with faucet.
- ADA accessible.
- Appliances are for visual representation only, NOT included in budget price
This 84 in. wide ADA-accessible laminate break room casework kit combines a 36 in. ADA sink base with a 24 in. multi-drawer base, giving staff handwashing, drawer storage, and wall cabinet storage within a 25 in. deep footprint. It suits business, education, and museum break rooms where a compact 7 ft. wide casework run needs both a sink and dedicated drawer space. The 84 in. high kit includes two 24 in. two-door wall cabinets, one 36 in. two-door wall cabinet, an 84 in. laminate countertop with backsplash, a single-bowl stainless steel sink with faucet ledge, and a deck-mounted chrome-plated brass faucet. Cabinets use 3/4 in. industrial-grade, double-faced melamine substrate with 2 mm PVC edge banding, and the work surface is 1 1/16 in. high-pressure laminate. Appliances shown are for visual representation only and are not included in the budget price.
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Dimensions | |
|---|---|
| Width | 84" |
| Depth | 25" |
| Height | 84" |
| Product | |
| Primary Material | Laminate |
| Room Type | Break Room |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-21 19 11 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | No |
| Configurable options |
|
