09' Wide - Option 01 Exam Room
Product SKU
SKU: SSG-EX09-1-L
Downloads
- 102 KB
Description
- Kit is designed to represent one common option used for Exam rooms at this Height and Width
- Kit includes three base cabinets, three upper wall cabinets, one countertop with backsplash, and one sink with faucet.
- Not ADA accessible.

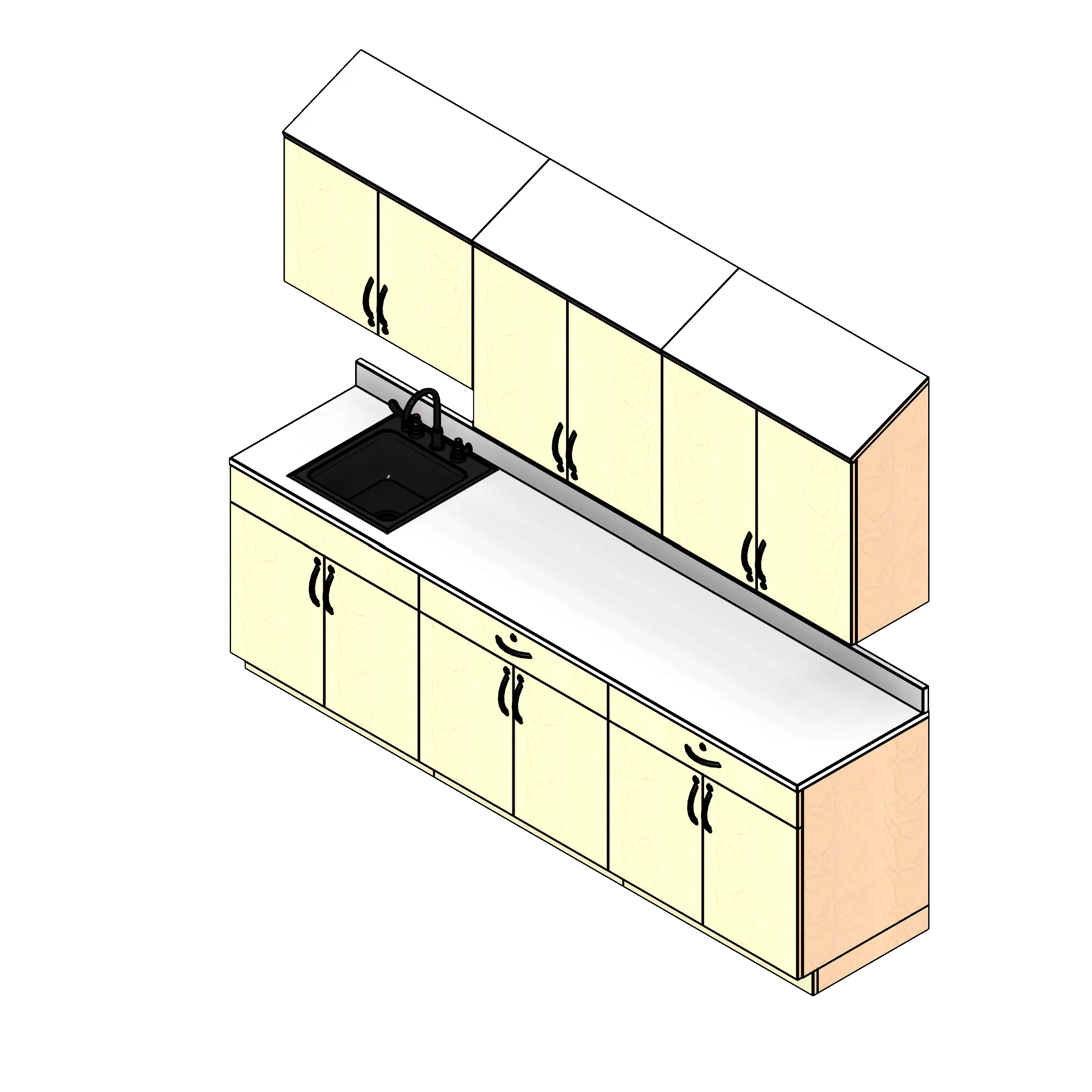

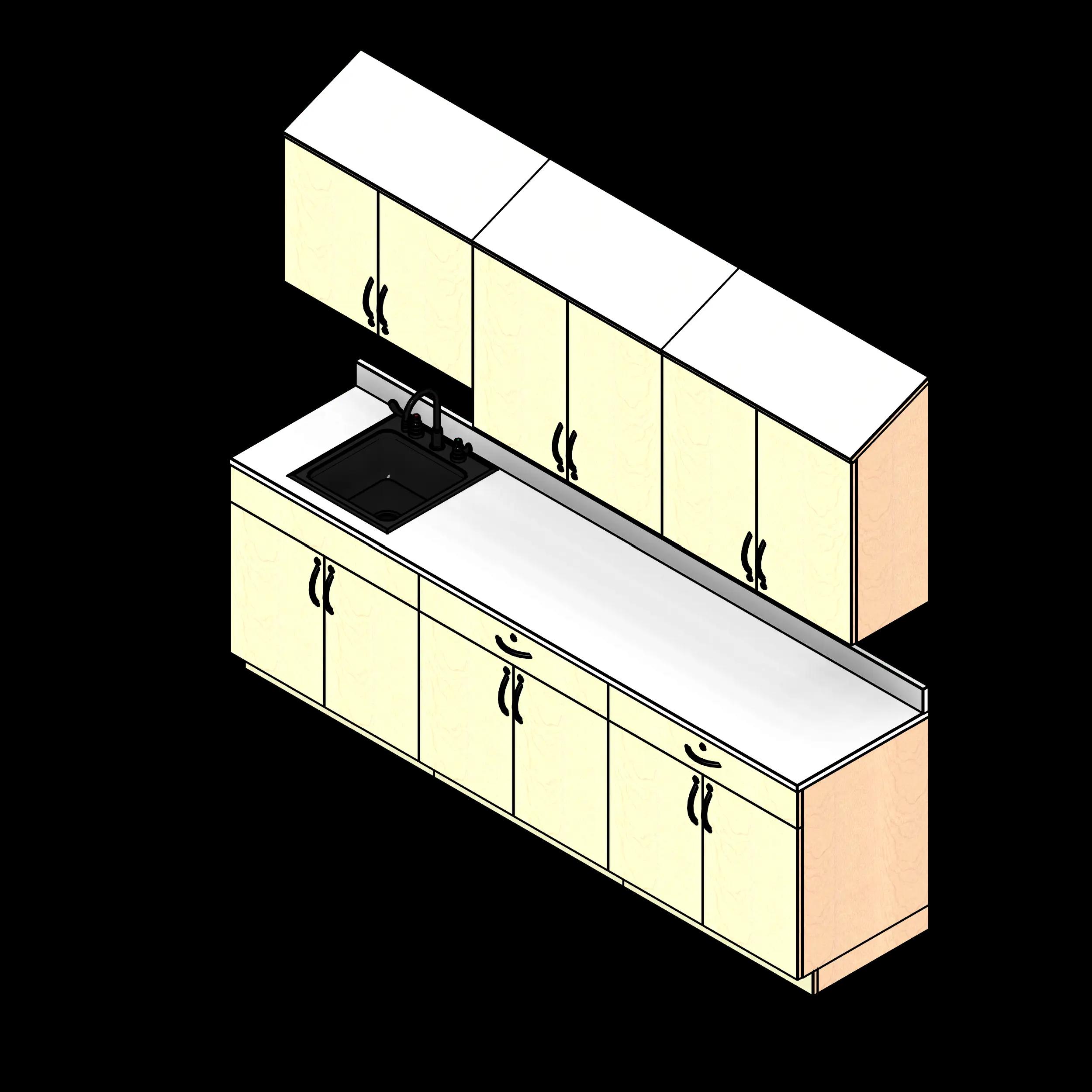

This 108-inch-wide laminate exam room casework kit provides a single sink station plus two 36-inch two-door, one-drawer base cabinets for projects that need drawer storage and enclosed storage along one 25-inch-deep wall. Three 36-inch two-door wall cabinets add upper storage above the 108-inch laminate countertop with backsplash, while the 36-inch two-door sink base cabinet keeps the sink within the same continuous run. The kit includes a single-bowl stainless steel sink with faucet ledge and a laboratory deck-mounted chrome-plated brass faucet. At 84 inches high, it represents a common exam-room configuration for healthcare, education, or business interiors. This option is not ADA accessible.
System Overview
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Dimensions | |
|---|---|
| Width | 108" |
| Depth | 25" |
| Height | 84" |
| Product | |
| Primary Material | Laminate |
| Room Type | Exam Room |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-21 19 11 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Configurable options |
|
