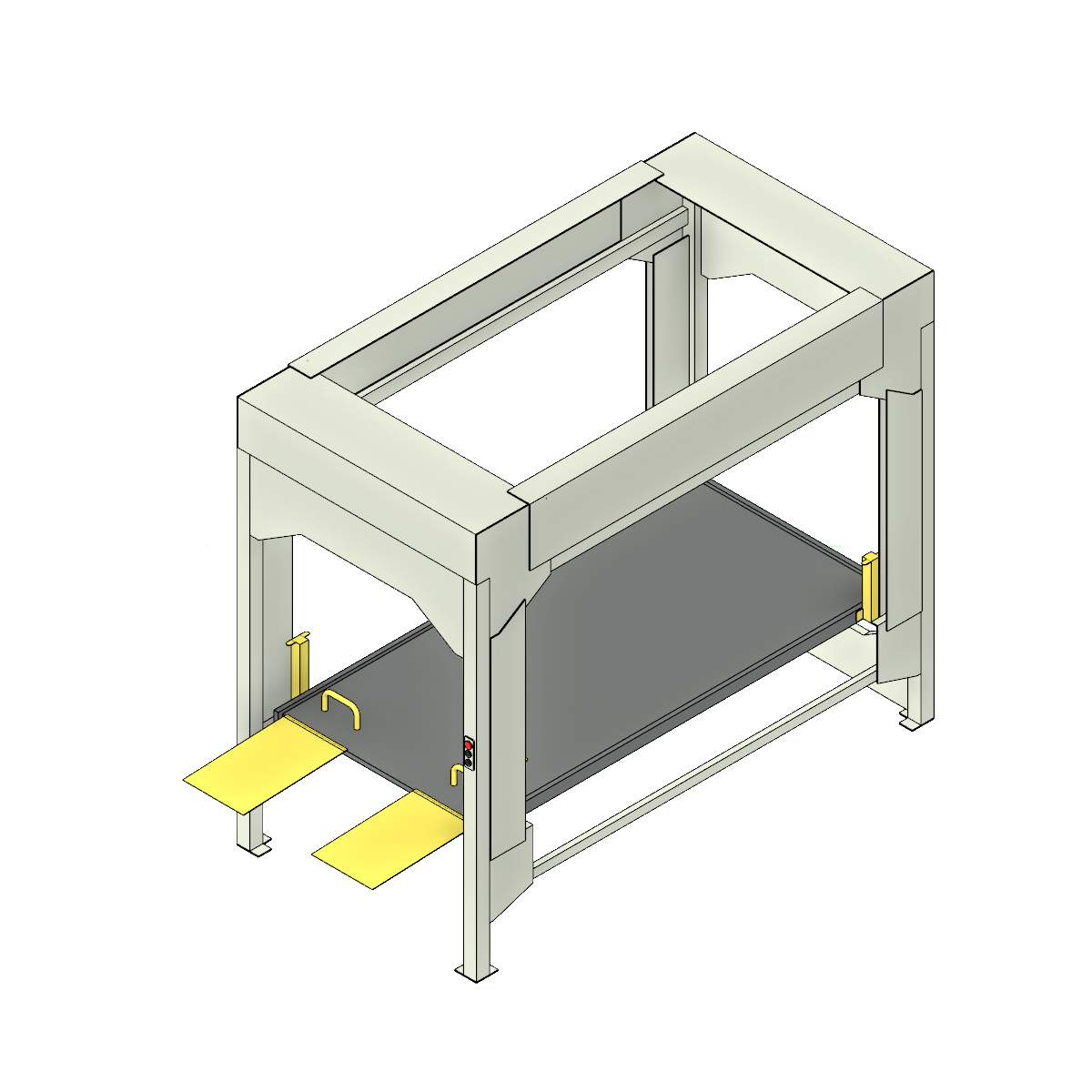

Side Load Hospital Bed Lift Stacker
Product SKU
Downloads
- 2.6 MB
- 268 KB
Description
- Engineered for hospitals and rehab centers with side-access storage rooms
- Stores 2–5 beds vertically (up to 1,000 lbs per platform)
- Side-load configuration for easy lateral handling

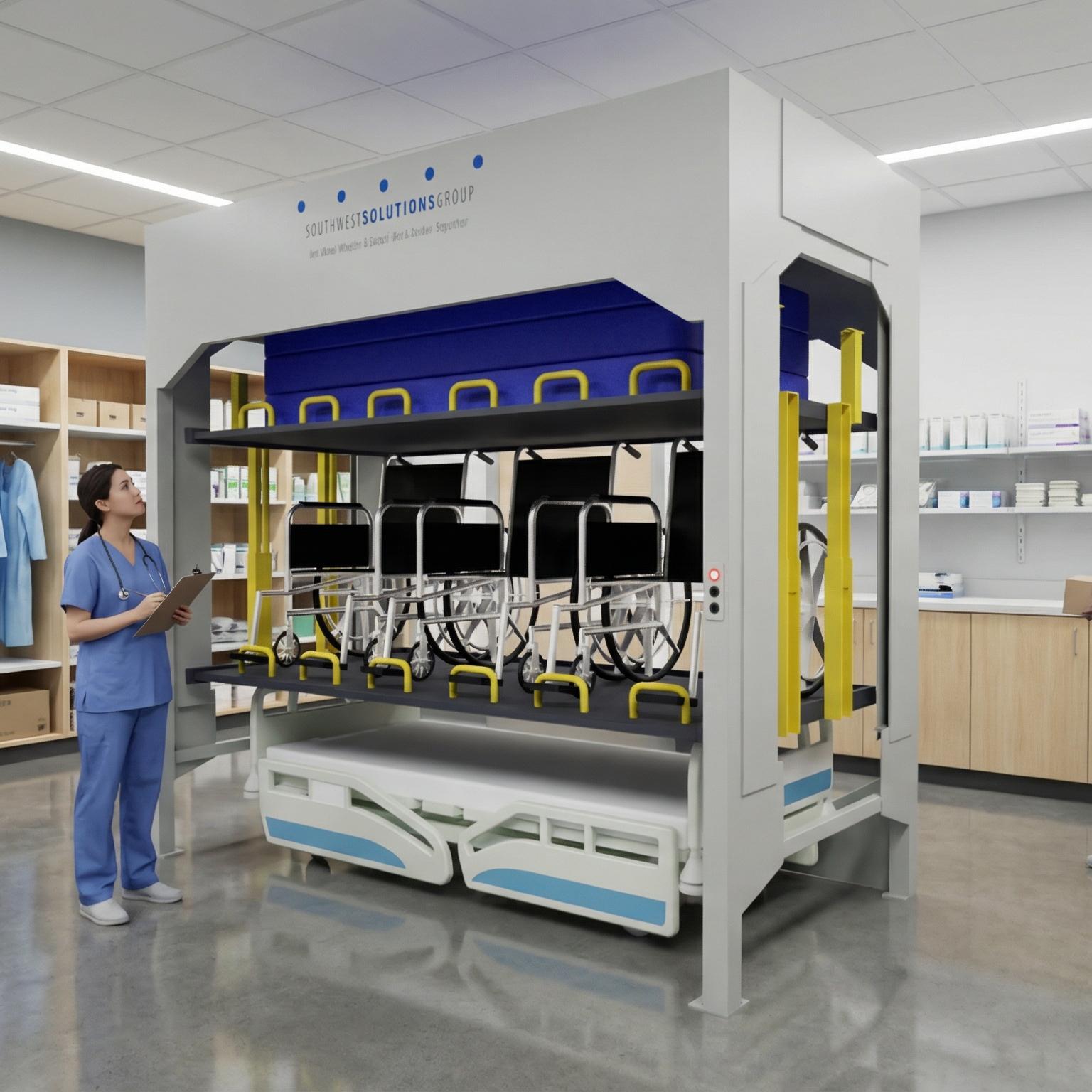

- Convertible storage for hospital beds, carts, and wheelchairs
Universal Storage Lift - Side Load

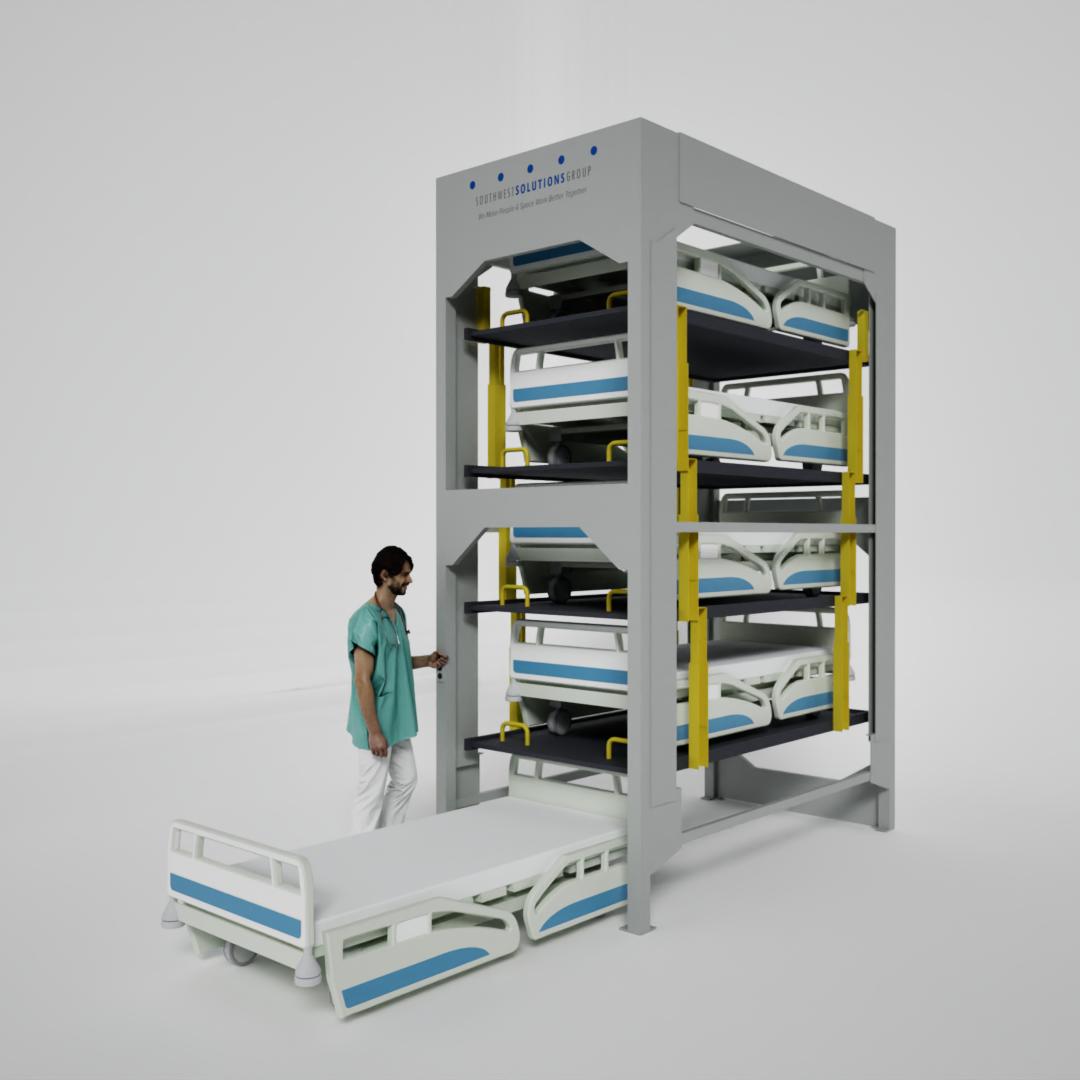

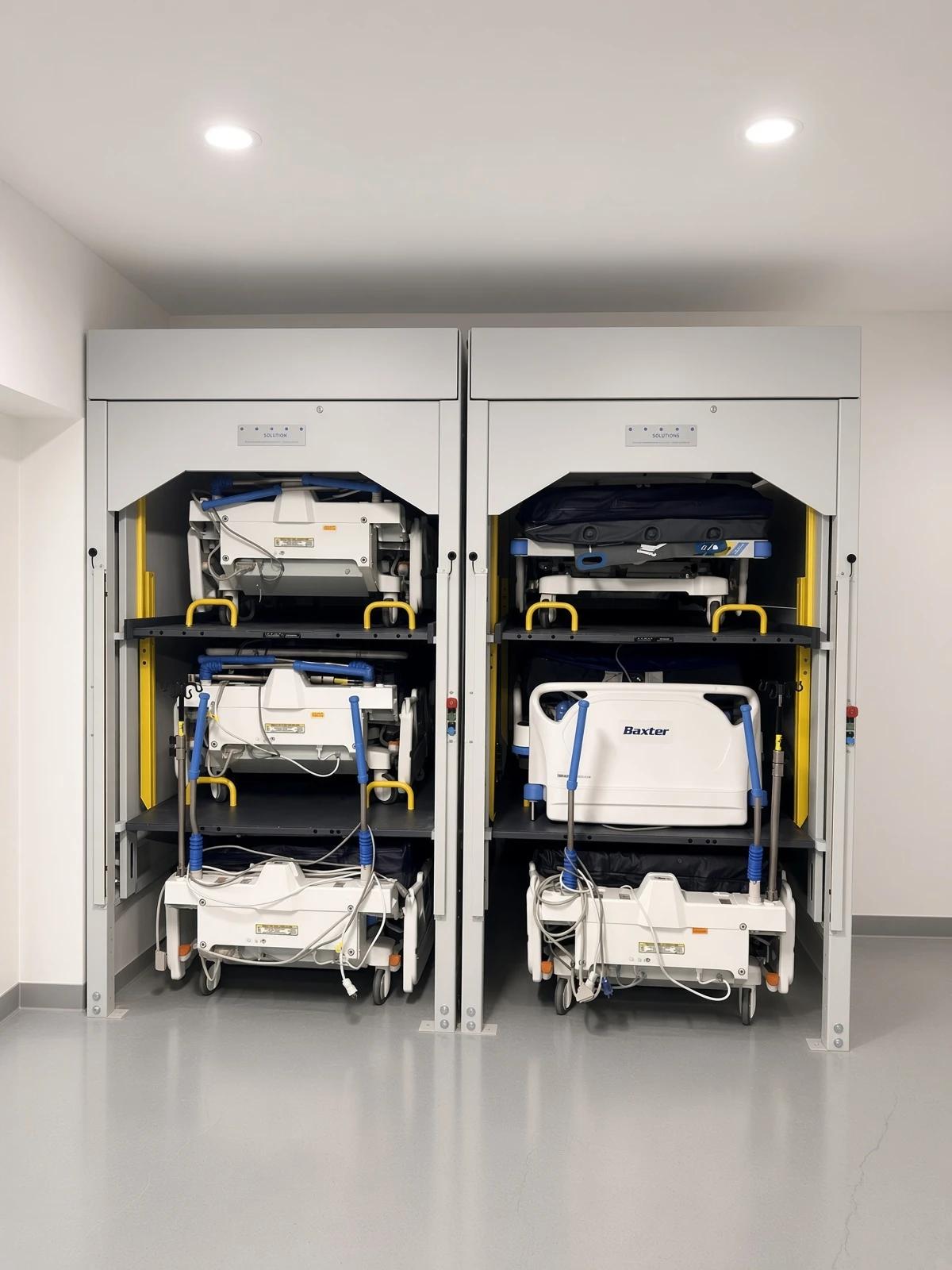

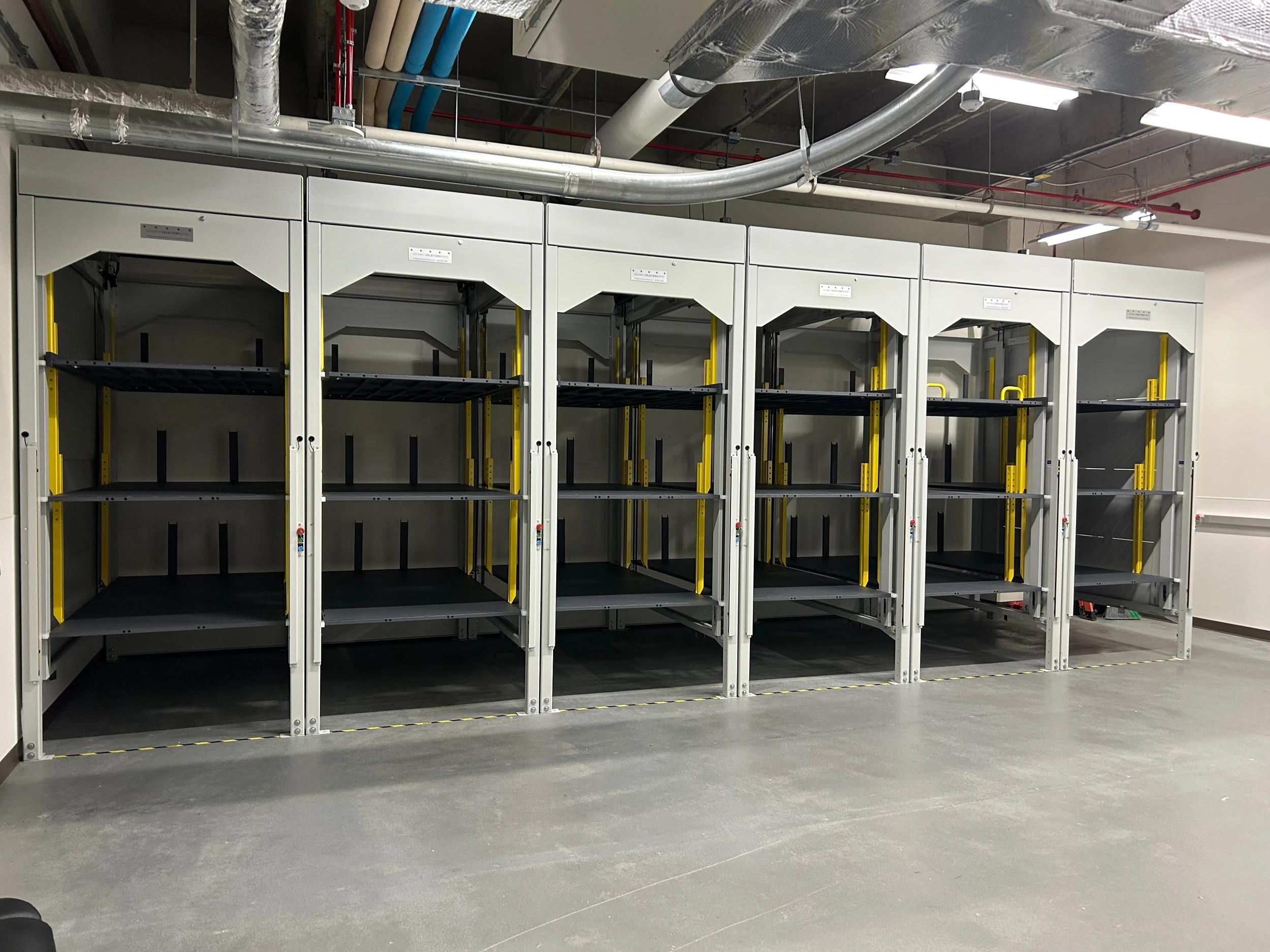

The Hospital Bed Stacker efficiently utilizes vertical space, freeing up valuable floor areas and ensuring compliance with Joint Commission and OSHA guidelines. This robust system accommodates 2–5 beds, each weighing up to 1,000 lbs, with adjustable platforms that can be spaced between 24" and 36" to fit various bed types. It offers front or side loading for flexibility and includes features like seismic-rated anchoring, adjustable wheel chocks, loading ramps, and a safety curtain for operator protection. With backlit controls and a keyed emergency stop, it ensures ease of use and safety. The lift is engineered for quick installation, typically completed in one day, and is proudly built in the USA. It stands out from competitors by offering a convertible system for beds, carts, and wheelchairs, making it a versatile choice for hospitals, rehab centers, and other medical facilities looking to enhance space efficiency, safety, and operational effectiveness.
| Dimensions | |
|---|---|
| Width | 55" |
| Depth | 105" |
| Height | 89", 100", 127", 150" |
| Maximum Bed Width | 95" |
| Maximum Bed Depth | 44 1/2" |
| Maximum Bed Height | 26" |
| Product | |

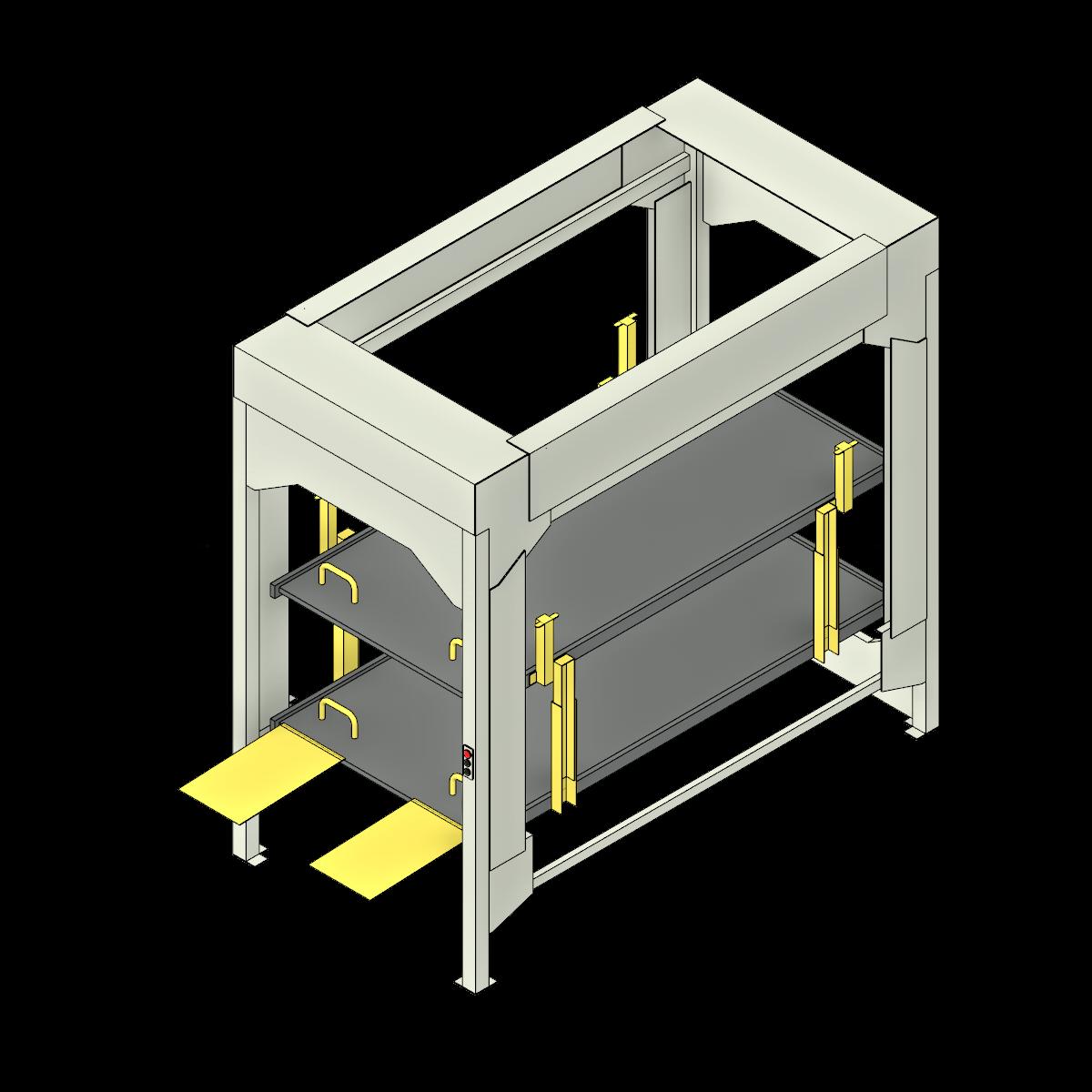

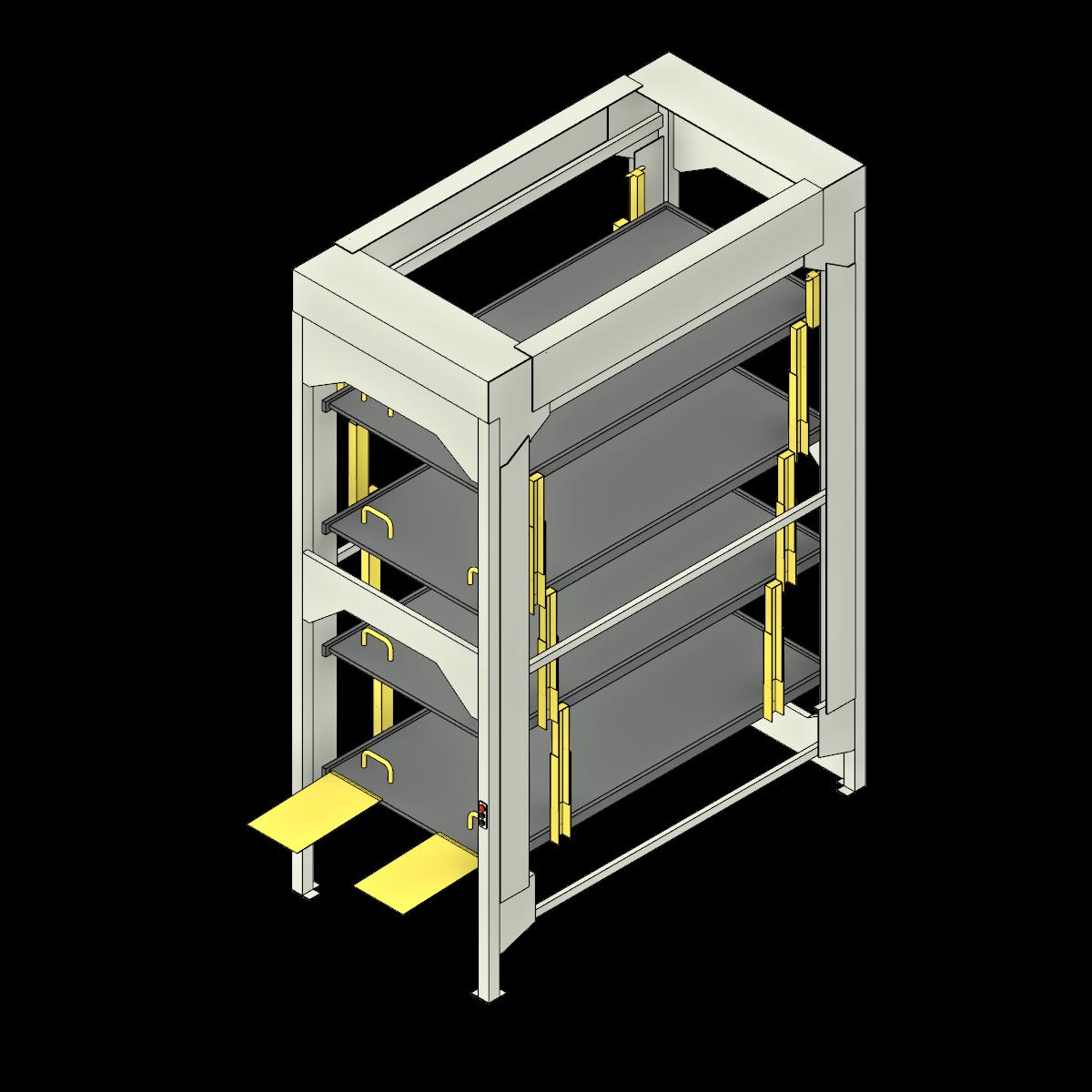

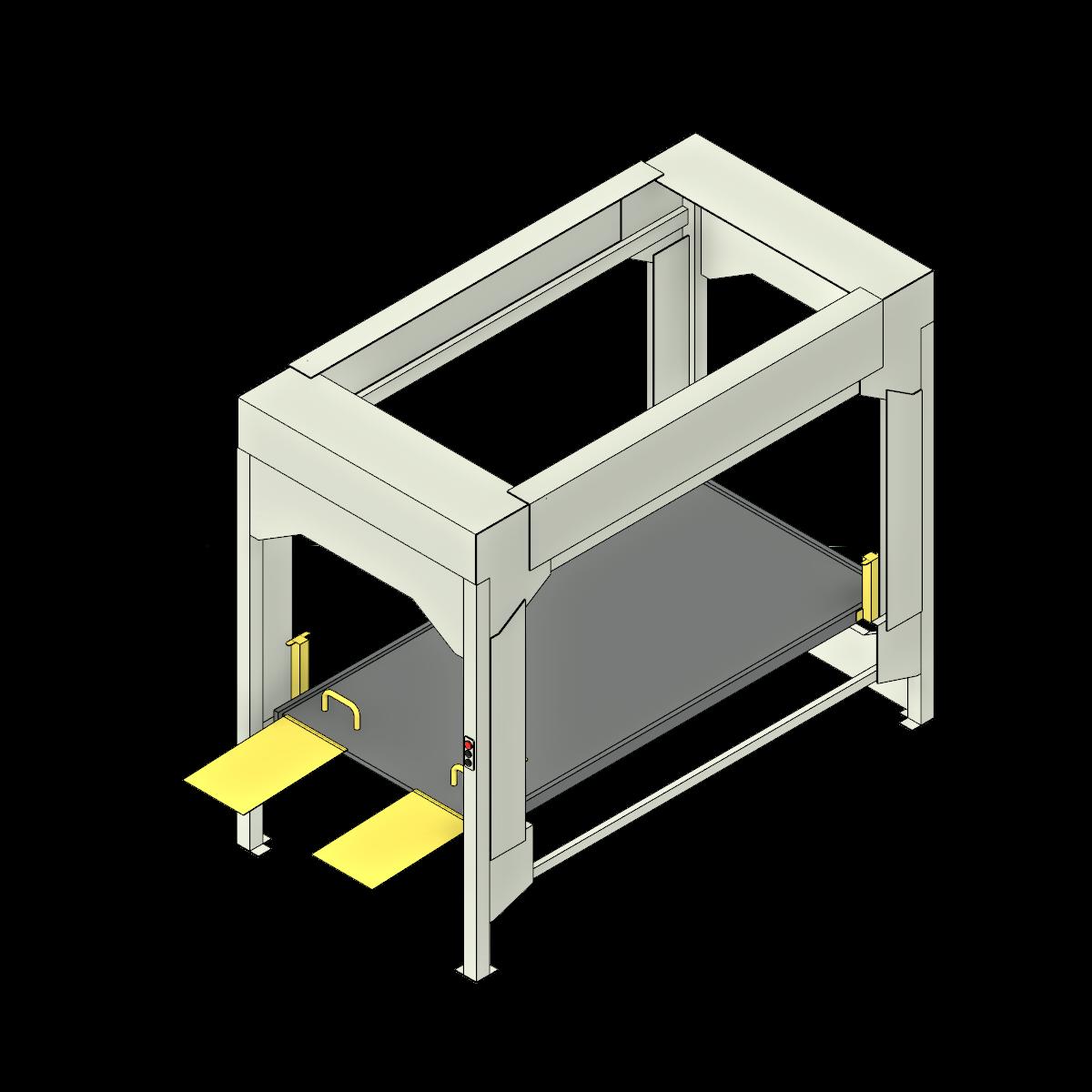

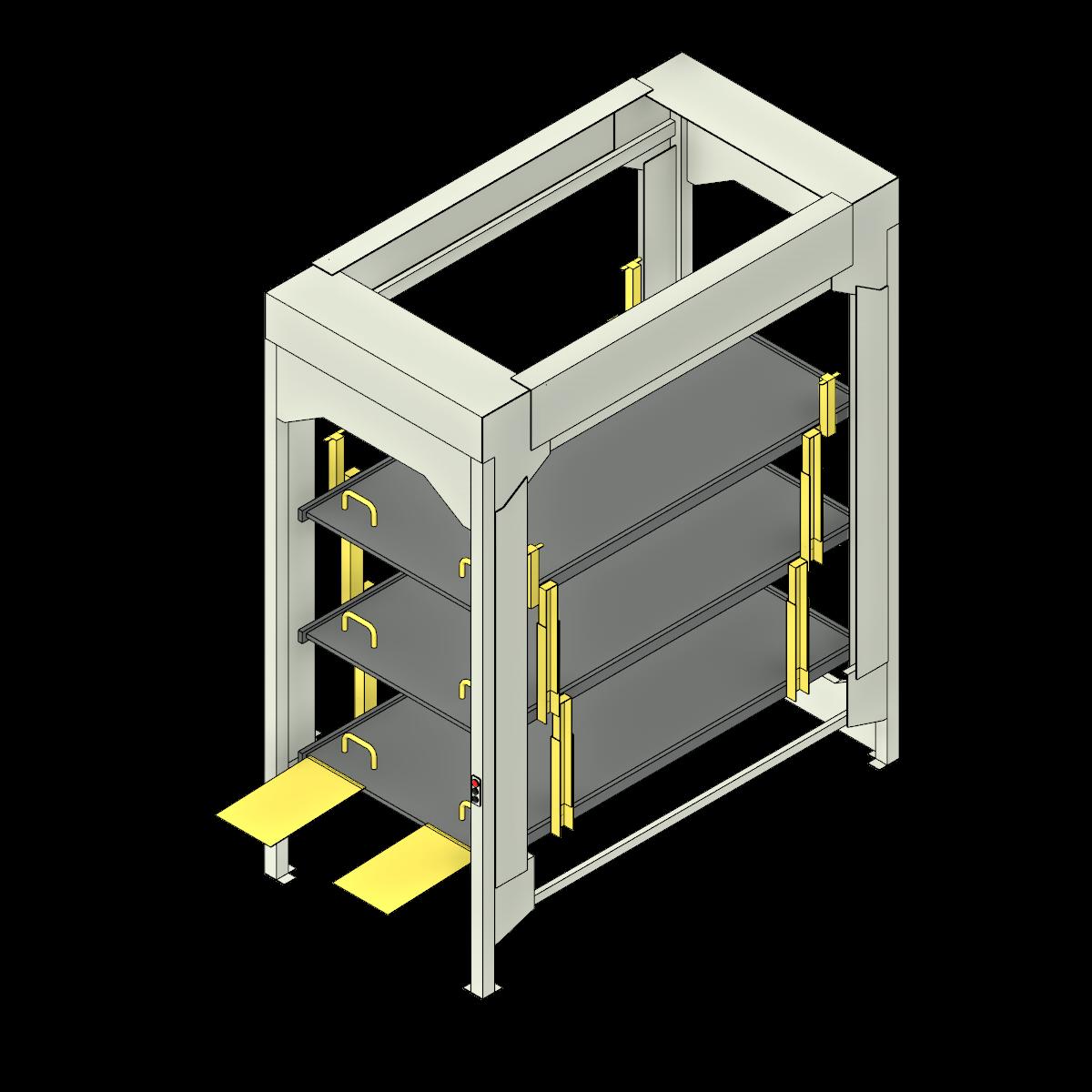

| Number of Levels | 2, 3, 4, 5 |
| Platform Clearance | 24" - 36" (3" increments) |
| Electrical Specification | 110V, 1PH, 15 Amp -OR- 220V, 1PH, 10 Amp |
| Lifting Speed | max. 11.7 seconds per position |
| Weight Capacity | 1000 lbs per position |
| Manufacturer | Southwest Solutions Group_LNS |
| Model | S |
| Primary Material | Powder coated steel |
| slug | hospital-bed-stacker-lift-storage-vertical-side-load |
| Classification | |
| MasterFormat | 10 56 29.16 – Pallet Storage Racks |
| UniFormat | E1040.20 – Healthcare Equipment |
| IFC | Furniture |
| OmniClass | 23-21 11 11 15 |
| Purchasing | |
| Contracts | Vizient, Systec |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | Yes |
| Includes Sustainability | No |
