09' Wide - Option 09 Exam Room
Product SKU
SKU: SSG-EX09-9-L
Downloads
- 126 KB
Description
- Kit is designed to represent one common option used for Exam rooms at this Height and Width
- Kit includes two base cabinets, two upper wall cabinets, one roll up desk, two countertop with backsplash, and one sink with faucet.
- Not ADA accessible.

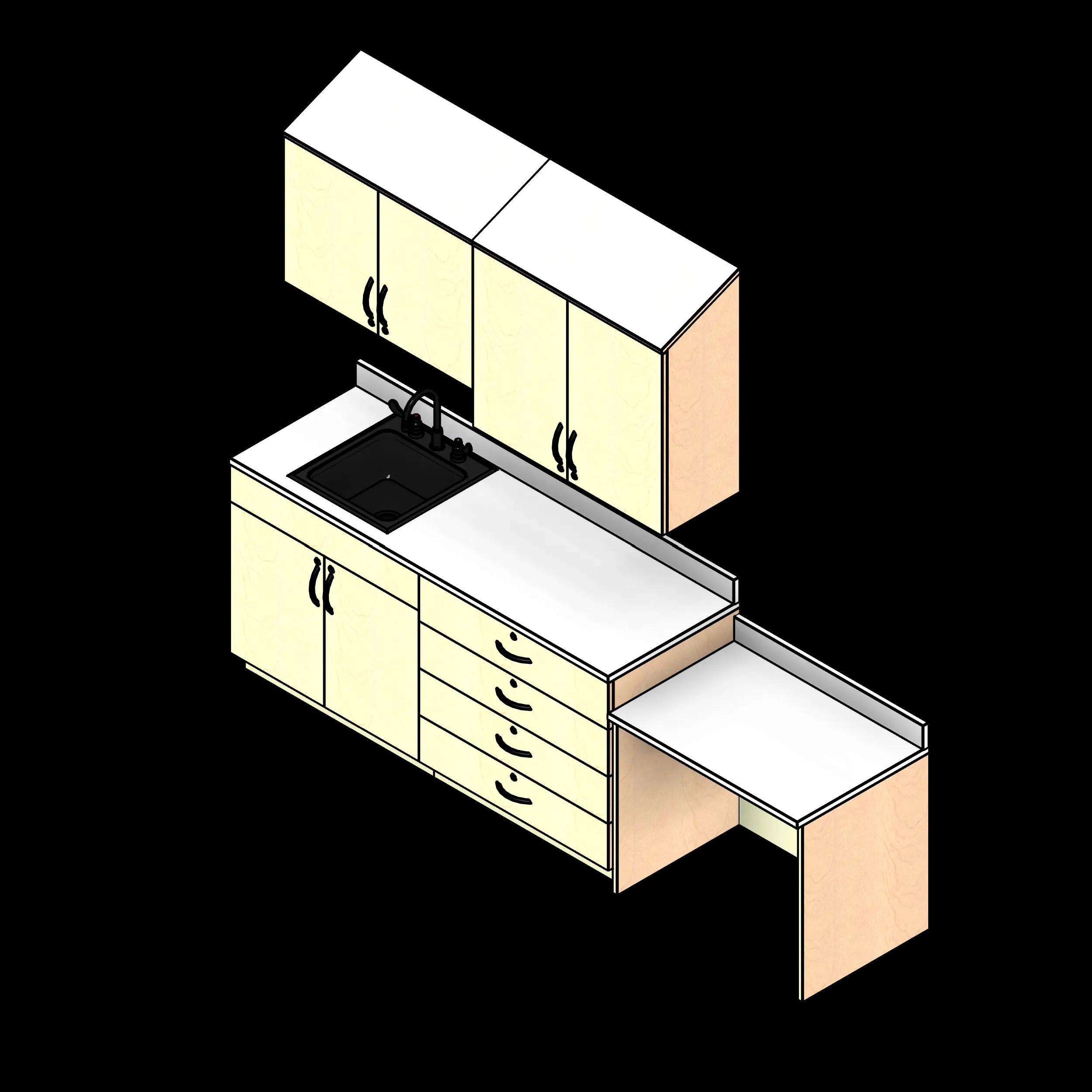

09' Wide - Option 09 Exam Room is a 108-inch-wide laminate casework kit for exam rooms that combines sink storage, drawer storage and an open knee space in one 25-inch-deep run. The kit includes two 36-inch-wide two-door wall cabinets, a 36-inch two-door sink base cabinet, a 36-inch multi-drawer base cabinet and a 36-inch open knee-space base cabinet, giving clinicians a seated work position alongside enclosed and drawer-based storage. A 36-inch and a 72-inch laminate countertop create two countertop sections with backsplashes. The kit also includes a single-bowl stainless steel sink with faucet ledge and a laboratory deck-mounted chrome-plated brass faucet. At 84 inches high, it represents a common 9-foot-wide exam room option where a sink, supplies and a dedicated knee-space work area need to fit along one wall. This configuration is not ADA accessible. Download the free Revit family.
System Overview
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Dimensions | |
|---|---|
| Width | 108" |
| Depth | 25" |
| Height | 84" |
| Product | |
| Primary Material | Laminate |
| Room Type | Exam Room |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-21 19 11 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Configurable options |
|
