09' Wide - Option 05 Break Room Revit model group
09' Wide - Option 05 Break Room Revit model group
Updated Jul 31, 2018

09' Wide - Option 05 Break Room

Product SKU

SKU: SSG-BR09-5-L

Downloads

Model group
Pricing

Description

  • Kit is designed to represent one common option used for Break rooms at this Height and Width
  • Kit includes three base cabinets, three upper wall cabinets, one countertop with backsplash, and one sink with faucet.
  • Not ADA accessible.
  • Appliances are for visual representation only, NOT included in budget price

Questions about this product?

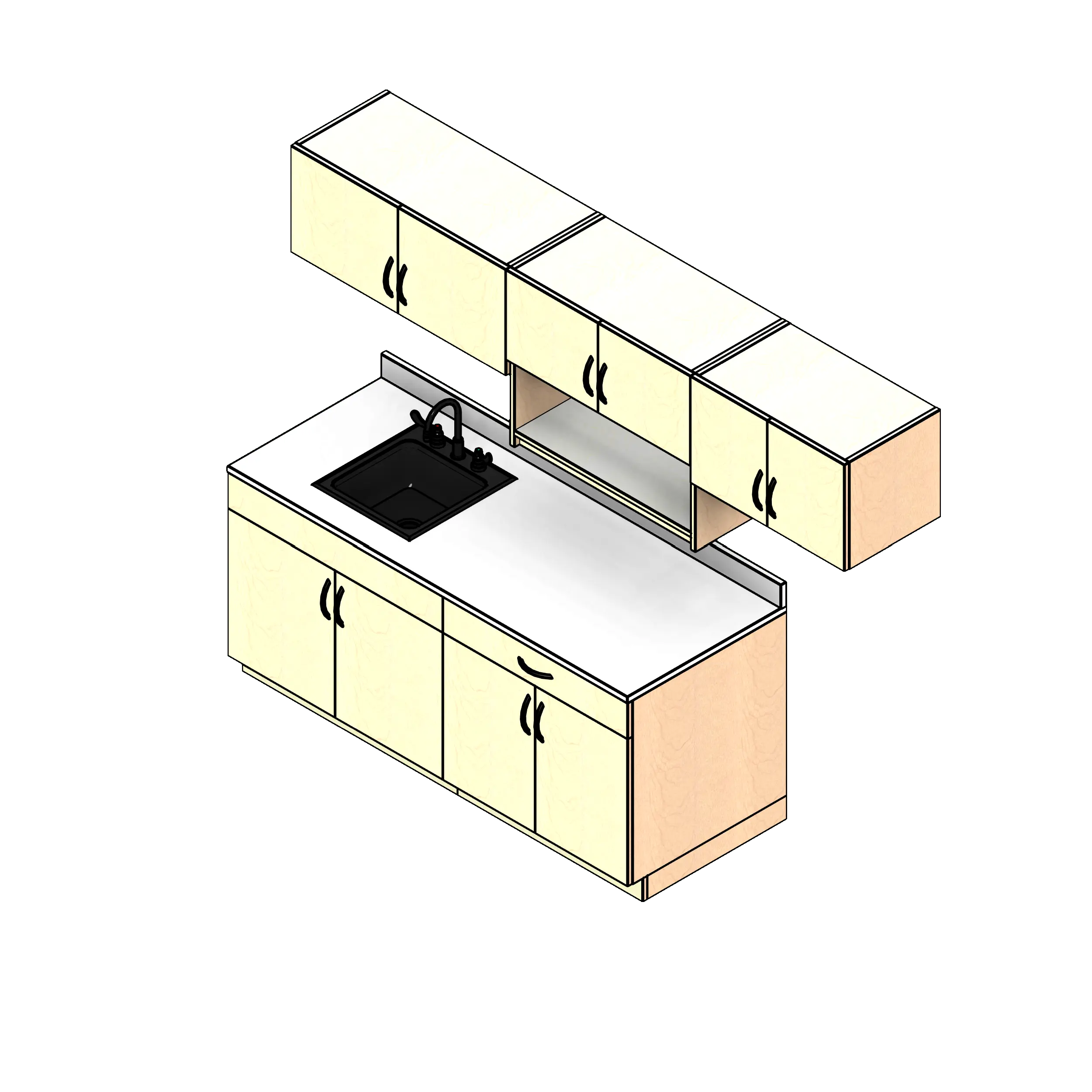

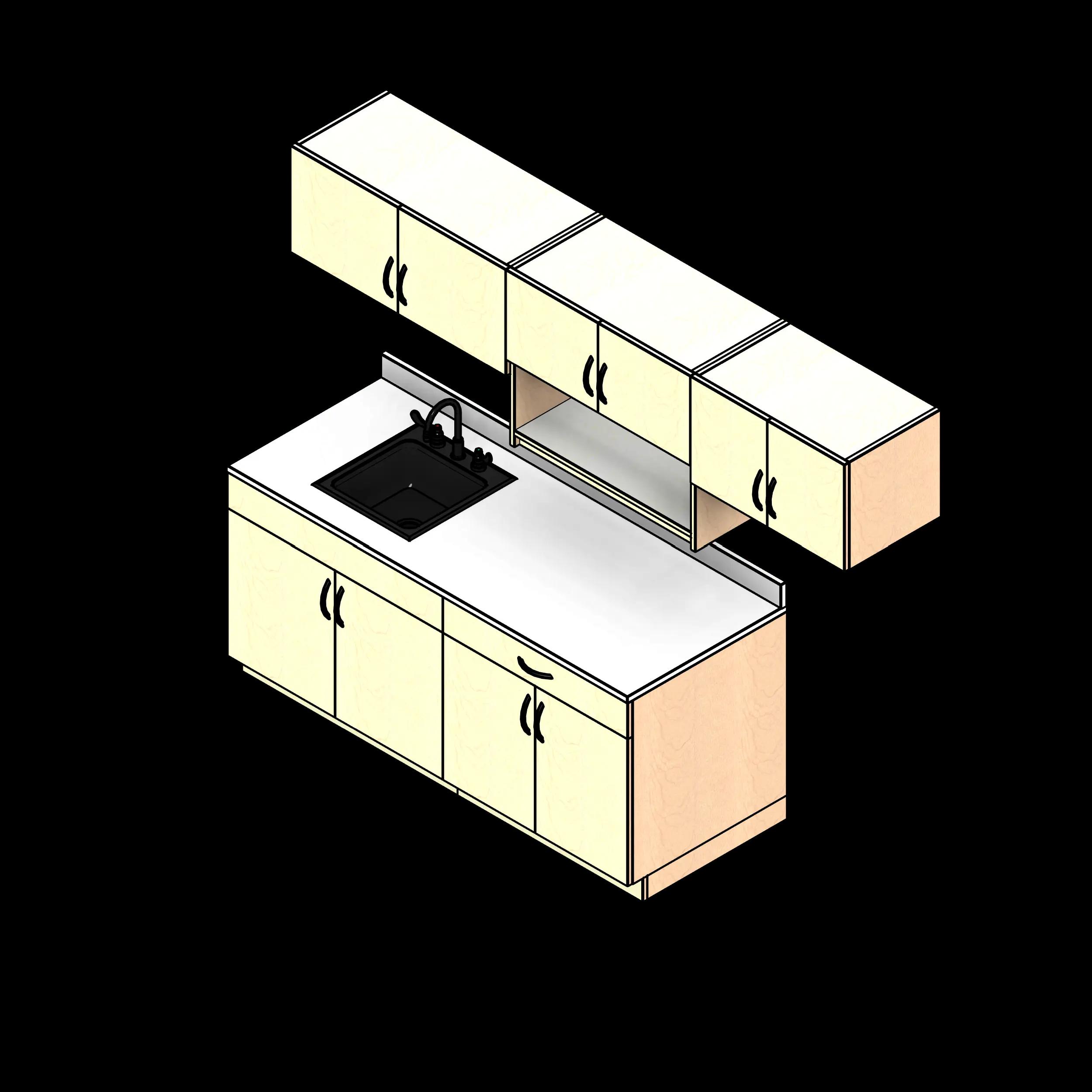

This 9 ft wide break room casework kit combines a 36 in. two-door, one-drawer base cabinet with two closed wall cabinets and a 36 in. open wall cabinet for break rooms that need both concealed and readily accessible storage. The 108 in. wide, 25 in. deep, and 84 in. high arrangement serves business, education, and museum break room layouts while keeping the sink, storage, and upper cabinets in one coordinated model group. The kit includes a 42 in. two-door sink base cabinet, 30 in. and 42 in. two-door wall cabinets, a 36 in. two-door open wall cabinet, a 78 in. laminate countertop with backsplash, a single-bowl stainless steel sink with faucet ledge, and a laboratory deck-mounted chrome-plated brass faucet. Cabinets use 3/4 in. industrial-grade, double-faced melamine substrate with 2 mm PVC edge banding, hidden cam fasteners, and rail mounting. The work surface is 1 1/16 in. high-pressure laminate. Lock options, multiple pull options, an optional angled top, and an optional side splash are available. This configuration is not ADA accessible, and appliances shown are for visual representation only and are not included in the budget price.

Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.

Design

  • Multiple pull options
  • Angled top is optional
  • Counter can be equipped with side splash if necessary
  • Lock options available
Specifications
Dimensions
Width108"
Depth25"
Height84"
Product
Primary MaterialLaminate
Room TypeBreak Room
Classification
IFCFurniture
OmniClass23-21 19 11
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Configurable options
  • Door
  • Handle
  • Kick plate
  • Locks
  • Top of cabinet
  • Angled top
  • Back splash
