Vertical Drawer Cabinets Industrial Furniture
Product SKU
Description
- Vertical drawer cabinets are most commonly found in industrial settings to keep items organized and securely stored
- These drawers come with a wide variety of configurations allowing it to be a customizable family
Family
Pricing

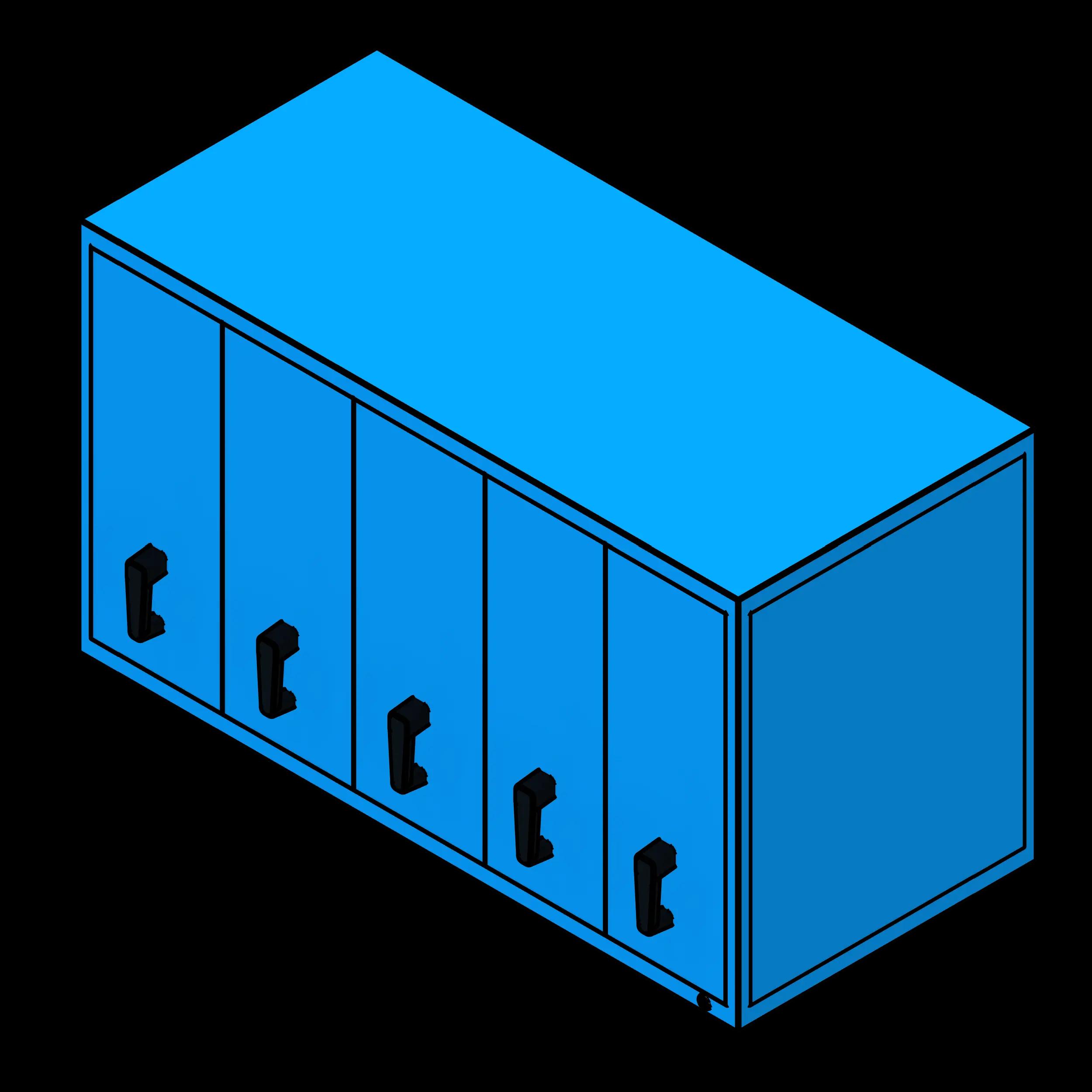

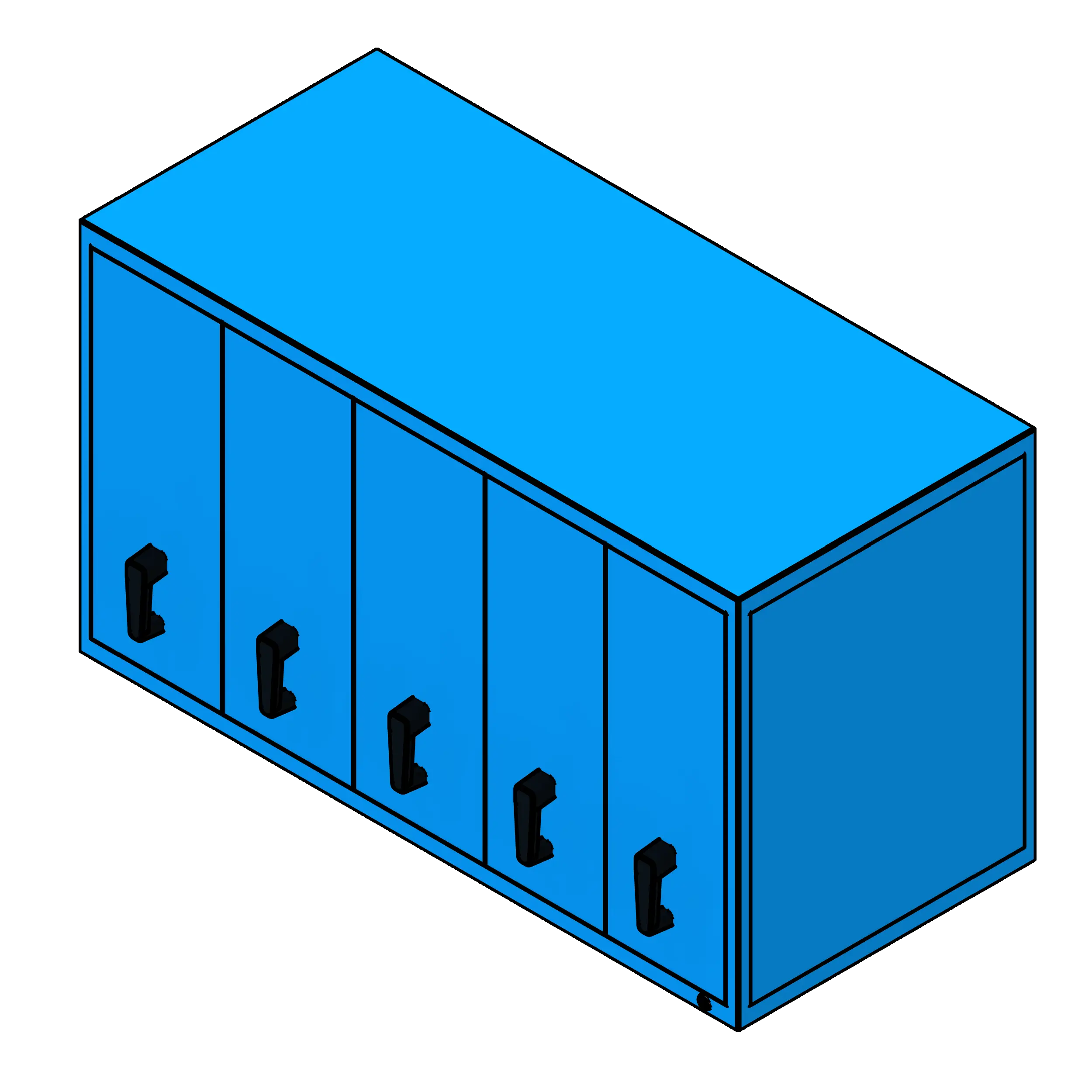

Vertical Drawer Cabinets
This drawer cabinet family includes 8 vertical drawers that will allow to build the best configuration based on your needs. To use this family, insert it into your project from the Fetch app, then click on the model. In the properties browser under dimensions, enter your desired width and height and choose between the two different depths. The drawer configuration options can be found under Model Properties. Use ENTER_Number of Drawers to specify the number of drawers desired from no drawers up to eight. TOTAL_Drawer Space will tell you how much space is available for drawers, and REMAINING_Drawer Space calculates how much space is remaining, or not remaining, for additional drawers. A negative value in this parameter indicates that too many drawers are selected. Finally, use the ENTER_Drawer # Width parameters to assign the individual drawer width.
Parameter | Value |
---|---|
Standard Widths | 24", 30", 36", 42", 48", 54", 60" |
Minimum Width | 2 |
Maximum Width | 5 |
Standard Depths | 24", 27" |
Minimum Depth | 2 |
Maximum Depth | 2.25 |
Standard Heights | 30", 34", 38" |
Minimum Height | 2.5 |
Maximum Height | 3.16666666666667 |
Manufacturer | Southwest Solutions Group_ROU |
Lead Time | 3-4 Weeks |
Model | RL |
Assembly Code | E2020 |
Author | AZuniga |
Toll Free Number | 1-800-803-1083 |
Property | Value |
---|---|
Includes Pricing | Yes |
ADA Compliant | No |
Has MEP Connectors | No |
Includes Sustainability | Yes |
Primary Material | Powder coated steel |
BIMobject Category | Furniture: Shelving & Storage |
IFC | Furniture |
