Product SKU
Description
- Choose number of tiers from within our free 5D Revit Model
- Option to ship pre-assembled
- Framed welded wire provides strength and stability
- Pricing included in model
Revit 2020 (0.60 MB)
Revit 2021 (0.60 MB)
Revit 2022 (0.60 MB)
Revit 2023 (0.60 MB)
Revit 2024 (0.60 MB)
Revit 2025 (0.60 MB)
Revit 2026 (0.60 MB)
(0.02 MB)
(2.78 MB)
(0.31 MB)
(0.34 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.

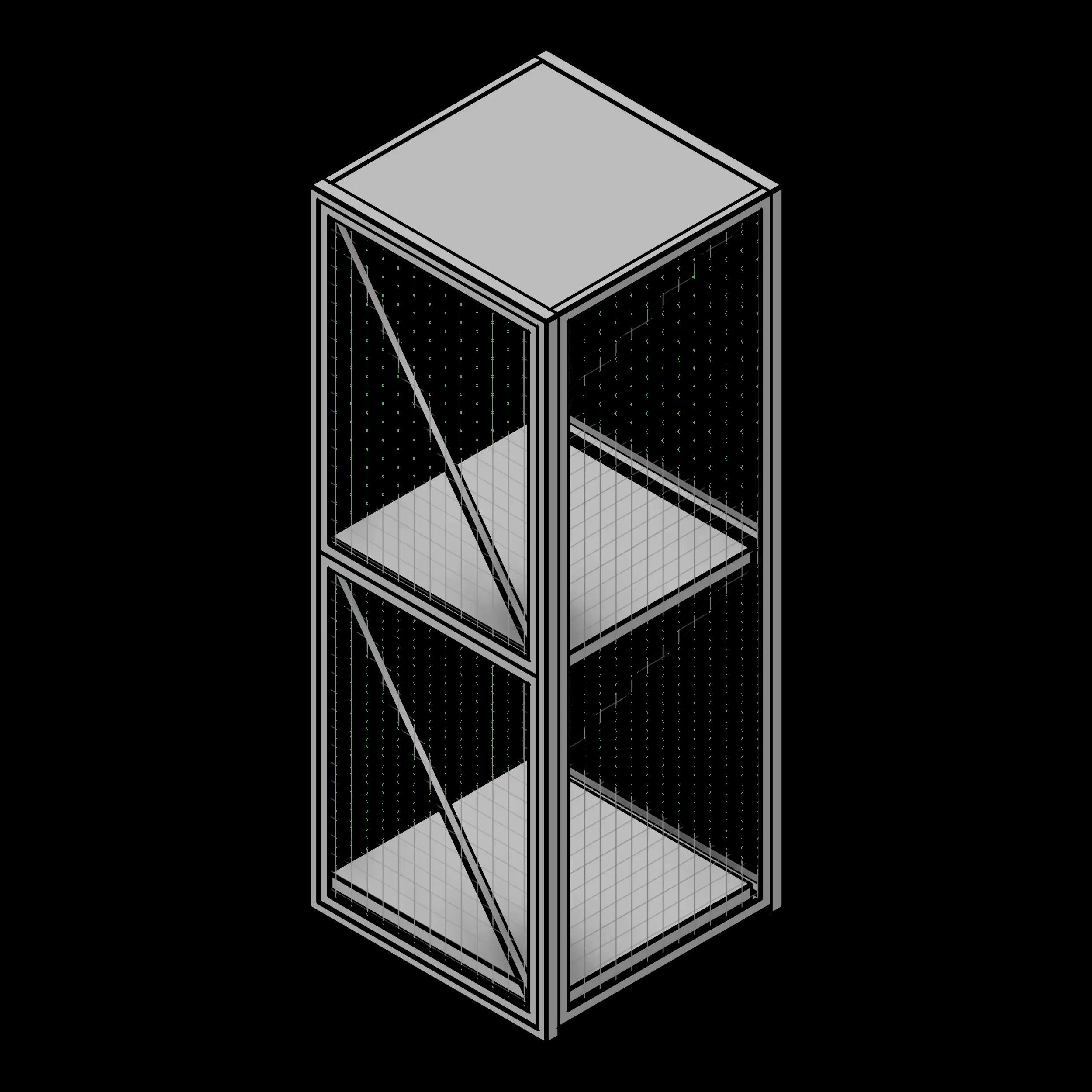

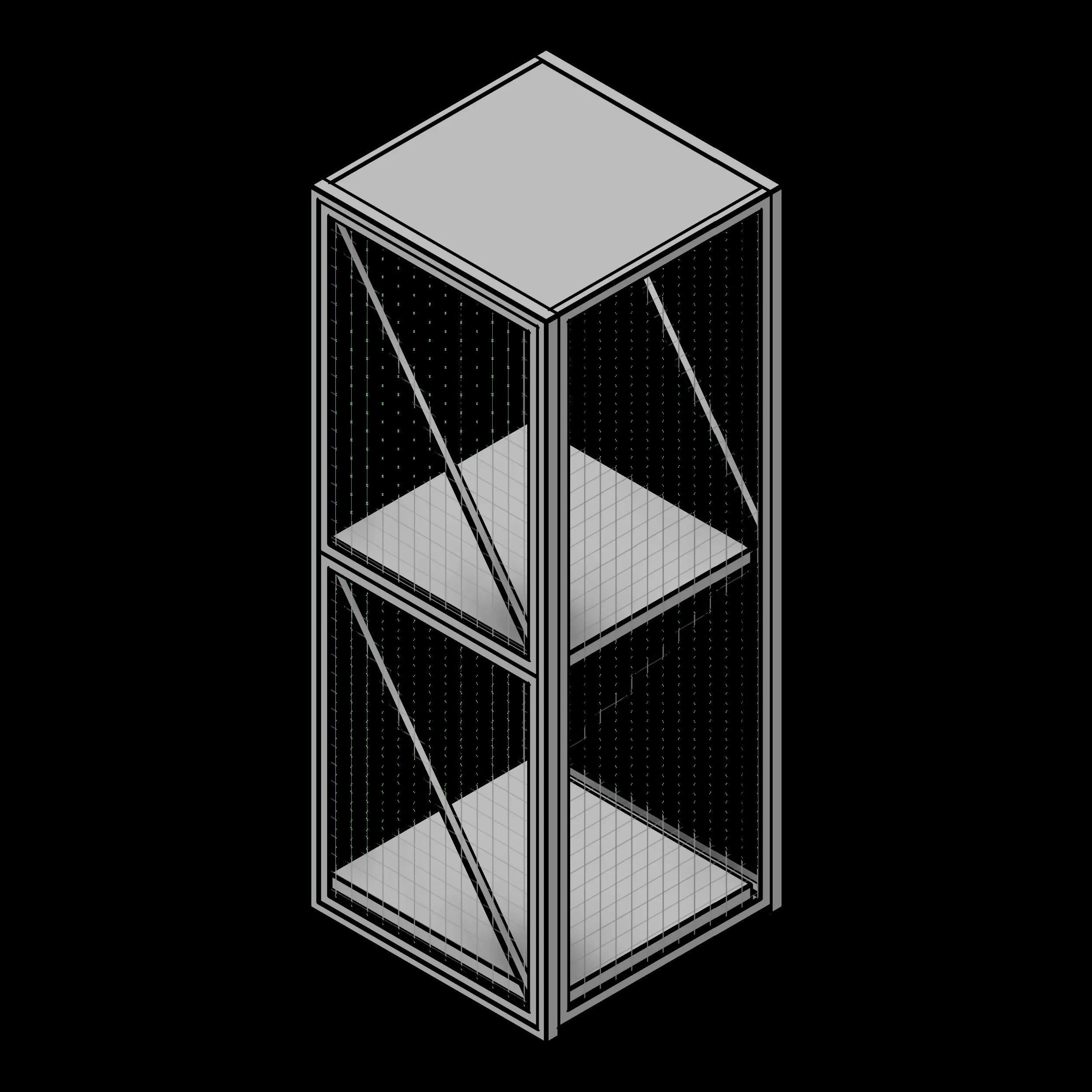

Wire Pass-Through Storage Locker

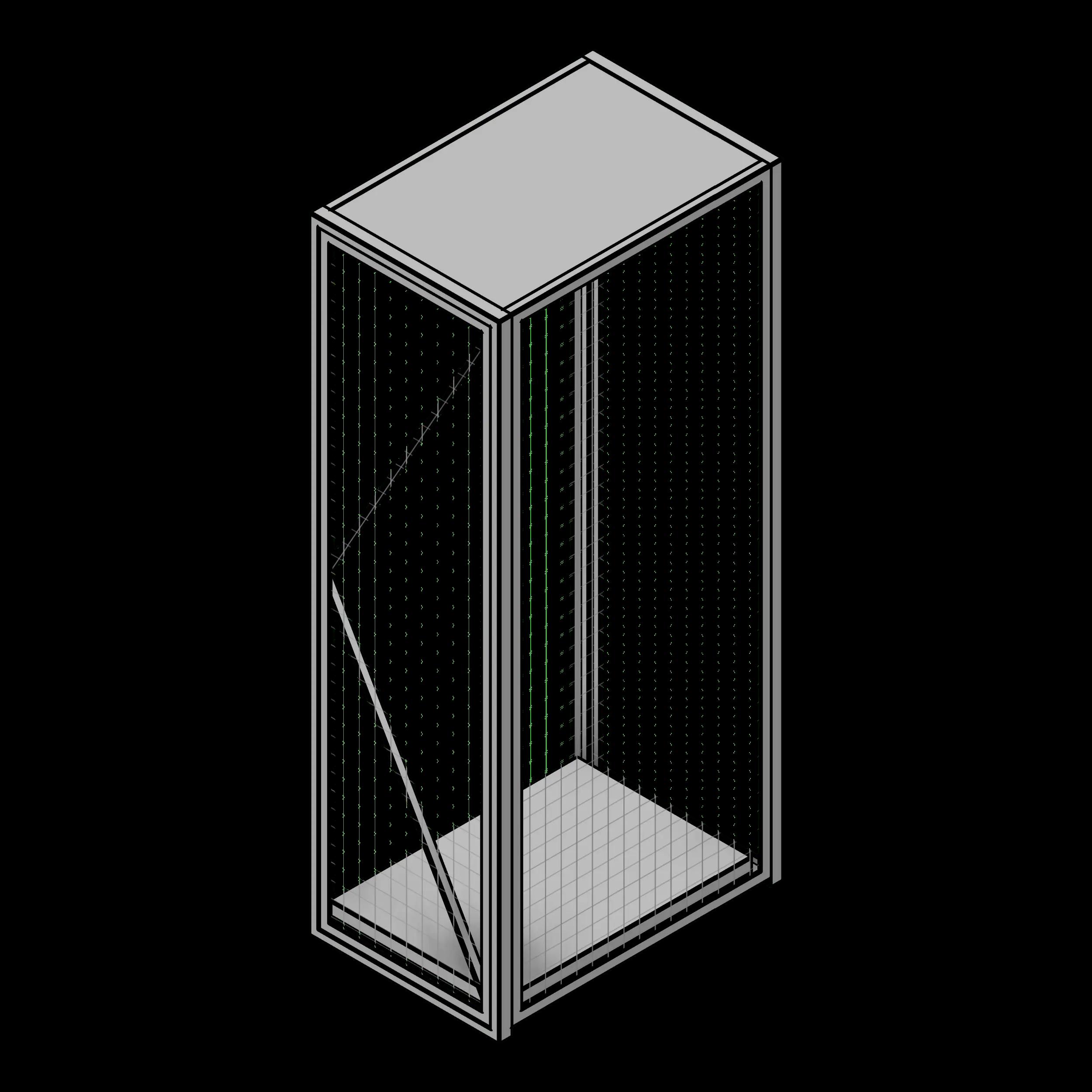

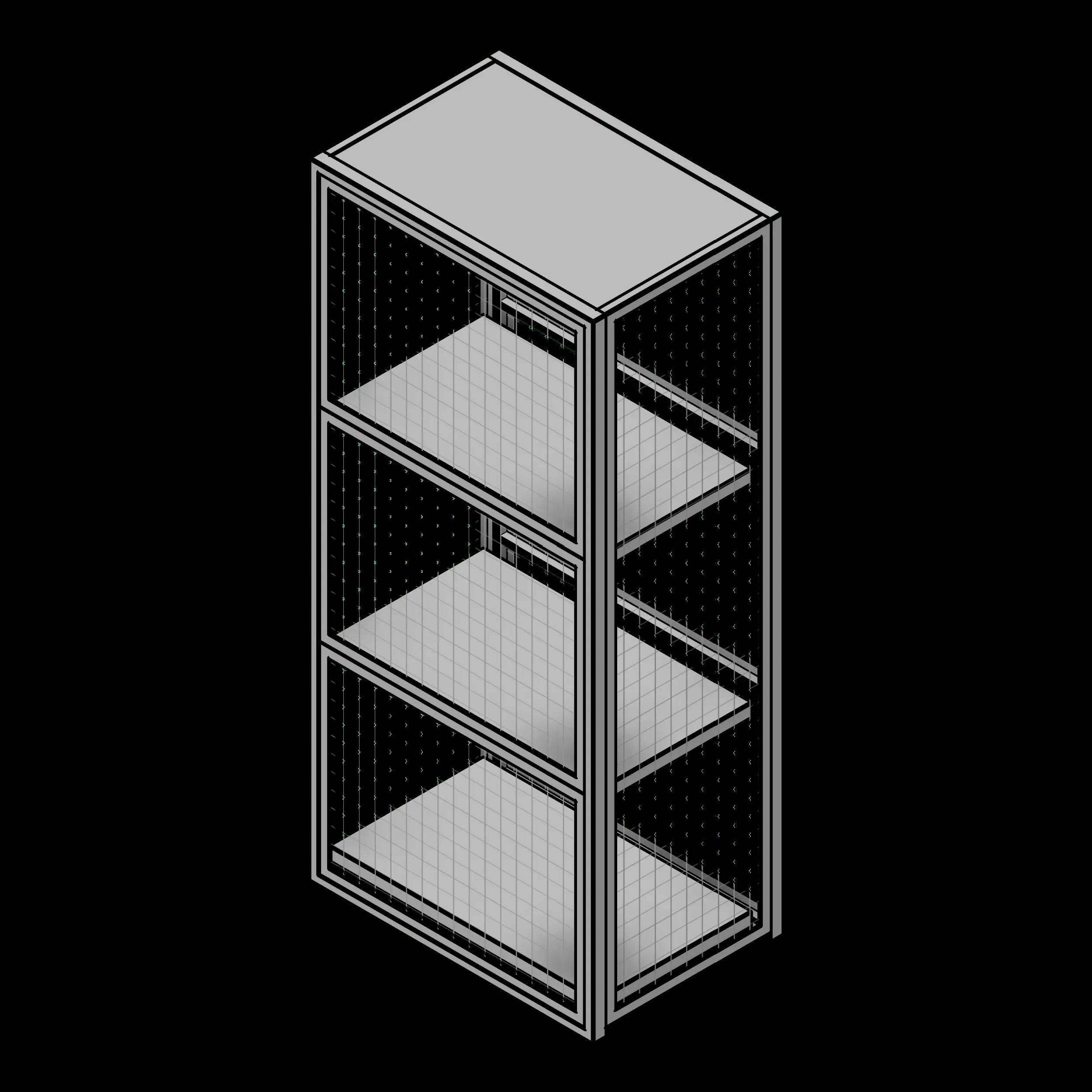

Our free Revit models are packaged with detailed and specific information without the extra requirements needed of a massive file size. These lockers are modular in creation and application, and can be reconfigured as needed. Easy to plan, easy to install, easy to relocate. Available in single, double, and triple-tier units, and can be combined.
| Parameter | Value |
|---|---|
| Standard Widths | 24", 30", 36" |
| Minimum Width | 2' 0" (24") |
| Maximum Width | 3' 0" (36") |
| Standard Depths | 24", 30", 36" |
| Minimum Depth | 2' 0" (24") |
| Maximum Depth | 3' 0" (36") |
| Standard Heights | 79.5" |
| Minimum Height | 6' 7 1/2" (79 1/2") |
| Maximum Height | 6' 7 1/2" (79 1/2") |
| Manufacturer | Southwest Solutions Group_FOL |
| Lead Time | 1-2 Weeks |
| Model | D |
| Keynote | 10 51 43 |
| Assembly Code | E2010 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Omniclass | 23-29 15 15 21 |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
