Description
- Ideal for school settings
- Louvered doors

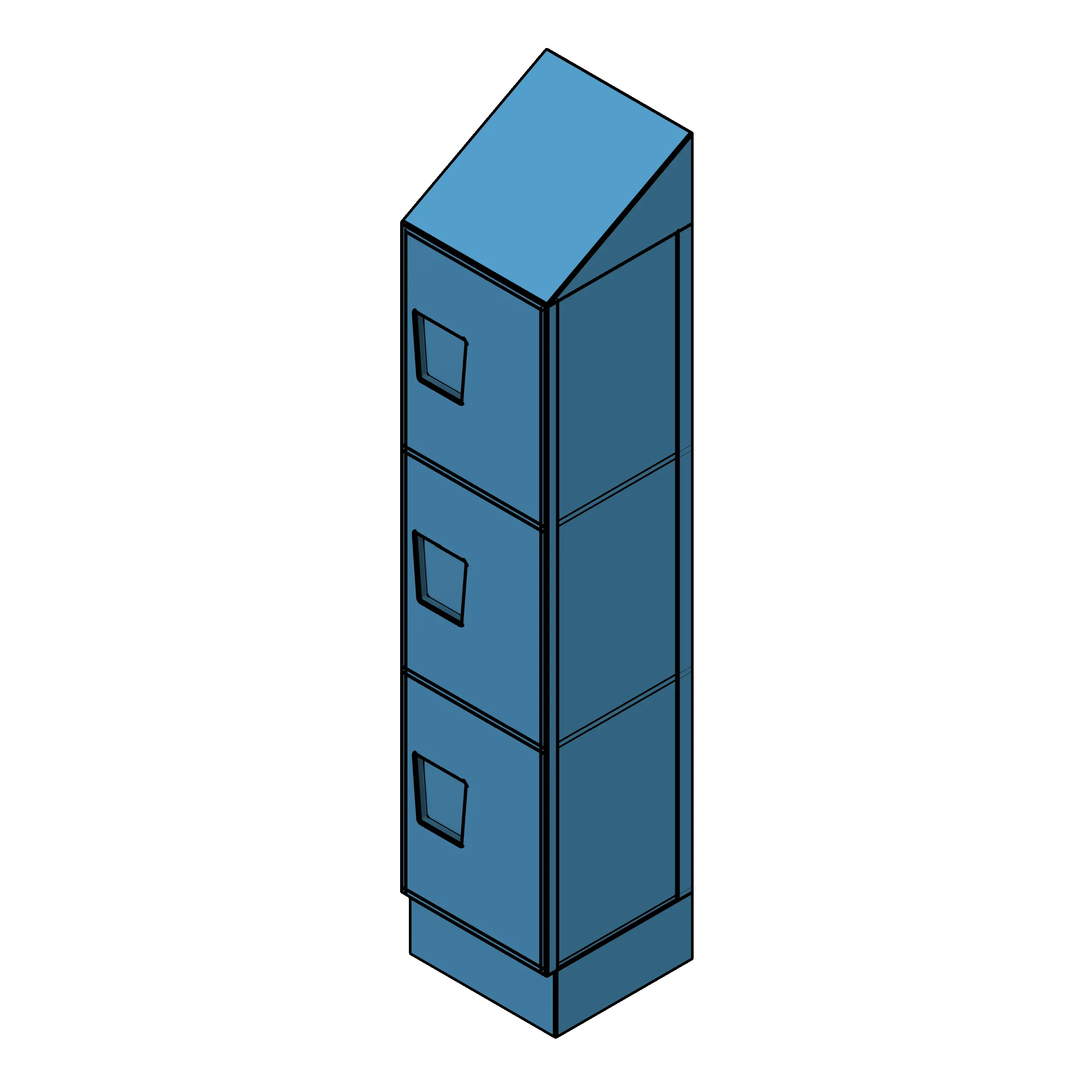

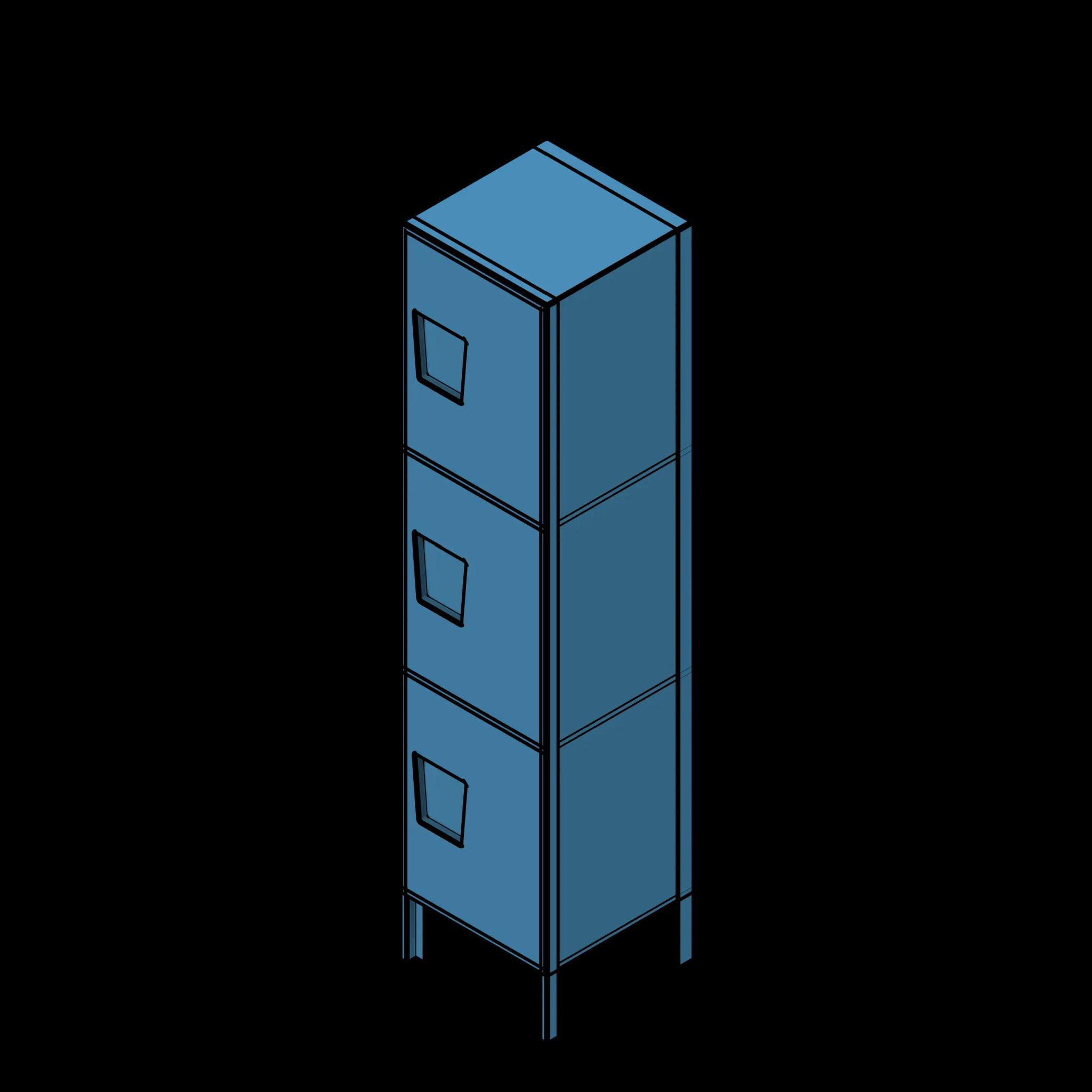

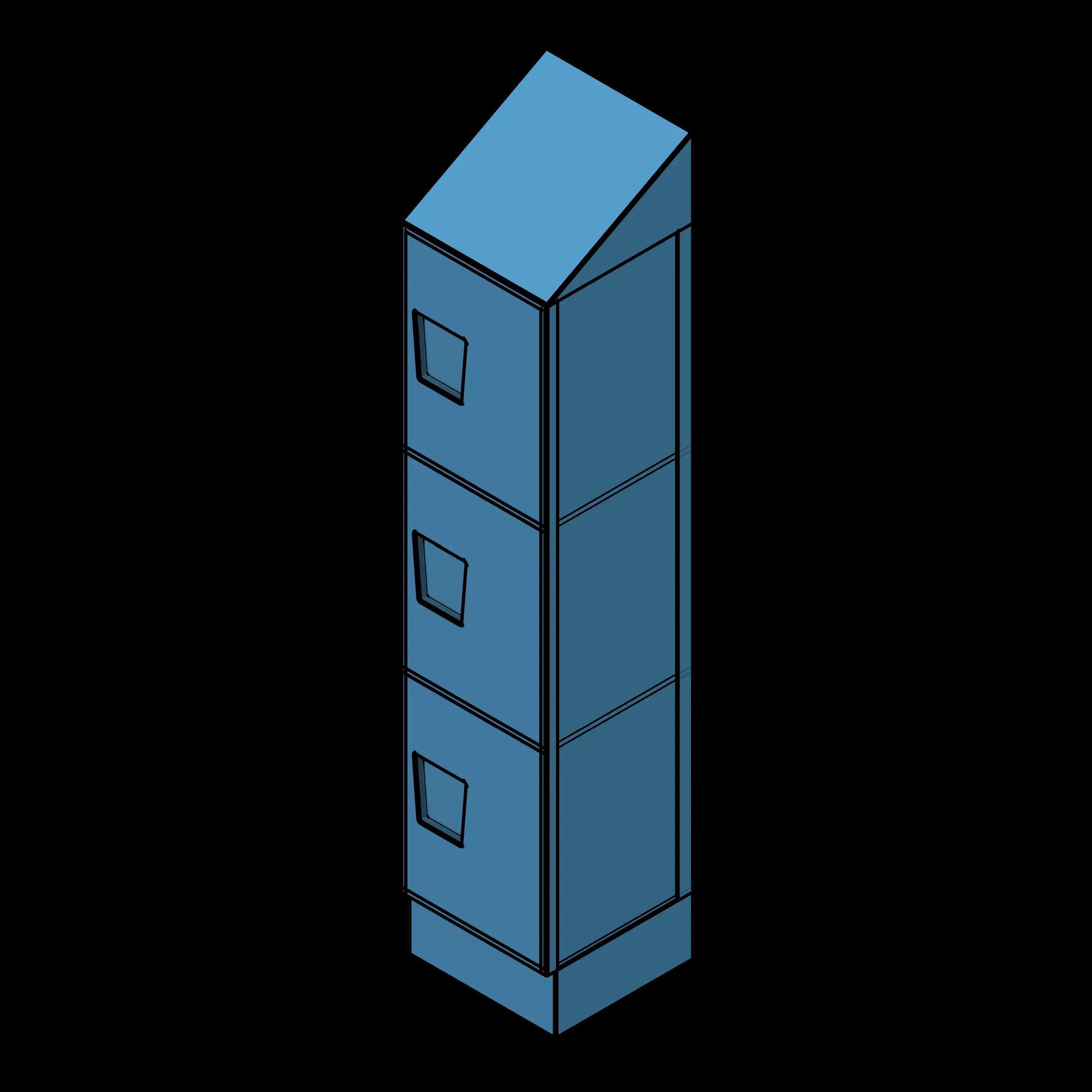

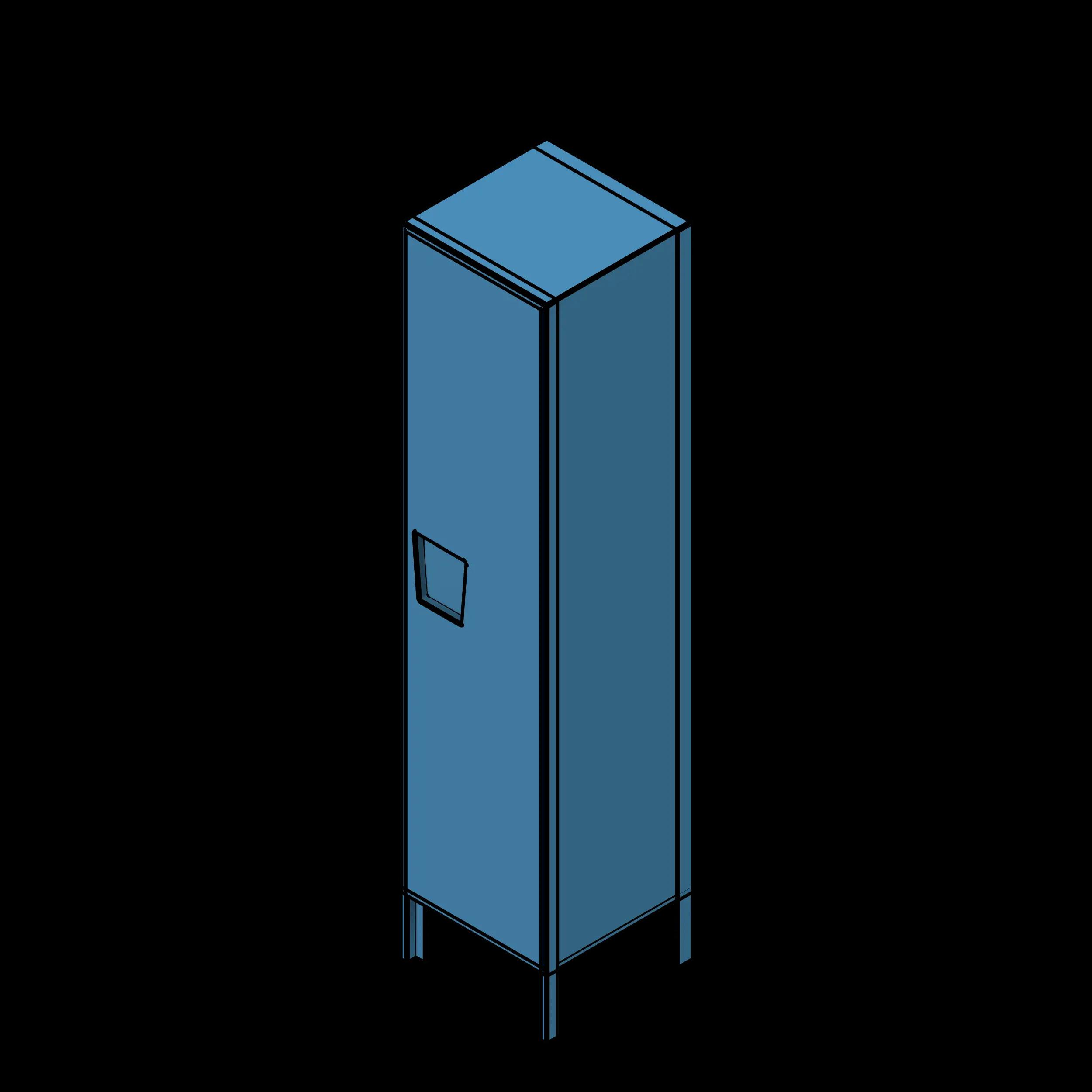

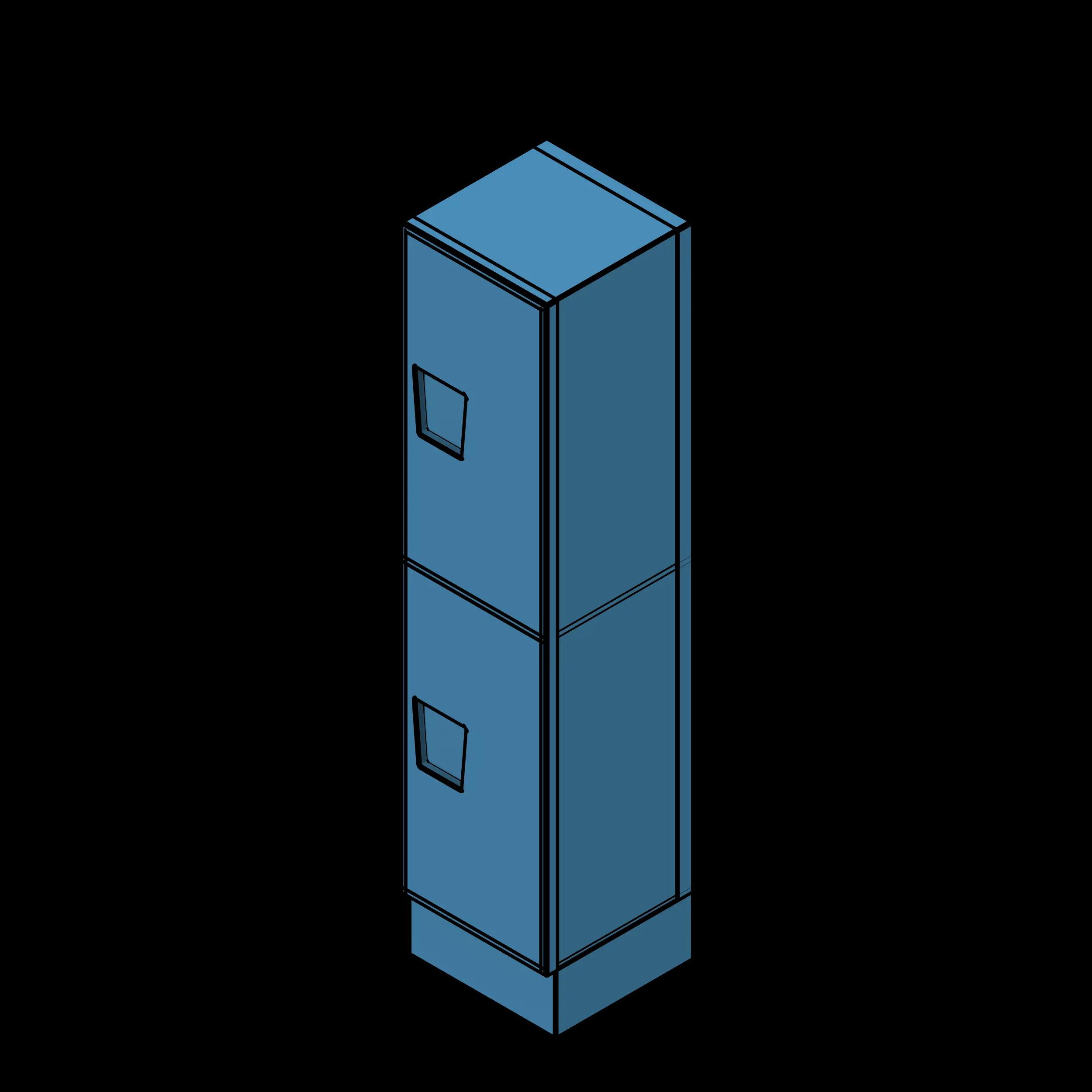

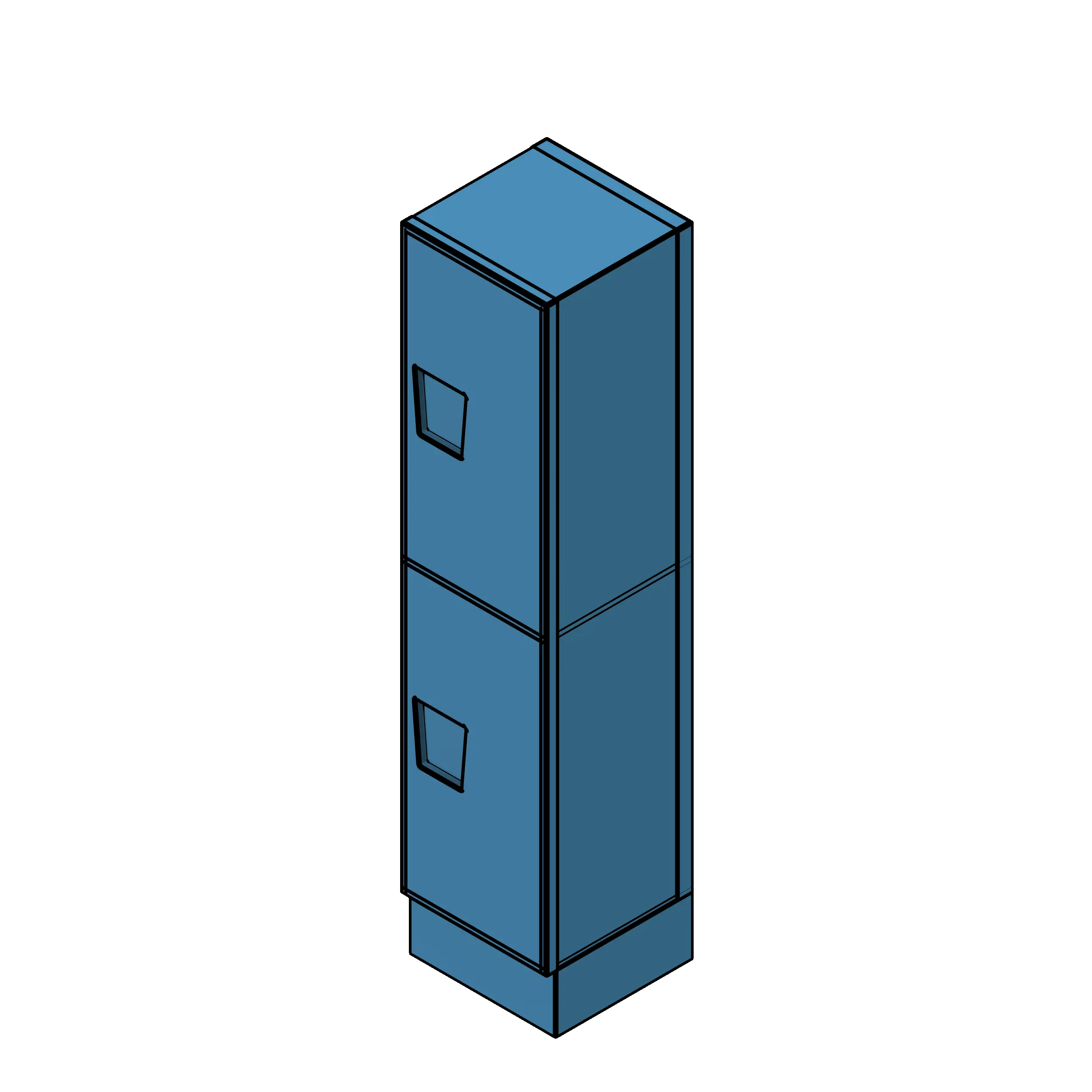

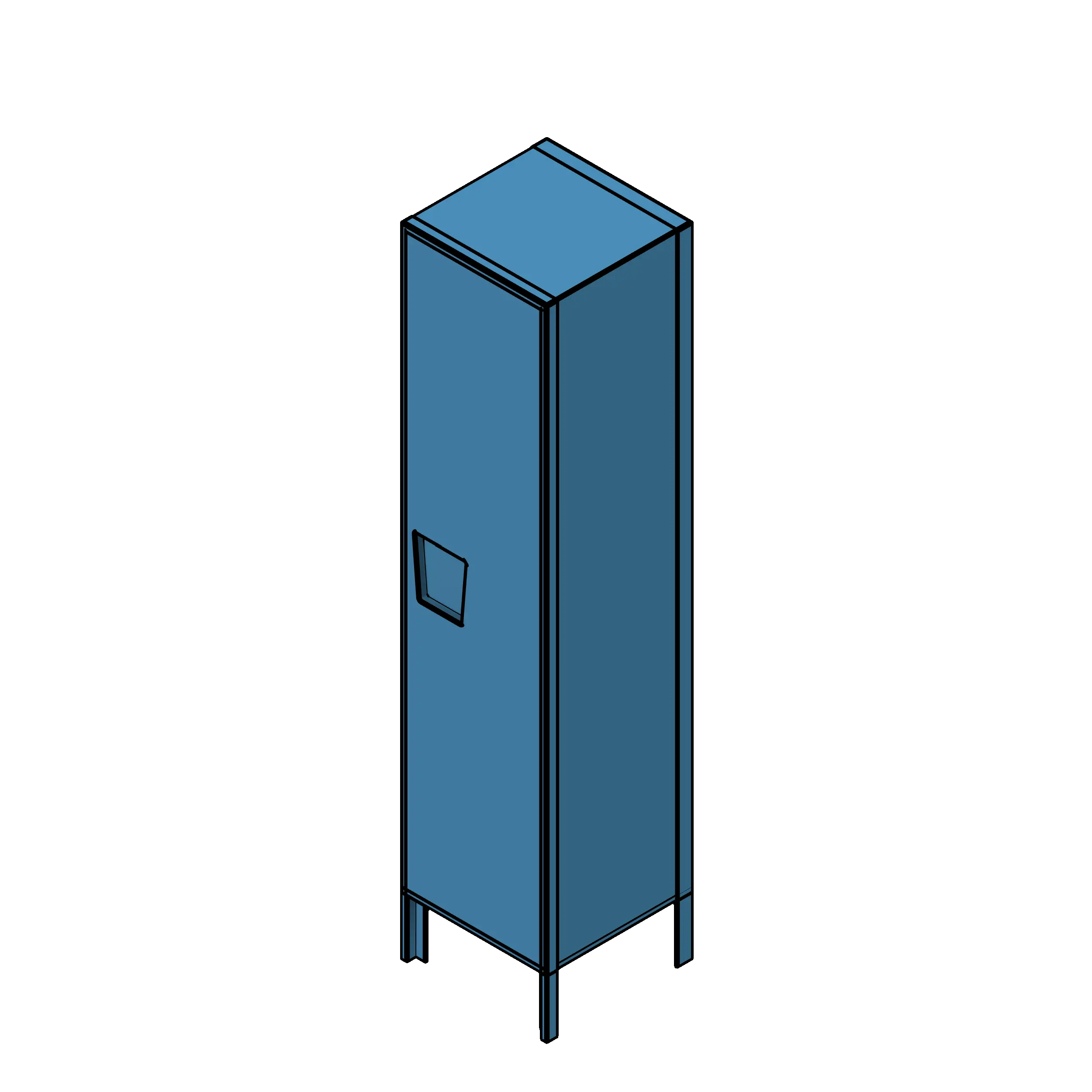

- Single, double, or triple tier
- 16 gauge continuous piano hinge
Revit 2021 (0.78 MB)
Revit 2022 (0.78 MB)
Revit 2023 (0.78 MB)
Revit 2024 (0.78 MB)
Revit 2025 (0.78 MB)
(0.04 MB)
(0.80 MB)
(0.03 MB)
(1.49 MB)
(0.12 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.
Powder coated steel lockers
Our free Revit models are packaged with detailed and specific information without the extra requirements needed of a massive file size. These lockers are modular in creation and application, and can be reconfigured as needed. Easy to plan, easy to install, easy to relocate. Available in single, double, and triple-tier units, and can be combined.
| Parameter | Value |
|---|---|
| Standard Widths | 12", 15", 18" |
| Minimum Width | 1' 0" (12") |
| Maximum Width | 1' 6" (18") |
| Standard Depths | 12", 15", 18", 21", 24" |
| Minimum Depth | 1' 0" (12") |
| Maximum Depth | 2' 0" (24") |
| Standard Heights | 66", 78" |
| Minimum Height | 5' 6" (66") |
| Maximum Height | 6' 6" (78") |
| Manufacturer | Southwest Solutions Group_HAL |
| Lead Time | Ships in 6-7 weeks |
| Model | SMS-39-U |
| Keynote | 10 51 00 |
| Assembly Code | E20 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Systec | Yes |
| Vizient | Yes |
| Equalis | No |
| Sourcewell | No |
| Omnia | No |
| Omniclass | 23-19 13 00 |
| Includes Sustainability | Yes |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
