09' Wide - Option 06 Break Room Revit model group
09' Wide - Option 06 Break Room Revit model group
Updated Jul 31, 2018

09' Wide - Option 06 Break Room

Product SKU

SKU: SSG-BR09-6-L

Downloads

Model group
Pricing
ADA

Description

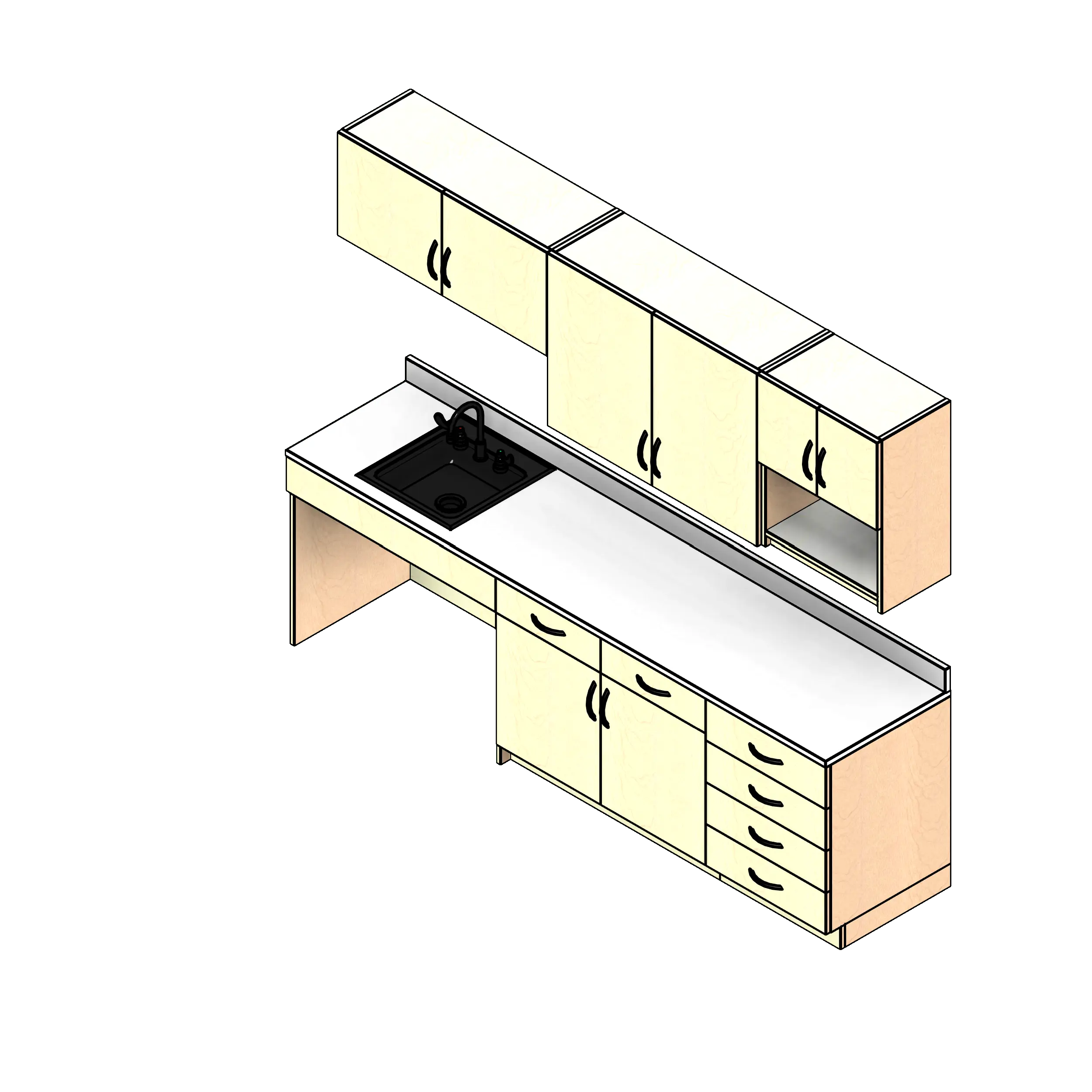

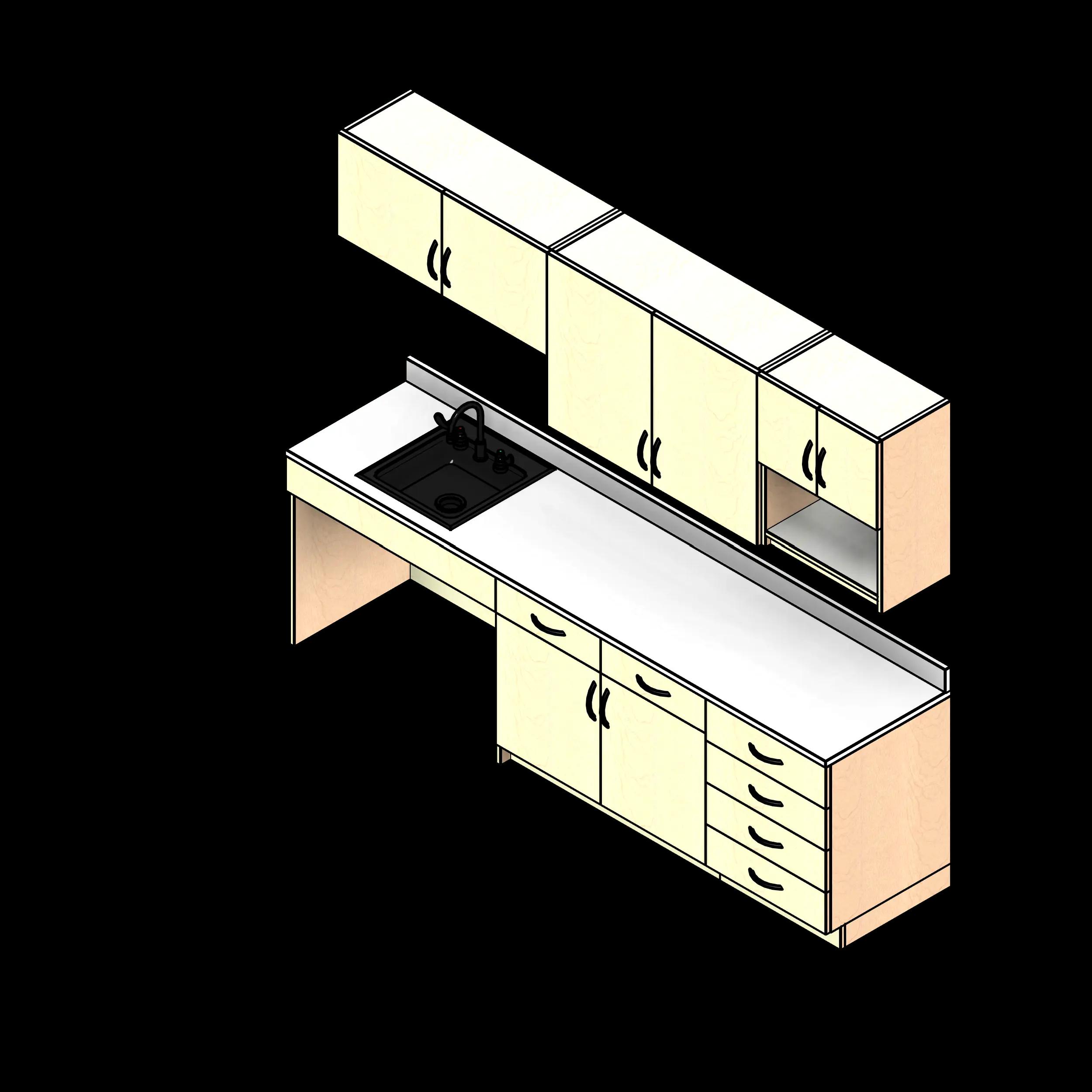

  • Kit is designed to represent one common option used for Break rooms at this Height and Width
  • Kit includes two base cabinets, three upper wall cabinets, one countertop with backsplash, and one sink with faucet.
  • ADA accessible.
  • Appliances are for visual representation only, NOT included in budget price

Questions about this product?

This 9 ft ADA-accessible laminate break room casework kit serves business and education break rooms with two 42 in. two-door wall cabinets, a 24 in. open wall cabinet, a 42 in. two-door, two-drawer base cabinet, and a 24 in. multi-drawer base cabinet. The 108 in. wide, 31 in. deep, and 84 in. high arrangement also includes a 42 in. ADA sink base cabinet, 108 in. laminate countertop, single-bowl stainless steel sink with faucet ledge, backsplash, and deck-mounted chrome plate brass faucet. The combination provides enclosed upper storage, an open wall cabinet for accessible supplies, and dedicated drawer storage alongside the sink. Cabinets use 3/4 in. industrial-grade, double-faced melamine substrate with 2 mm PVC edge banding and concealed cam fasteners. Rail-mounted cabinets support installation, while the 1 1/16 in. high-pressure laminate work surface provides the counter area. Cabinet doors can be specified with locks, and the counter can be equipped with a side splash. Appliances shown are for visual representation only and are not included in the budget price.

Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.

Design

  • Multiple pull options
  • Angled top is optional
  • Counter can be equipped with side splash if necessary
  • Lock options available
Specifications
Dimensions
Width108"
Depth31"
Height84"
Product
Primary MaterialLaminate
Room TypeBreak Room
Classification
IFCFurniture
OmniClass23-21 19 11
Revit family
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsNo
Configurable options
  • Door
  • Handle
  • Kick plate
  • Locks
  • Top of cabinet
  • Angled top
  • Back splash
