· Updated Sep 9, 2026Static Vertical Farming Rack
Product SKU
Description
- Stationary multi-tier grow rack designed for space-efficient vertical cultivation in horticulture facilities
- Configurable from 2 to 12 tiers to accommodate different growing and storage requirements
- Multiple width, depth, and height options support flexible facility layouts
- Ideal for indoor farms, commercial greenhouses, nurseries, and propagation environments
Revit 2023 (1.56 MB)
Revit 2024 (1.56 MB)
Revit 2025 (1.56 MB)
Revit 2026 (1.56 MB)
Revit 2027 (1.56 MB)
Vertical Mobile Grow Rack - Static

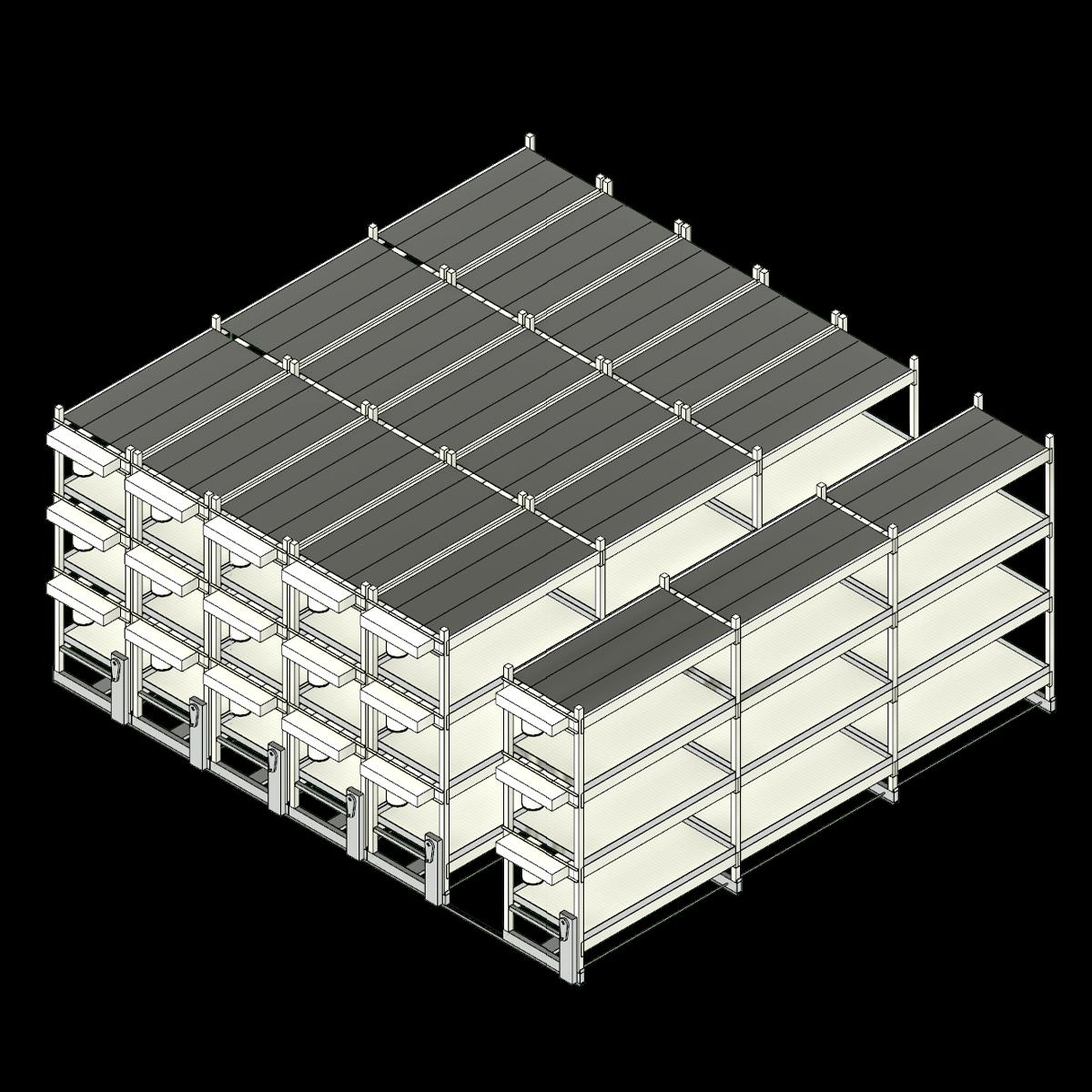

The stationary vertical grow rack is a configurable, multi-tier cultivation system designed to maximize growing capacity and optimize floor space in greenhouses, indoor farms, and horticulture facilities. With adjustable rack dimensions and configurations ranging from 2 to 12 tiers, it provides a flexible solution for vertical growing layouts and efficient facility planning in Revit.
The stationary vertical grow rack Revit family represents a fixed, multi-tier cultivation system designed for organized vertical growing and efficient use of available floor space. The configurable family supports 2 - 12 tiers, standard widths of 48", 96", 120", and 144", depths from 24" to 66", and heights from 6' to 30' in 6" increments. Its stationary design provides a consistent rack layout for indoor farms, commercial greenhouses, nurseries, and propagation facilities. The family allows designers to adjust rack dimensions and tier configurations to accommodate different cultivation layouts, support facility coordination, and visualize growing systems within Revit projects.
| Parameter | Value |
|---|---|
| Minimum Number of Bays | 1 |
| Minimum Number of Tiers | 2 |
| Maximum Number of Tiers | 12 |
| Standard Widths | 48", 96", 120", 144" |
| Minimum Width | 4' 0" (48") |
| Maximum Width | 12' 0" (144") |
| Standard Depths | 24", 30", 36", 42", 48", 54", 60", 66" |
| Minimum Depth | 2' 0" (24") |
| Maximum Depth | 5' 6" (66") |
| Standard Heights | 6'-30' (6" increments) |
| Minimum Height | 6' 0" (72") |
| Maximum Height | 30' 0" (360") |
| Manufacturer | Southwest Solutions Group_CMF |
| Model | SR |
| MasterFormat | 11 93 00 |
| UniFormat | E1090.40 – Horticultural Equipment |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Includes Sustainability | No |
| Primary Material | Galvanized steel |
| IFC | Furniture |
| MasterFormat | 11 93 00 |
| OmniClass | 23.40.70.34 – Agricultural Equipment |
| UniFormat | E1090.40 – Horticultural Equipment |
